Hot Sale Chain Stitch Automatic Mattress Tape Edge Sewing Machine

Share on (60348010112):


Price:RUB 952,570.80 - RUB 1,190,713.50

Quantity:


Product Overview

Description

Product Name

SYWB - QZD  Hot Sale Chain Stitch Automatic Mattress Tape Edge Sewing Machine

Product Description

  The mattress tape edge sewing machine is mainly used for taping edge of mattress cover and soft cushion. It has the following features: the head is fixed but can move up and down to adapt to different height of mattress, the angle of the head is adjustable. With the structure of moving mattress, when working, the conveying belt drives the mattress to proceed, when one side is finished, this mattress machine can turn 90° automatically to start taping the next side. The taping of the corner is finished while turning, when the top four sides are completed, the machine can turn the mattress over for taping the other four sides. Only need one operator and no need the operator to move around or overturn the mattress by hand, high efficiency.

Specifications

Model

SYWB-QZD

Sewing Head Type

Chain Stitch

Sewing Head Lifting Range

0-400mm

Worktable Size

1900×3950×870mm

Sewing Mattress Thickness

60-450mm

Productivity

10-20 pcs/h

Motor Power

4kw

Air Pressure

0.6-1.0Mpa

Power Supply

380V,50HZ (60HZ),3Phase

Machine Weight

1300kg

Machine Overall Size

L3950*W2380*H1650mm

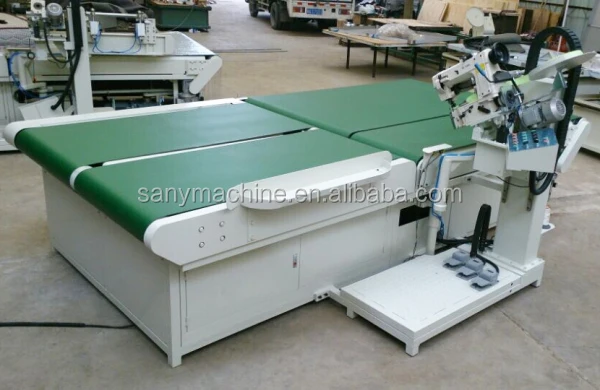

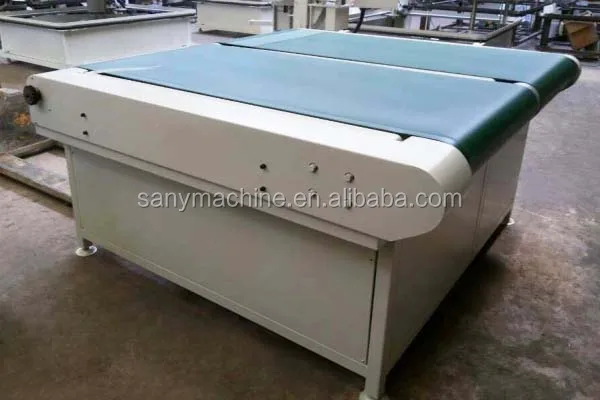

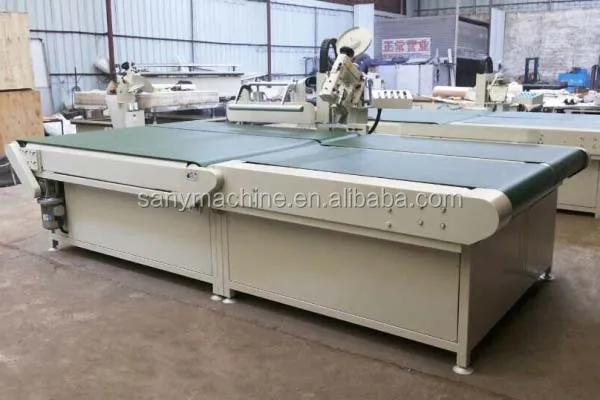

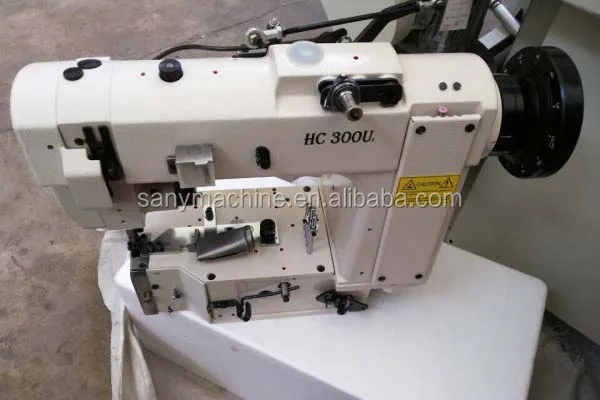

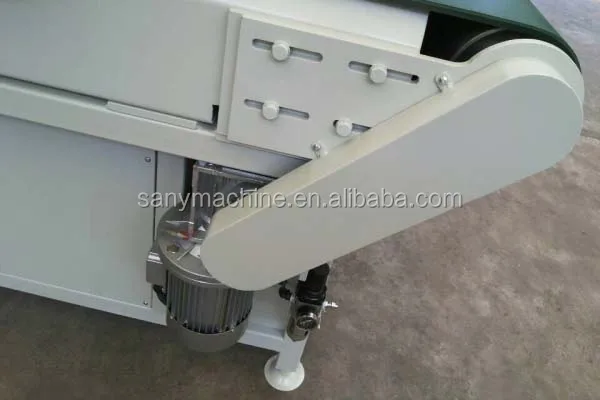

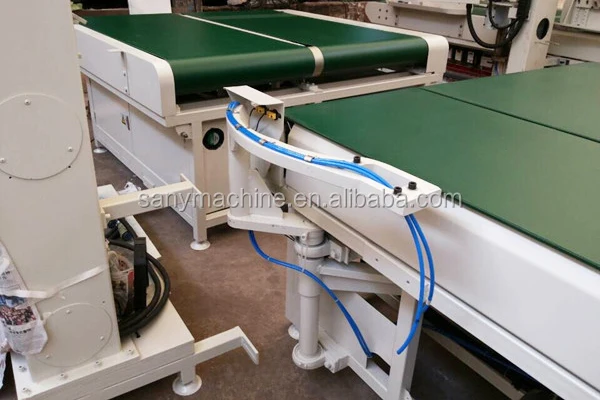

Product Images

SYWB-QZD 1(2)



SYWB-QZD 1(1)



SYWB-QZD 1(5)



SYWB-QZD 1(6)



SYWB-QZD 1(7)



SYWB-QZD 1(4)
