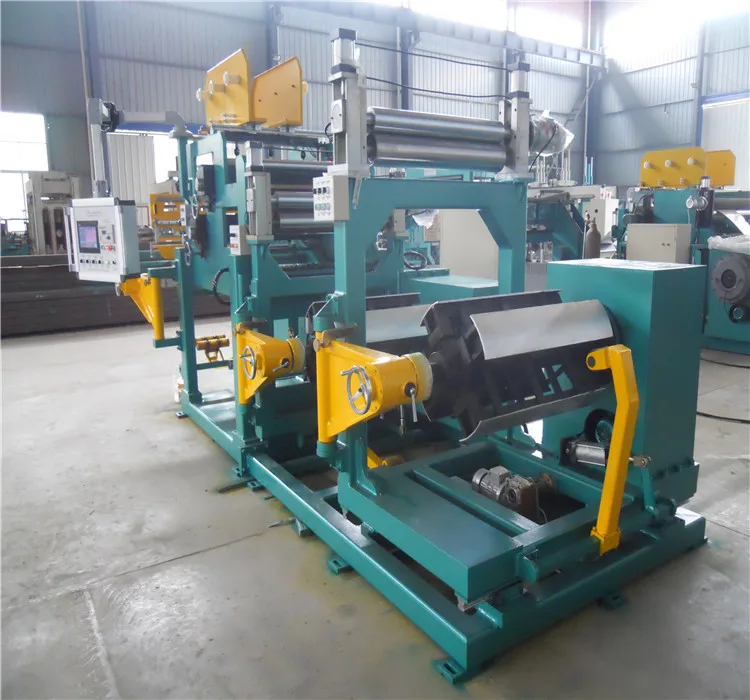

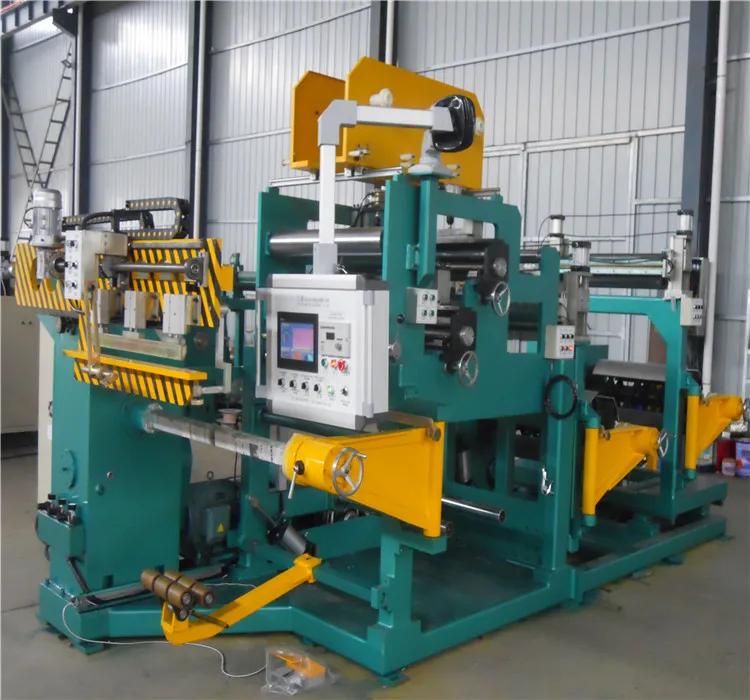

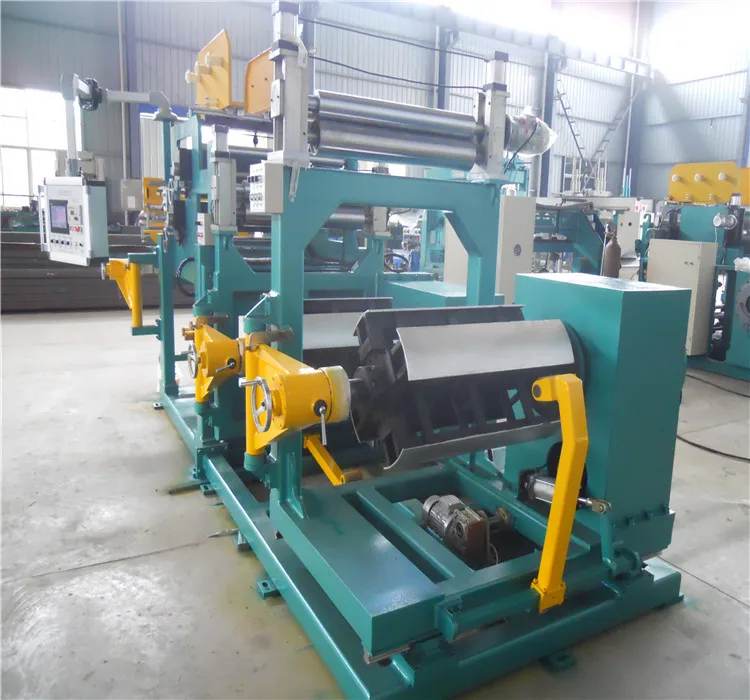

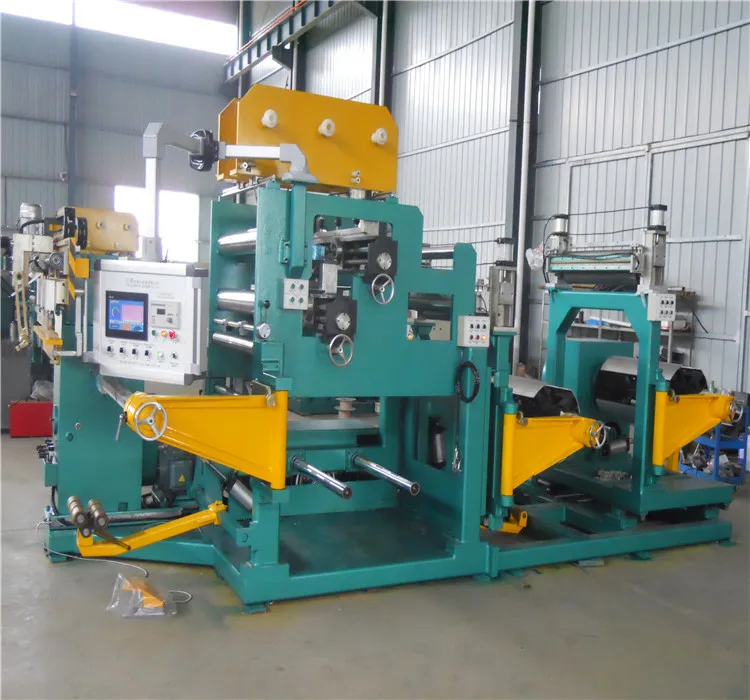

horizontal coil winding machine for small transformer dry type foil winding machine for distribution transformer

1.Usage

CNC foil winding machine is suitable for coil winding of transformer foil winding production, is produced by (copper or aluminum) conductive materials. it uses magnetic clutch line planes and it is counted by encoder, use variable frequency and stepless for speed adjustment, it is easy and simple for operation.

2.Features

The machine has continuing tension during winding, the tension is controlled by control panel, and the tension is kept during winding, backing or stop, which make coil compaction. Line plane has automatic tracking function through high-precision straight-line rail.

3.Components

1. Unwinding and rectification devices

2. Feeding device

3. Layer insulation device

4. Shear device

5. Winding device

6. Welding device

7. Photoelectric edge control device

8. Clean device

9. Presssure device

10. Electric control box

11. Argon tungsten-arc welding

 4.Main technical parameters

Demension:    4400x3250x2100mm

Packing:         Plastic film and wooden case

Shipping:        shenzhen or shanghai, or you designate

Frequently Asked Questions

Q: How long have you been in this field?

A: We have been specialized in producing with one-stop service more than 23 years.

Q: How about your production capacity?

A: About 50 sets per month.

Q: How do you control the quality?

A: All the staff had to receive a rigorous pre-job trainin, all products must be debugged repeatedly and be tested before shipment.

Q: Will you go for installing in custmer's country after sale?

A: Yes, we will. Besides, we will provide training about the machine's operation.

Q: How long is the warranty-period?

A: One year warranty-period and life-long maintenance.

Q: Which port do you export from?

A: Any port in China.

Q: Which information do you need for quotation?

A: The photo or drawing of the products you need to produce.
