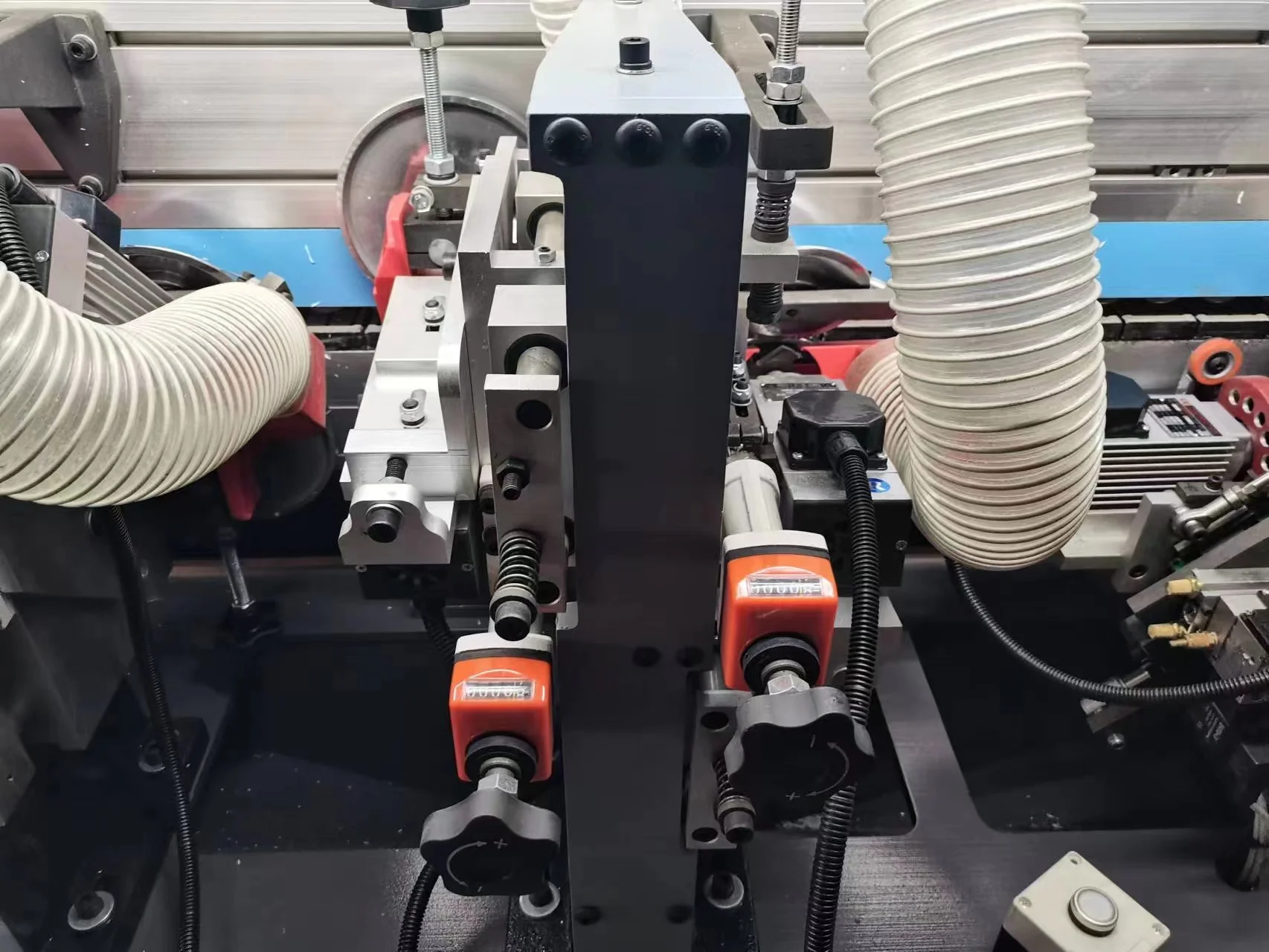

Full 9 Functions Furniture Automatic Pre Milling Slotting Edge Banding Machine
- Category: >>>
- Supplier: Shenyang Baoshan Woodworking Machinery Factory
Share on (60348282142):
Product Overview
Description
Full 9 Functions Furniture Automatic Pre Milling Slotting Edge Banding Machine
This edge banding machine has 9 functions:
1. edge milling
2. gluing
3. end trimming
4. rough trimming
5. fine trimming
6. corner trimming
7. scraping
8. slotting
9. buffing
Specification
Technical specification (MF-1504DS )
Weight of the machine | 2400 Kg |
Working power | 3-HP_380V |
Total power | 15.97 Kw |
Thickness of roller band | 0.4-3.0mm |
Thickness of work piece | 10-50mm |
Min. width of work piece | 120mm |
Min. length of work piece | 150mm |
Feed speed | 12-18m/min |
Work piece interval | 3s-5s |
Warranty | 12 months |
Aerial dimension | 0.5-0.8Mpa |
Overall dimension(L*W*H) | 6300*850*1550 mm |
Certification | ISO9002,Quality Believable Certificate |

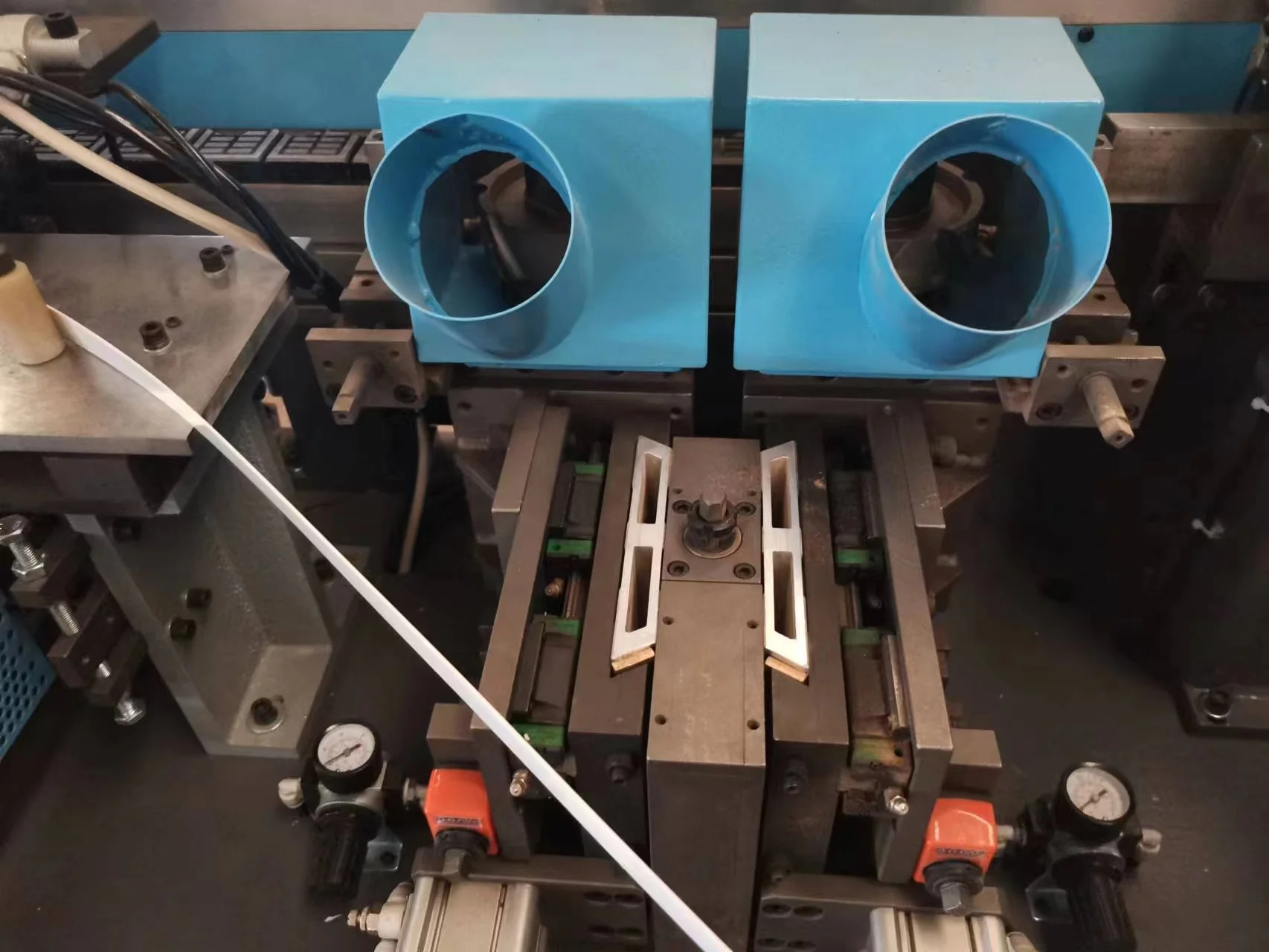

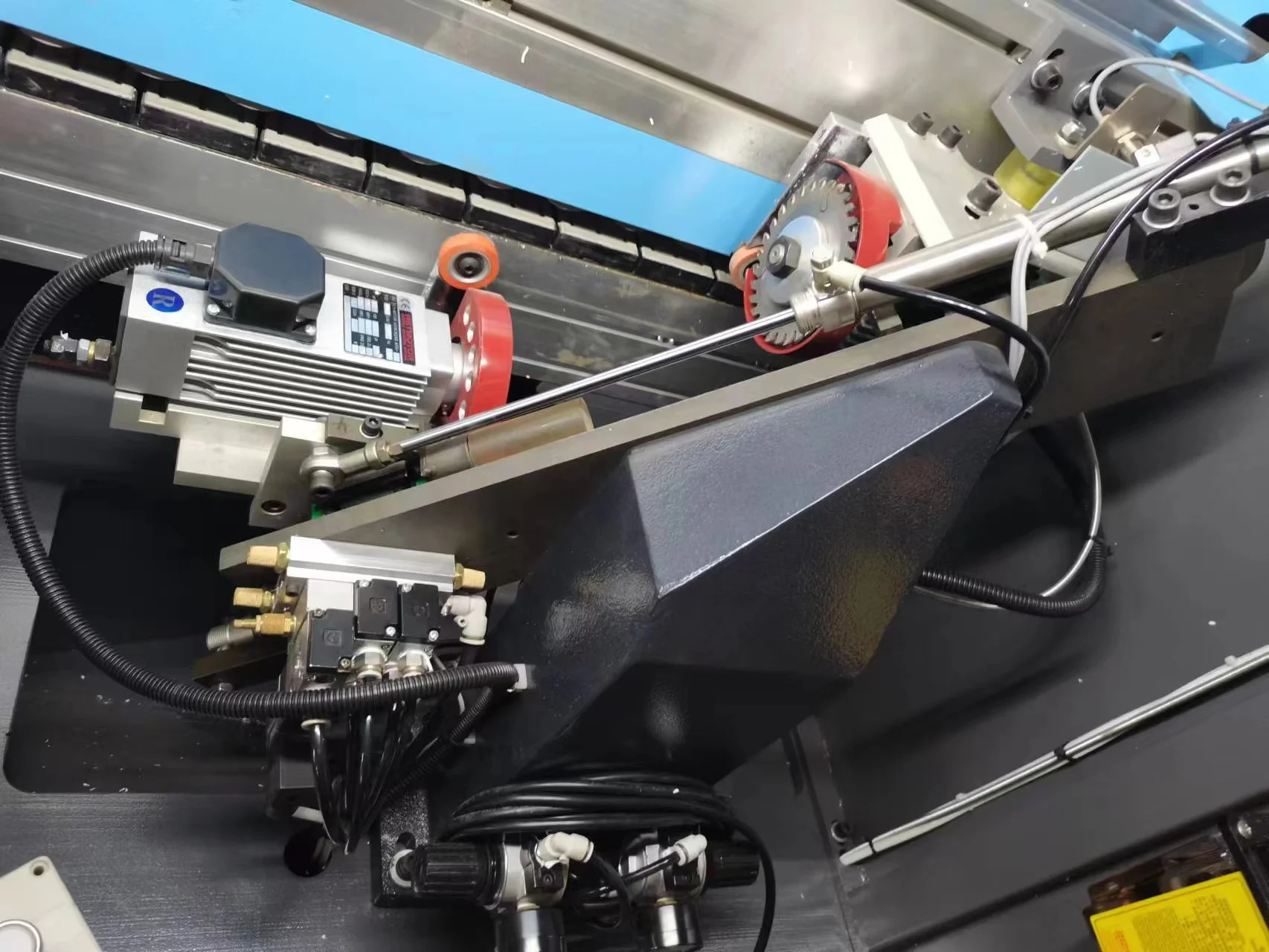

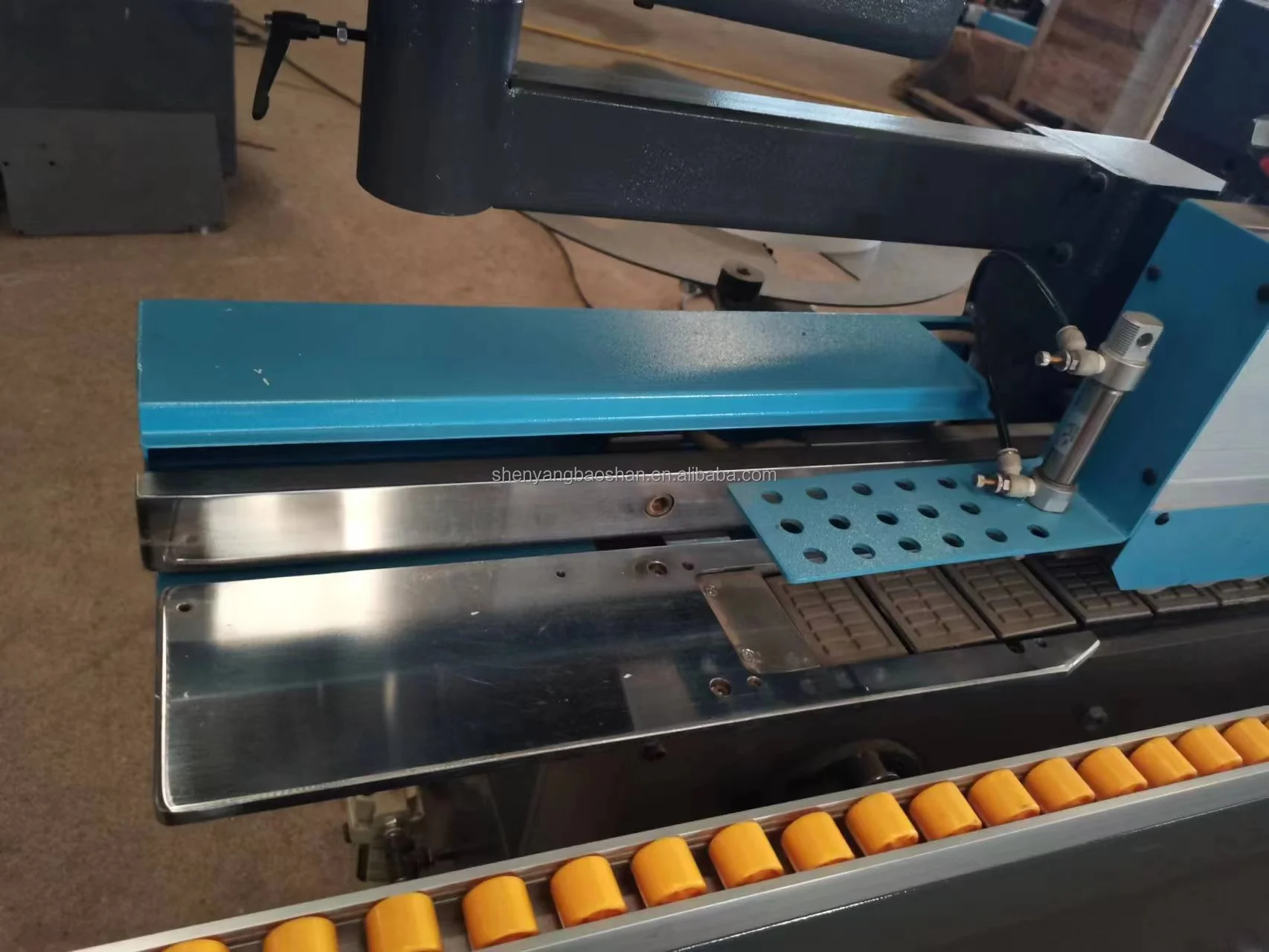

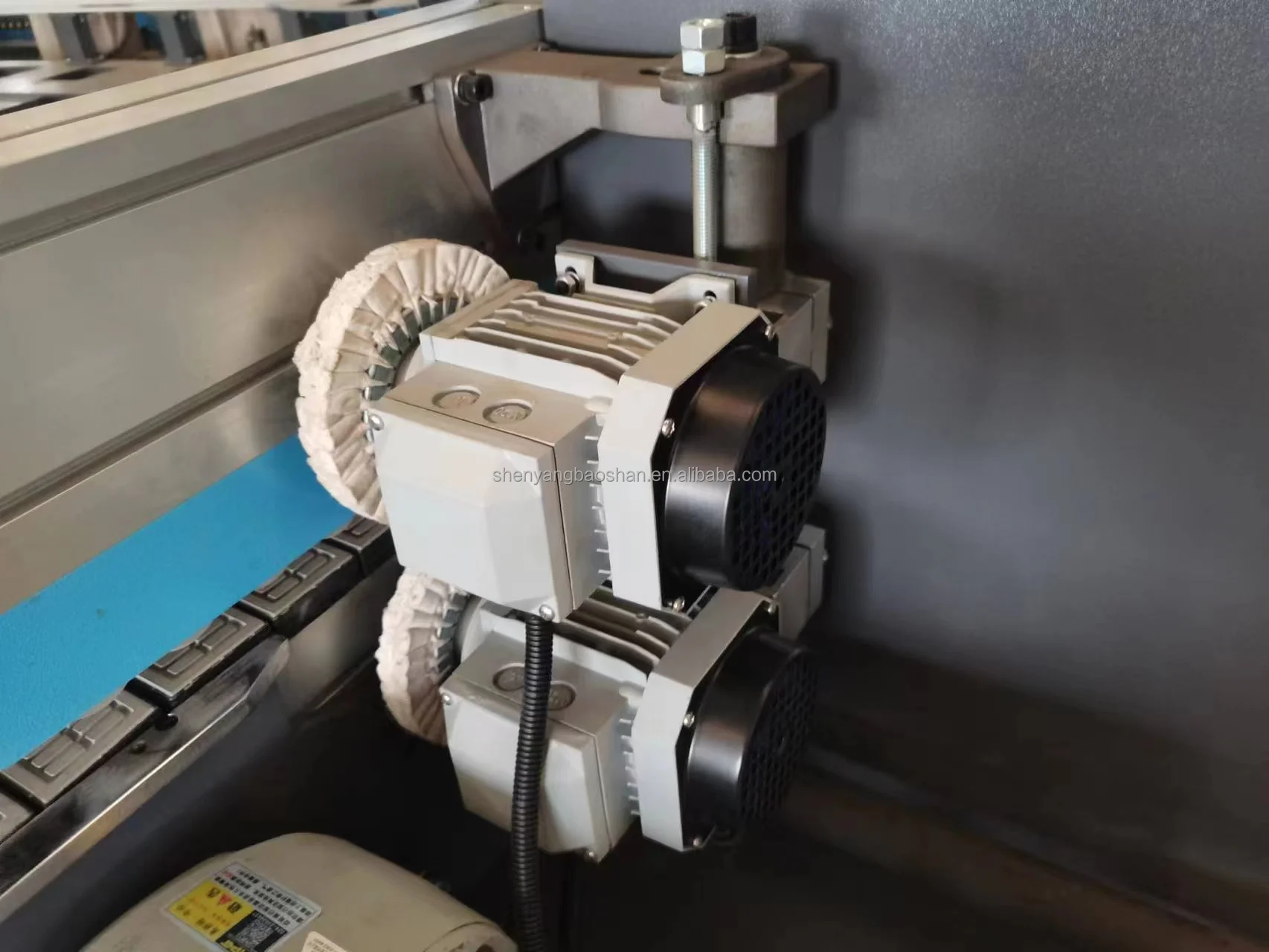

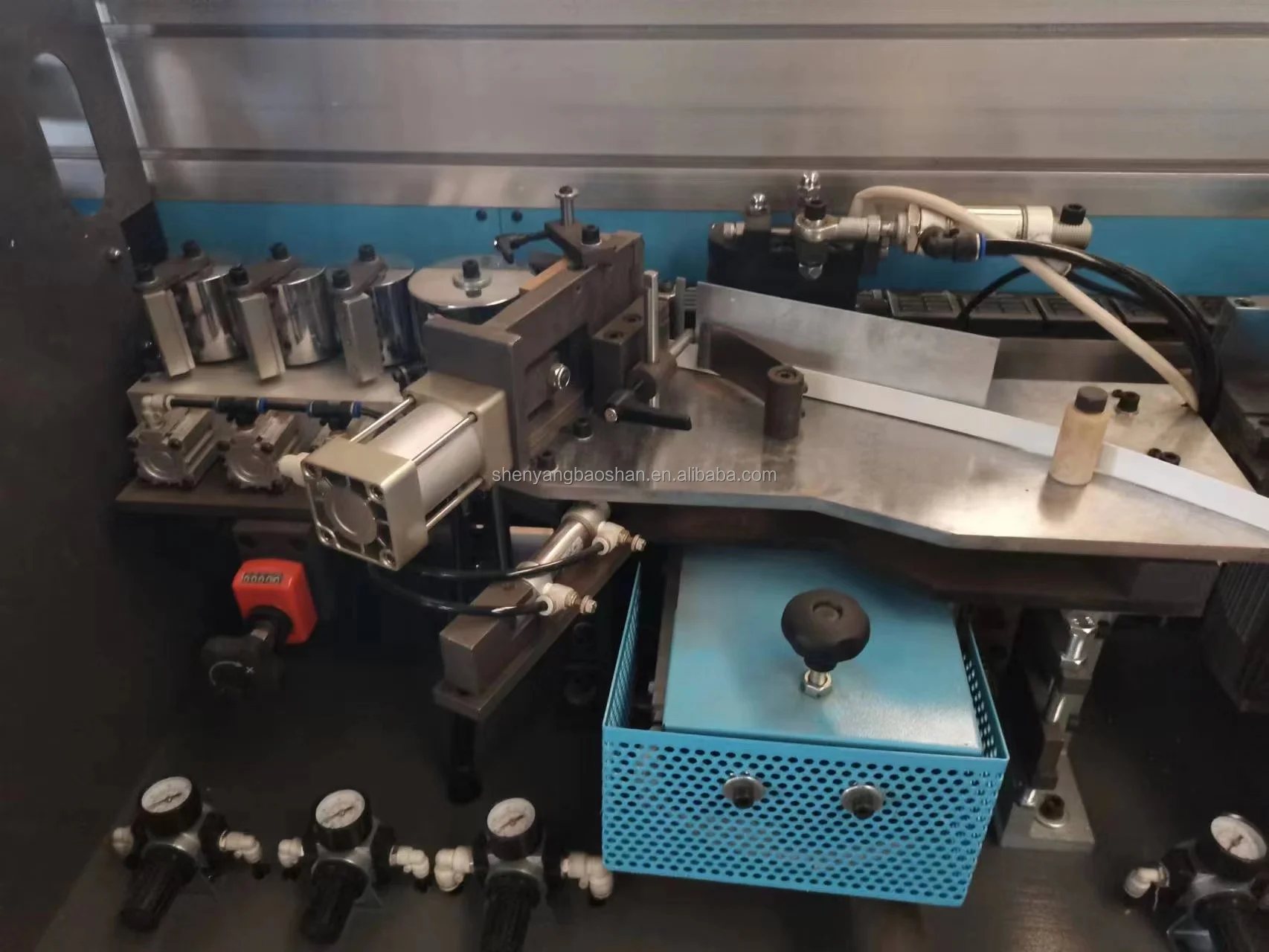

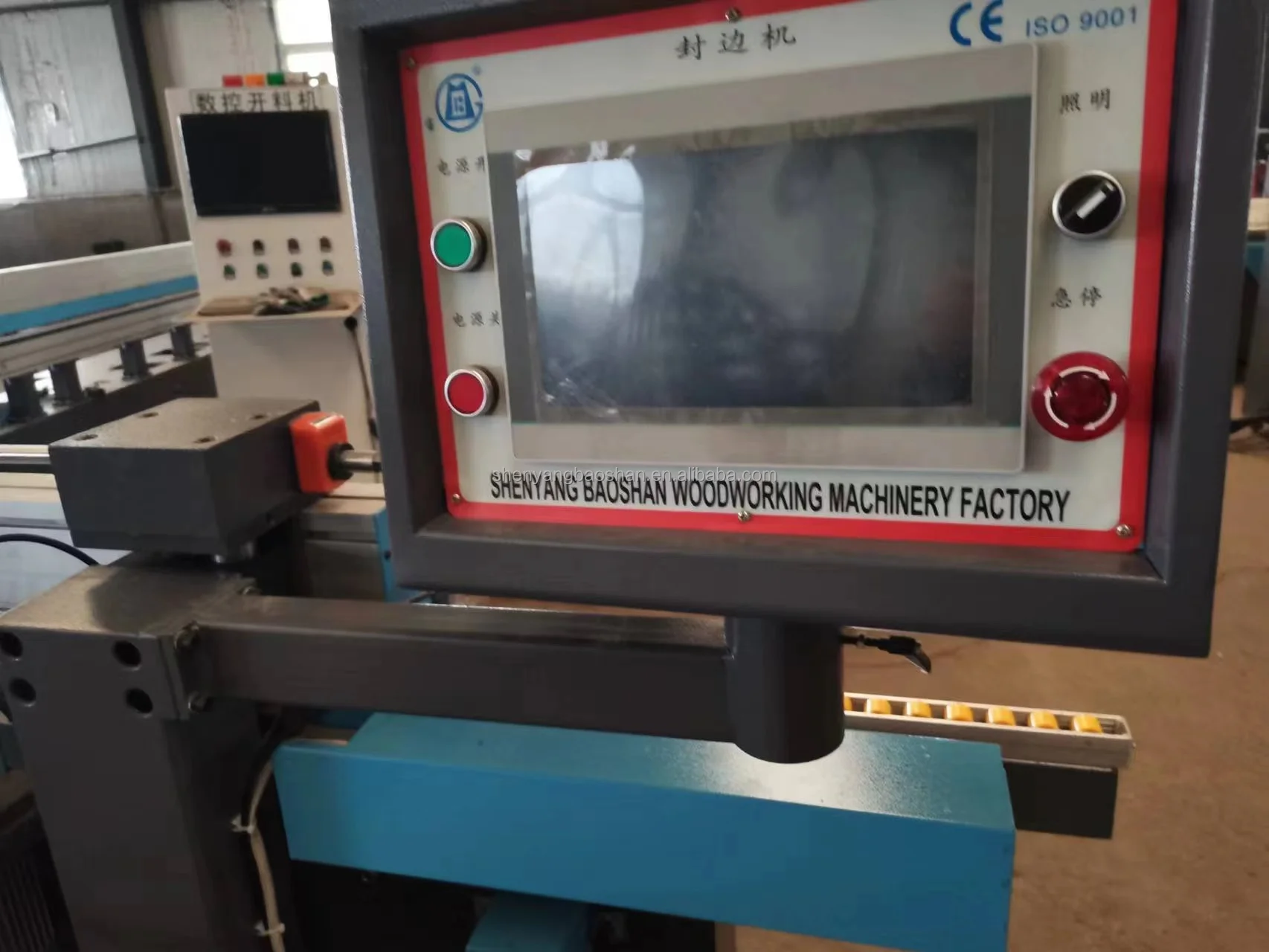

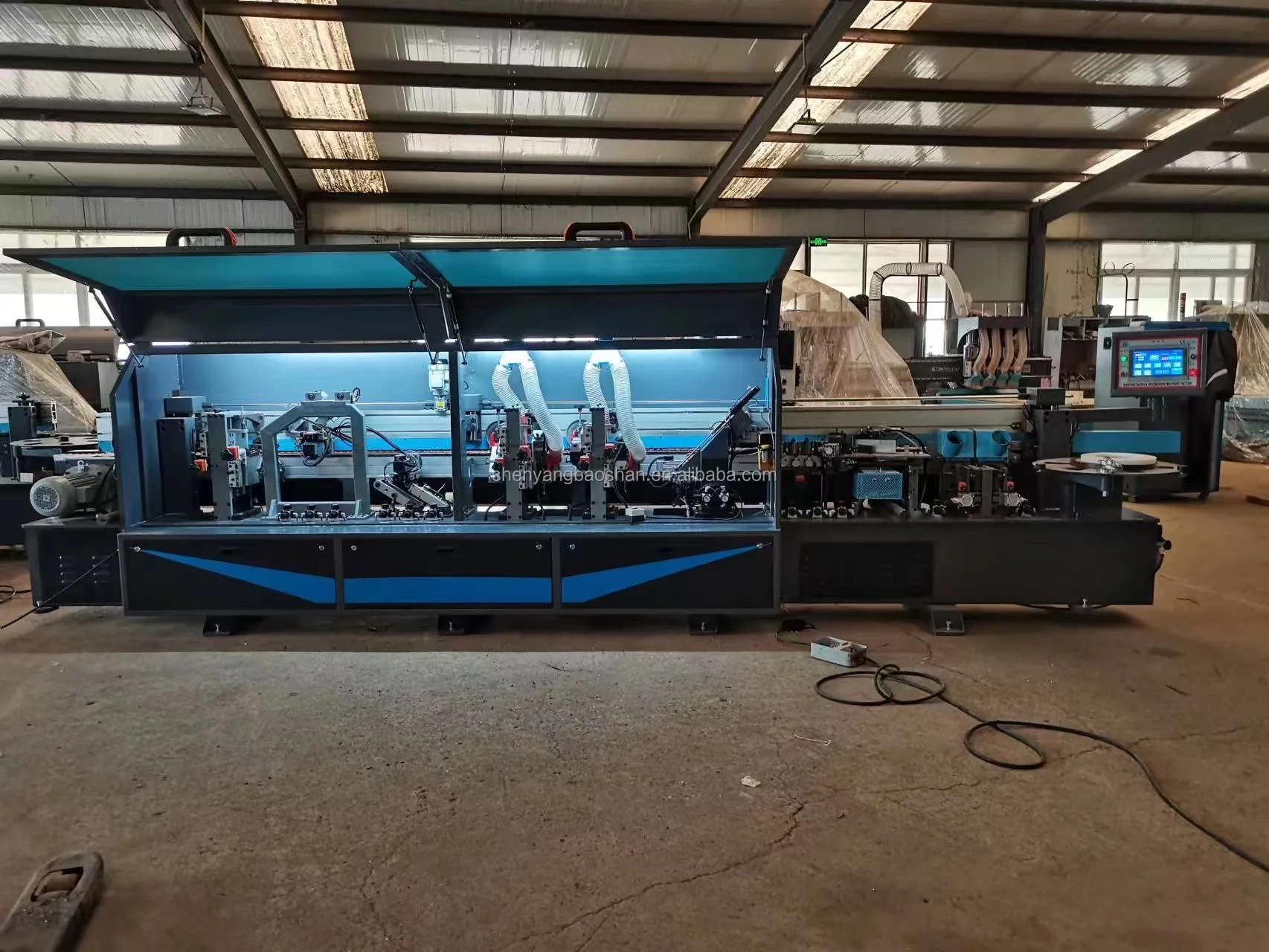

Detail picture
