Product Overview

Description


Company Introduction

Shandong Xingdou is a professional manufacturer and designer of rack and pinion hoist and lift.
SOLUTIONS PROVIDER, TECHNOLOGY PROVIDER, MANUFACTURER !


Builder's hoist, Tower crane mini hoist, industrial lift, mast climbing platform, Mast climb working platform manufacturer.

Shandong Xingdou Equipment, the Company began to develop foreign markets 10 years ago. Since then it has exported to more than 40 countries and regions.


Schneider motor and adjustable speed electric panel 0.5-4T 50-150m building construction lift hoist

Its main products include:
PLC Building Hoist.
Low, medium, and high-speed variable frequency Building Hoist.
Special purpose construction lifts, such as power plant cold water tower construction lifts, mini rack construction lifts for tower crane, and mine construction lifts.
Inclined construction lifts.
Small rack observation lift.
High-level test bed maintenance lift.
Other OEM type rack and pinion vertical lift.

Product description

Schneider motor and adjustable speed electric panel 0.5-4T 50-150m building construction lift hoist

Common PLC control direct speed Building hoist :

\t
Specification
\t
Type
\t
Lifting Capacity
\t
Lifting Speed
\t
Motor Power
\t
Safety Device
\t

Single cage without counter weight
\t
SC100
\t
1000Kg
\t




33m/min
\t
2*11Kw
\t
SAJ 30-1.2
\t
SC150
\t
1500Kg
\t
2×13Kw
\t
SAJ 40-1.2
\t
SC200
\t
2000Kg
\t
3×11Kw
\t
SAJ 40-1.2
\t

Twin cages without counter weight
\t
SC100/100
\t
1000Kg×2EA
\t
2×11Kw×2EA
\t
SAJ 30-1.2
\t
SC150/150
\t
1500Kg×2EA
\t
2×13Kw×2EA
\t
SAJ 40-1.2
\t
SC200/200
\t
2000Kg×2EA
\t
3×11Kw×2EA
\t
SAJ 40-1.2
Low speed inverter control building hoist :
\t
Specification
\t
Type
\t
Lifting Capacity
\t
Lifting Speed
\t
Motor Power
\t
VFD
\t
Safety Device
\t


Single cage without counter weight
\t
SC100L
\t
1000Kg
\t
0~33m/min    0~40m/min
\t
2×11Kw
\t
30Kw
\t
SAJ 30-1.2
\t
SC150L
\t
1500Kg
\t
0~36m/min     0~46m/min
\t
2×13Kw 2×15Kw
\t
30Kw   37Kw
\t
SAJ 40-1.2
\t
SC200L
\t
2000Kg
\t
0~40m/min     0~46m/min
\t
2×15Kw 3×11Kw
\t
37Kw
\t
SAJ 40-1.2
\t

Twin cages without counter weight
\t
SC100/100L
\t
1000Kg×2EA
\t
0~40m/min
\t
2×11Kw×2EA
\t
30Kw×2EA
\t
SAJ 30-1.2
\t
SC150/150L
\t
1500Kg×2EA
\t
0~36m/min 0~46m/min
\t
2×13Kw×2EA2×15Kw×2EA
\t
30Kw×2EA37Kw×2EA
\t
SAJ 40-1.2
\t
SC200/200L
\t
2000Kg×2EA
\t
0~40m/min 0~46m/min
\t
2×15Kw×2EA2×11Kw×2EA
\t
37Kw×2EA
\t
SAJ 40-1.2

Mediaum speed inverter control building hoist:

\t
Specification
\t
Type
\t
Lifting Capacity
\t
Lifiting Speed
\t
Motor Power
\t
VFD
\t
Safety device
\t
Single cage without counter weight
\t
SC 100 M
\t
1000Kg
\t
0~60m/min
\t
3×13Kw
\t
45Kw
\t
SAJ 30-1.4
\t
SC 150 M
\t
1500Kg
\t
0~63m/min    0~60m/min
\t
3×15Kw 2x19Kw(87Hz)
\t
45Kw 55Kw
\t
SAJ 40-1.4
\t
SC 200 M
\t
2000Kg
\t
0~60m/min   0~63m/min   0~70m/min      0~75m/min
\t
2×23Kw(87Hz) 3×15Kw   3×19Kw(87Hz) 3×23Kw(87Hz)
\t
55Kw 55Kw 75Kw 75Kw
\t
SAJ 40-1.4   SAJ50-1.6 SAJ50-1.6 SAJ50-1.6
\t
Twin cages without counter weight
\t
SC 100/100 M
\t
1000Kg×2EA
\t
0~60m/min
\t
3×13Kw×2EA
\t
45Kw
\t
SAJ 30-1.4
\t
SC 150/150 M
\t
1500Kg×2EA
\t
0~63m/min   0~60m/min
\t
3×15Kw×2EA 2x19Kwx2EA
\t
45Kw 55Kw
\t
SAJ 40-1.4
\t
SC 200/200 M
\t
2000Kg×2EA
\t
0~60m/min    0~63m/min  0~70m/min  0~75m/min
\t
2×23Kw×2EA(87Hz)3×15Kw×2EA 3×19Kw×2EA(87Hz)3×23Kw×2EA(87Hz)
\t
55Kw 55Kw 75Kw 75Kw
\t
SAJ 40-1.4 SAJ50-1.6 SAJ50-1.6 SAJ50-2.0

Hight speed inverter control building hoist:

\t
Specification
\t
Type
\t
Lifting Capacity
\t
Lifiting Speed
\t
Motor Power
\t
VFD
\t
Safety device
\t
Single cage without counter weight
\t
SC 200 H
\t
2000Kg
\t
0~80m/min  0~96m/min
\t
3×26(87Hz)     3×18.5(87Hz)
\t
 90Kw  110Kw
\t
SAJ 50-2.0
\t
Twin cage without counter weight
\t
SC 200/200 H
\t
2000Kg×2EA
\t
0~80m/min 0~96m/min
\t
2×3×26(87Hz) 2×3×18.5(87Hz)
\t
90Kw×2EA 110Kw×2EA
\t
SAJ 50-2.0

Remarks:
1. The above data 87Hz means VFD motor.
2. Frequency Inverter (VFD) Schneider, Siemens, Yaskawa or Chinese domestic high quality brandcan be chosen by customer.
3. All the technical datas will be changed following with our innovation. Before placing an order,Please contact us for final confirmation.

1.Standard cage inner size: 3200×1500×2200mm, 3200×1500×2400mm or OEM as real situation (L×B×H)

2.Cage Length can be OEM: 1000~4500 mm
3.Mast section size: 650×650mm
4.Maximum Lifting Height: 400m
5.Power Source: 200V~380V~480V,50Hz/ 60Hz

Builder's hoist/ building hoist

The Cabin&Cage, Mast Section, wall tie and all other parts, we can do OEM for customers, and we can make the proper solution according to customer building situation

Industrial Lift


OEM as customer site situation or customer detailed requirement


Mini hoist for Tower crane operators


OEM as customer's tower crane mast section and site situation.


Materials hoist

Supply safety and stable working performance materials hoist

Mast climber, Mast climbing platform

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

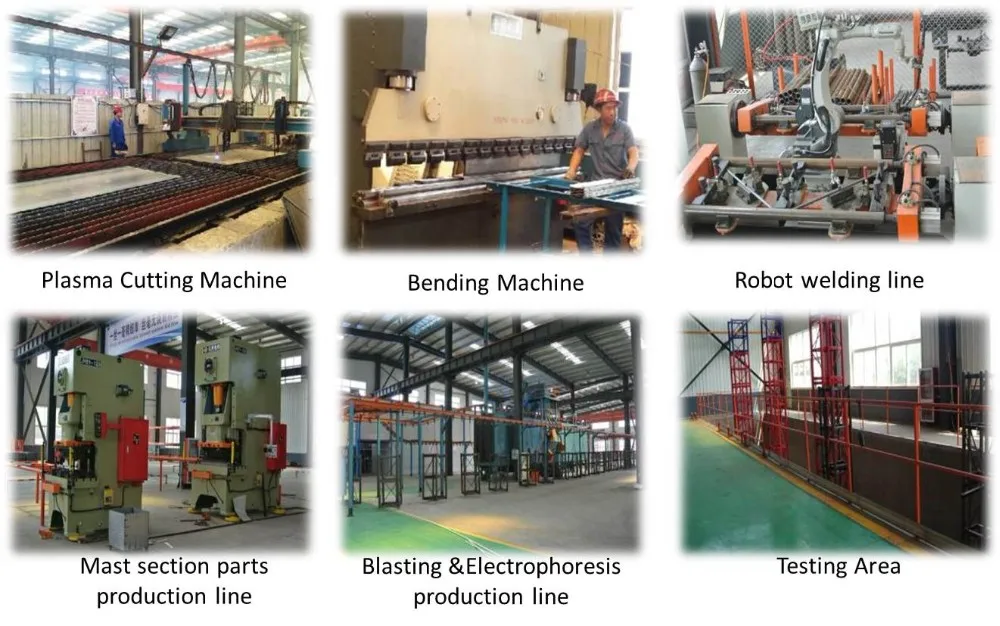

Maker technology

Proffessional Manufacturer of Schneider motor and adjustable speed electric panel 0.5-4T 50-150m building construction lift hoist.

1. -All Production Line adopt special fixture, mould, gauge made by us to ensure all detailed size.
2.- Select high quality raw material from China Bao Steel Group, other like motors ,reducers, gearbox, safety device with low noise, electrics is schneider or Korea repute brand with reliable quality
3.- Special design,compact and reasonable structure,easy to installation and adjustment.
4.- Each equipment should be test and make record in Factory, all details will be adjust like motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section erection test to ensure the completed equipment run well when take into use.
