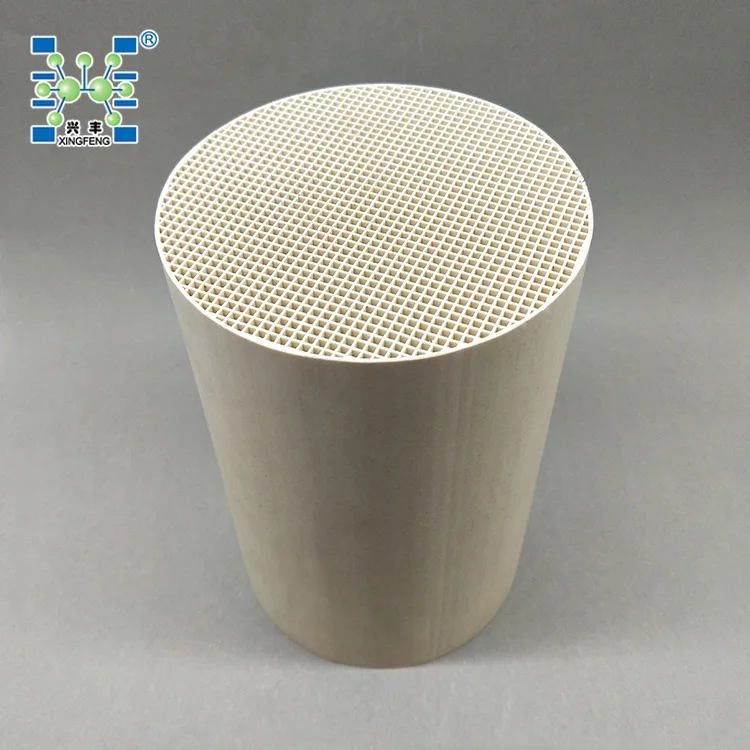

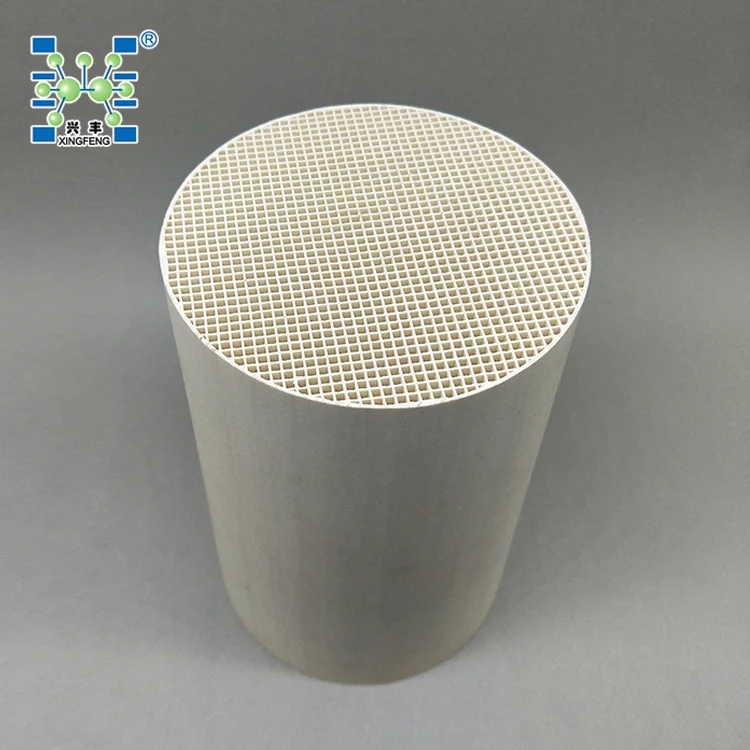

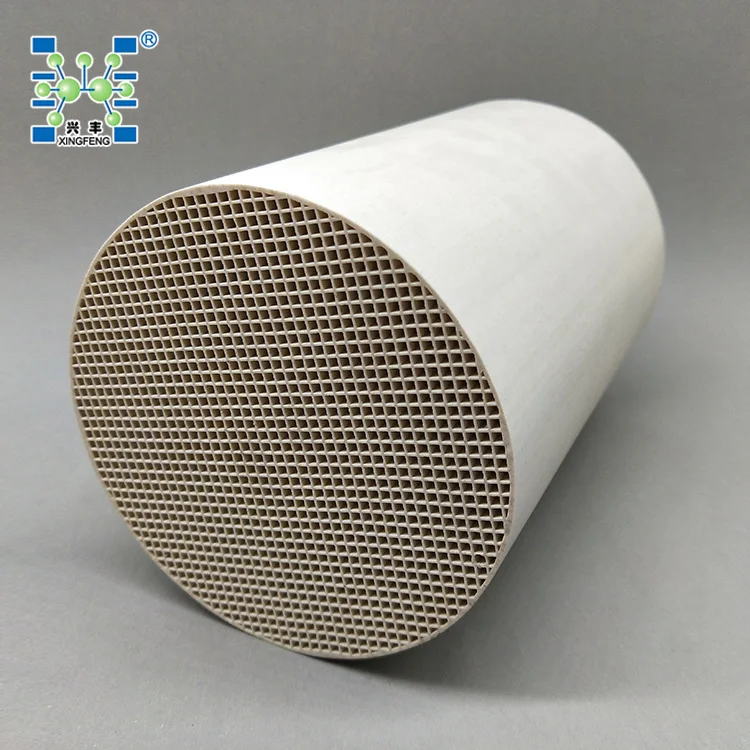

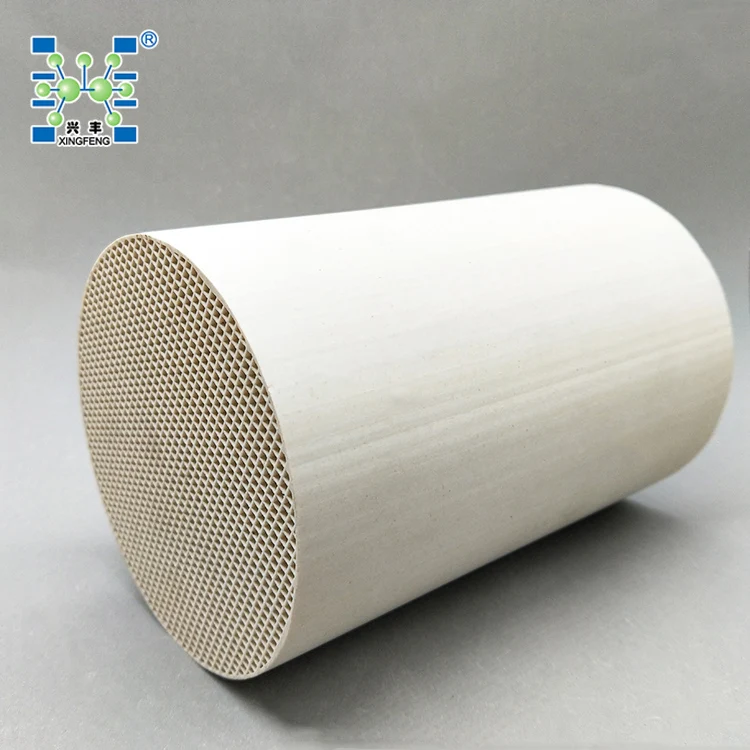

Honeycomb ceramic catalyst carrier Diameter: 120mm, Length: 180mm
- Category: >>>
- Supplier: Pingxiang Xingfeng Chemical Packing Co. Ltd.
Share on (60348973949):
Product Overview
Description
You are here: Home>>Product Categories>>Honeycomb Ceramic>>Alumina, Dense Alumina, Cordierite, Dense Cordierite, Mullite, Corundum Mullite Honeycomb ceramic regenerator
Alumina, Dense Alumina, Cordierite, Dense Cordierite, Mullite, Corundum Mullite Honeycomb ceramic regenerator
Product Description
Honeycomb ceramic regenerator

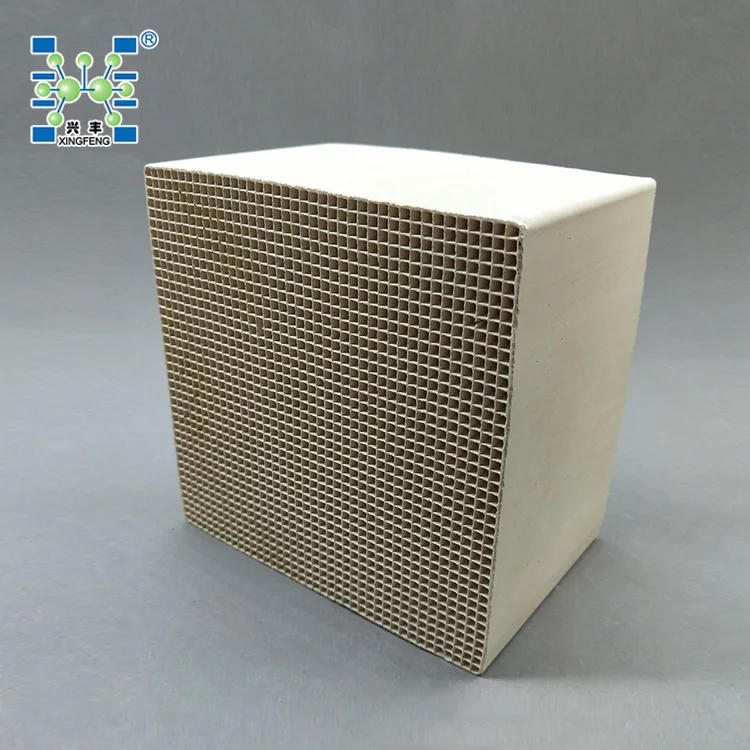

Honeycomb ceramic regenerators enhance efficiency, save energy, increase output and improve quality, an important and effective measure when dealing with energy and the environment. They`re applied on thermal equipment for energy saving within industry. The pores of the Honeycomb ceramic regenerators are square and hexagonal, and the channels of pores are straight and parallel to each other. This structure reduces the resistance of passing air and enhances the heat exchange efficiency of every channel.
Functions:
1 Reduce the thermal loss of exhaust gas, and improve the efficiency of fuel to save energy as.
2 Enhance the burning temperature based on theory, improve the atmospheric burning, meet the high temperature of thermal equipment enlarge low calorific value fuel, especially the application range of blast furnaces, improve the efficiency of calorific value fuel and reduce the emissions from low calorific value coal gas.
3 Improve the terms of heat exchange in hearths, increase the output of equipment, enhance the quality of products and cut down on reinvesting in equipment.
4 Reduce the exhaust emission of thermal equipment, alleviate the air pollution and improve the environment.
Characteristics:
The characteristics of the honeycomb ceramic regenerator are as follow: they have low heat expansion, high specific heat capacity, high specific surface area, low pressure drop, low thermal resistance, good thermal conductivity, thermal shock resistant and much more. So, in metallurgy and chemical industries, it’s used as HTAC, while we combine recycling the heat of the emissions, high efficient combustion with reducing NOx. It becomes a true energy saver and decreases Nox.
Physical Properties for honeycomb ceramic
| Name | Alumina | Dense Cordierite | Porous Cordierite | Dense Alumina | Mullite | Corundum mullite | |
| Density(g/cm3) | 2.0~2.3 | 2.1 ~2.5 | 1.7 ~2.0 | 2.4 ~2.7 | 2.0 ~2.5 | 2.3 ~2.7 | |
Coefficient of heat expansion (×10-6K-1) (20~800℃) | ≤5 | ≤3.5 | ≤3.0 | ≤5 | ≤5 | ≤6 | |
Specific Heat (J/Kg.K) (20~1000℃) | 900-1150 | 900-1100 | 900-1150 | 1000-1150 | 1000-1150 | 1100-1300 | |
Thermal Conductivity (W/m.k) (20~1000℃) | 1.5-2.0 | 1.5-2.5 | 1.2-1.8 | 1.5-2.5 | 1.5-2.0 | 1.5-2.5 | |
Impact Thermal Resistance (℃/min) | ≥450 | ≥500 | ≥500 | ≥450 | ≥500 | ≥450 | |
| Max. Working Tem.(℃) | 1350 | 1320 | 1320 | 1350 | 1450 | 1550 | |
| Water absorption(%) | 15-25 | ≤1 | 15-25 | ≤1 | 15-25 | 15-25 | |
| Compressive strength(MPa) | A axis | ≥32 | ≥29 | ≥34 | ≥36 | ≥28 | ≥39 |
| B axis | ≥8 | ≥6 | ≥8 | ≥8 | ≥8 | ≥10 | |
Chemical composition (%) | Al2O3 | 55-65 | 25-38 | 28-38 | 55-65 | 60-70 | 70-80 |
| SiO2 | 25-35 | 50-60 | 45-55 | 25-35 | 25-35 | 15-25 | |
| MgO | 1-3 | 5-10 | 12-14 | 3-5 | 0-1 | 0-2 | |
| others | <5 | <5 | <5 | <5 | <5 | <5 | |
Available sizes for honeycomb ceramic
| Size (mm) | Wall thickness | squares dimensions |
| D: 120 * H: 180mm | 0.7mm | 2.3*2.3mm |
| Other shape, specification and material are available. | ||
