Product Overview

Description



JBS-300B 300J 500J Digital Display Charpy Impact Testing Equipment price



They are mainly used to determine the anti-impact capability of metal materials under dynamic load. They are the best testing equipments for many metal material manufactories, quality inspection departments and universities. The results will be displayed on both digital screen and dial gauge. JBS-B series impact testers can use pendulum’s residual impact energy to achieve the re-raising of pendulum, so as to save energy. The results can be printed out, be applicable for mass testing departments.



2. Standards:

JBS-B series impact testers are strictly designed according to the standards ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.



3. Main Technical Specifications:

Specifications	JBS-300B	JBS-500B	JBS-750B
Impact energy (J)	150,300	250,500	500,750
Impact velocity (m/s)	5.2	5.4	5.9
Raised angle	150º
Standard span (mm)	40
Distance between pendulum rotating center and specimen center (mm)	750
Round angle of jaws (mm)	R1-1.5
Round angle of striking edge (mm)	R2-2.5 or R8
Size of specimen (mm)	10 x 10 x 55
Power supply	3phs, 380V, 50Hz/60Hz or specified by users
Dimensions (mm)	2124 x 600 x 1340	2144 x 736 x 1390	2450 x 1200 x 2455
Net Weight (KG)	450	650	2300
Display	LCD Monitor

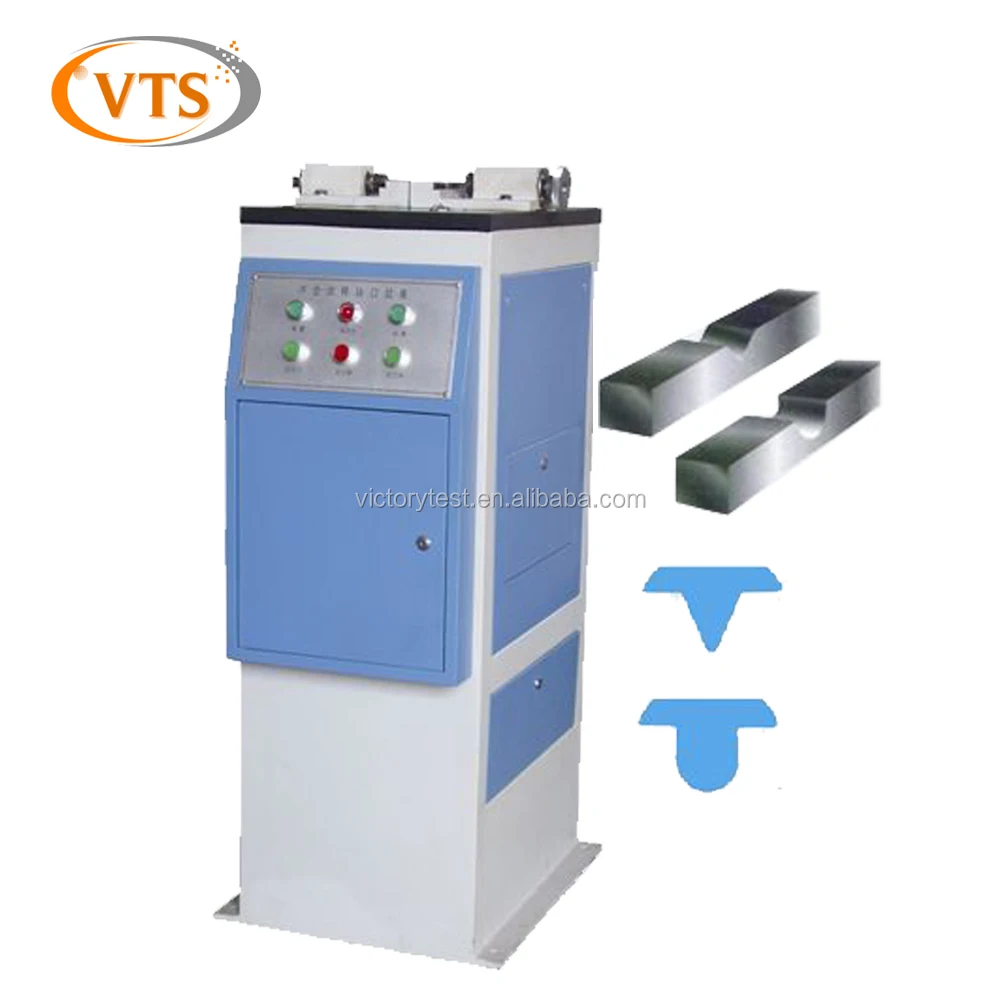

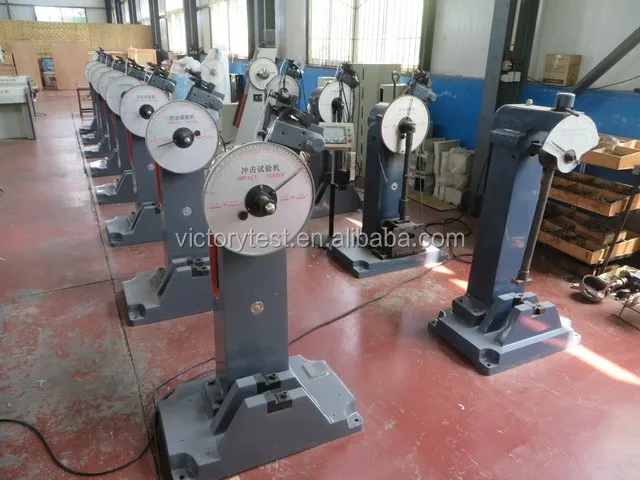

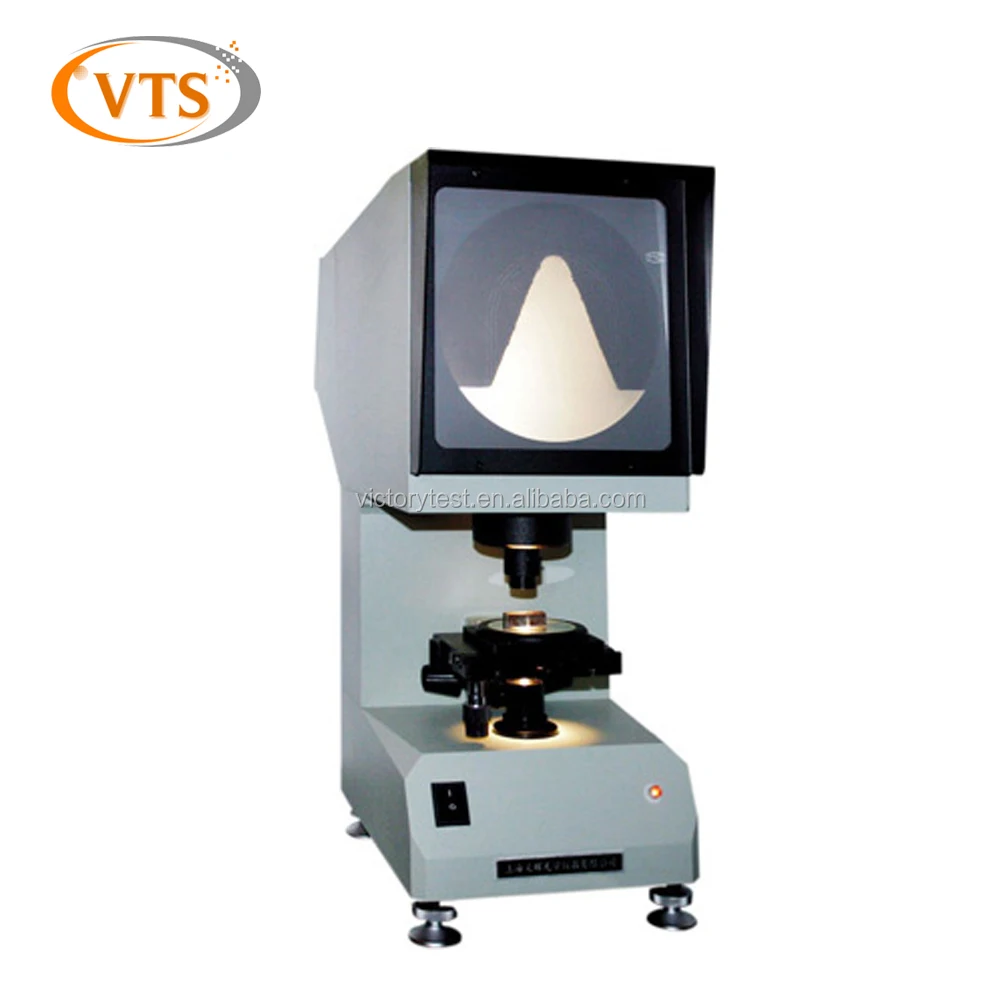

4. Photos for Impact Testing Machine, Notching Machine, Low Temperature Chamber, etc.
