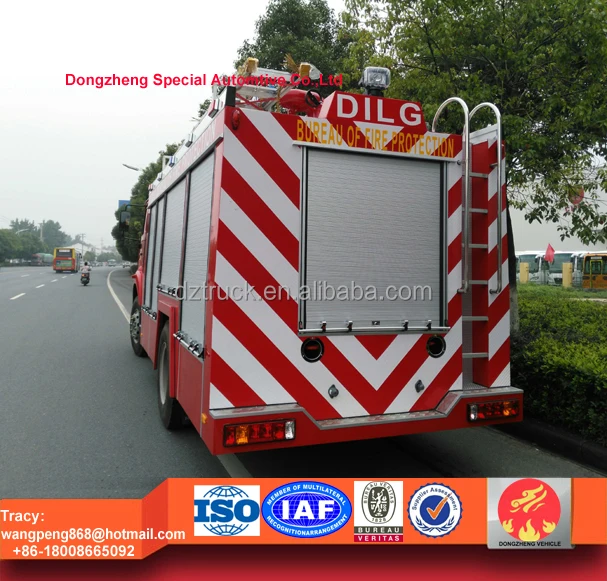

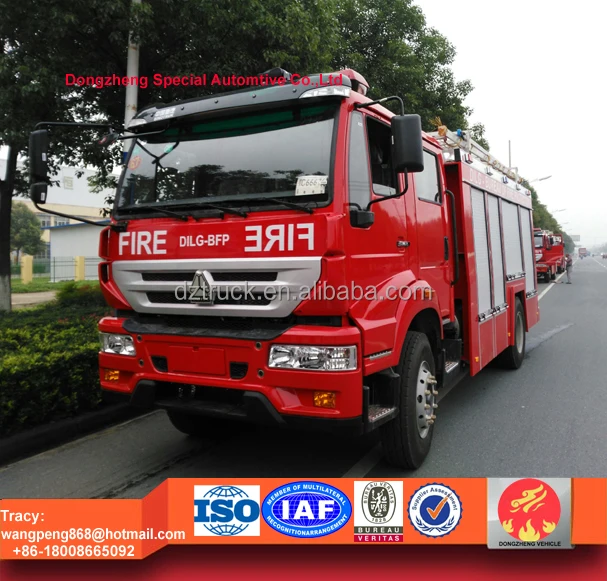

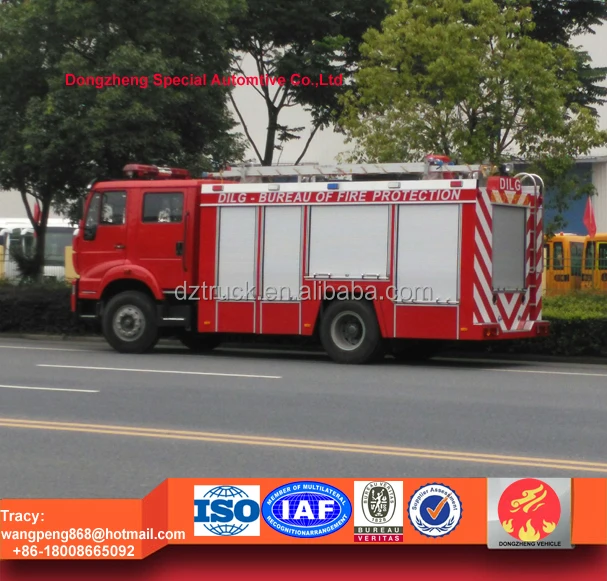

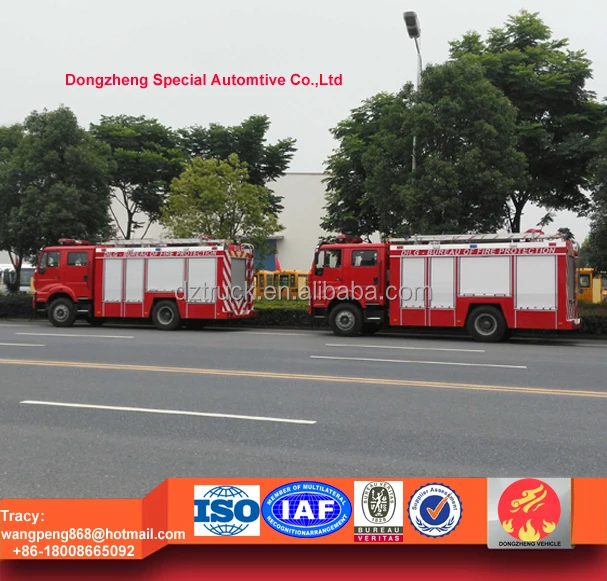

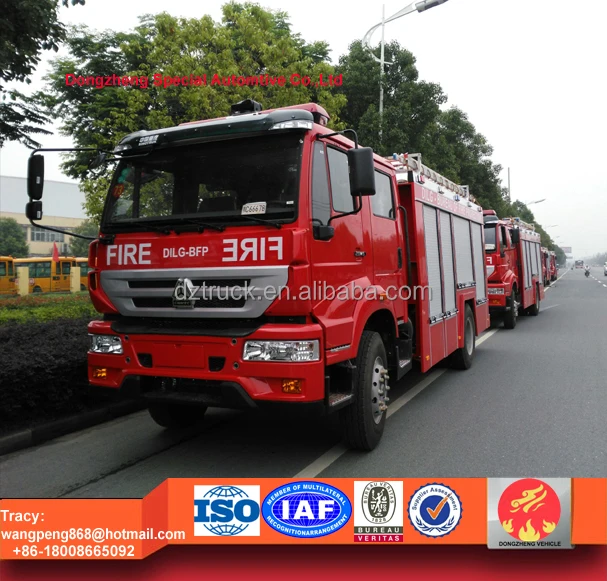

SINOTRUCK water tank fire truck, howo 8000liters fire fighting vehicle for sale

Main specification

Product model and name

SZD5190GXFSG70Z Water tank fire truck

Gross weight(Kg)

19000

Drive type

4X2

Payload(Kg)

7000

Overall dimension(mm)

8820x2500x3450

Curb weight(Kg)

11550

Cab seats

6

Approach/departure angle(°)

16/10 SINOTRUCK water tanker fire truck, howo 4X2 fire truck for sale

Front/rear hang(mm)

1500/2650

Axle No.

2

Wheelbase(mm)

4600

Axle load(Kg)

6000/13000

Max speed(Km/h)

85

Chassis specification

Chassis model

ZZ1167M4617C

Manufacturer

SINOTRUCK Group Truck Co.,Ltd

Brand name

SINOTRUCK(HOWO)

Dimension(mm)

7990×2496×2958

Tyre specification

11.00-20

Tyre No.

6

Steel spring number

10/9+6

Front track base(mm)

2022,2041

Fuel type

Diesel

Rear track base(mm)

1830

Emission standard

Euro 3

Transmission

10 forward gear,2 reverse gear

Cab

Four opening doors and whole flat top with crew cab, and all steel frame welded structure, hydraulic turnover mechanism with air condition.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

Horsepower(HP)

WD615.92E

Sinotruck Group Co.,Ltd

9726

196

266

Water tank fire fighting truck performance

Water tank volume(L)

8000

Fire monitor

Fire monitor model PS50, level rotation by 360º,Max elevation +45º, Max angle of depression -15º,Flow rate:50L/S,Range≥60m/1.0MPa

Fire pump

Model:CB10/60 Flow rate:60L/S  Pressure:1.0MPa

Water tank fire truck Feature

1. The water tank fire fighting truck is mainly constitute the cab, water tank, water pump house, equipment boxes, water pump, and inlet and outlet water system, fire monitor, electronic alarm, alarm lamp etc.

2. The entire distribution of truck is divided into three parts. The front part is passenger room. The middle part is pump house. The rear part is the truck body. The front part of car body is water tank, the rear part is equipment box.

3. It has the feature of high power, high speed and big carrying liquid capacity etc. It is adopted the extended cab. With seat comfortably and centralized operation, simple maintenance,

4. It is widely used in the public security fire brigade, the petroleum chemical industry, factories and mines enterprises and ports, terminals and other places to save the large of oil fire and general material fire in large and medium-sized cities. It is the ideal large fire-fighting equipment.
