Hantman style Vacuum Sausage stuffer

 1. this model is most similar to handtmann brand vacuum filler VF620

 2. this model the meat pump and linking device , the parts is totally the same with handtmann, if you want to handtman filler parts, you also can buy from Bossin company.

also these parts are the same and exchanble with handtman

 3.  special material , processing craft for the parts , CNC lathe making the parts

 4. cheap price ,but Germany quality

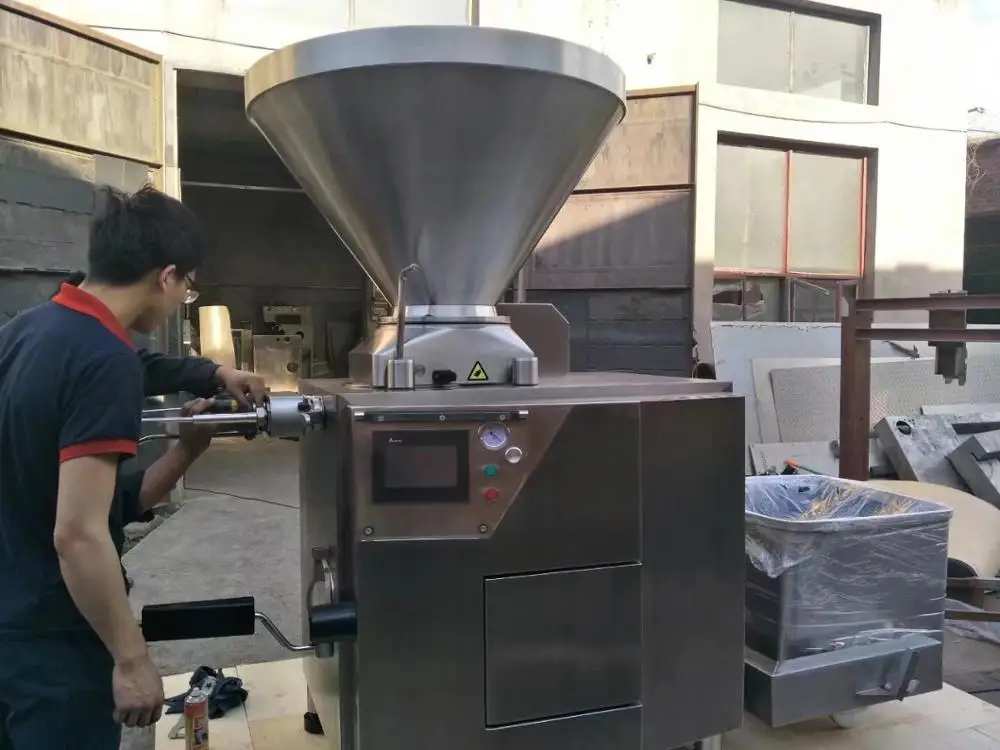

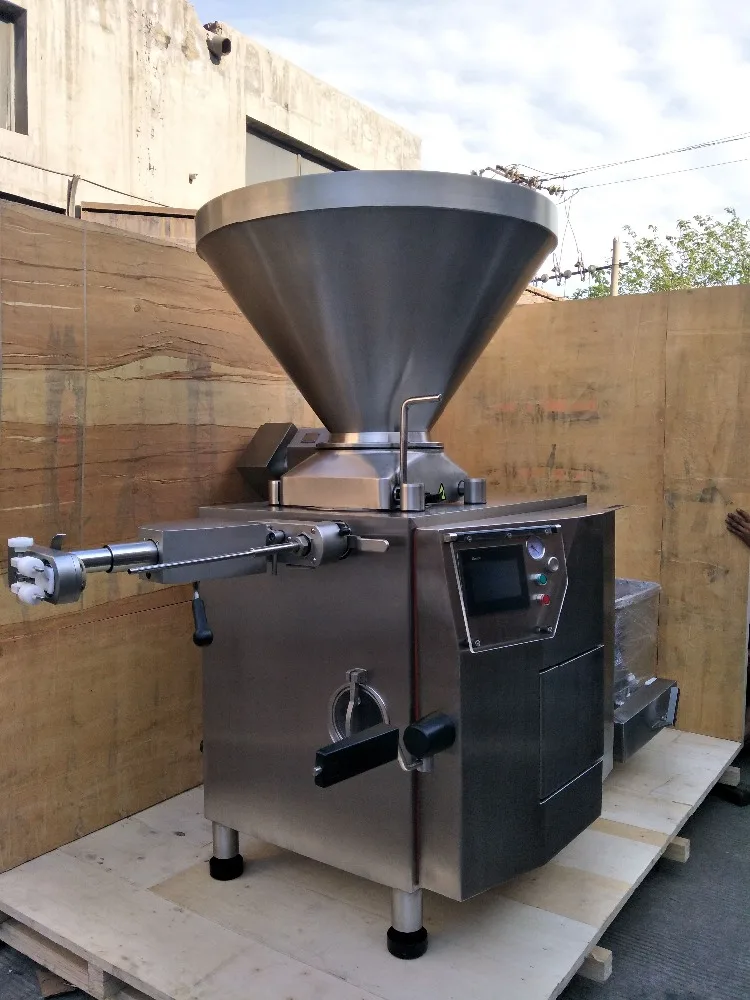

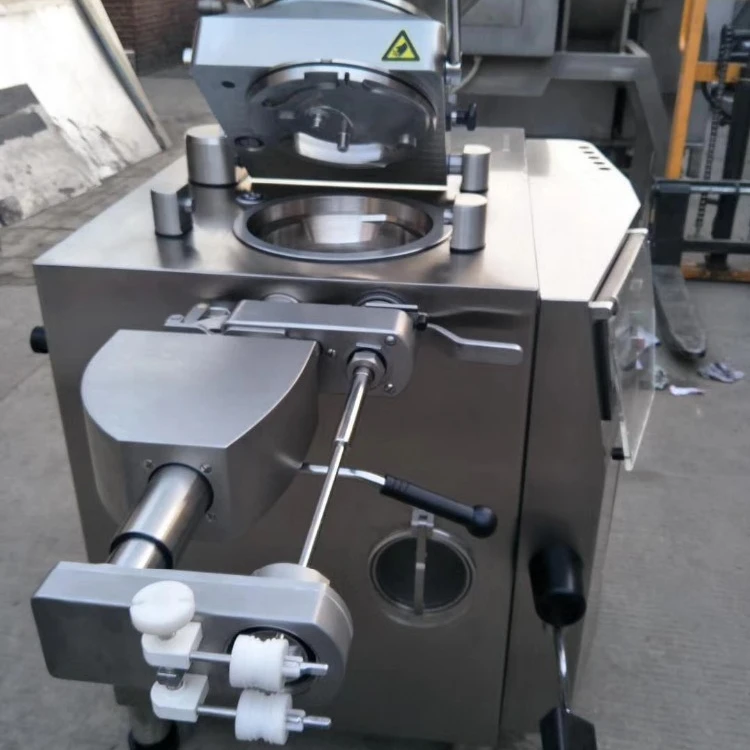

Hantmann style vacuum sausage stuffer

Max direct filling capacity: 6500kg/h

Meat pump housing output pressure: 50bar

The meat pump is drive by servo motor through redactor by gear. The gearbox adopts the hard gear to change the speed to drive. Built-in gear pump provide lubrication oil , protect ensure the service life of gear.

The vacuum pump use BUSCH 40 model, it is a Germany famous brand. Vacuum valve control automatically vacuum channel’s start on/off.

The meat material can not go inside the vacuum pump even if the very thin meat material.

The vacuum filler is equipped with the lifting device, which is matched with 200L meat trolley for loading the meat material.

Meat pump housing, rotor, vane and CAM use alloy steel. Special heat treatment.

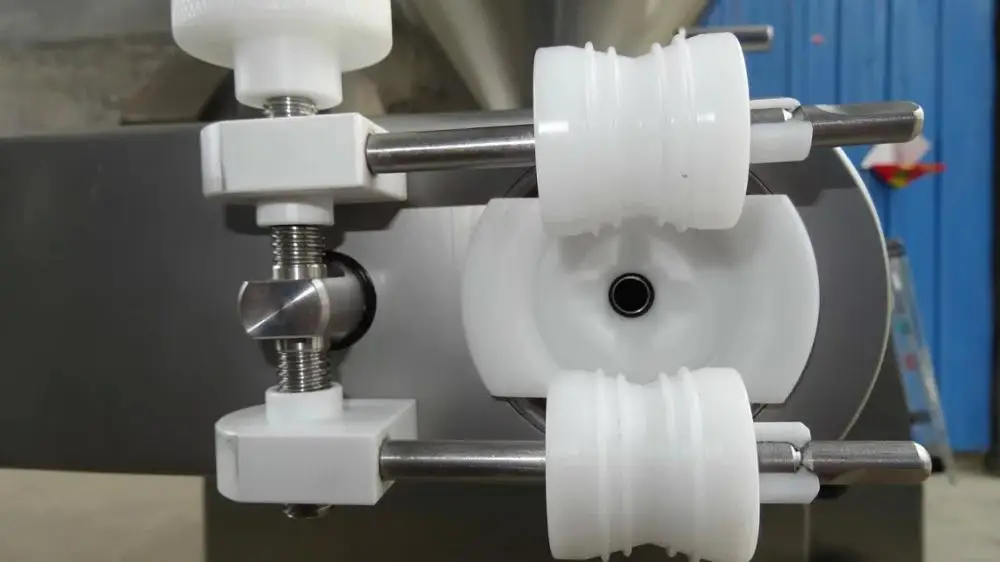

The linking device is controlled by servo motor. Fast speed, high procession. It is the same with imported model.

The parts are produced are adopted the special heat treatment technique, highly smooth surface, easily to be cleaned up.

  Free fumigation wooden cases or suitble for export package

1. Technicians will be sent if necessary, to install and adjust the machine perfectly. Besides,

     train your workers for the correct usage and daily maintenance.
2. Any spare parts you need will be sent to you directly from us.
3. Anything wrong with the machine, we will reply within 8 hours. Technicians will be sent

    to your working site if you can not solve it under our guidance.

Welcome to contact us and we are at your service 24 hours.

My factory is mainly manufacturing the Meat processing machinery, including all kinds of frozen meat flaker, meat mincer, meat mixer,meat bowl cutter,brine injector, vacuum meat tumbler, sausage stuffer/filler, sausage clipper, smokehouse, sausage cutter and Multi forming and coating machine in application of all kinds of fast food (hamburger, chicken nuggets, fish finger, onion ring etc.),also pasta machines. All of machines are based CE and ISO 9001 standard system. The products have been sold to overseas market such as Southeast Asia, Europe, Middle East and South America and we will go on to develop more markets through many ways. Our factory has abundant manufacturing and export experiences, so we will offer excellent quality of products and best service for all our clients sincerely.
