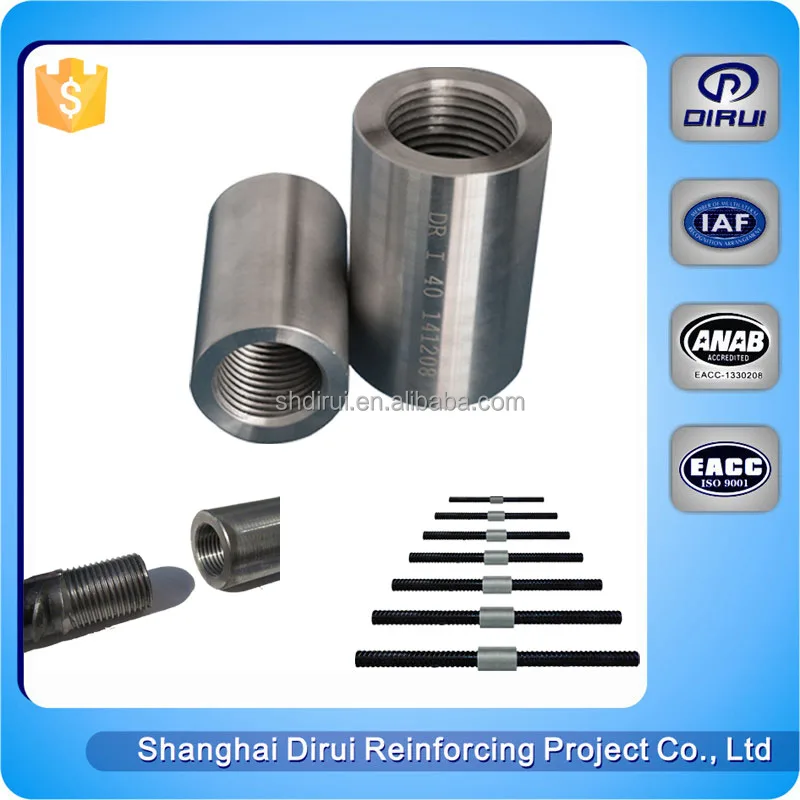

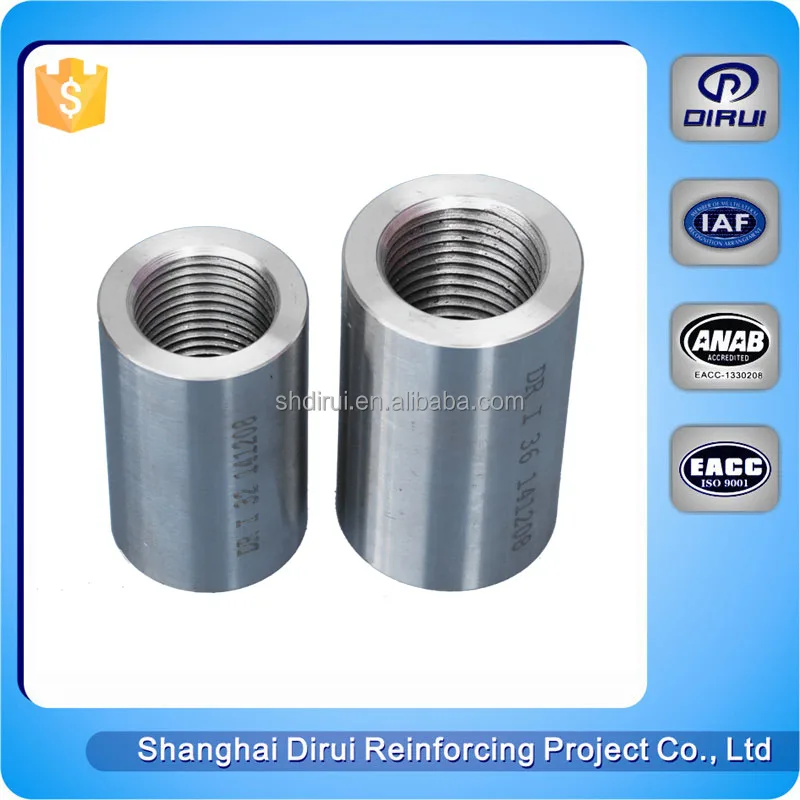

Tie rod coupling dayton superior bar lock connector rebar splicing coupler

Product Overview

Description

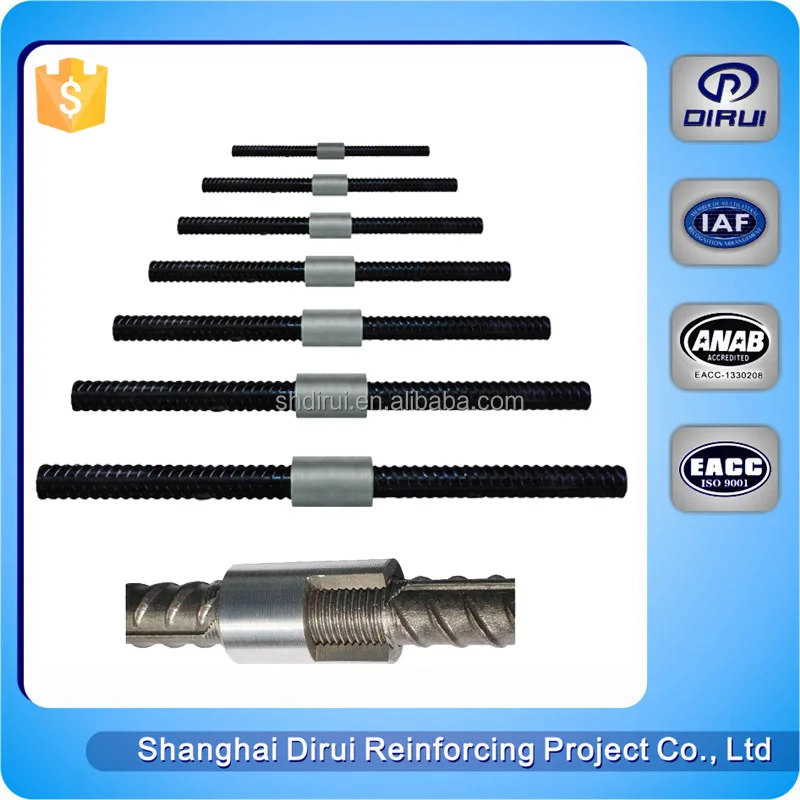

Tie rod coupling dayton superior bar lock connector rebar splicing coupler D12-50



Name	Value
Brand	Shanghai Dirui
Model	D12-50
Thread Pitch	2.5mm,3.0mm,3.5mm
Thread Angle	60/75°
Material	45# High-quality Carbon Steel
Out diameter	12 mm--50mm
Length	35mm--120mm
Place of Origin	Shanghai China(mainland)







Basic Information for tie rod coupler

1.Size: 12mm-50mm. in all size

 2.Raw Material:45# high-quality carbon structural steel.

 3.Type: Standard Type, Left-Handed&Right-Handed Type, Reducing Type.

 4.Tensile strength could reach 110% of parent material.

 5.Suitable Rebar: HRB335,HRB400,HRB500 and Equivalent Rebars.



Relate Test of tie rod coupler

  1.Tensile Strength=1.1*Tensile Strength of Rebar (Usually more than 600Mpa)

 2.Fatigue Test: After 2 million times of fatigue strength test, connection is in good condition



 Product Advantages of tie rod coupler

• The raw material is 45# high-quality carbon structural steel.
• Strict quality control. self-inspection, exchange inspection, sample inspection , 100% inspection etc. reject rate lower than 0.6%.
• Tensile strength could reach 800 to 900Mpa. Normal steel,for example, HRB335,the tensile strength reaches 500.5Mpa is OK.
• Our rebar couplers are suitable for steels of different countries.
• We could pack the goods according to customer's special request.
• Simple to operate.


   Technical Parameter:

Model	Specification		Net Weight (kg)	Thread Pitch (mm)	Thread Angle
Standard type	Outer Diameter(mm)	Length (mm)
Φ12	Φ20.0	35	0.0360	1.75	60°
Φ14	Φ21.5	38	0.0680	2.5	75°
Φ16	Φ24.0	43	0.0936	2.5	75°
Φ18	Φ27.0	47	0.1286	2.5	75°
Φ20	Φ31.0	52	0.1938	2.5	75°
Φ22	Φ33.0	57	0.2296	2.5	75°
Φ25	Φ37.0	63	0.3106	3	75°
Φ28	Φ41.0	68	0.4024	3	75°
Φ32	Φ47.0	76	0.5979	3	75°
Φ36	Φ54.0	84	0.8854	3.5	75°
Φ40	Φ59.0	90	1.1500	3.5	75°
Φ50	Φ78.0	110	1.2980	3.5	75°

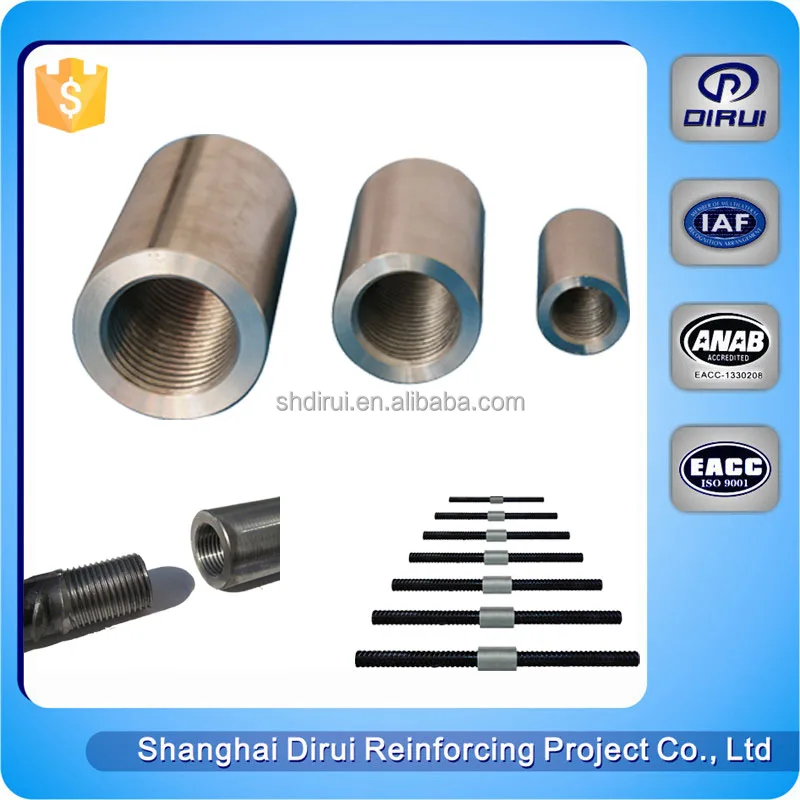

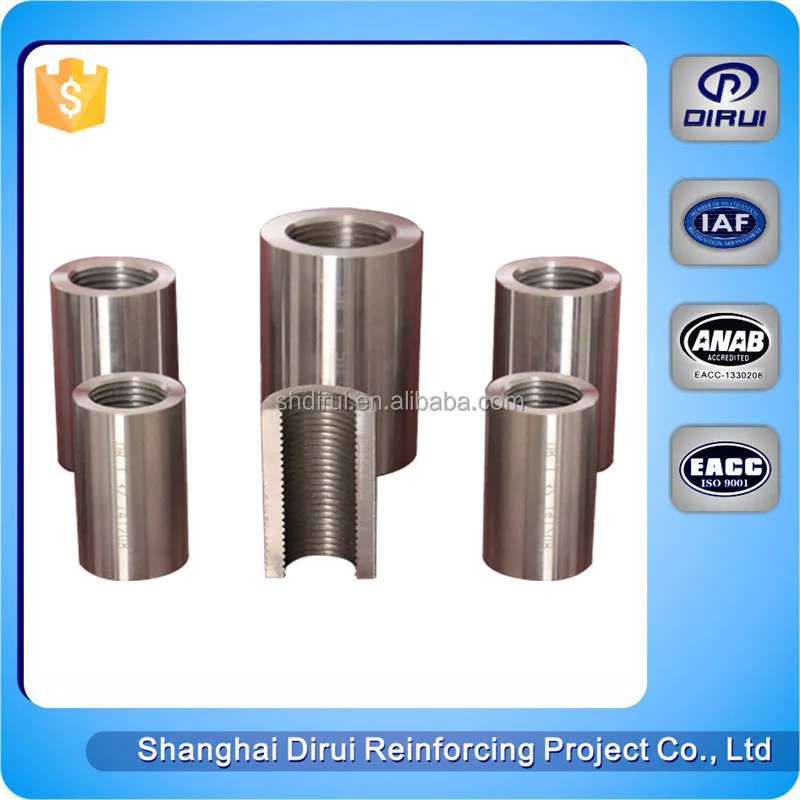

  Three Types of tie rod coupler



  Test result: bar broken



Testing and Packing:







 Package and Trade Terms:



MOQ:	1000pcs
Package:	Nylon bags and wooden pallet
Delivery Terms:	FOB, CIF, CFR
Dlivery Time:	7days for Our Design.
Payment type:	TT, L/C
Supply Ability:	100,000pcs/day
Port:	Shanghai





Business Type:	Manufacture, Trading Company.
Office Location:	Shanghai
Factory Location:	Changshu, Shanghai, Shandong
Year Established:	2003
Company Employees:	300
Facotory Area:	36000square meters
Registration No.:	310114000823881
Company Certificate:	ISO9001:2008
Main Products:	Rebar Coupler, bar splice,   thread rebar coupler, reinforcement bars, tie rod coupler
