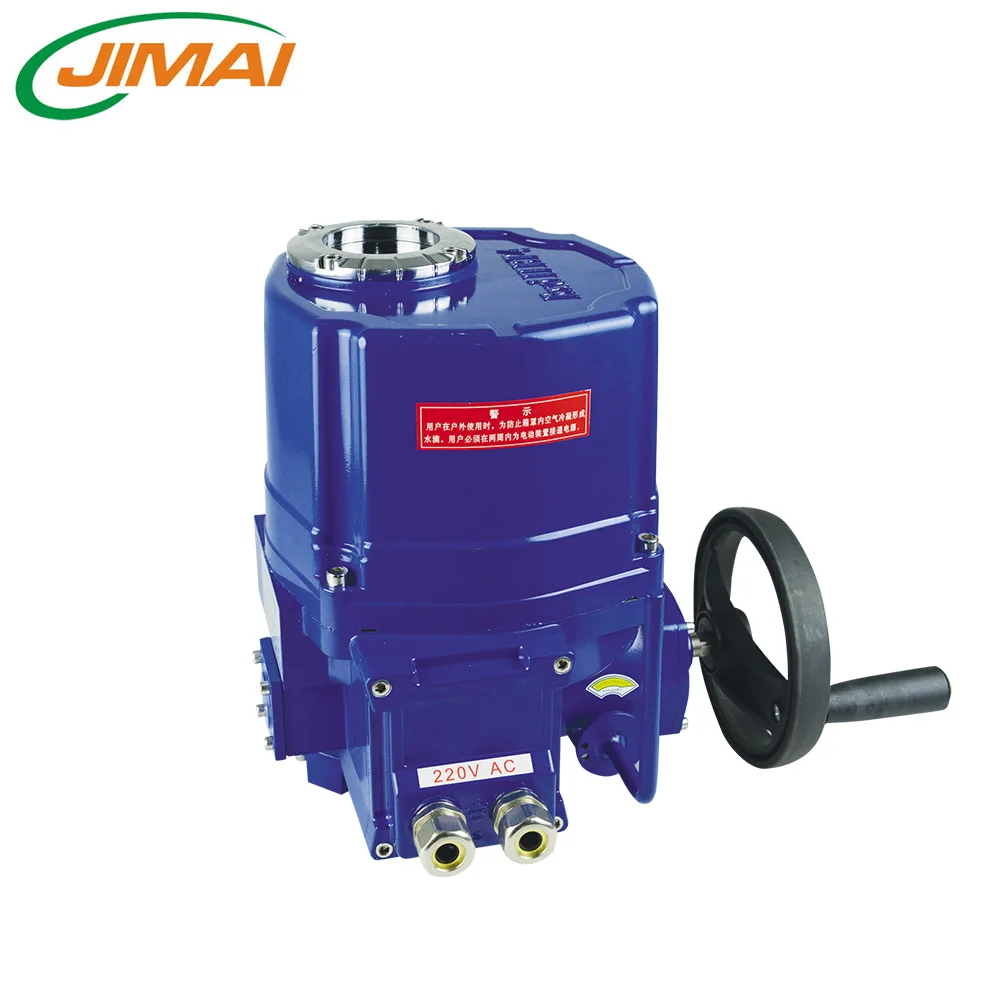

High Quality factory directly forklift truck with international electric actuators

Product Overview

Description

Product Type:A. On-Off Type    B. Modulating Type    C. with control box   D. with worm gear



Our products-forklift truck with international electric actuators can be manufactured in accordance with clients' requirement.

It applied in waste water treatment plants, power plants, refineries, mining and nuclear processes, and pipelines.







Model	Max Output Torque	Operating Time90°	Max Bore Size	F-class Motor	Rated Current(A)60/50Hz				Handwheel Rotation	Weight
					Single-phase		Three-phase
	NM	S	mm	W	110V	220V	380V	440V	N	Kg
QT-010	100	18/22	Ø20	20	1.10/0.95	0.55/0.54	0.3/0.3	N/A	10	7.5
QT-020	200	21/25	Ø22	40	1.67/1.67	0.89/0.85	0.31/0.31	0.31/0.31	11	17.3
QT-030	300	26/31	Ø35	60	1.85/1.86	0.92/0.92	0.35/0.35	0.34/0.34	13.5	22
QT-050	500	26/31	Ø35	90	3.60/3.62	1.55/1.58	0.59/0.59	0.58/0.58	13.5	23
QT-080	800	31/37	Ø45	120	4.10/4.10	2.15/2.20	0.85/0.85	0.79/0.79	16.5	29
QT-100	1000	31/37	Ø45	180	4.20/4.10	2.35/2.30	0.87/0.87	0.81/0.81	16.5	29
QT-160	1600	93/112	Ø60	180	4.10/4.10	2.15/2.20	0.85/0.85	0.79/0.79	49.5	75
QT-200	2000	93/112	Ø65	180	4.10/4.10	2.15/2.20	0.85/0.85	0.79/0.79	49.5	75





Shell	Waterproof Level IP67,NEMA4 and 6
Motor Power	Standard:220VAC Single-phase Optional: 110VAC Single-phase,380/440VAC Three-phase,50/60Hz,±10%24VDC/110VDC/220VDC
Motor	Squirrel-cage asynchronous motor
Limit Switch	Open/close, each 1SPDT,250VAC10A
Auxiliary limit switch	Open/close, each 1SPDT,250VAC10A
Torque Switch	Open/close, each 1SPDT,250VAC10A		Except QT-005/008/010
Stroke	90°±10°		0°~27°Optional
Stall Protection/Operating Temperature	Inside overheating protection, open 115°C±5°C/ close 97°C±5°C
Indicator	Continuous position indicator
Manual Operate	Declutching mechanism, cooperate with handwheel
Self-locking Device	Provide self-locking by worm and worm gear
Mechanical Limit	2 Pieces of external adjustable bolt
Space Heater	7-10W(110/220V AC)
Conduit Entry	2 Pieces PE3/4”
Ambient Temperature	-20°C~+70°C
Lubrication	Aluminum base grease(EP type)
Material	Steel, aluminum alloy, aluminum bronze, polycarbonate
Ambient Humidity	Max 90%RH	Non condensation
Anti-vibration performance	XYZ10g,0.2~34Hz,30 Minutes
External Coating	Dry powder, epoxy polyester, strong anti-corrosion function



Actuator Size Selection for Valve

Model	Ball Valve (Hard Seal)	Ball Valve (Soft Seal)	Butterfly Valve (Hard Seal)	Butterfly Valve (Soft Seal)
QT-10	DN15-40	DN15-32	DN50-100	DN50-65
QT-15	DN50	DN40	DN125	DN80-100
QT-20	DN65	DN50	DN150	DN125
QT-30	DN80	DN65	DN200	DN150
QT-50	DN100	DN80	DN250	DN200
QT-80	DN125	DN100	DN300	DN250
QT-100	DN150	DN125	DN350	DN300
QT-160	DN200	DN150	DN400	DN350
QT-200	DN250	DN200	DN450	DN400



Outline Dimension

MODEL	X	Y	Z	A	B	N-C	D	N-E	F	G	H
QT-010	270	161	270	Ø90	Ø70	4-M8	Ø50	4-M6	Ø20	137	35
QT-020	346	240	270	Ø120	Ø102	4-M10	Ø70	4-M8	Ø22	137	40
QT-030	358	240	290	Ø150	Ø125	4-M12	Ø102	4-M10	Ø35	137	45
QT-050	358	240	290	Ø150	Ø125	4-M12	Ø102	4-M10	Ø35	137	45
QT-080	390	260	322	Ø180	Ø140	4-M14	Ø125	4-M12	Ø45	137	55
QT-100	390	260	322	Ø180	Ø140	4-M14	Ø125	4-M12	Ø45	137	55
QT-160	390	260	491	Ø210	Ø165	4-M16	Ø140	4-M14	Ø55	137	65
QT-200	390	260	491	Ø210	Ø165	4-M16	Ø140	4-M14	Ø55	137	65

Specializing:

We are specializing in manufacturing pneumatic actuator, electric actuator, pneumatic actuated butterfly and ball valve, electric actuated butterfly and ball valve, Limited Switch box and other Accessories.........



Advantage:

1.Price:  As we are the professional manufacture in valve actuators and accessories, we ensure that the price offered must be very competitive compare with others.

2. Raw material inspection: All material test high quality, and keep in warehouse.

3. Workers: All workers training 3 monthes, skilled workers on production line.



Sample Order:

We will charge express fee only for old customers in generally, and for new customers we will charge 50% of the units cost and express fee mostly. (It can be discussed, we keep options always.)



Delivery Time:

We usually take 20days for official orders after received the prepayment, And Sample orders will be ready within 7days.



Quality Control:

 We got very strict and complete quality system to ensure that each product will meet quality requirements as per clients, incoming quality control, final quality control, out-going quality control. Meanwhile, all of the products will be strictly inspected before delivery.”’ Quality First, Service First’’ that we are pursuing All the time.



Warranty Period:

18 months from the date we signed the contract or PI. Technical support for the whole life.

(In case of goods discrepancy to the order and drawings, the customers issues Reclamation Report concerning defective goods and attaches photo documents. customers shall consider either to make an additional delivery for replacement of defective goods, all expenses are covered by our company. Or the customers shall decide that we should compensate expenses for defective goods. Such compensation will cover all transport costs, custom duty costs, amount of paid goods.)



Payment Terms And Conditions:

1. TT Terms: The payment will be 30% of prepayment by direct bank remittance (T/T),remaining 70% before Shipment or the copy of BL send by us Via Fax or Email.

2. L/C Terms: Payment by L/C at sight and Unrestricted. (L/C must allow 30days minimum from the shipment date of presentation of documents for negotiation, all the clauses within L/C must be clear, concise and acceptable. Do not allow special clauses, terms and conditions.)



Competitive Price:

We provide competitive price, good quality and best service to reach the win-win goal.



Customization:

custom-made is acceptable.

Q: Are you a manufacture or trading company?
A: We are a professional trading company engaging in the field of forklift truck with international electric actuators products, and we have got permit of import and export as well.

Q: How can I get the sample? What's the lead time?
A: Samples could be sent within one week, the lead time is 10-15 days.

Q: How does your factory control product quality?
A: ISO9001 Certificated, independent quality control team with 16 inspectors in our factory. Thrid party certificated and factory audit accepted. Third party quality control accepted.

Q:Have forklift truck with international electric actuators 100% assembled well in stock?
A: Yes,all forklift truck with international electric actuators is available.

Q: Do you provide ODM/OEM service?
A: OEM/ODM is welcome,From the concept to finished goods, we do all (design, prototype reviewing, tooling and production) in the factory.
