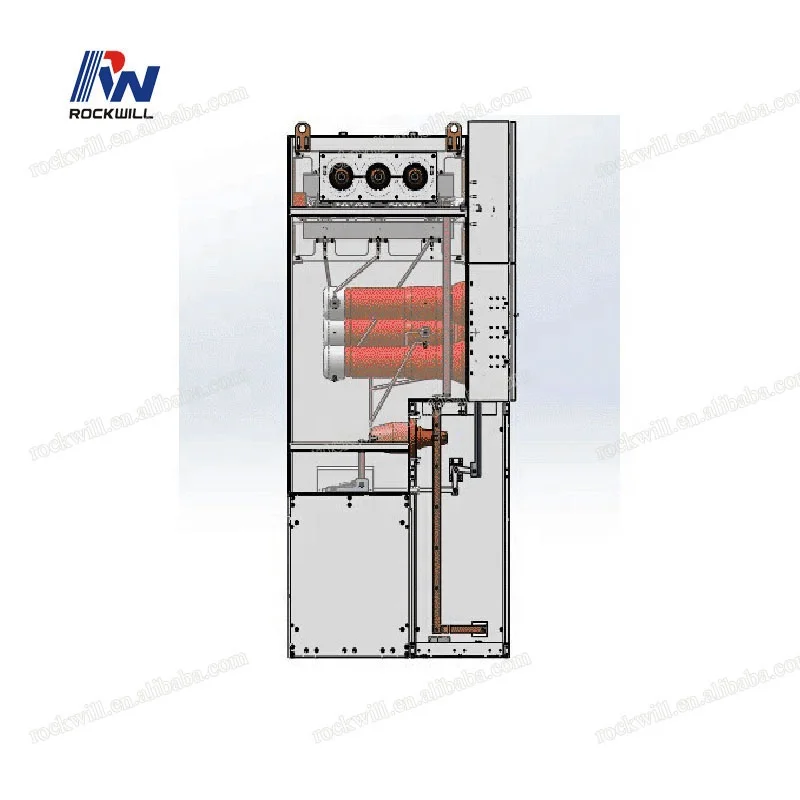

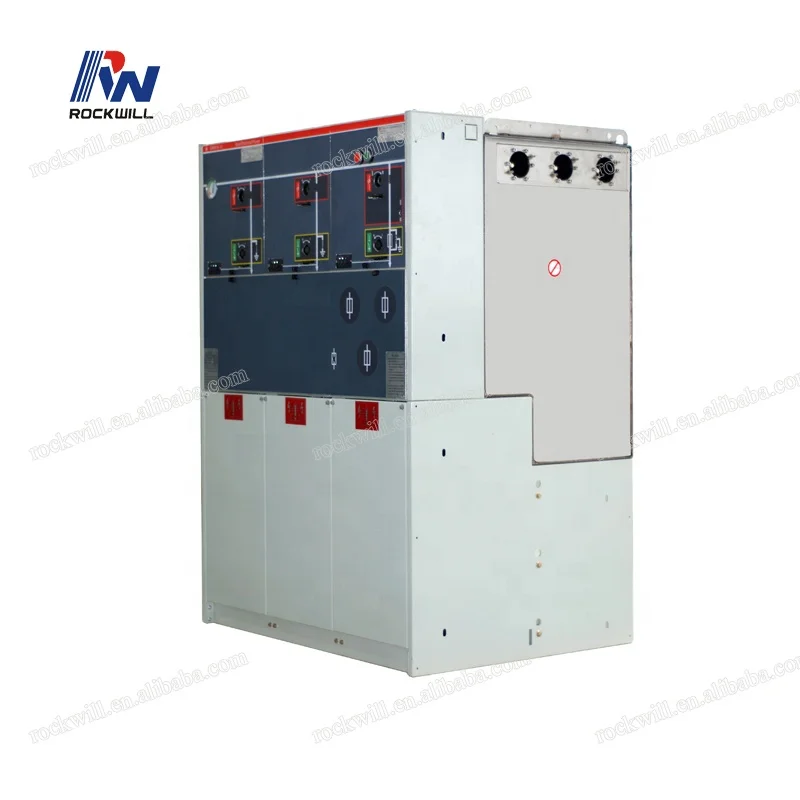

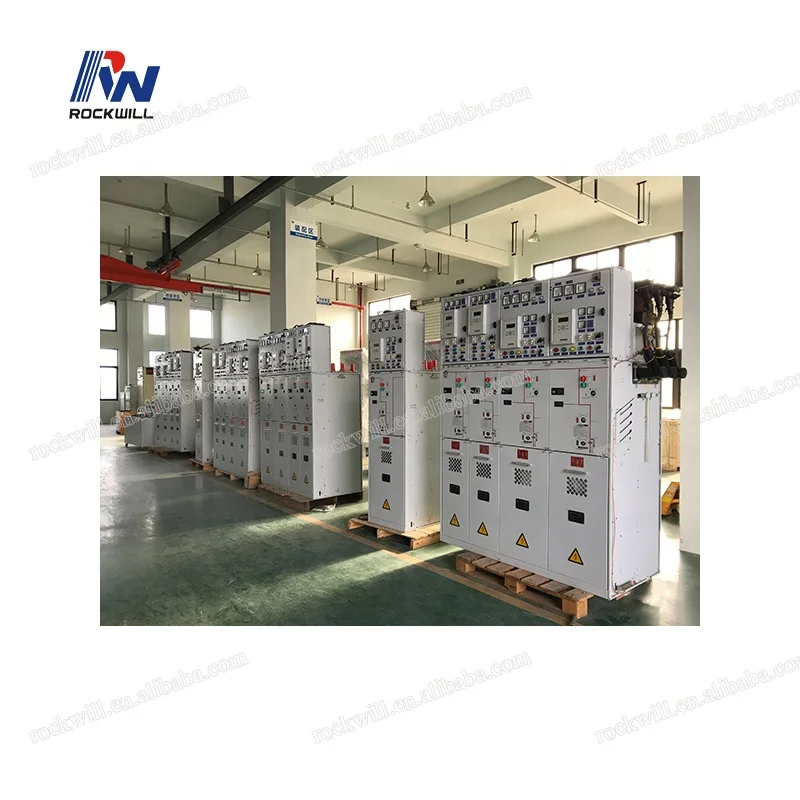

24kV SF6 Gas Ring Main Unit switchgear

Product Overview

Description

General



RMR-24/46kV is completely insulated SF6 SAFERIN(hereinafter short as SF6 Gas insulated Switchgear)This product is in conformity with the standards theGB/IEC standard and the design of a high safetycombined switch cabinets.



The system of RMR-24/36kV of combined switch cabinets can be divided into three kinds of unit cabinet:



++++ 3 position cable connection unit (Cable switch unit), additional live shows and configuration of surge arresters and grounding fault component. Code C



++++3 position switch and fuse tripping system and earthing switch interlock system fuse combined electrical unit (Fuse combination unit), additional live shows and configuration of surge arresters and grounding fault component. Code F



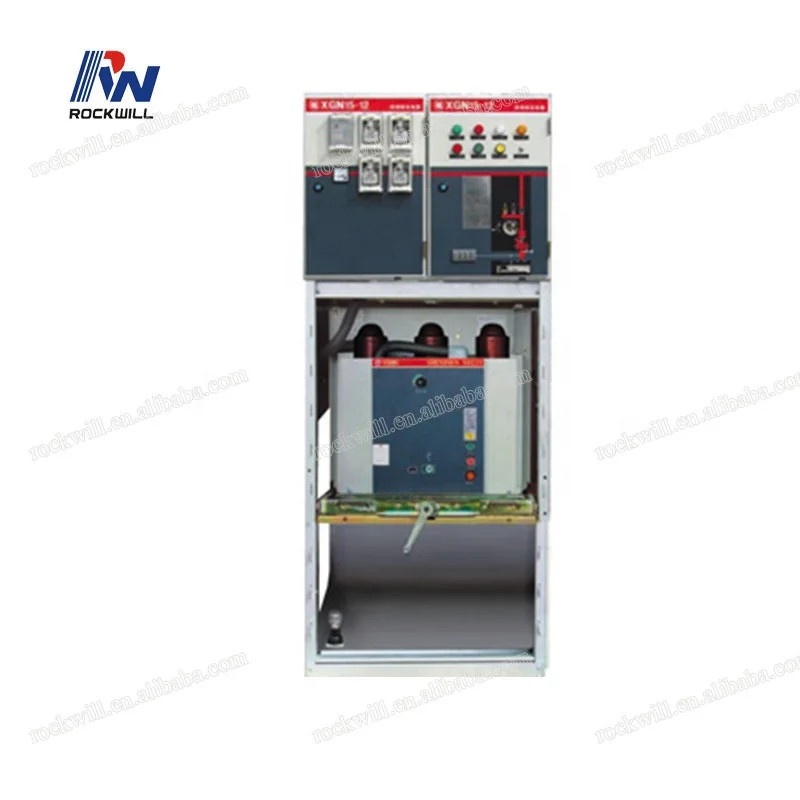

++++3 position switch and vacuum circuit breaker combined appliances unit (Vacuum circuit breaker unit), additional current transformer, live shows and configuration of surge arresters and grounding faultcomponent. Code V The combination of the current transformer and the microcomputer protection to constitute the basic circuit protection function. Microcomputer protection using passive protection and CT electric no need of additional PT power supply



Main technical specifications



No	Item	Unit	C/F			V module
			Load break switch			Circuit breaker
1	Rated voltage	kV	12	24	36	12	24	36
2	Rated current	A	630(200A/F)
3	Rated frequency	Hz	50/60
4	1 min power frequency withstand voltage	kV	45	55	80	45	55	80
5	Lightning impulse withstand voltage	kV	75	125/150	170/195	75	125/150	170/195
6	Rated transfer current	A	1700	1400	1200	/
7	Rated active load and close circuit breaking current	A	630
8	Rated cable charge breaking current	A	50&10
9	Rated short circuit breaking current	kA	/			20	16	16/20
10	Rated short circuit making current(peak)	kA	63	50	40/50	63	50	40/50
11	Short time(2s) withstand current,load switch/earth	kA	25/20	20/20	16/20	25/20	20/20	16/20
12	Rated withstand current(peak)	kA	63	50	40/50	63	50	40/50
13	Mechanism life	Times	3000		2000	10000	3000	5000



Note:for short circuit breaking and peak current is based on fuse plus combination of module.
