Hot Sale 42U 800x1000mm high quality Server Rack cabinet with 1300kgs load capacity network cabinet

Basic Information

1) Standard

Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard

2) Material

SPCC high-quality cold rolled steel

3) Thickness

Mounting profile 2.0mm

Others 1.0mm

4) Surface Finish

Degreasing, Pickling, Phosphating, Powder coating

5) Protection Degree

IP20

6) Loading Capacity

1800kgs

7) Color

Optional:  Black(RAL9004)  Grey(RAL7032)  White(RAL7035)

Features

1)  Profile-welded frame

2)  Electrophoretic painted mounting profile

3)  Removable two-section side panel, easy to maintain equipment

4)  Cable entry on top cover and base plate with adjustable sizes

5)  Optional plinth for better ventilation and heavy duty support

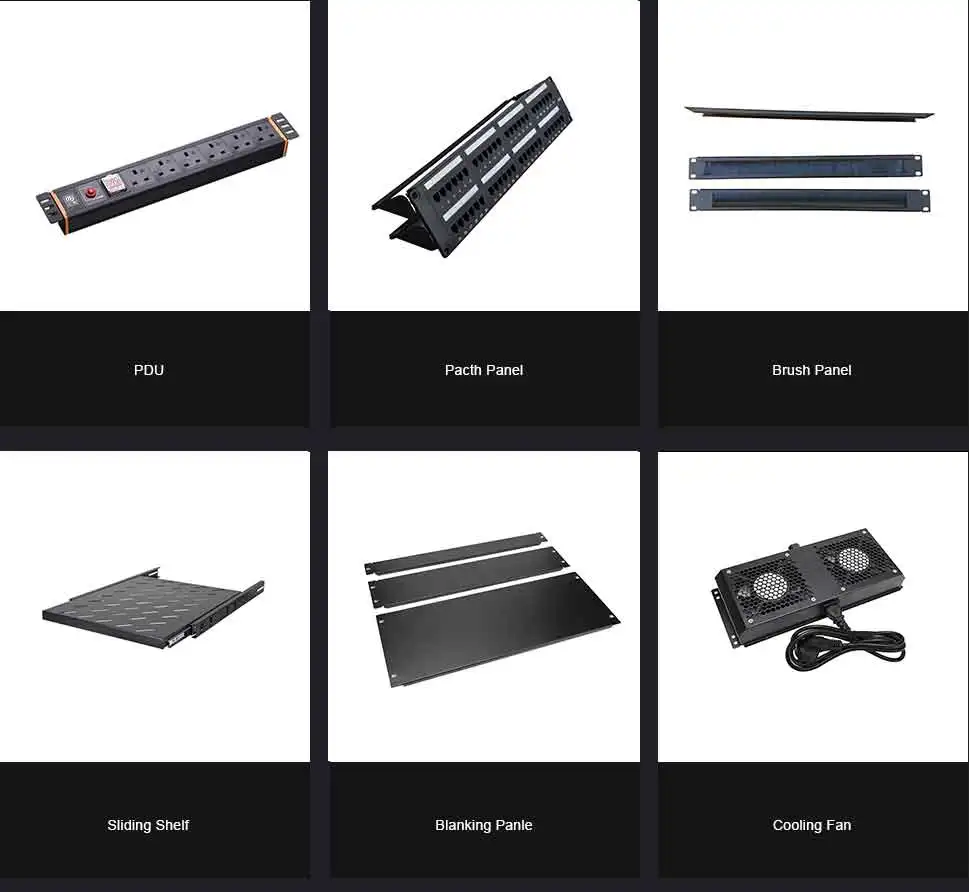

6)  Various optional accessories: PDU, fan, shelf, bracket, cable tray, etc..

7)  Secure,firm and reliable

8)  Certification: ISO 9001:2000

9)  OEM/ODM services available

Width(mm)

Depth(mm)

Capacity(U)

Height(mm)

Order NO.

600

1070

42

2004

H36042

750

1070

42

H37042
