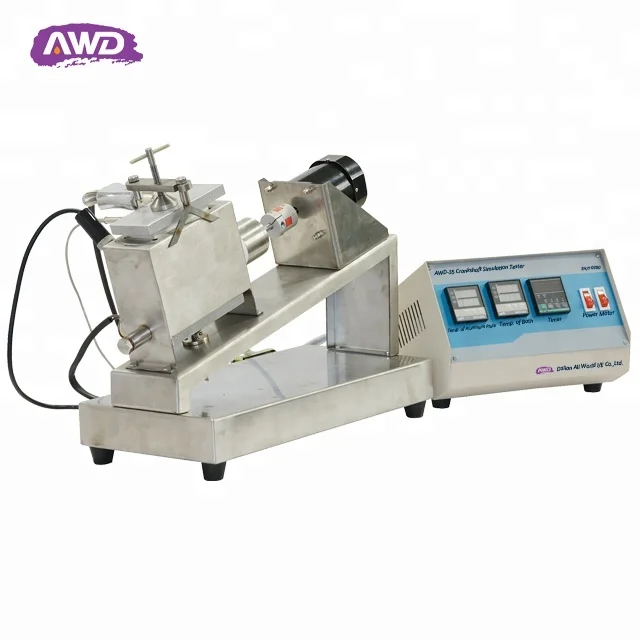

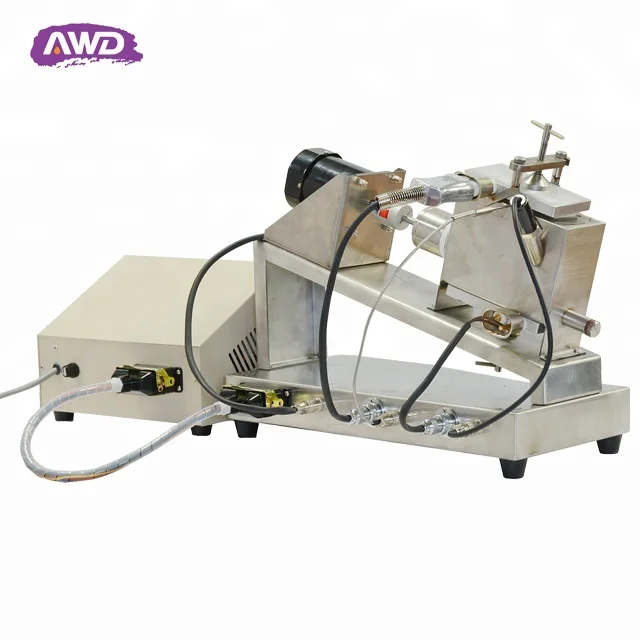

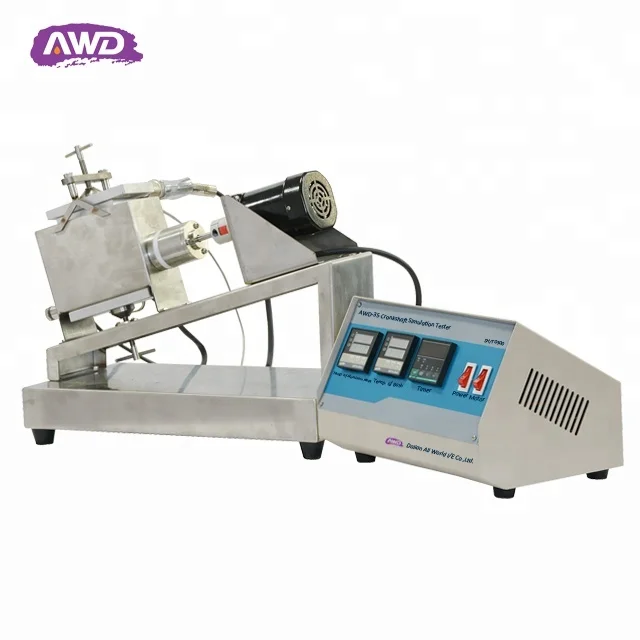

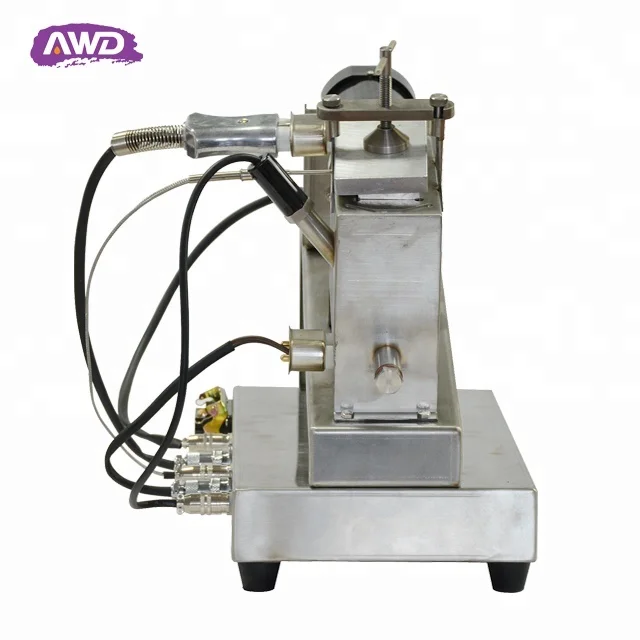

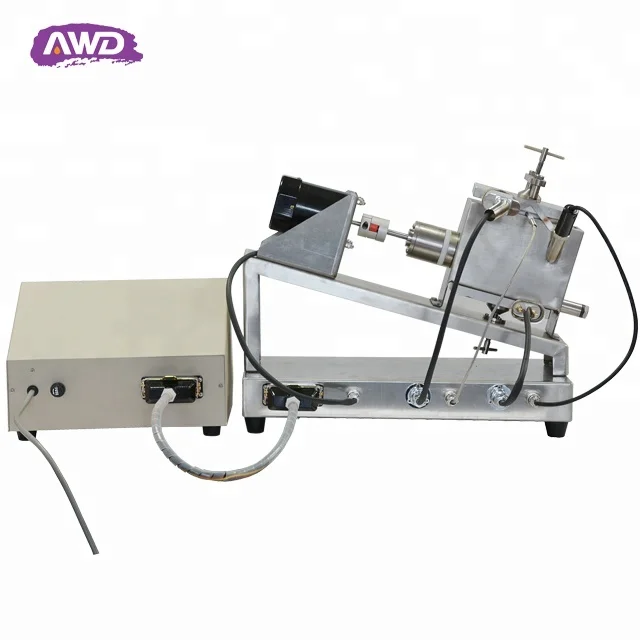

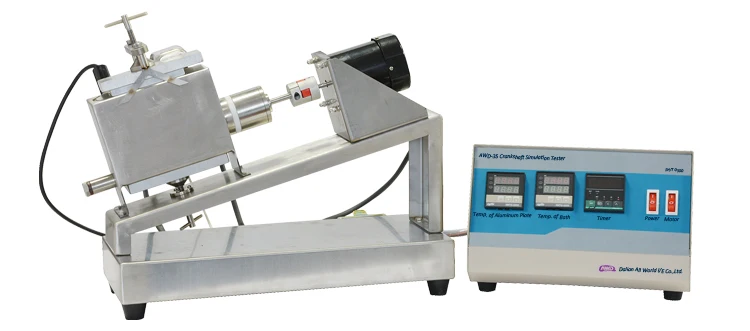

AWD 35 Lubricating Oils Tester Crankcase Simulator SH/T0300 Laboratory Equipment Crankcase Simulated Machine Analysis Instrument
- Category: >>>
- Supplier: Dalian All World I/E Co. Ltd.
Share on (60349644075):
Product Overview
Description
Trade Assurance
Contact Information
Product Description
• Main Technology Parameters
No. | Tech Indicator | Description |
1 | Power | AC220V±10% 50Hz (Can be changed to your country request) |
2 | Input Power | ≤1000W |
3 | Temperature Control Range | Aluminum plate(Room Temp. ~350℃) Oil Bath(Room Temp. ~160℃) |
4 | Temperature Control Accuracy | ±1℃ |
5 | Timing Range | 0~99h |
6 | Motor Speed | 1250r/min |
7 | Motor Power | 15W |

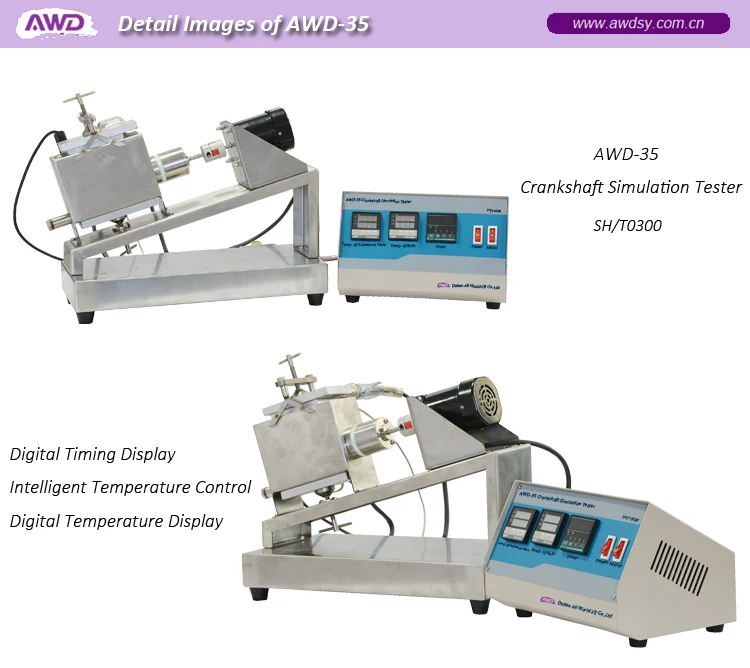

8 | Characteristics | ♦Digital Timing Display ♦Intelligent Temperature Control ♦Digital Temperature Display ♦Easy to Operation ♦Testing Exactly ♦Result Reliable |
• Standard Accessories
No. | Description | Note | Unit | Qty |
1 | Certification & Operation Video |
| Copy | 1 Each |
2 | Main Part |
| Set | 1 |
3 | Seal Ring for Aluminum Plate |
| Piece | 2 |
4 | Thermometer | 0℃~400℃ | Piece | 1 |
5 | Aluminum Plate |
| Piece | 20 |
6 | Seal Ring for Cover |
| Piece | 3 |
7 | Fuse | 10A | Piece | 2 |
8 | Supporter for Testing Piece |
| Piece | 1 |
9 | Power Line,Sensor,Thermocouple |
| Piece | 1 Each |
10 | Testing Pieces |
| Piece | 30 |

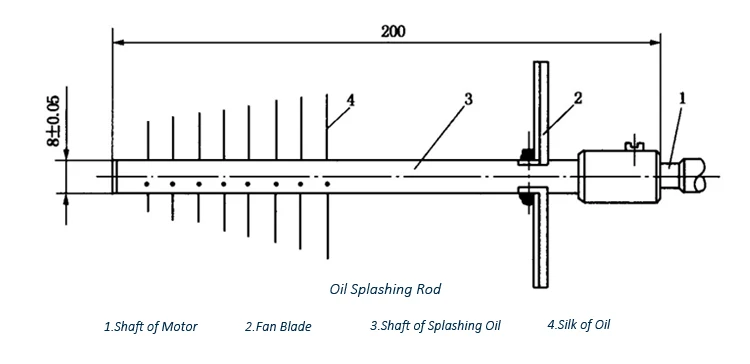

11 | Oil Splashing Wing |
| Piece | 3 |
• Packing Information
Catalog Number | Dimension (L×W×H) (mm) | Net Weight (Kg) | Gross Weight (Kg) | Materials of Package |
AWD-35 | 600×750×1380 | 29 | 38 | Treated Wooden Package or Strong Carton |
560×480×660 | 26 | 34 |
• Ordering Information
Catalog Number | Product Description | Electrical Requirements |
AWD-35 | Crankcase Simulator | AC220V±10% 50HZ (Can be changed to your country request) |
