Hydraulic Single blade Rubber Cutting Machine / Rubber Cutter guillotine rubber cutter with CE

Product Overview

Description

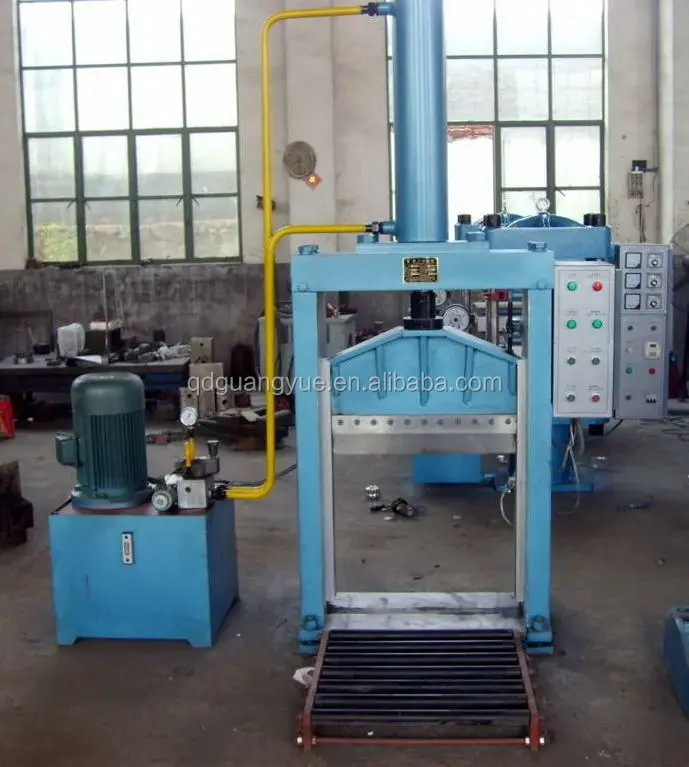

Hydraulic Single-blade Rubber Cutting Machine / Rubber Cutter guillotine rubber cutter







Relevant technical parameters



Model	XQL-80	XQL-125	XQL-160	XQL-240	XQL-400D	XQL-50W
Cutter width(mm)	660	760mm	1500	860	860(800*450 rubber block)	660
Cutter stroke(mm)	660	660	1100	660	660	300
Cutter quantity	1	1	1	2	2 vertical and 2 horizontal	1
Oil cylinder pressure(KN)	80	125	160	240	400	50
Rubber cutting travel time(S)	14-18	16-18	14-18	16-20	16-20	8-10
Motor power(KW)	5.5	5.5	7.5	11	15	4
Overall dimensions(L*W*H)	1800*500*2150	1800*500 *2150	2840*500 *3050	2000x700 x2400	2000x700 x2400	1600*1000* 1300(worktable height  820mm)

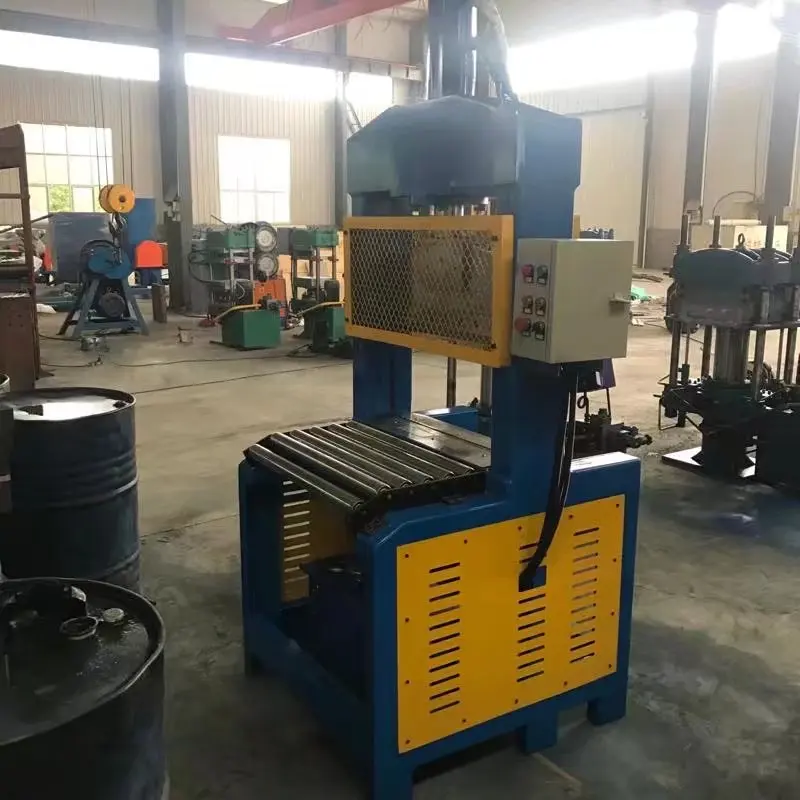

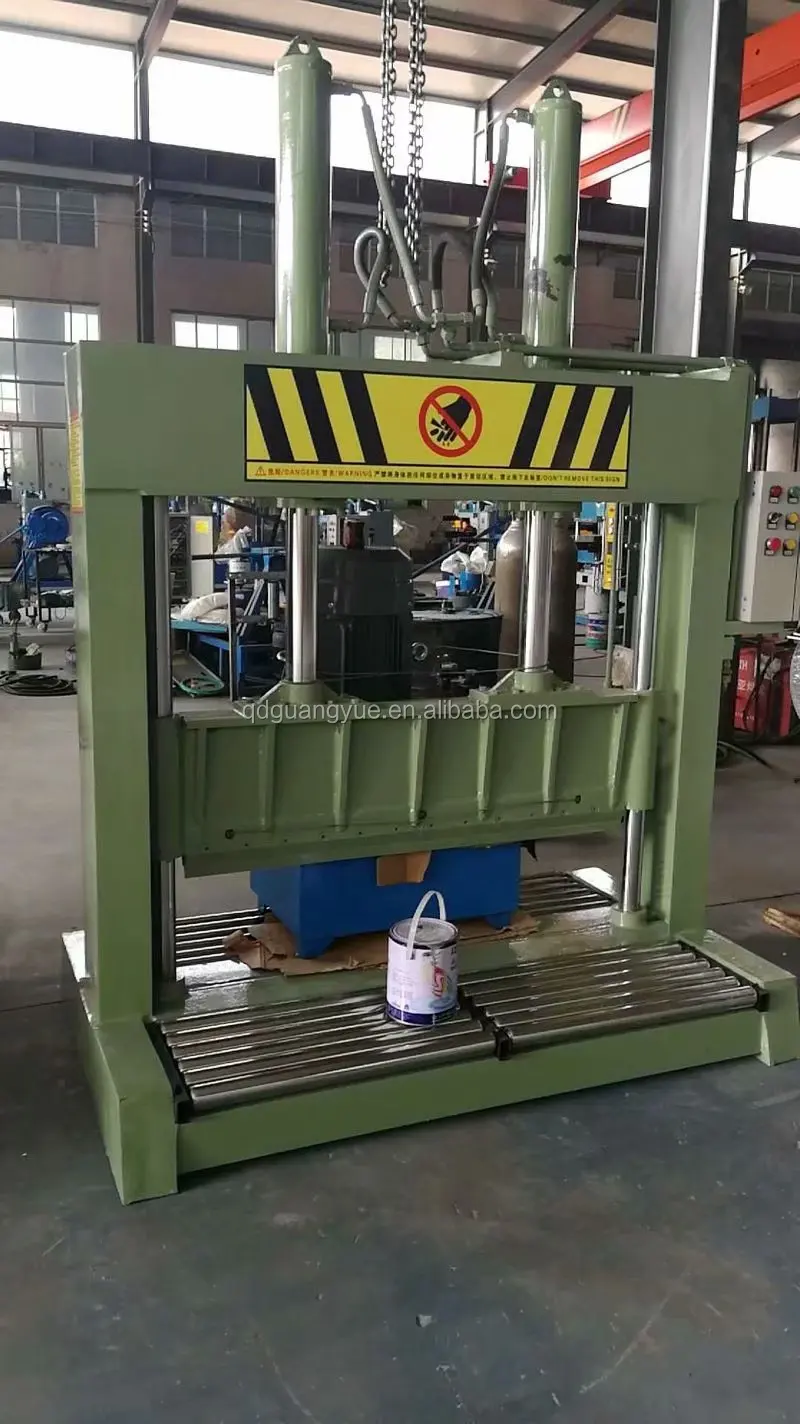

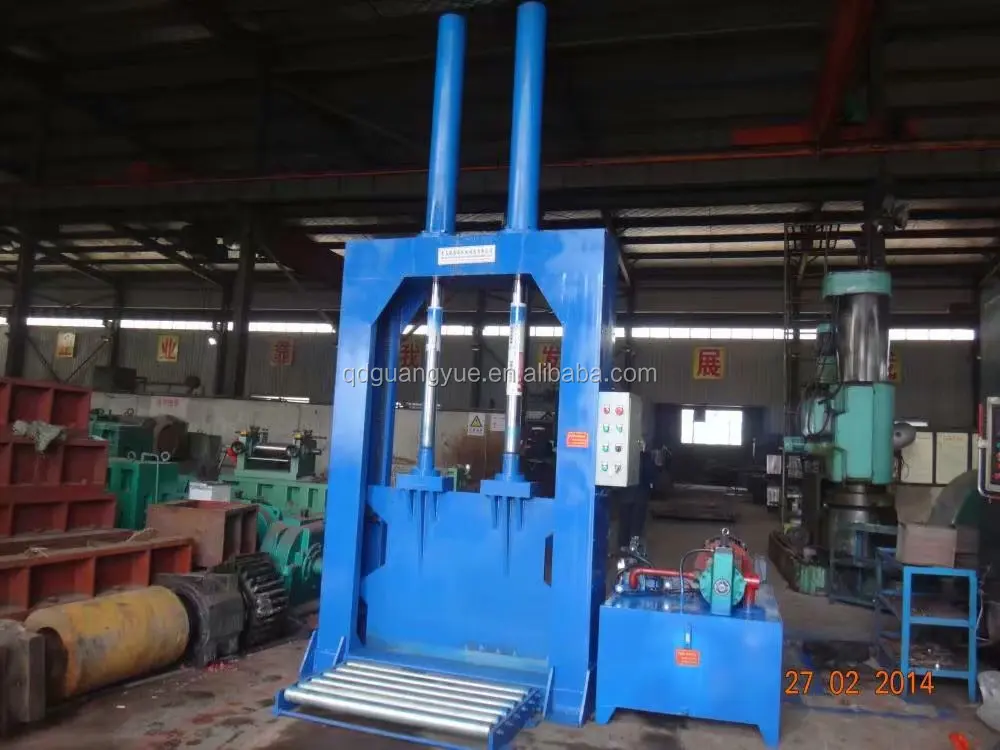

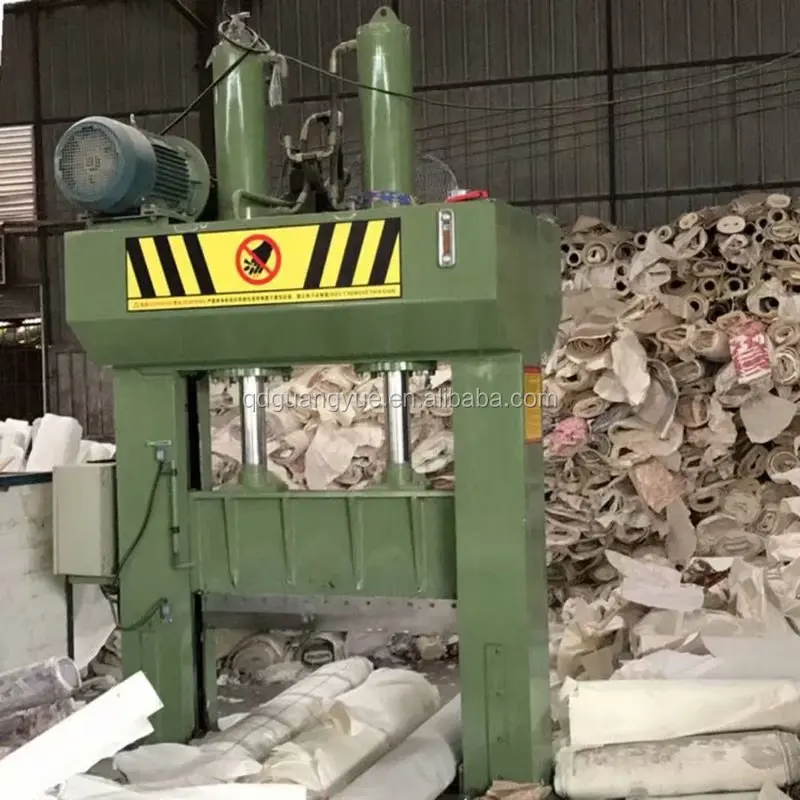

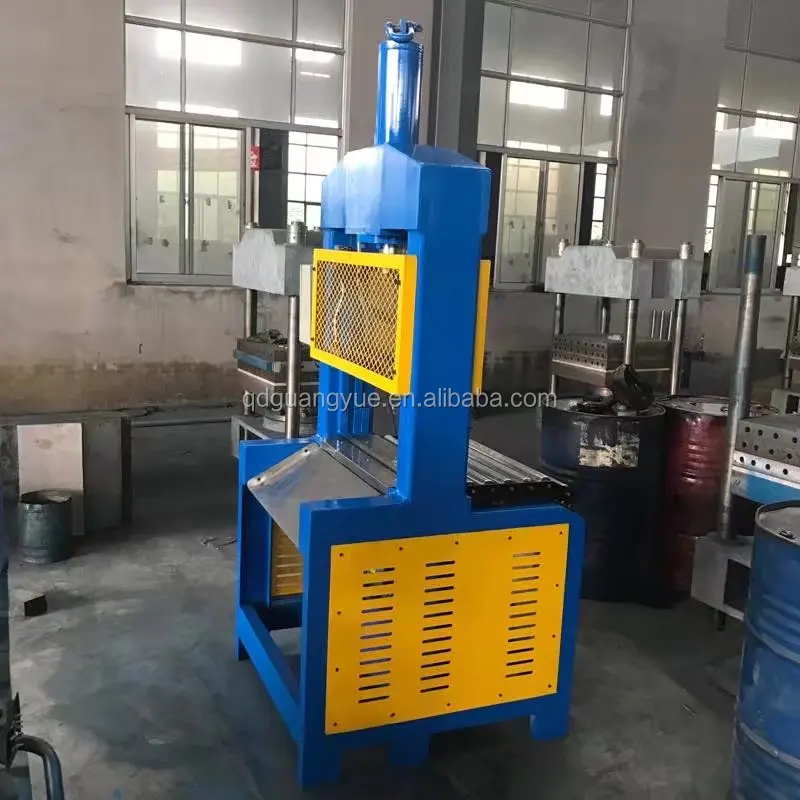

Note				With rubber block shedding device	With rubber block shedding device	Horizontal type

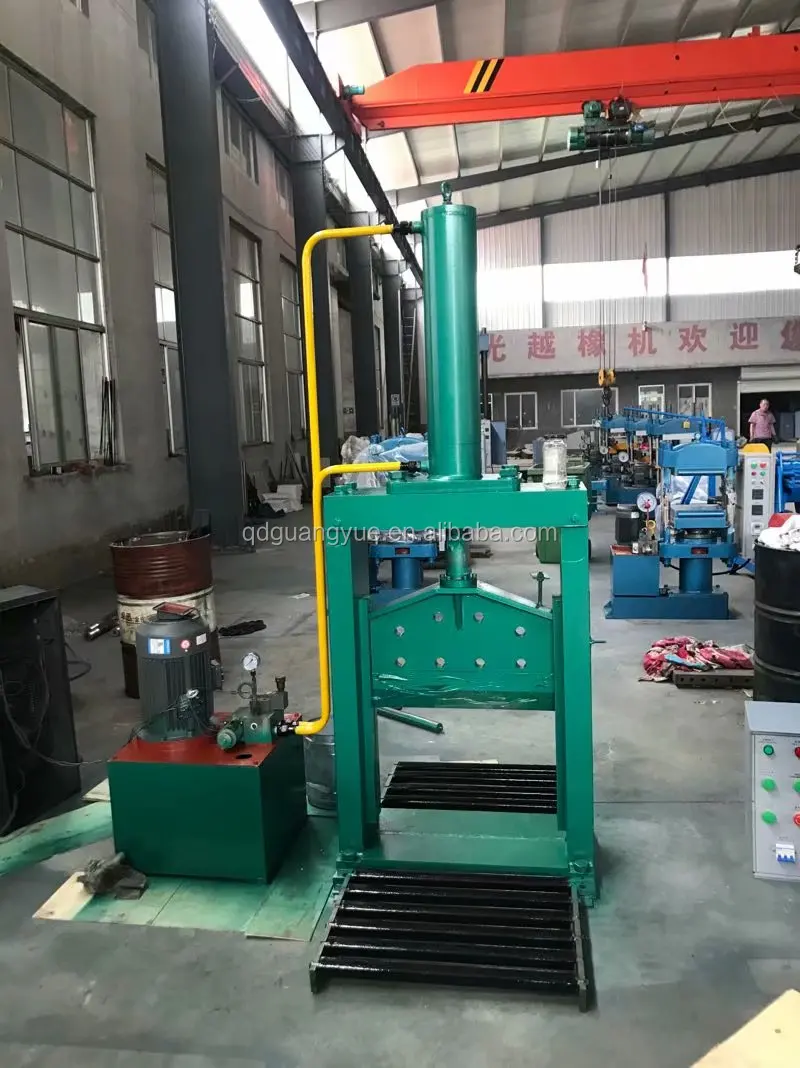

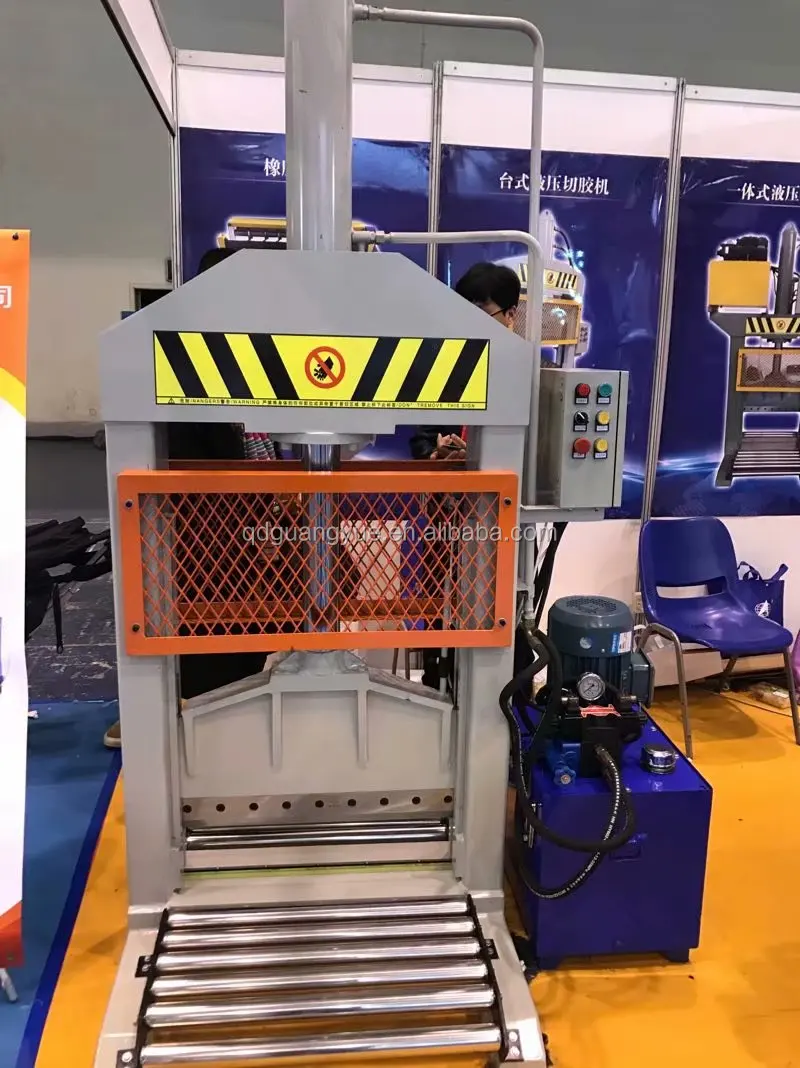

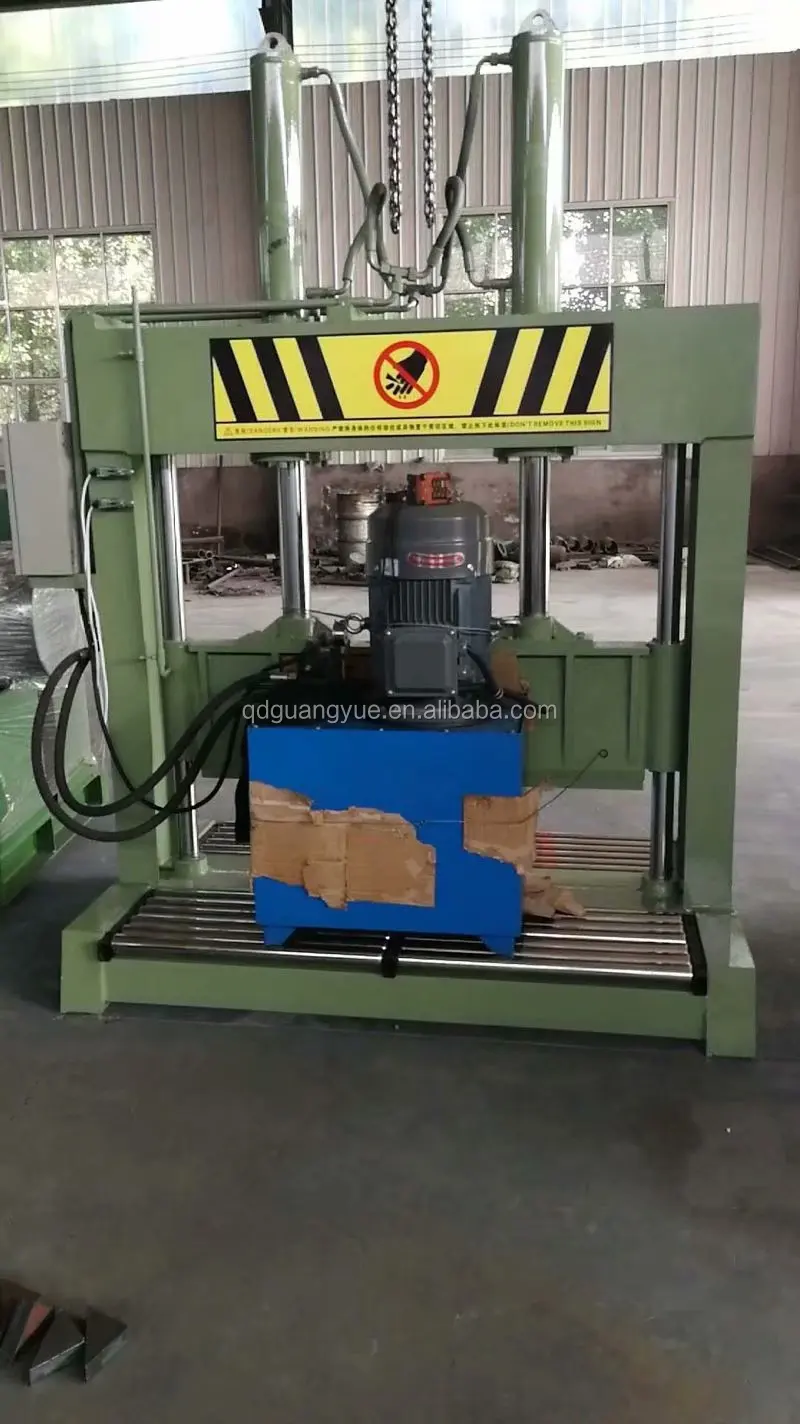

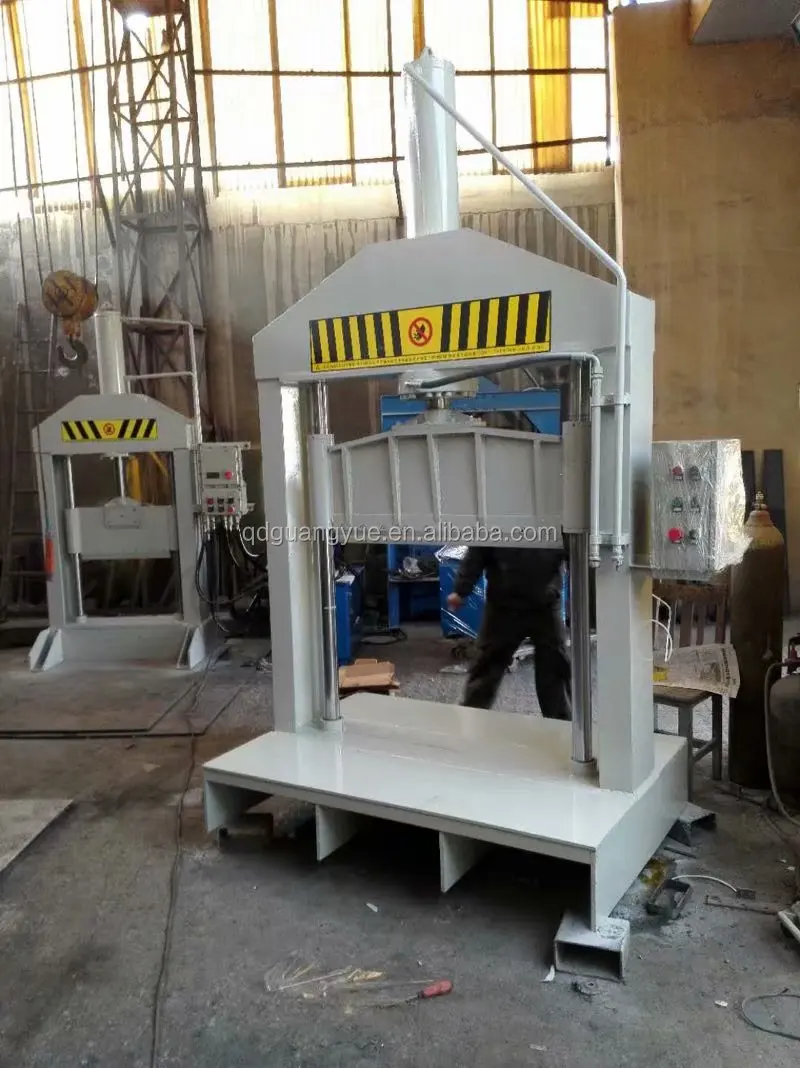

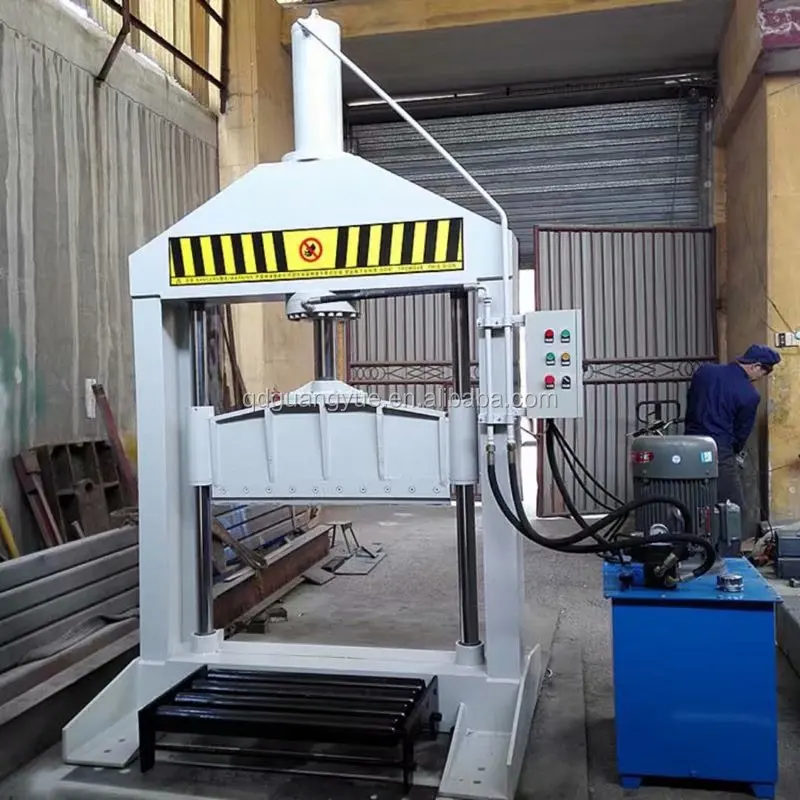

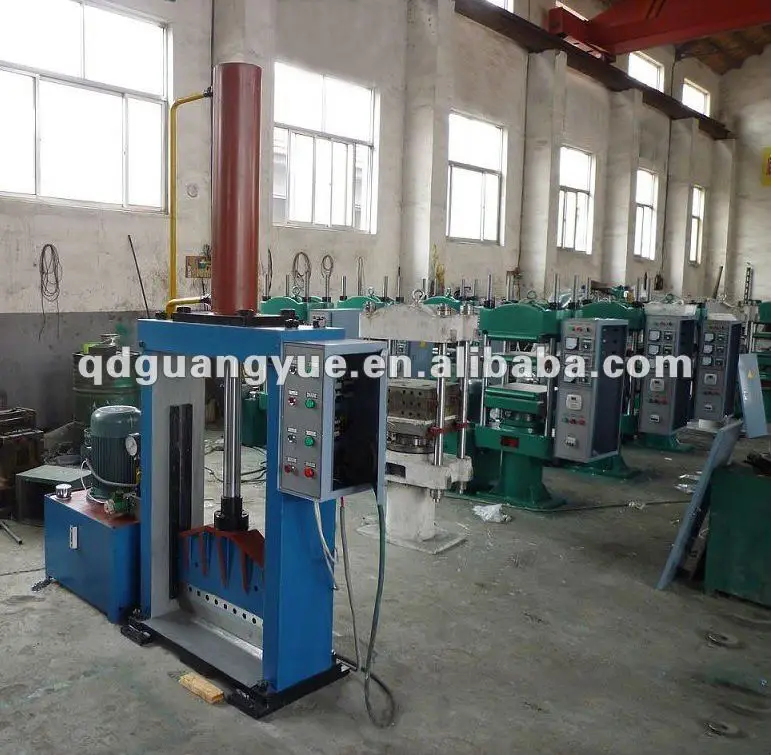

Single knife type hydraulic rubber cutting



Machine is mainly used to cut the natural rubber, synthetic rubber, and other plastics materials, especially it is suitable to be installed near the rubber mixer to cut small piece of rubber.

This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife.

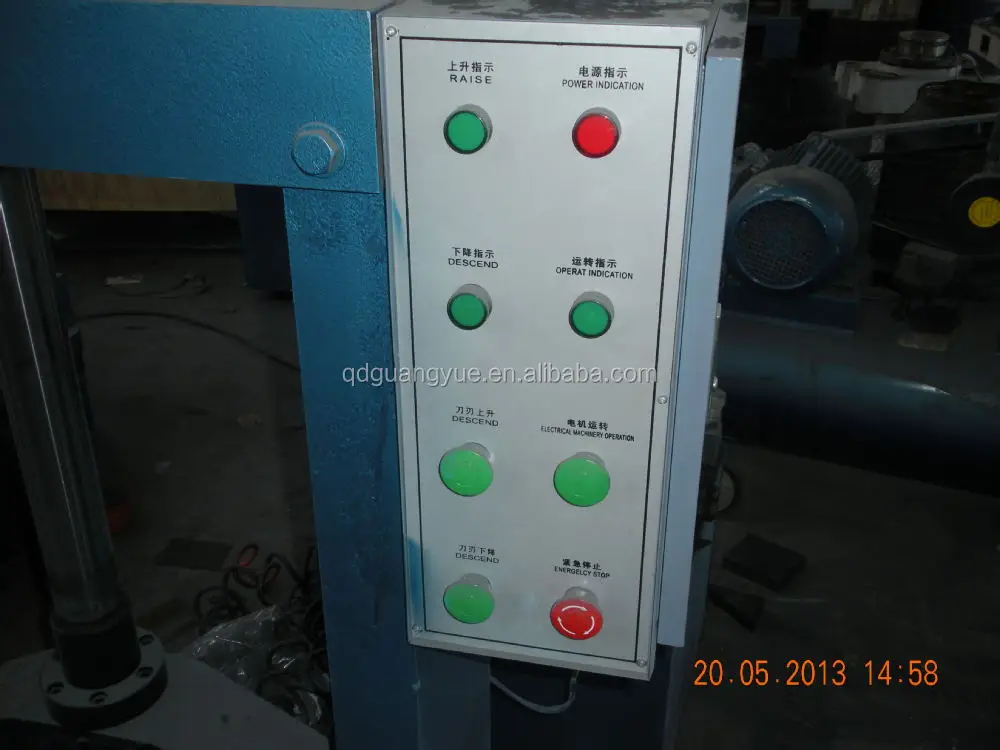

When cuttingthe raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber. Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.



Note:  we also can according to the customers' requirement, and design manufacture the non-standard type of the cutting machine.
