Product Overview
Description
We produce MODULE ! CUSTOM-MADE module is OK! Our company produce your own board!
!! If you order more than 100pcs
PLZ contact me to get a better price and freight.
Features and parameters introduced
The power supply is fully isolated industrial grade built-in power module with temperature protection, overcurrent protection and short circuit full protection, AC85 ~ 265V wide voltage input, high and low voltage isolation, DC12V1A \\ 5V1A dual isolated output voltage, 431 regulated output with EMI filter circuit, with light, with mounting holes, cost-effective
1. Environment
| Item | Unit | Min | Typ | Max | Test Conditions |
| Operating temperature | ℃ | -20 | 60 | ||
| Relative humidity | % RH | 40 | 90 | without cooling |
2. Technical Requirements
2.1 Input characteristics
| Project | Unit | Min | Typical values | Max | Test Conditions |
| Input voltage range | V ac | 85 | 110/220 | 265 | Under full load condition |
| Input Current | A | 0.027 (AC110V) 0.0136(AC220V) | Under full load condition | ||
| Input inrush current | A | 20 | Under full load condition | ||
2.2 Output Characteristics
2.2.1 Output regulation characteristic
| The output voltage | Minimum current | Maximum current | Peak current | Output voltage range | Ripple |
| + 12V | 0A | 1A | 1.2A | 11.80 ~ 12.5V | 150mV |
| + 5V | 0A | 1A | 1.2A | 4.90 ~ 5.1V | 80mV |
2.2.2 Other output characteristics
| Project | Unit | Min | Typical values | Maximum | Test Conditions |
| Output Power | W | 0 | 17 | 18.5 | DC output power |
| Output efficiency | % | 84 | Rated load | ||
| Switching Overshoot | % | 10 | |||
| Output Rise Time | mS | 100 |
2.3 Protection
| Project |
Unit | Yes / No | Min | Typical values |
Max | Recovery characteristics |
The output voltage | V | 13 | 13.5 |
Lock, after re-starting recovery | ||
| 5 | 5.4 | Lock, after re-starting recovery | ||||
| Output over power protection | Have | 17 | 19 | Lock, after re-starting recovery | ||
| Short circuit protection | Have | Lock, after re-starting recovery | ||||
| Temperature Protection | Have |
90 ℃ | 105℃ | Lock, after re-starting recovery | ||
| Overcurrent protection | Have | Lock, after re-starting recovery |
3. Product Size
Volume LWH 7.5 * 4.0 * 2.8 (cm)
4. Installation
A, can be installed at the input and output pins soldered directly on the PCB
B, mounting holes

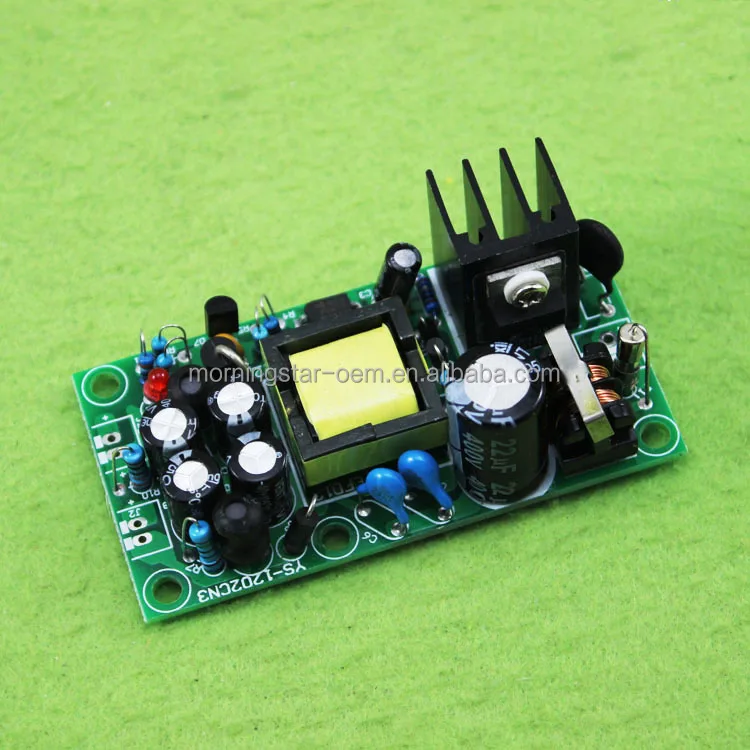

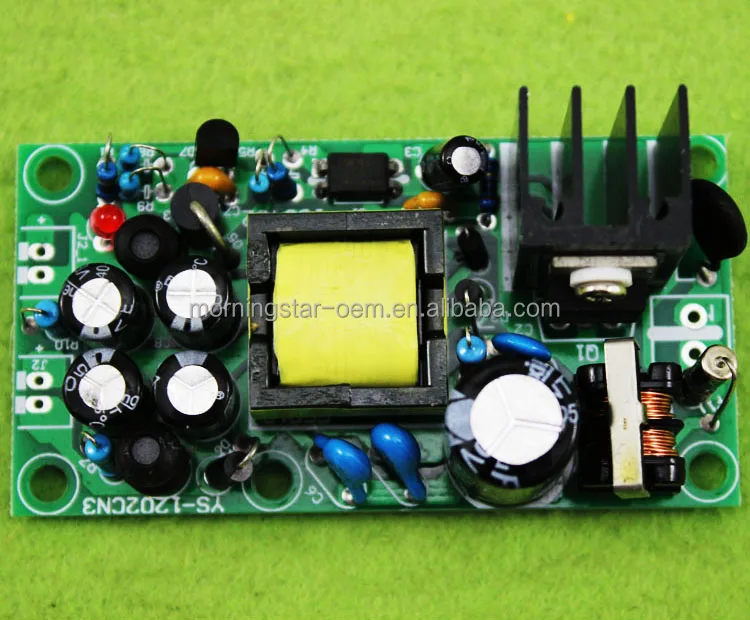

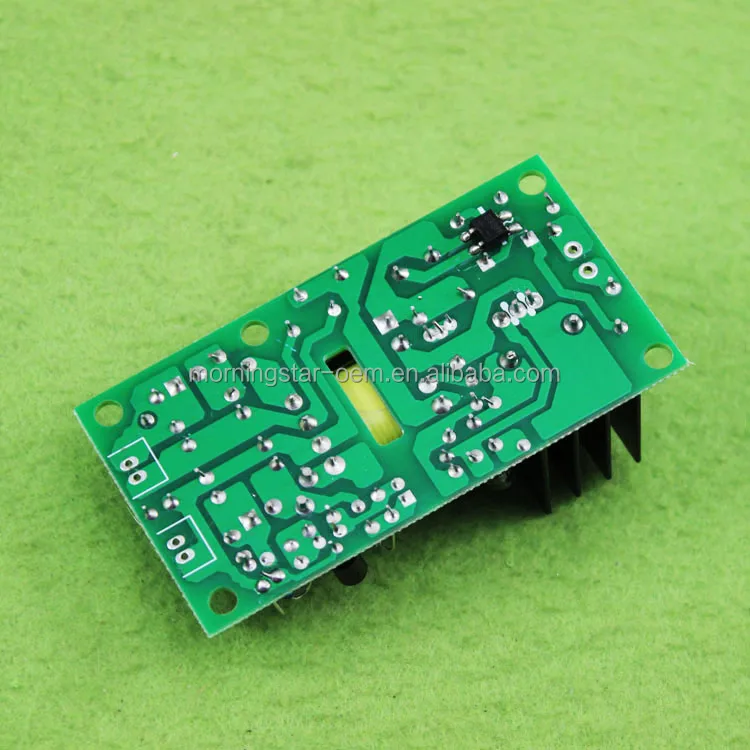

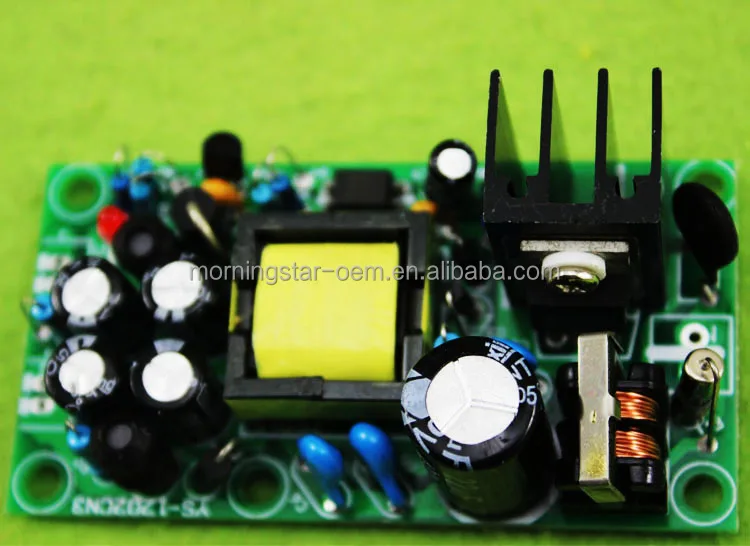

5. Exterior Photos
Input and output identification
