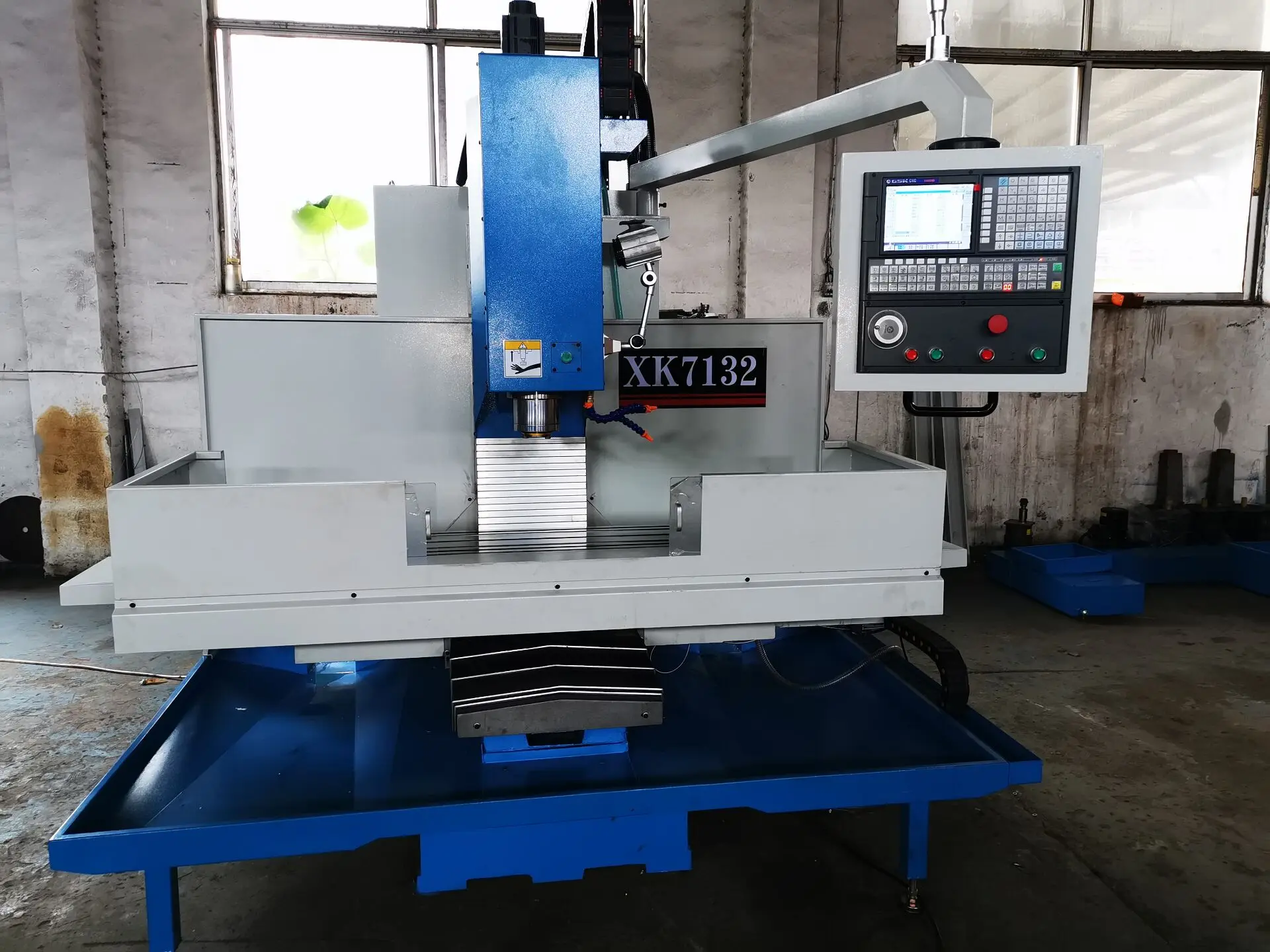

Фрезерный станок с ЧПУ XK7132 с ATC для продажи
- Category: Machine Centre & Parts >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (60349965621):
Product Overview
Description
Product Description
cnc milling machine xk7132
1.high quality box guides CNC MILLING MACHINE PRICE
2.high travel speed
3.powerful axis servo
Specification | XK7132 |
Worktable size(LxW) | 1500x330mm |
T-slot (NxWx D) | 3/18/85mm |
X axis travel | 1000mm |
Y axis travel | 450mm |
Z axis travel | 500mm |
Distance from spindle nose to worktable surface | 100-600mm |
Distance from spindle center to column | 400mm |
Rapid feed speed(X/Y/Z) | 8/8/6m/min |
Spindle taper | BT40 |
Spindle speed range | 8000rpm |
Main motor power | 5.5kw |
AC servo motor torque(X/Y/Z) | 10/10/15N.m |
Over size(LxWxH) | 2100x1900x2350mm |
Net weight | 2600kgs |
Products Show
ATC
Professional 16ATC
1500X320 mm work table
High speed BT40 Spindle 8000rpm
