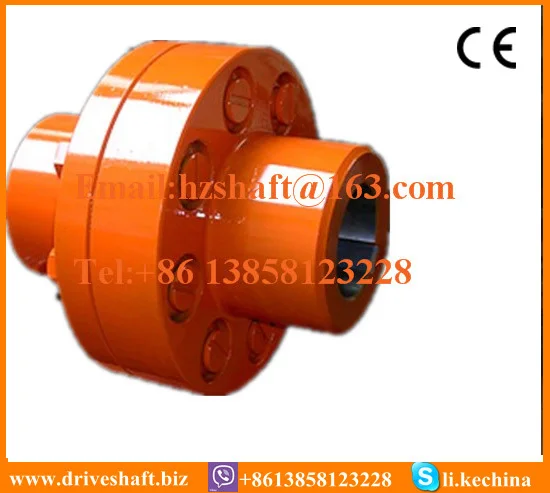

Train motor gear shaft coupling with CE certifation

Product Overview

Description

GL, KC CR Chain coupling

LX, GR Flexible Coupling

LM Spider Flexible Coupling

UL Rubber Coupling

LZ Pin elastomer Gear Coupling

Another Coupling parts



  GIICL Series Gear coupling













Gear Coupling

GIICL Gear Coupling

GIICLZ Gear Coupling

WGT Gear Coupling

WGP Gear Coupling

NGCLZ Gear Coupling

WGZ Gear Coupling

GICL Gear Coupling

GICLZ Gear Coupling

WGC Gear Coupling

GCLD Gear Coupling

TGL Nylon Gear Coupling















Size	Torque Ruting(lb-in)	Allow Speed rpm	Max Bore	Min Bore	Cplg Wt without Bore-lb	Lube Wt-lb	Dimensions-Inches
							A	B	C	D	F	H	J	M	S	GAP
1020T20	460	6000	1.125	.500	4.3	.06	4.42	3.88	1.88	1.56	2.50	.38	.94	1.88	1.54	.125
1030T20	1320	6000	1.375	.500	5.7	.09	4.80	3.88	1.88	1.94	2.88	.38	.98	1.88	1.54	.125
1040T20	2200	6000	1.625	.500	7.4	.12	5.11	4.12	2.00	2.25	3.25	.38	1.02	2.00	1.58	.125
1050T20	3850	6000	1.875	.500	12	.15	5.86	4.88	2.38	2.62	3.88	.47	1.20	2.38	1.76	.125
1060T20	6050	6000	2.125	.750	15	.19	6.42	5.12	2.50	3.00	4.38	.50	1.25	2.50	2.06	.125
1070T20	8800	5500	2.500	.750	23	.25	6.86	6.12	3.00	3.44	4.88	.50	1.32	2.62	2.12	.125
1080T20	18150	4750	3.000	1.062	39	.38	7.92	7.12	3.50	4.12	5.88	.50	1.72	3.50	2.54	.125
1090T20	33000	4000	3.500	1.062	56	.56	9.17	7.88	3.88	4.88	6.62	.50	1.85	3.75	2.82	.125
1100T20	55550	3250	4.000	1.625	93	.94	10.55	9.69	4.75	5.59	7.75	.62	2.35	4.75		.188
1110T20	82500	3000	4.500	1.625	120	1.12	11.30	10.19	5.00	6.31	8.50	.63	2.47	4.88		.188
1120T20	121000	2700	5.000	2.375	180	1.62	12.61	12.00	5.88	7.06	9.62	.69	2.90	5.62		.250
1130T20	176000	2400	6.000	2.625	270	2.0	14.92	13.00	6.38	8.56	11.12	.81	2.95	5.75		.250
1140T20	253000	2200	7.250	2.625	397	2.5	16.42	14.75	7.25	10.00	12.62	.81	3.00	6.12		.250
1150T20	352000	2000	8.000	4.250	507	4.3	18.75	14.65	7.20	10.60	14.72	.76	4.21	8.00		.250
1160T20	495000	1750	9.000	4.750	708	6.2	21.00	15.85	7.80	12.00	16.68	1.18	4.50	8.50		.250
1170T20	660000	1600	10.000	5.250	988	7.7	23.00	17.25	8.50	14.00	18.68	1.18	4.70	8.90		.250







  Cardan shaft coupling   advantage :

1.Excellent performance, long using life and competitive price.

2.Heat resistant&Distortion resistant
3.High intensity and rigidity.
4.Meet Iso9001: 2008 quality system
5.Your sample request are welcomed
6.With own R&D dept., OEM orders are available





Quality Control:
1.Chemical Composition confirm after Ingot
2.Hardness after Heat Treatment
3.Final Dimension Check

Quality Assurance Document:
1.Item Testing Plan will be submit to customer in 1 day after contract signed.
2.All the Q.A Document as per Client Requirement will be submitted before final product shipped out.





Packing and shipping:
1 Prevent from damage.
2. As customers' requirements, in perfect condition.
3. Delivery : As per contract delivery on time
4. Shipping : As per client request. We can accept CIF, Door to Door etc. or client authorized agent we supply all the necessary assistant



4.Drawings









Model	Nominal Torque Tn KN.m	High-point speed (n) r/min	Aperture Diameter d1 d2	Aperture longness L	D0	D	D1	D2	D3	C	C1	H	B1	B2	B3	Most weight kg
NGCLZ1	0.355	4000	20-35	38-82	160	103	71	71	50	30	8	2	42	38	68	8.4
NGCLZ2	0.63	4000	25-45	44-112	160	115	83	83	60	39	8	2	48	42	68	10.5
NGCLZ3	1.0	3800	28-55	44-112	200	127	95	95	75	39	8	2	49	42	85	18.8
NGCLZ4	1.6	3800	38-65	60-142	200	149	116	116	90	46	8	2	53	42	85	26.8
NGCLZ5	2.8	3000	40-75	84-142	250	167	134	134	105	47	9	2.5	58	42	105	39
NGCLZ6	4.5	3000	45-90	107-172	250	187	153	153	125	52	9	2.5	59	42	105	53.2
NGCLZ7	6.3	2400	50-100	84-212	315	204	170	170	140	52	9	2.5	63	42	132	79.6
NGCLZ8	9	1900	55-110	84-212	400	230	186	186	155	57	12	3	77	47	168	117
NGCLZ9	14	1500	60-130	107-252	500	256	212	212	180	64	13	3	80	47	210	182
NGCLZ10	20	1200	65-150	107-252	630	287	239	239	200	66	15	3.5	90	47	265	246
NGCLZ11	31.5	1050	70-170	107-302	710	325	270	276	235	74	16	3.5	94	47	298	361
NGCLZ12	45	1050	75-200	107-352	710	362	310	313	270	84	16	4	104	49	298	470
NGCLZ13	63	950	150-220	202-352	800	412	322	350	300	86	17	4.5	113	49	335	598
NGCLZ14	100	950	170-250	242-410	800	462	380	420	335	98	18	5.5	157	63	335	780









02_

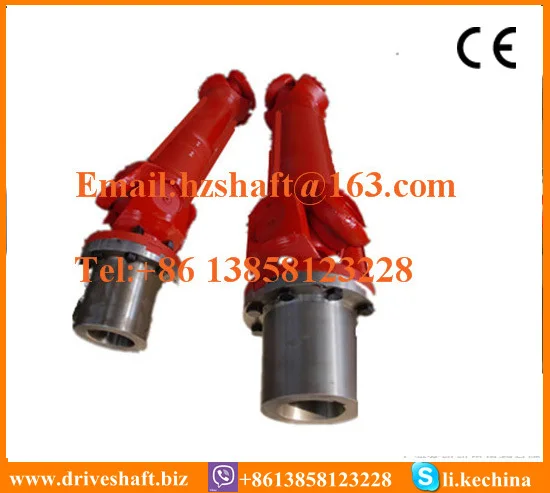

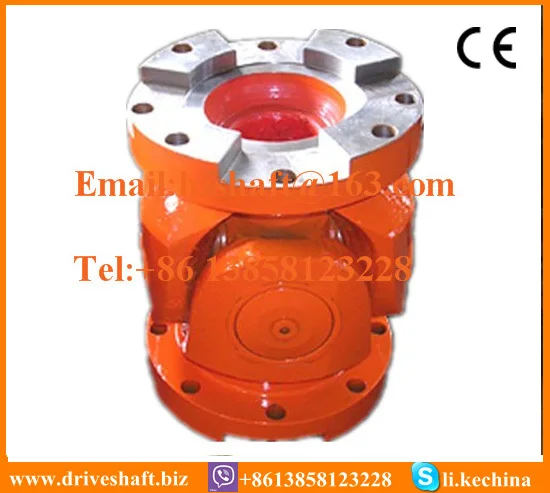

The universal coupling is a kind of shaft coupling that permits large-angle displacement between the shafts, specially used for connecting shafts in that condition. The compact design of radial external dimension ensures convenient maintenance, large transmitting torque, high efficiency, long service life and low noise during working. Driving of intersecting shafts can be delivered. The large-designed shaft angle can be altered during its running and the maximum shaft angle can reach 35 - 45 degrees. When a single universal coupling is used, the speed of driven shaft will fluctuate periodically. And this is mainly used for the transmission connecting of the intersecting shafts. Due to such features as large deviation angle and transmitting torque, the universal couplings are widely applied in Metallurgical machinery, steel rolling machinery, mining machinery, textile machinery, paper machinery, cement machinery, hoisting and conveying machinery, petroleum machinery, electrical machinery, chemical machinery, shipbuilding,etc. various conditions of universal machinery and heavy machinery.

   With rich production experience rooted in years of professional R&D of various shaft couplings, as well as favorable and unparallel advantages in R&D of high- and new-tech competitive products and bulk production, we can guarantee all our products manufactured in line with international and industry standards. And we also provide non-standard coupling products of reliable & stable quality in complete specifications, so as to meet the demand for updating and reforming mechanical products of various kinds, and to promote the shaft couplings up to requirements of different imported machinery.







 5 .Advantages / Features:



1. Materials:



Our company has purchased steel from several large steel groups , such as Hangzhou Steel Mill, Shanghai Bashan Steel Mill, Beijing Shrugging Steel Mill whose steel have good mechanical properties and stability of chemical component. it keep the shaft  to be of high quality.



2. Manufacture Procession



First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.



The second, we adopt blasting procession, removing Oxidation surface, make the surface to be bright and clean and uniform and beautiful.



The third, in heat treatment: We use the Controlled-atmosphere Automatic heat treatment Furnace, we also have four mesh belt convey furnaces, Can deal with the products in different sizes keeping the non-oxidation surface



3. Quality Control:



The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing. 100% inspection during production .





6.CE







7.Packing and Containr Loading
