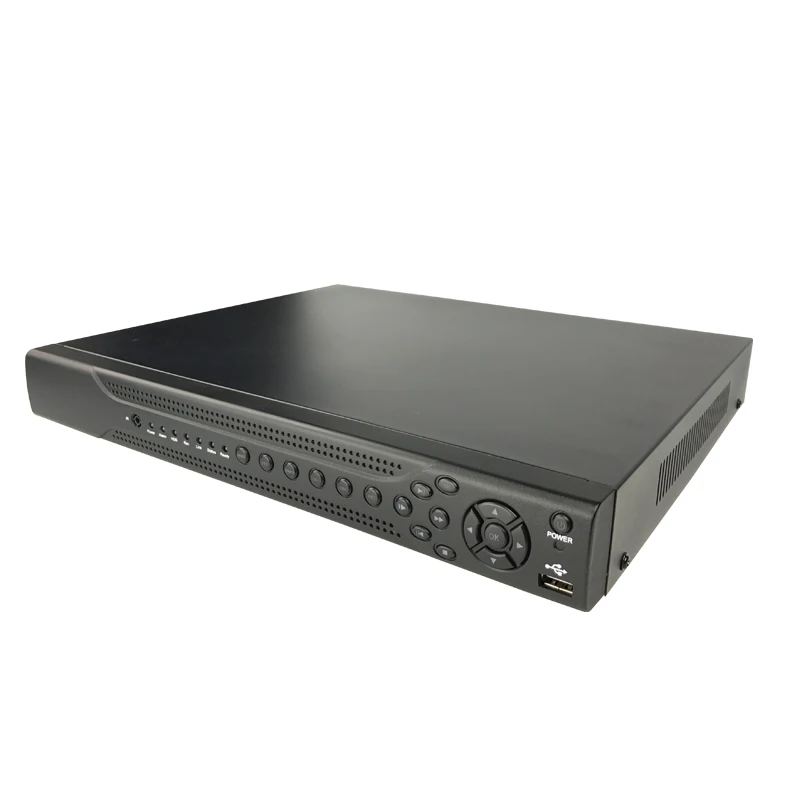

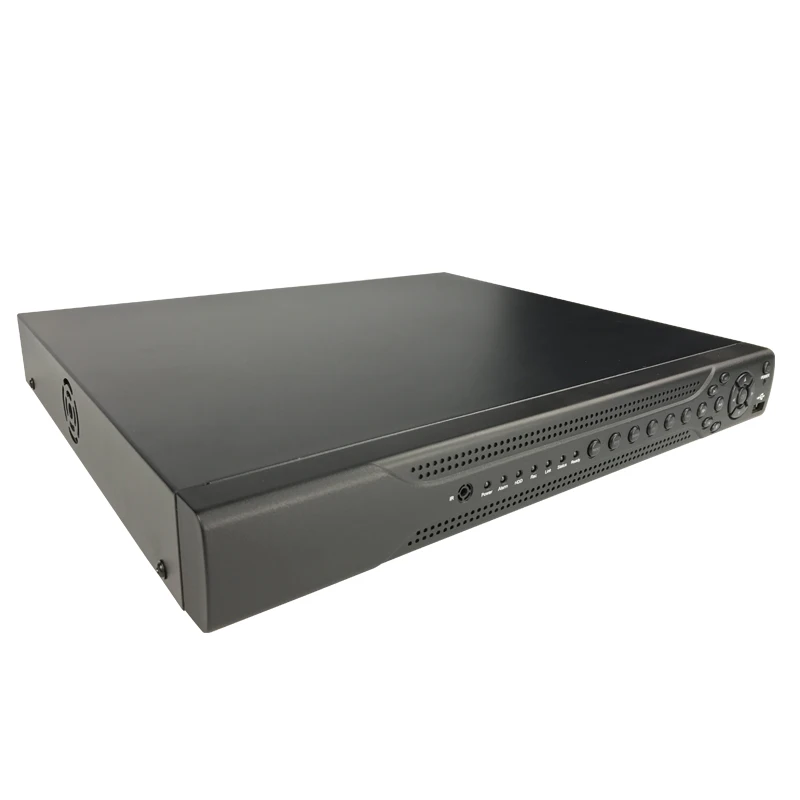

Xiongmai Professional 8ch1080P 2 Sata NVR
The feature of OUR 1080P NVR:
1.Up to 8 channel with 2M realtime live view;
2.Max 56Mbps incoming bandwidth;
3.HDMI/VGA simultaneous video output;
4.4 channel*720P cameras synchronous realtime playback;
6.Support 2SATA HDD up to 12TB, 2 USB2.0+1 USB3.0
7.Multiple network monitoring: Web viewer, CMS,XMeye, provide SDK development;
8.Support P2P, QR code
9.Perfect protection circuit, unique triple watchdog function;
Model | NVR6008D-PL(T) | |
System | Main processor | Hi3520D |
Operating system | Embedded Linux | |
Interface | Operator interface | 16-bit true color graphic menu operation interface,support mouse operation
|
Preview | 1/4/8 | |
Audio& video | Video input | 8,4*1080P/8,4*720P |
Decode | H.264 | |
Monitor quality | Max 1920*1080 | |
Playback quality | 1080P/720P | |
Standard | Video: PAL, NTSC; Audio:G.711A | |
Motion detection | Support(depend on camera) | |
Intercom | Unsupport | |
Video playback | Record mode | Manual>Alarm>Dynamic Detection>Timing |
Local playback | 2*1080P/4*720P | |
Search mode | Search by time/calendar/event/channel | |
Record storage | HDD, Network | |
Backup mode | Network backup,USB hard disk,USB burner,SATA burner | |
External interface | Video out | 1ch BNC,1ch VGA,1ch HDMI |
Audio I/O | 0/1 | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ45 10M/100M adaptive Ethernet port | |
PTZ control | Control PTZ by network | |
USB interface | 2*USB2.0 ports | |
HDD | 2*SATA(Max 6 for each ) | |
General
| ONVIF | Support |
GB28181 | Optional | |
Work environment | Temperature:0℃-+55℃ , Humidity:10%-90%RH , Atm:86kpa-106kp | |
Weight | Around 1.2KG | |
Power supply | 12V/2A | |
Dimension | 350(L)* 295mm(W)* 45mm(H) |

Hangzhou jufeng Co.,LTD,is a whole subsidiary of Hangzhou xiongmai Co.,LTD,Established in 2008, headquartered in hangzhou, We have been China’s biggest AHD solution provider in this industry, providing with XM solution, XMmainboards and XM modules to thousands of Surveillance suppliers;
1.Staff:200+ qualified engineer, 2000+ skilled workers
2.Production center:
hangzhou 10000 square meters 5-floor building
shenzhen 10000 square meters 5-floor building
dongguan 30000 square meters 6 buildings
3. Production ability:
IP camera/ Module 600K per month
NVR DVR 250K per month
4.Total value: 2 billion dollars in 2014
5.Product range: IP camera, NVRs ,AHD camera,
AHD DVRs,mainboard, modules.
How to order from us
1. Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ for products
1. For the common AHD DVR(no customization ), we have no limit for the quantity.
2.OEM (Logo,firmware,sinkprint,colorbox), the MOQ is 100pcs.
Lead Time
1. Sample order can be delivered from our factory in 7 working days.
2. General order can be delivered from our factory in 15 - 25 working days.
3. Big order can be delivered from our factory in 30-35 working days at most.
OEM / ODM Service
1. If the total order quantities are above 100pcs, we can silk-screen print customer’s logo on the products, and put customer’s model numbers in the labels, boxes, and in the manuals free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy
We provide one-year warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, we will repair or replace it by free of charge.
1. If our customers could repair the products by themselves locally, we will supply necessary spare parts.
2. If the customers couldn't repair the products, the products will need to be sent back to us, and we repair and bear 100% return freight charge.
Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
