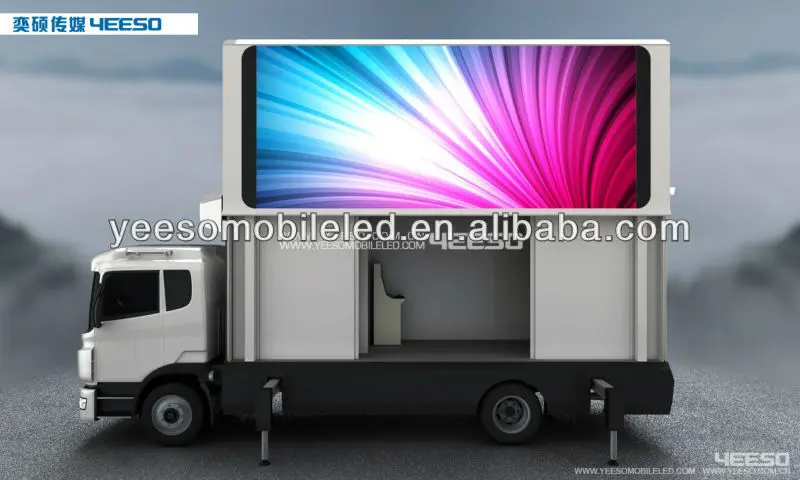

Good quality LED display truck from Shanghai Yeeso Media, YES V9

Product Overview

Description

Good quality LED display truck from Shanghai Yeeso Media, YES-V9



1.One side 12.67 SQM LED(can be lifted up 2m)
2.Another side a LED strip screen & scrolling light box
3.a full color LED screen at the rear
4.Equipped multimedia playing system
5.Inside generator can supply powers
6.With JAC chassis



Good quality LED display truck from Shanghai Yeeso Media, YES-V9

Technical Parameters of YES-V9
Mode	YES-V8
Weight	8700Kg
External dimension	8.7m*2.4m*3.9m
LED screen dimension	5.28m*2.4m
Scrolling light box dimension	3.91m*1.5m
Strip screen dimension	5.44m*0.48m
Rear full color screen dimension	1.22m*1.83m
Horizontal angle of view	110° (±55°)
Vertical angle of view	50° (±25°)
LED display system	P10 full-color outdoor LED display
Multi-media system	IPC+ 15-inch display + professional sound system
Power supply system	outer power or built-in generator power
Input voltage	AC380V±1% 47~64Hz
Average power consumption	0.5KW/m²/H
Total power consumption	9KW/H
Generator	KIPOR KED16SS-15.5KW
Electric system	Standard section:Button control and operate system (standard)
	Deluxe section: CPU control and operate system (optional)
	VIP section: touch screen, wireless,upper computer control and operate system(optional)
Mechanism operates system	lifting up & down (1.9m)
Lifting system	power driven screw rod lifting system, afford: 5000Kg
Chassis	Japan brand
Security system	overheat protection + two fire extinguishers



Good quality LED display truck from Shanghai Yeeso Media, YES-V9















YEESO Advertising&Media (Shanghai) Co., Ltd is an international Leading Manufacturer & Solutions Provider for Mobile LED Ad Vehicles with global strategies, global layout, to enhance your brand value anytime, anywhere as you wish. YEESO, with its strong technology, capable management team, already among the industry's top service providers as well.
