Android tv box I.mx6 ARM Cortex-A9 quad core processor development board with 1.2GHz new electronic components
Product Description

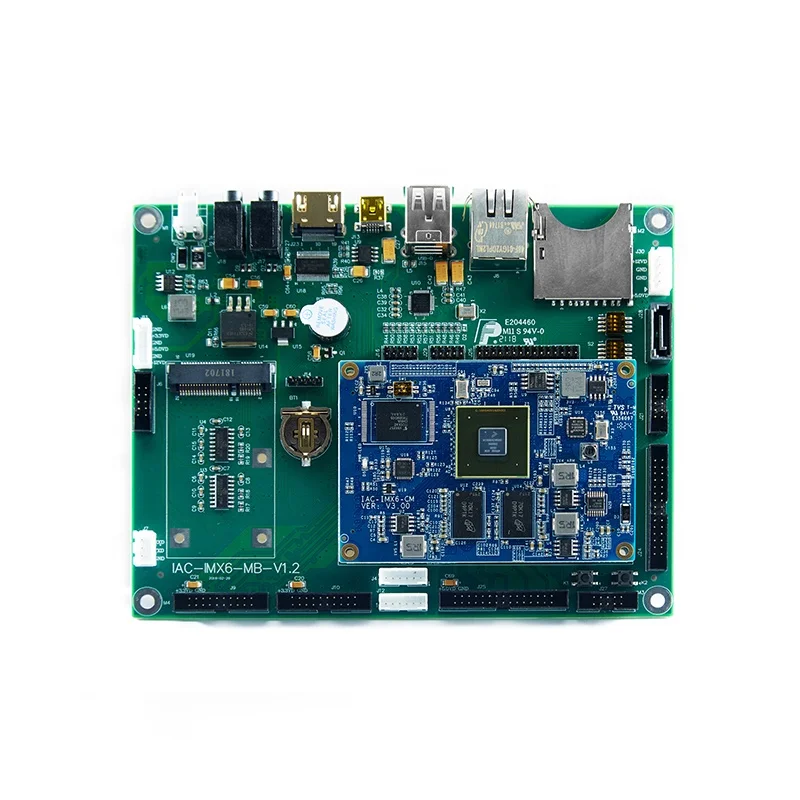

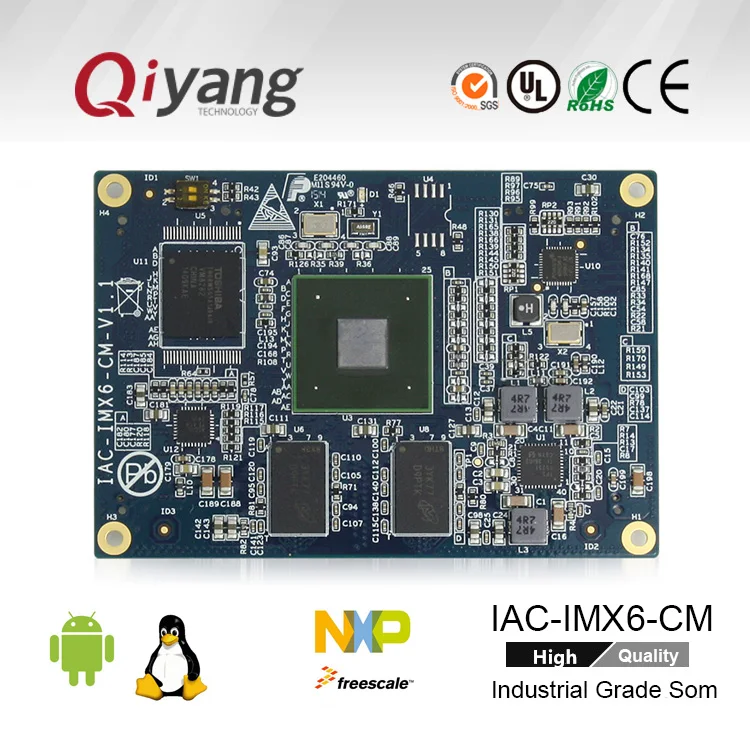

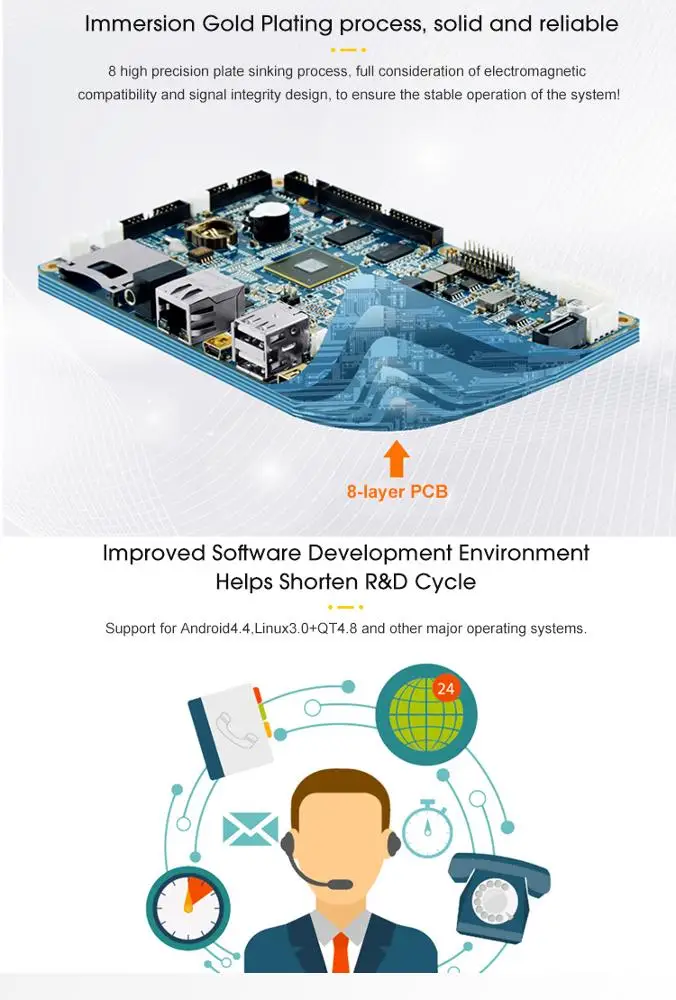

Qiyang IAC-IMX6-Kit development board is based on Freescale i.MX6 cortex-A9 series processors, compatible with single/double/four cores. Processor integrates FlexCAN, MLB BUS, HD level of NEON SIMD multimedia accelerator, Triple Play 3D/2D/VG accelerator, 1080P video codec, PCI Express and SATA-2, excellent data connection and powerful decoding ability, also integrates LVDS, MIPI display port, MIPI camera port and HDMI v1.4 many display interface, provide extensible solutions in fields of consumer electronics, automotive and industrial applications, etc.
Product parameters
|
IAC-IMX6-KIT Development Kit Hardware Resource |
||||
|
CPU |

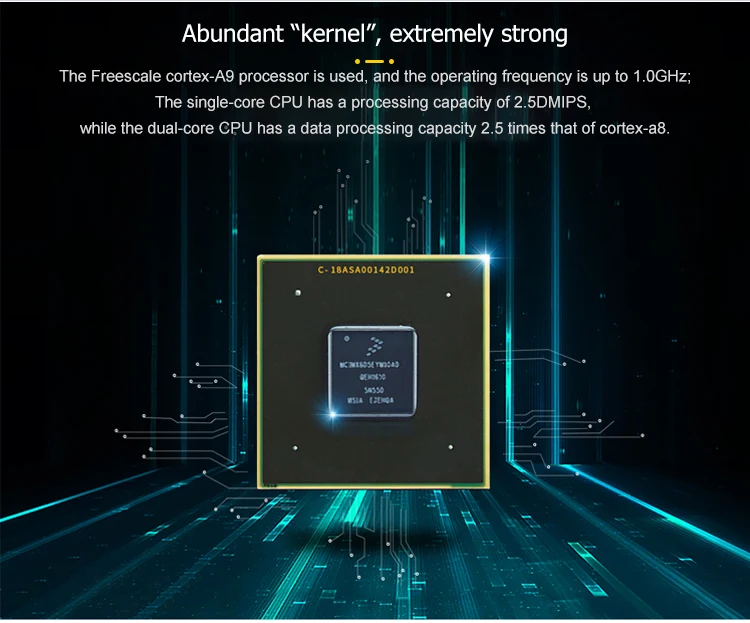

Freescale I.MX6D processor, ARM Cortex-A9 kernel, 1.0GHz, compatibility with solo/dual/quad core. |
|||
|
RAM |
DDR3 SDRAM,4*256MB, total 1GB (2GB optional) |
|||
|
FLASH |
4GB eMMc (32GB in max.) |
|||
|
Communication |
3-ch RS232: Including 1-ch as debug UART, 2-ch RS232 can be multiuse with RS485 |
|||
|

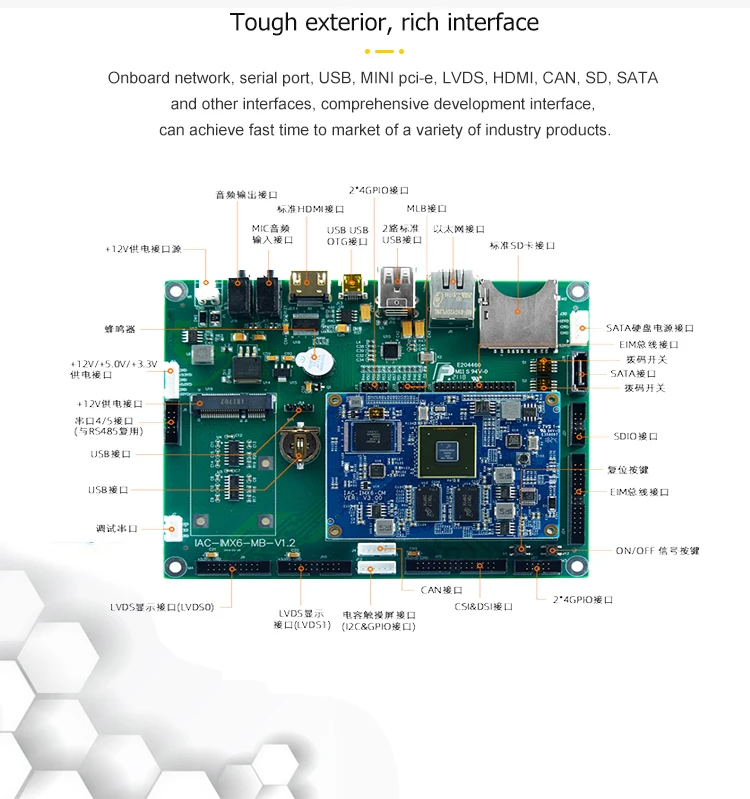

5-ch USB: Including 1-ch USB OTG, 4-ch USB 2.0 HOST, including 1-ch USB to connect MINI PCI-e. |
||||
|
1-ch Industrial 10/100/1000Mbps, with ACT, LINK indicator. |
||||
|
1-ch mini PCI-e , to connect 3G/4G module |
||||
|
2-ch CAN, support CAN 2.0 protocol. |
||||
|
Display |
CSI&DSI port |
|||
|
2-ch LVDS port, each to support 1920*1200 resolution |
||||
|
HDMI , support HDMI 1.4 |
||||
|
Audio |
McASP audio connector, dual audio output, MIC audio input |
|||
|
Input |
Standard I2C capacitive touch panel port |
|||
|
1*20 parallel, MIPI-CSI2( 4-channel), support 3-ch input camera ports at the same time. |
||||
|
Expansion |
SIM card socket |
|||
|
EIM Bus |
||||
|
Storage Interface |
1-ch SD card port, support high speed SD card storage |
|||
|
1-ch SATA hard disk port, SATA II standard, speed reaches up to 3.0 Gbps. |
||||
|
Others |
Reset, RTC, Watchdog, buzzer, JTAG. |
|||
|
Power Input |
+12V, +6V~+25V wide voltage supported. |
|||
|
Software Resource |
OS |
Linux3.0.35, Android4.4 |
Electrical Specification |
|
|
Drawing |
Interface Board Schematic (PDF), PCB, IO Comparison |
SOM Size |
86mm*60mm |
|
|
Driver Software |
Interface drivers and driver code |
Interface Board Size |
160mm*125mm |
|
|
Test Software |
Interface drivers, test program and source code |
Board To Board connector |
3*100pin B to B |
|
