Factory directly sale tft lcd module 9 inch 800*480 vga input for tablet PC
- Category: >>>
- Supplier: Shenzhen Danuowei Electronic Co. Ltd.
Share on (60351066641):
Product Overview
Description
Factory directly sale tft lcd module 9 inch 800*480 vga input for tablet PC
Product Description

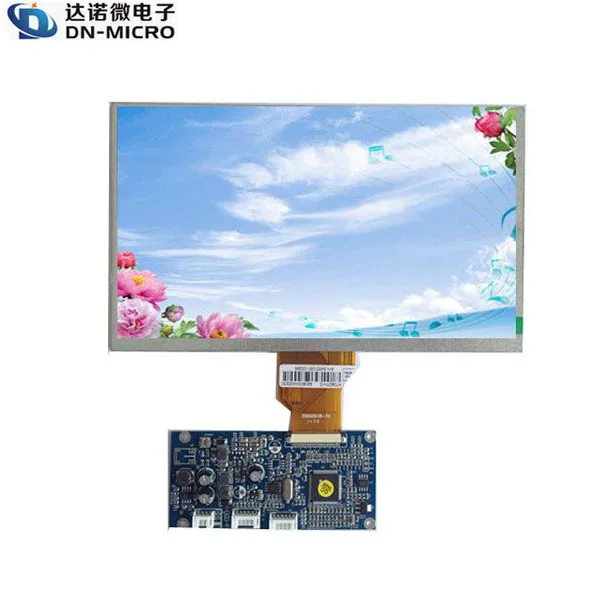

9" TFT LCD Module is composed of DN-MICRO AD Board model DN-D567AT and 9" Panel model of AT090TN12.
This module supports CVBS and VGA . PAL and NTSC formats can be auto switch. all the function can be controlled by keyboard.
Specification
| No. | Item | Specification |
| 1 | Model | AT090TN12 |
| 2 | LCD size | 9.0 inch(Diagonal) |
| 3 | Resolution | 800*3(RGB)*480 |
| 4 | Driver board size | 105*50*7.8mm |
| 5 | Dot pitch | 0.0825(W) * 0.2327(H) mm |
| 6 | Active area | 198.000(W) *111.696(H) mm |

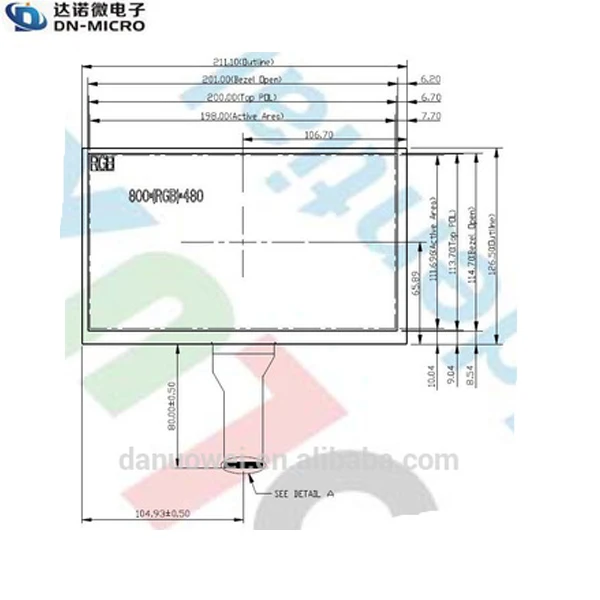

| 7 | Module size | 211.1(W) *126.5(H) * 5.9(D) mm |
| 8 | Working voltage | Min:DC9V;S:DC12V;Max:DC15V |
| 9 | Working current(DC 12V power supply) | DC320mA±30mA |
| 10 | Interface | Digital |
| 11 | Brightness | 200-250nits |
| 12 | Ratio | 16:9 |
| 13 | View Angel | 50/70/70/70 |
| 14 | Backlight power consumption | 2.200W (Typ.) |
| 15 | Panel power consumption | 0.360W (Typ.) |
| 16 | Weight | 253G (Typ.) |
| 17 | Operating temperature | 0°C~60°C |
| 18 | Storage temperature | -20°C~70°C |
| 19 | Environmental relative humidity | 5~95%RH |

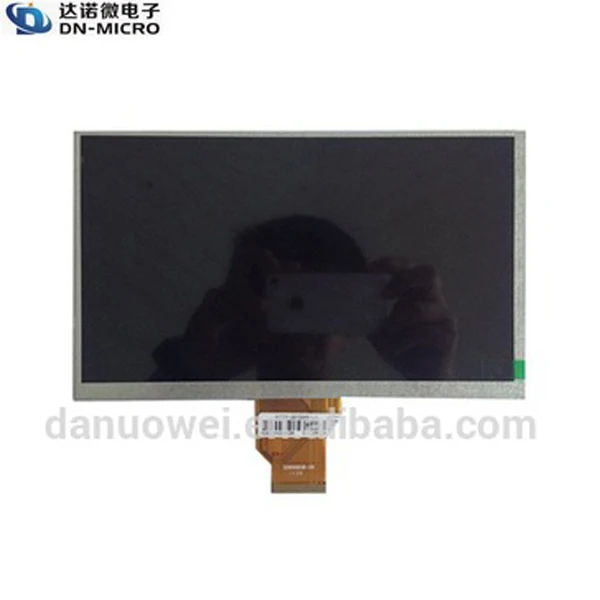

Picture Display
Customized best selling AT090TN12 hdmi 9 inch tablet screen
Certificate
Packaging & Shipping
| Product Package Details | |
| Packaging details | 30 pcs by a carton,also can be customized! |
| Carton dimensions | 53*37*26 cm |
| Quantity/carton | 30 PCS |
| Volume /carton | 0.051CBM |
| Weight /carton | appr. 10.5kg |
| Mini order quantity | 20 PCS |
| Shipping & payment terms | |
| 1) Accepted small order | |
3) Ready to ship out within by sea, airway, EMS, DHL,TNT, FedEX, or as customers require, as soon as we receive payment. | |
| 4) We accept Paypal T/T. Western Union, if you prefer other payment terms, pls contact us. | |
5) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. |

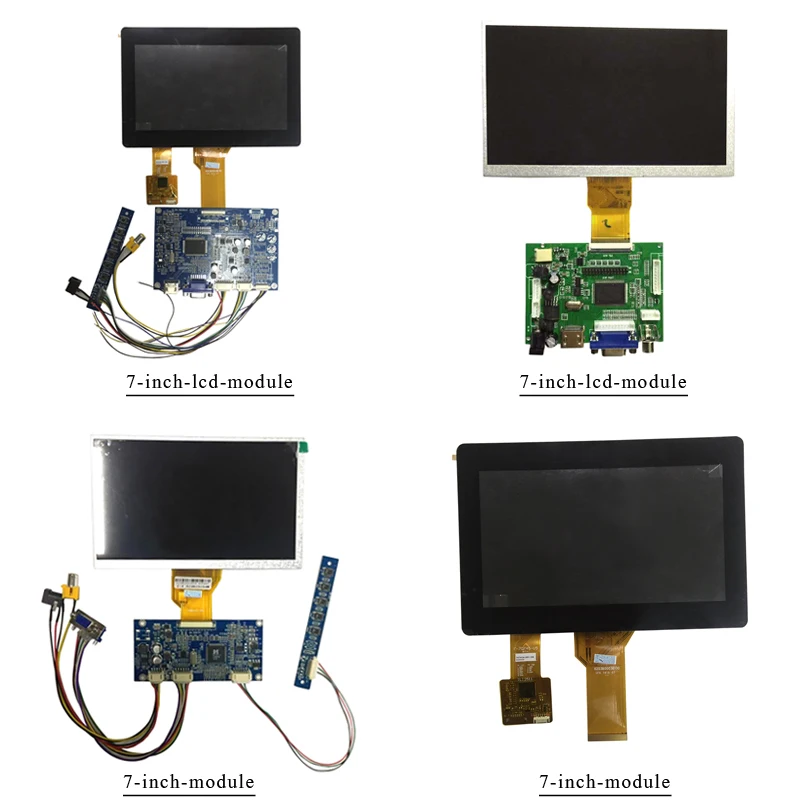

Product Range
our main product is TFT lcd screen( 3.5 inch to 21.5 inch ),and touch screen ( Resistive touch screen and Capacitive touch screen) ,driver board with HDMI and VGA signal input etc .
Our Services
1. Samples? ok!
2. Quality? Restrict quality control in every step before shipping you.
3. OEM? As you want! Pls do not hesitate to tell us your ideas.
4. Response within 24 hours? No problem! And we will try our best to support customers as friends.
5. Quality warranty? 1 year is absulutely not a big deal!
6. After-sale service? Ann is always here for you!
7. MOQ? We hope can reach your every business demands.
8. Prompt & Favorable Delivery: We will share the best price advantage from our forwarder with you.
9. Other requirements? Anything you can think of, we can try to meet! Your satisfaction is our honor; we will be back you ASAP.
company information
Shenzhen DN-Micro Electronics Co., Ltd.
Shenzhen DN-Micro Electronics Co., Ltd. is a high-tech enterprise specialized in the R&D, production, sales and services of TFT LCD displays and modules. We always believe that technology and talents are the most power of the enterprise, with its advanced technology, strong R&D(more than 10-years experience engineers), production capacity, excellent team and comprehensive sevices, our products have been sold well to many countries and regions all over the world, such as America, Singapore, South Korea, UK, Italy, Middle East, Hong Kong and Taiwan etc.
FAQ
Q1:Where to get the datasheet before orafter purchase?
please send amail to"dn-micro@hotmail",we will reply you in 24hours.
please send amail to"dn-micro@hotmail",we will reply you in 24hours.
Q2:How do you add the extra function,does it need for charge?
Just confirm the function with seller before your place an order,simple function is free.
Just confirm the function with seller before your place an order,simple function is free.
Q3:Payment terms of customized service and mass order?
Customized Service:
According to product requirement of charge,100% T/T in advance. we will provide 2~3pcs free sample.
Mass Order:
30% T/T as deposit in advance,the balance will be paid before shipping.
30% T/T as deposit in advance,the balance will be paid before shipping.
