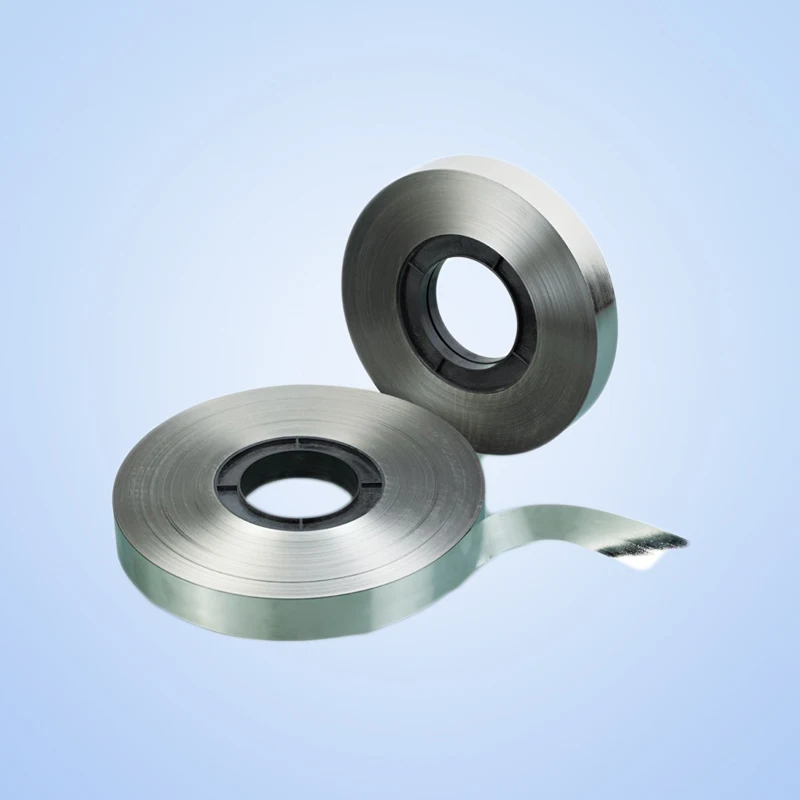

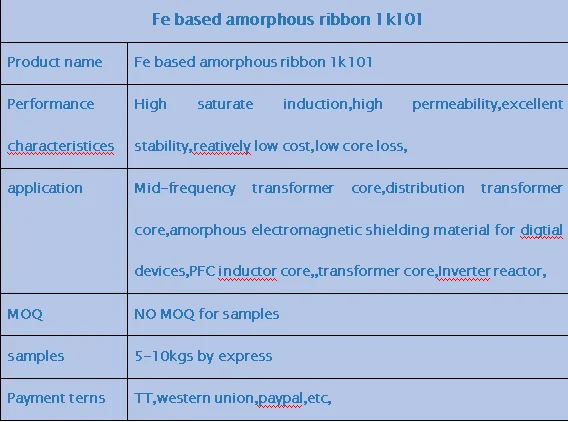

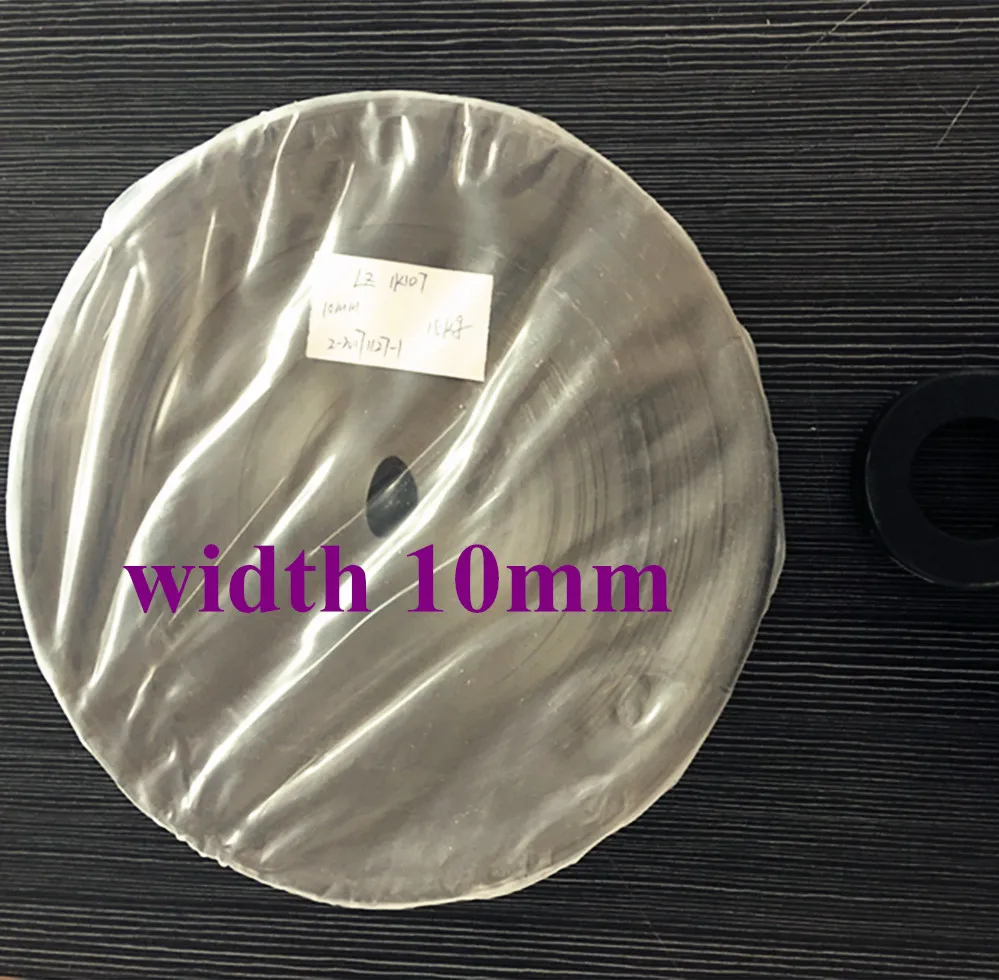

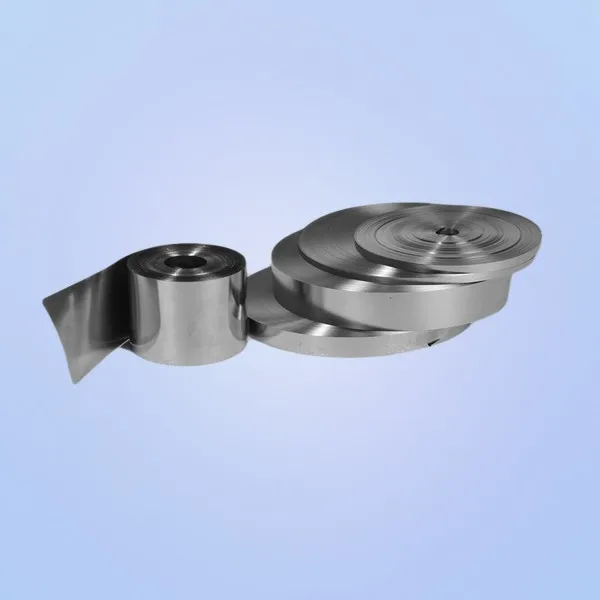

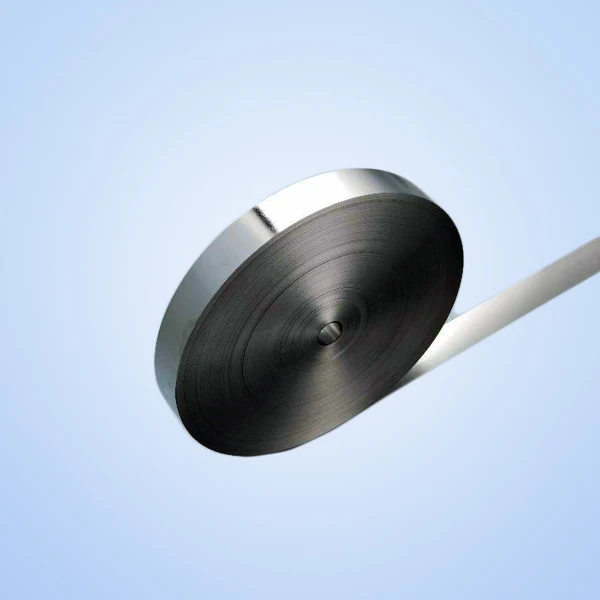

Product Name: Iron-based Amorphous Ribbon
Performance characteristics:
With high saturated magnetic flux density, the product has high permeability, low coercivity, low loss (equivalent to 1 / 3 ~ 1 / 5of silicon steel), constant magneto conductivity, low exciting current and good temperature stability and aging stabilityat the same time.
Applications:
The product is mainly used to replace silicon steel sheet and used in many ways, such as: different power of frequency distribution transformers, power factor correction inductors, small transformers, high-power rectangular iron core, the output energy storage filter inductors, saturable reactor, anti-jamming filter inductorand IF transformer iron core. The working frequency range of the product is from 50Hz to 10kHz. When it is used as the iron core materials of a high-power switching power reactor , the using frequencies of the product can be up to 50kHz.
Fe-based amorphous alloy's physical properties:
Saturation magnetic flux density Bs | 1.5 T | Vickers hardness Hv | 960kg/mm2 |
Curie temperature Tc | 410℃ | Density d | 7.18 (g/cm3) |
Crystallization temperature Tx | 535℃ | Resistivity ρ | 137µΩ·cm |
Saturationmagnetostriction coefficientλs | 27×10-6 | Continuous operating temperature | 150℃ |
A typical magnetic performance of the Fe-based amorphous stripsof the amorphous strip factory:
Grade | B800 (T) Saturation magnetic induction B800 (T) | Hc (A/m) Coercive Hc (A / m) | Iron loss | |||
P1.0/1k | P0.4/10k | P0.5/20k | P0.2/100k | |||
1K101 | ≥1.5 | ≤8 | ≤10 | - | - | - |
1K101AC | ≥1.5 | ≤11 | ≤10 | - | - | - |

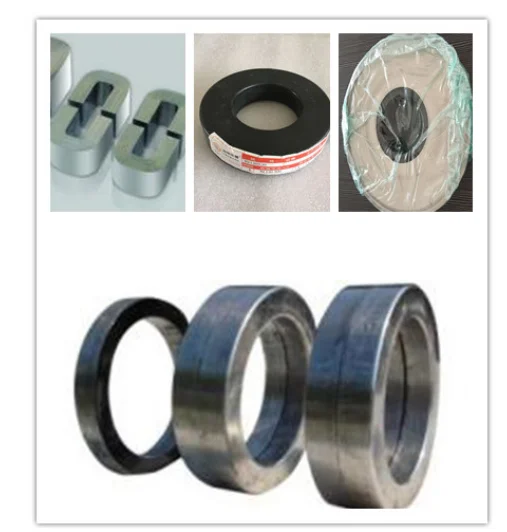

The typical applications of different types of amorphous strips in the amorphous strip factory:
Grade | Features | Main use |
1K101 | Good comprehensive performance and low High-frequency loss, | IF transformers, saturable reactor, filter inductor |
1K101AC | The constant inductance characteristic and the ability of anti-DC is suitable to shear | The product can be used as the ringiron core of the high current opening inductor (It is suitably used as transformer iron cores of a variety of power transformers, in particular, as the high-current output filter inductor in the high-power supply, choke and PFC inductor in the air-conditioning power supply); It can also be used as the amorphous ring iron cores of the wide constant magnetic inductivity (It is suitable for switching power supply output current waveform smoothing circuit, DC - DC converters, filter resonance suppressor, differential-mode inductance, video and audio noise suppressor). |

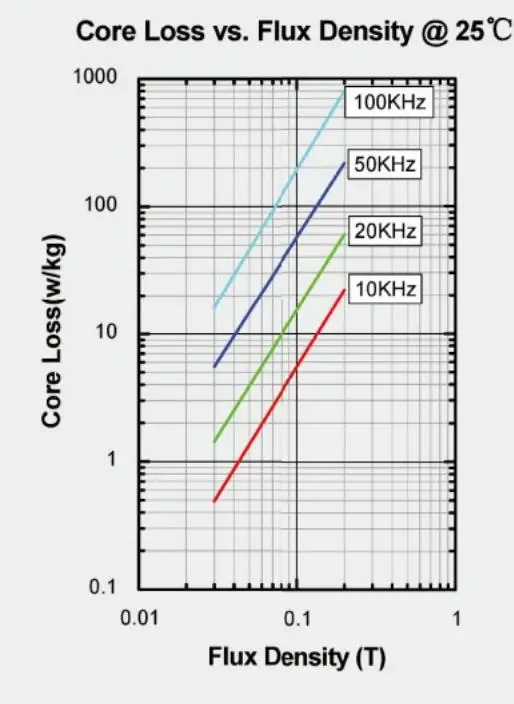

Core Loss for Amorphous Ribbon
