New Designed Concrete Curb And Gutter Machine
Product Description

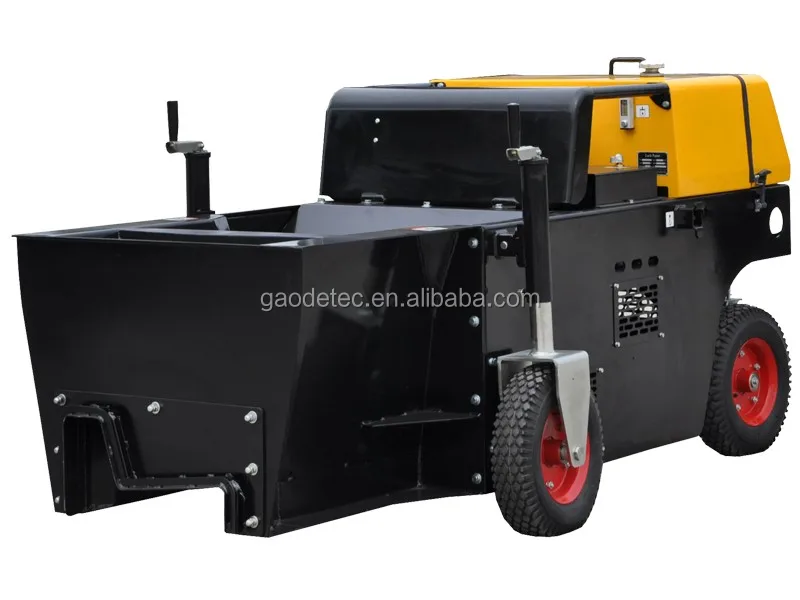

This is a new kind of concrete curb and gutter machine, hammer feeding, with manual
and automatic control system. It is a high-tech machinery, integrative technique of
electronics-hydraulics, with advanced sensors, the machine itself can adjust the
level and straight, makes the construction easily. Molds can dismantle and change
in order to meet the construction requirements.
Advantages:
1) with domestic and oversea famous diesel or petrol engine.
2) Import high precision hydraulic valve, compact and saving energy.
3) Import automatically walk precision sensor, error is less than 1mm.
4) With a electronic lever sensor, automatically balance from left and right, water lever back-up observing.
5) Import high protective rank control button.
6) We can customize kinds of specification molds.

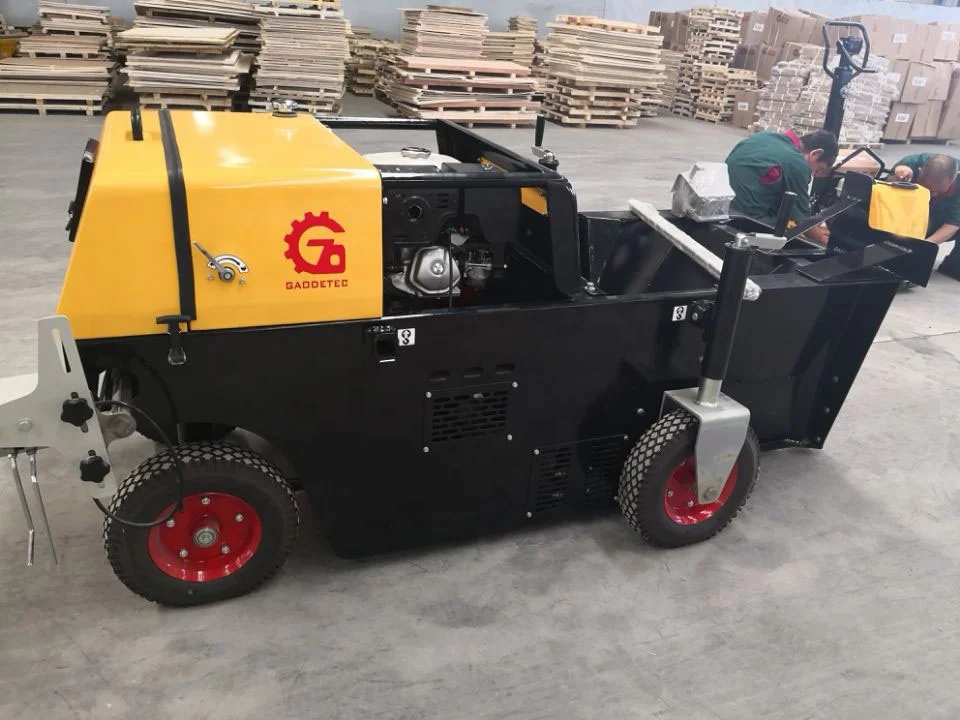

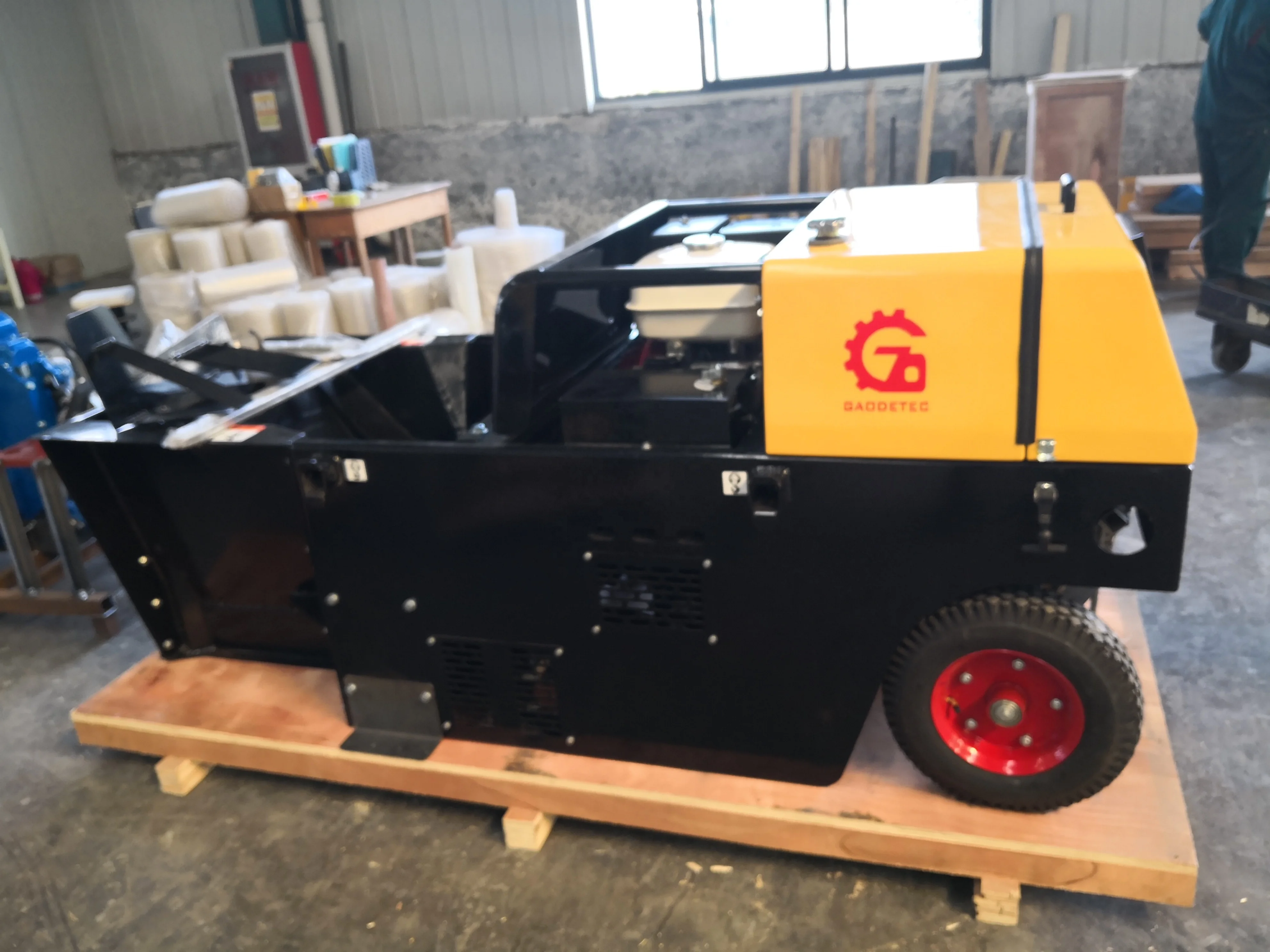

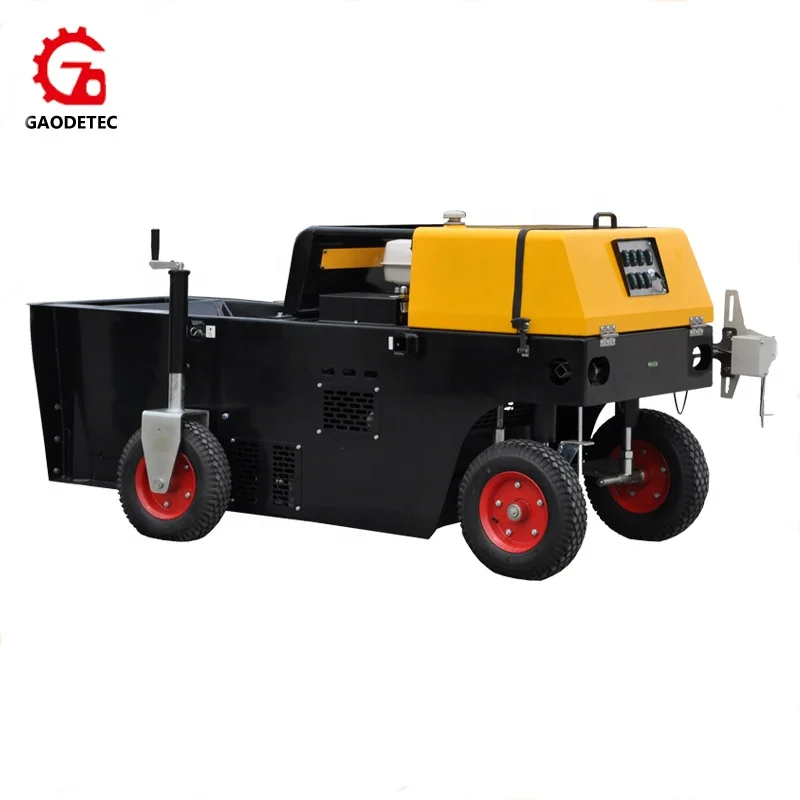

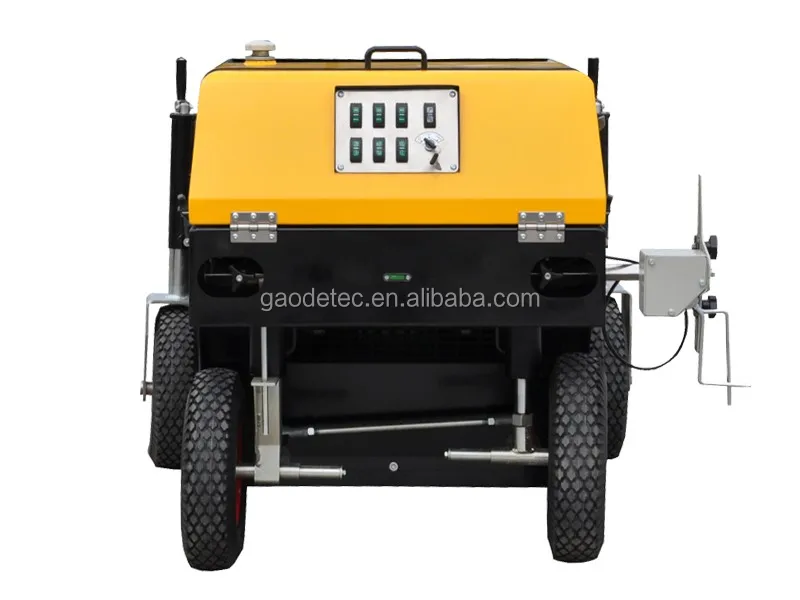

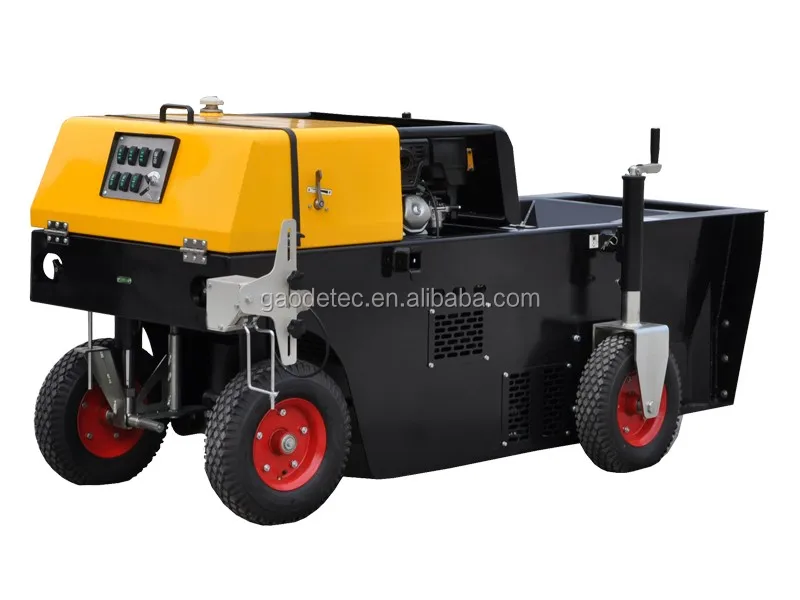

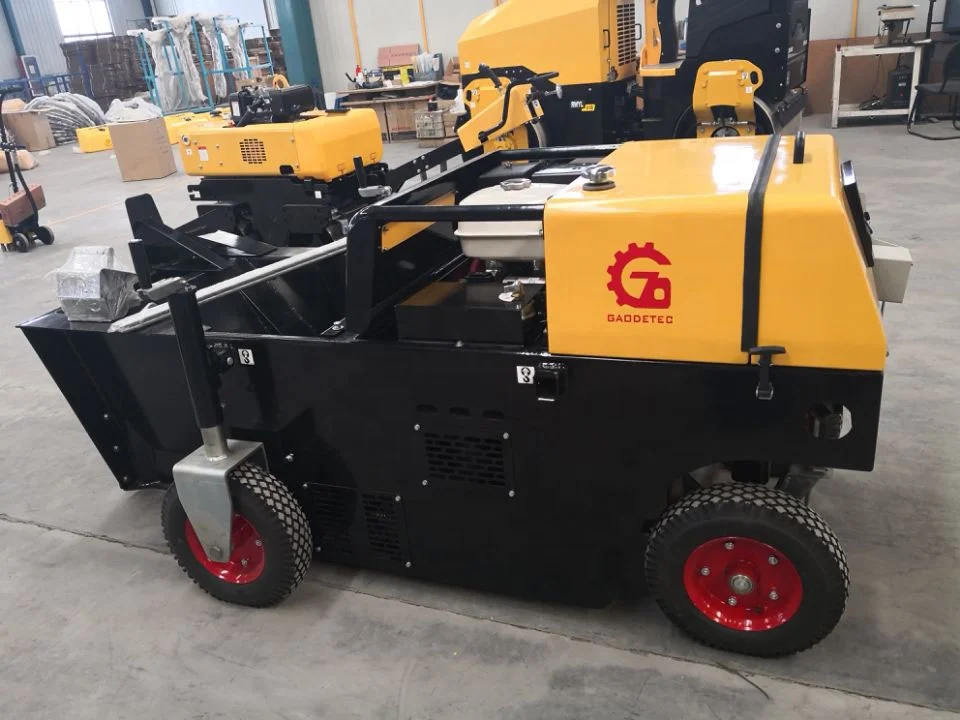

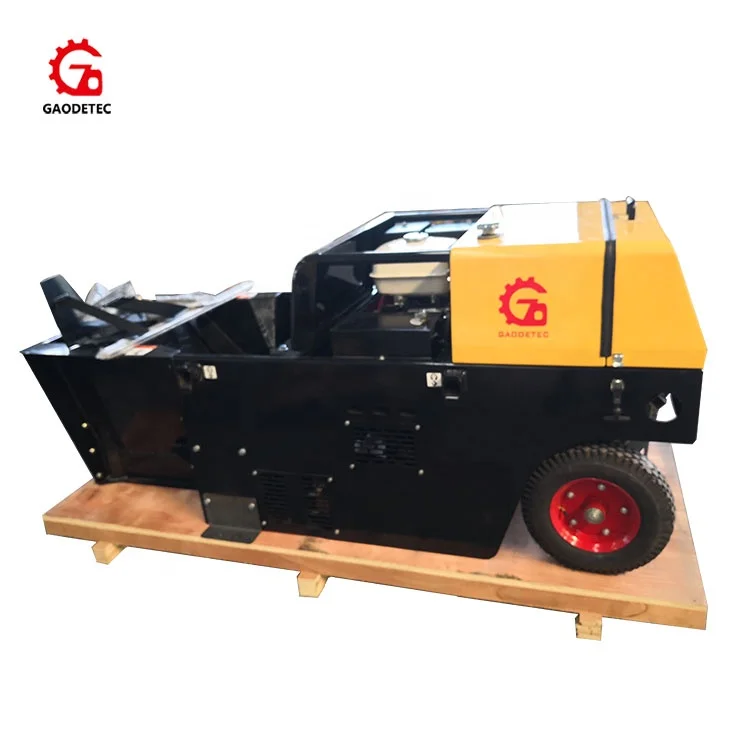

Datailed Images
New Designed Concrete Curb And Gutter Machine

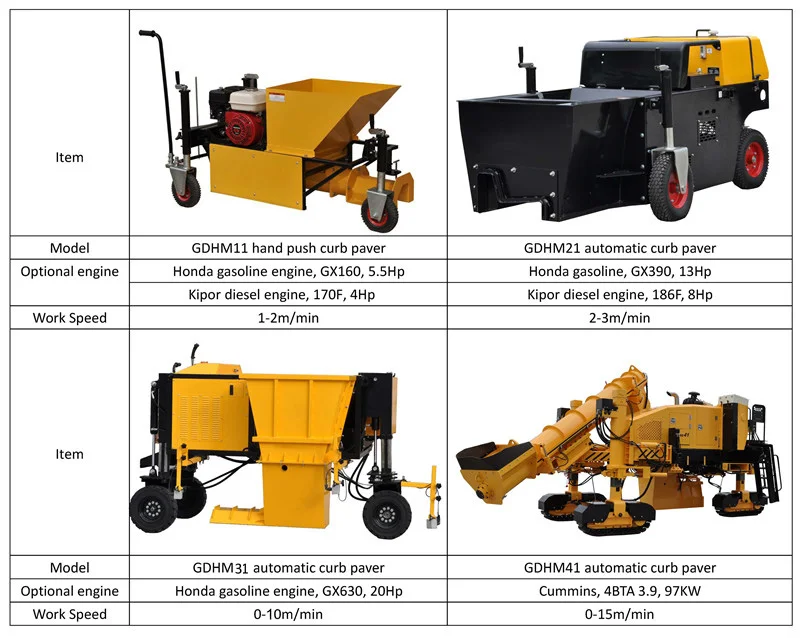

Technical data
New Designed Concrete Curb And Gutter Machine
Model | GDHM21 |
working | |
Working Type | Walk-behind Type |
Work Speed | 2-3m/min |
Work Mold | As per customer’s requirement. |
Engine | |
Gasoline Model | HONDA GX390 |
Gasoline Type | Gasoline engine, air cooling, 4 stroke, single cylinder. |
Power | 13Hp/3600rpm |
Fuel Tank Volume | 6.5L |
Lubricant L | 1.12L |
Fuel Consumption | 313g/kWh |
Machine Size | 2170*1180*970mm |
Package Size | 2300*1040*1200mm |
Weight | 690kg |

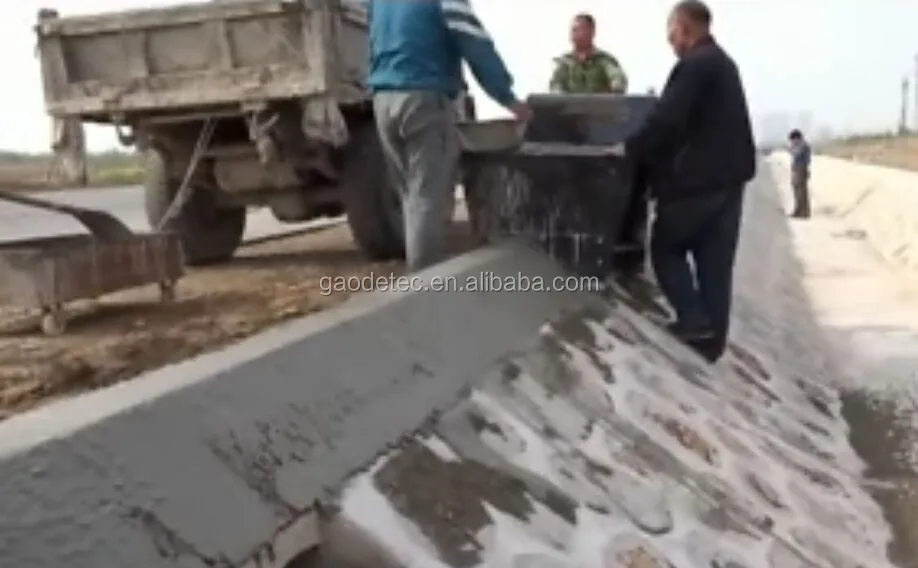

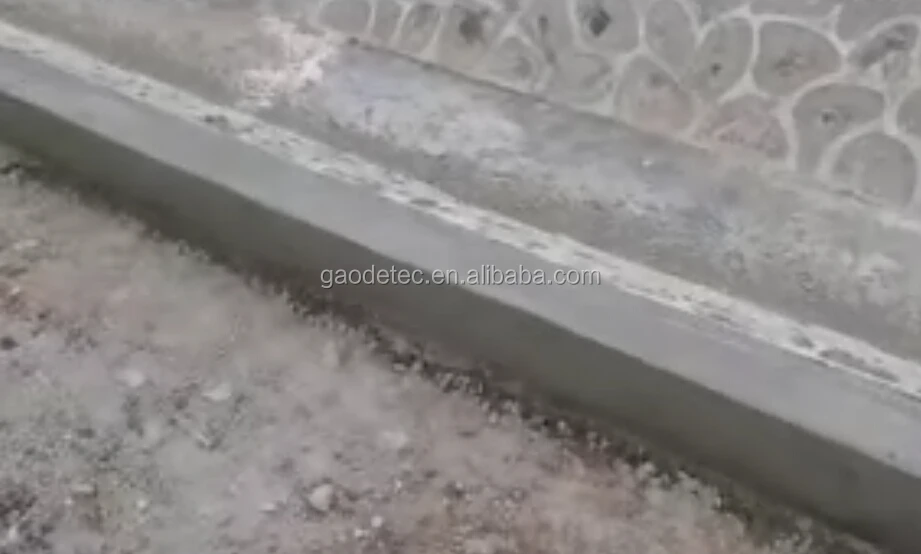

Application
New Designed Concrete Curb And Gutter Machine
GDHM21 Modes Drawings of concrete curb and gutter machine (the two is for customer reference, we have many different modes drawings for customer choose.)
