Микро вибромотор Taidacent 612 1,5 в 3 в для Дронов, игрушек, маленький, с высоким крутящим моментом, матовый, 6 мм, бесщеточный двигатель постоянного тока
- Category: Vibration Motor >>>
- Supplier: Shenzhen Taida Century Technology Co. Ltd.
Share on (60351404153):
Product Overview
Description
Taidacent 612 1.5V 3V Micro Vibration Motor for Drone Toys Small High Torque Brushed 6mm DC Coreless Motor
Type: pin type;
Weight: 1.4 grams;

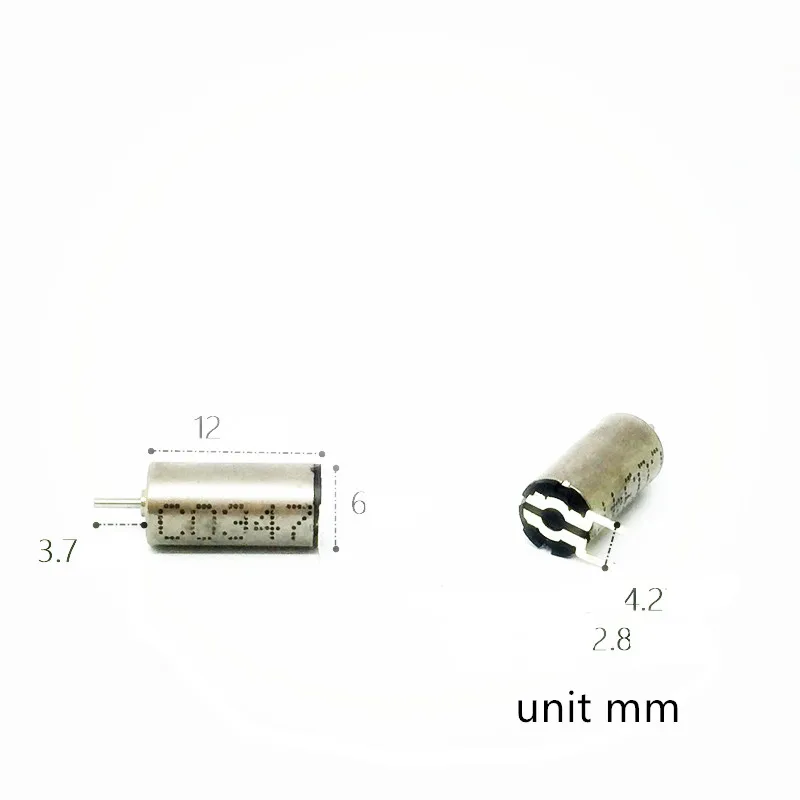

Shaft diameter: 0.8 mm;
Shaft length: 3.7 mm;
Applicable voltage: DC 1.5-3.7V
The DC voltage is 1.5 volts, the measured no-load current is 18 mA, the locked-rotor current is 0.25 A, and the no-load speed is 19,000 rpm;
The DC voltage is 3 volts, the measured no-load current is 20 mA, the locked-rotor current is 0.45 A, and the no-load speed is 38,000 rpm;
The DC voltage is 3.7V, the measured no-load current is 20 mA, the locked-rotor current is 0.5 A, and the no-load speed is 42,000 rpm;
Regarding the speed, there is one point to be added: the speed we tested is the no-load speed when the power is on. The measured speed is measured with a thin plastic sheet, and the impact on the motor is negligible;
For this kind of small hollow cup motor, the speed will definitely change if the load is slightly different.
Weight: 1.4 grams;
Shaft diameter: 0.8 mm;
Shaft length: 3.7 mm;
Applicable voltage: DC 1.5-3.7V
The DC voltage is 1.5 volts, the measured no-load current is 18 mA, the locked-rotor current is 0.25 A, and the no-load speed is 19,000 rpm;
The DC voltage is 3 volts, the measured no-load current is 20 mA, the locked-rotor current is 0.45 A, and the no-load speed is 38,000 rpm;
The DC voltage is 3.7V, the measured no-load current is 20 mA, the locked-rotor current is 0.5 A, and the no-load speed is 42,000 rpm;
Regarding the speed, there is one point to be added: the speed we tested is the no-load speed when the power is on. The measured speed is measured with a thin plastic sheet, and the impact on the motor is negligible;
For this kind of small hollow cup motor, the speed will definitely change if the load is slightly different.
Therefore, the speed of the load varies from person to person, and we have no conditions to test.
In addition, the voltage change also has a direct effect on the speed, which is generally proportional.
In addition, the voltage change also has a direct effect on the speed, which is generally proportional.
Product Description
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | Taidacent |
Model Number | TDJL0612CORM |
Micro Motor | |
Torque | other |
Construction | Permanent Magnet |
Commutation | Brush |
Protect Feature | Drip-proof |
Speed(RPM) | 19000rpm |
Continuous Current(A) | 45mA |
Efficiency | IE 1 |
Packing & Delivery
box package
