QX energy saving low speed cheap larger industrial high volume HVLS fans by Chinese manufacturer
- Category: >>>
- Supplier: Guangzhou Qixiang Industry Co. Ltd.
Share on (60351459338):
Product Overview
Description
Product Description
24ft Low Noise Big Industrial Ceiling Fans For Factory | ||
Market Price | $3200 | |
Factory Price | $3000/2500 | |
Price Range | 1 - 30/$3000 30 - 100/$2500 | |
Product Origin | China | |
Shipping Port | Guangzhou, Shenzhen | |
Lead Time | 5-10 Days | |
Payment & Shipping | T/T, L/C, D/A, D/P, Western Union, MoneyGram | |

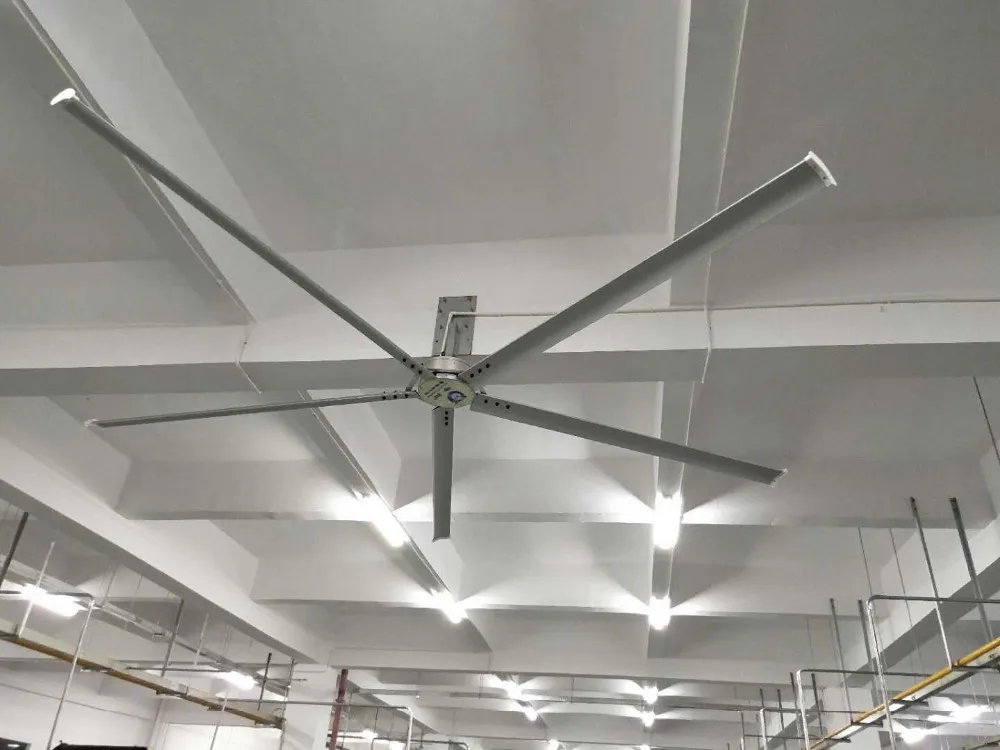

Gearless direct drive hvls Industrial Ceiling Fans specially dedicated for large scale space. The streamlined fan blade adopts aerodynamics principles and advanced process , the diameter is from 2.5-7.2 meters, with coverage 14860m3/min. Only using the efficient servo direct drive motor, it can creat plenty of comfortable natural wind.
Related Products

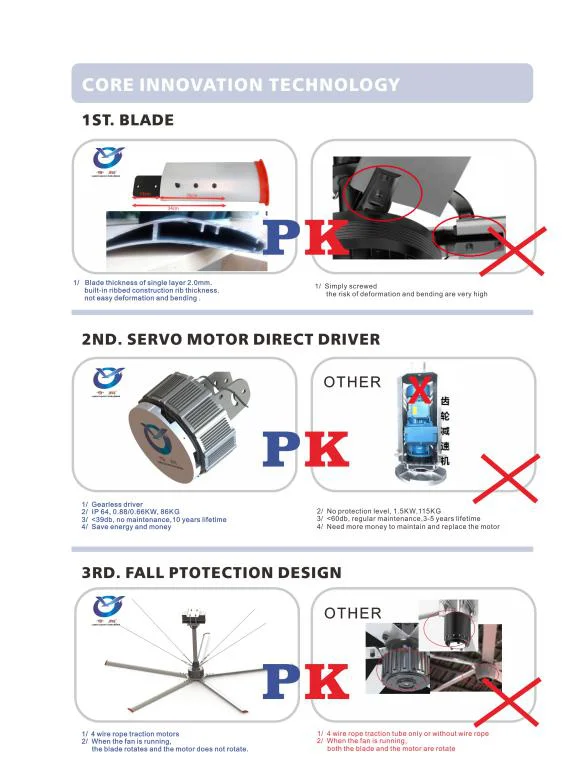

Main Parts & Advantages

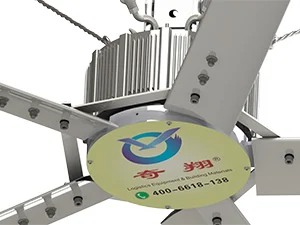

Permanent magnet servo drive motor
1.IP64, small size, no lubricating oil, low energy consumption, no maintenance, can work for nearly 15 years, beautiful appearance, especially suitable for villas, churches, cafes, restaurants, etc.
1.IP64, small size, no lubricating oil, low energy consumption, no maintenance, can work for nearly 15 years, beautiful appearance, especially suitable for villas, churches, cafes, restaurants, etc.
2. The motor is designed with high pyrolysis technology and the operating temperature is about 38 °C.
3, internal precision Hall induction digital closed-loop control, can correctly control the switch station, stepless speed change.

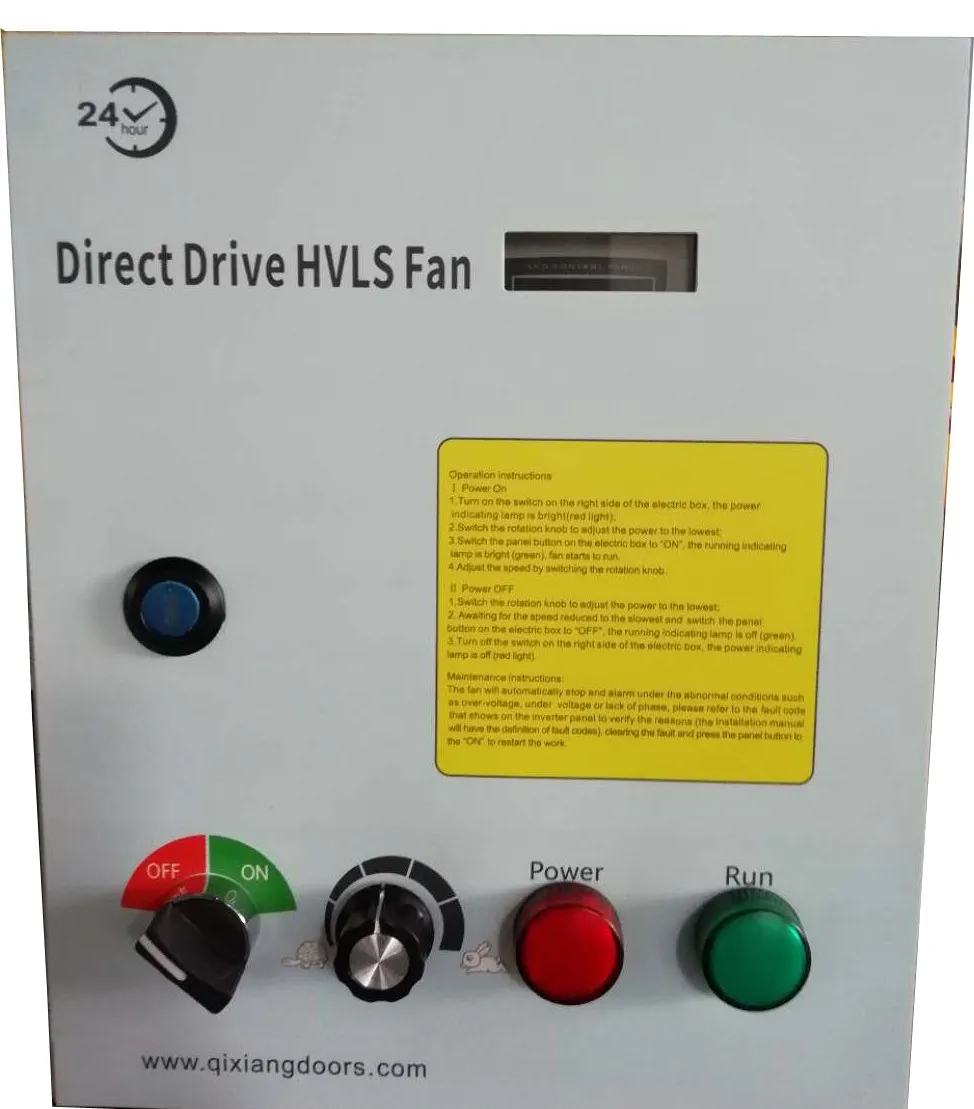

Integrated control box
Servo drive system can make fan have a fast reaction with DSP control core and inner complex control algorithm. In addition, it has continuously variable, precise localization and the protection system with over voltage,over currents.
Servo drive system can make fan have a fast reaction with DSP control core and inner complex control algorithm. In addition, it has continuously variable, precise localization and the protection system with over voltage,over currents.
Fan blades
1.7075 aviation aluminum magnesium alloy with T6 anodizing heat treatment.High resistance to deformation and anti fracture.Tensile strength is 572mpa, the thickness is 2.00mm.
2.5 strength ribs in the inner fan, and one is 3mm thickness for more strong structure and not easy to deform and bench.
1.7075 aviation aluminum magnesium alloy with T6 anodizing heat treatment.High resistance to deformation and anti fracture.Tensile strength is 572mpa, the thickness is 2.00mm.
2.5 strength ribs in the inner fan, and one is 3mm thickness for more strong structure and not easy to deform and bench.
SKF bearing (deep groove ball bearing + thrust ball bearing)
Bearing transmission adopts high strength low alloy steel construction.
Strong mechanical properties, precision measurement to ensure longer life.
Bearing transmission adopts high strength low alloy steel construction.
Strong mechanical properties, precision measurement to ensure longer life.
High strength bolts and fasten glue
High strength bolt in level 12.9, made of 30 CrMnSi, with 271 screw fastening glue to prevent loosening
High strength bolt in level 12.9, made of 30 CrMnSi, with 271 screw fastening glue to prevent loosening

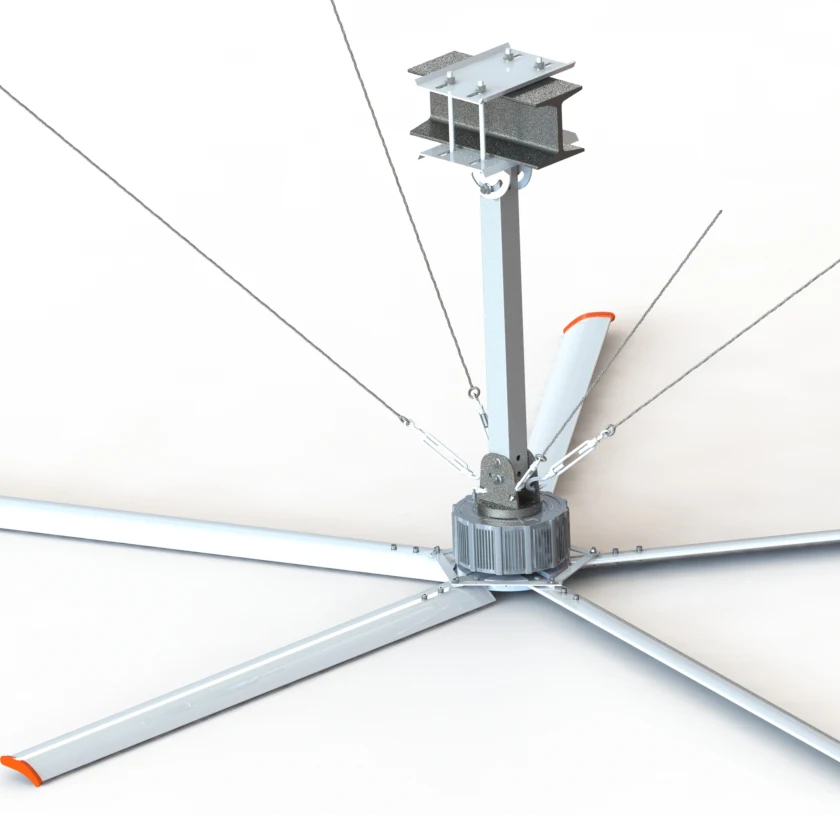

Wire ropes in 4 directions to keep balance
4 wire ropes with 8mm to keep balance in 4 directions to prevent the fan in large inertial rotation shaking, guarantee operation stability and security.
4 wire ropes with 8mm to keep balance in 4 directions to prevent the fan in large inertial rotation shaking, guarantee operation stability and security.
Product Parameters
Big Sizes
Model | HVD-H7200 | HVD-B7200 | HVD-B6700 | HVD-B6200 |
Diameter | 7.2m(24ft) | 7.2m(24ft) | 6.7m(22ft) | 6.2m(20ft) |
Blades Qty | 5 | 5 | 5 | 5 |
Weight | 115KG | 109KG | 105KG | 100KG |
Power | 1.3KW | 0.88KW | 0.88KW | 0.88KW |
Max Speed | 58RPM | 50RPM | 55RPM | 60RPM |
Max air Volume | 15197m3/min | 14515m3/min | 12560m3/min | 10747m3/min |
Power Supply | 380V/220V | 380V/220V | 380V/220V | 380V/220V |
MAX. Current | 3.1A/4.5A | 2.2A/3A | 1.8A/3A | 1.8A/3A |
Noise Level | <39db | <39db | <39db | <39db |
Small Sizes
Model | HVD-S5200 | HVD-S4200 | HVD-S3600 | HVD-S3000 | HVD-S2500 |
Diameter | 5.2m(17ft) | 4.2m(14ft) | 3.6m(12ft) | 3.0m(10ft) | 2.5m(8ft) |
Blades Qty | 5 | 5 | 5 | 5 | 5 |
Weight | 78KG | 75KG | 72KG | 70KG | 65KG |
Power | 0.66KW | 0.66KW | 0.66KW | 0.66KW | 0.66KW |
Max Speed | 70RPM | 80RPM | 90RPM | 100RPM | 120RPM |
Max air Volume | 7065m3/min | 5306m3/min | 4522m3/min | 3140m3/min | 2543m3/min |
Power Supply | 220V | 220V | 220V | 220V | 220V |
MAX. Current | 2.6A | 2.6A | 2.6A | 2.6A | 2.6A |
Noise Level | <39db | <38db | <38db | <38db | <38db |
Packing&Shipping
Transport Support Air, Sea and Land Transport
Company Introduction
FAQ
Q1: What is the MOQ?
No any requirements, 1 pcs can be accepted.
Q2: Compare with the pictures,I prefer to see the real products,Can you promise your products are the same with the pictures?
All the pictures were taken from real products，so the quality can be guaranteed,You can place sample order first .
Q3: Some of my orders are urgent, I don’t want to wait long time, can you guarantee mass production period .
We suggest you contact our sales for urgent orders ,usually 3-5days for stock items,20-30day for mass production period .
Q4: Can all products be customized？
Yes,all of products can be customized according to customers' requirements.
Q5: What kind of motor do you used？
Qixiang.(Designed and produced by ourselves.)
Q6: How about the motor power?
220/380v/50 Hz, single/three phase ,0.66-1.3kw power ,it depends on specification.
Q7: Are the fans safe，how do you make the fans safer than others?
Yes,We have 8 methods to guarantee safety and stability.
No any requirements, 1 pcs can be accepted.
Q2: Compare with the pictures,I prefer to see the real products,Can you promise your products are the same with the pictures?
All the pictures were taken from real products，so the quality can be guaranteed,You can place sample order first .
Q3: Some of my orders are urgent, I don’t want to wait long time, can you guarantee mass production period .
We suggest you contact our sales for urgent orders ,usually 3-5days for stock items,20-30day for mass production period .
Q4: Can all products be customized？
Yes,all of products can be customized according to customers' requirements.
Q5: What kind of motor do you used？
Qixiang.(Designed and produced by ourselves.)
Q6: How about the motor power?
220/380v/50 Hz, single/three phase ,0.66-1.3kw power ,it depends on specification.
Q7: Are the fans safe，how do you make the fans safer than others?
Yes,We have 8 methods to guarantee safety and stability.
