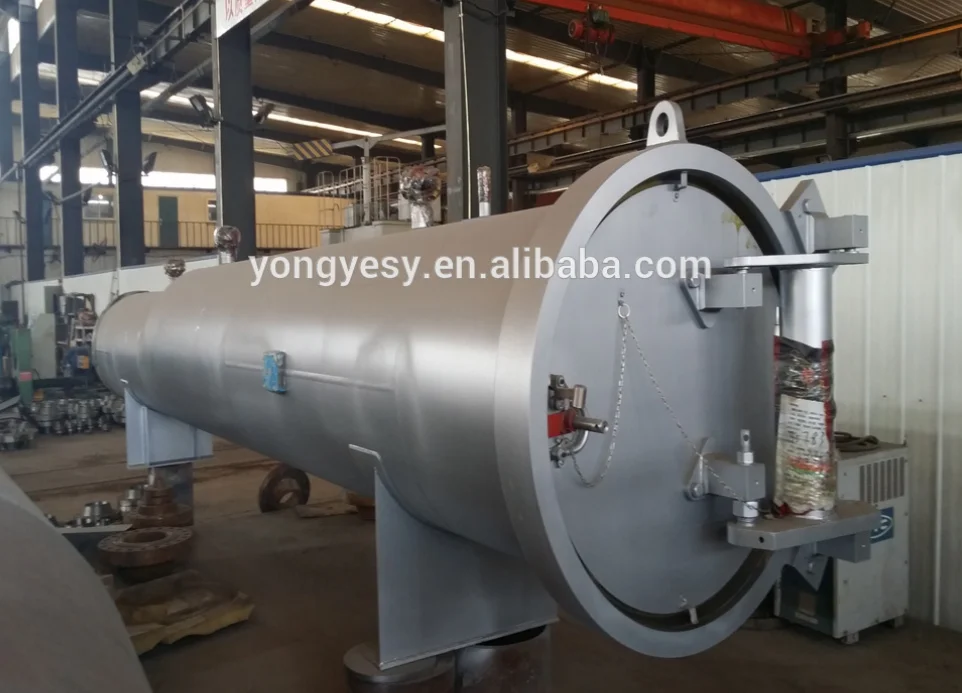

Pigging equipment pig receiver and launcher for pipeline cleaning

Share on (60351614416):


Price:

Quantity:


Product Overview

Description


Pipeline Pig Receiver & Launcher

Pig Launcher And Receiver

Product Description

Product Structure

 1. Quick opening closure

 2. Barometer connecting pipe

 3. Relief valve connecting  pipe

 4. Fluid outlet  pipe

 5. Barrel body

 6. Relief valve connecting  pipe

 7. Variable diameter  pipe

 8. Extension  pipe

 9. Rear support

10. Contaminant discharge  pipe

11. Front support


 Technical Parameters

1.Design Pressure: techical up to 35Mpa.

2.Test pressure: Hydrotest pressure is 1.3-1.5 times of the design pressure and air-tight test pressure is

  the same as the design pressure.

3.Corrosion allowable: 2mm-3mm or based on customer's requirements

4.Seismic intensity: 8 degree

5.Applicable medium: crude oil, finished petroleum oil (gasoline, diesel), gas, water.

6.Size range from 3” to 56”.

7.Class Rating from 150 – 2500.

8.Materials – Carbon Steel, Stainless Steel, Monel

9.Option of Pig Signallers available.

10.Quick Opening Closures with Safety Interlocks.

11.Third party classification society approved.

12.Design codes include ASME VIII DIV. I & ASME B31.3, B31.4, B31.8.

13.Full material traceability available in accordance with EN 10204 3.1.B or 3.2 Certificate.

14.Applicable medium: crude oil, finished petroleum oil (gasoline, diesel), natural gas, coal gas, water.

h

Products Picture:

 .jpg_



Quick Opening Closure (QOC)

Type

Size Range

Max. Pressure

Time of Opening

Gasket

Inserted QOC

DN100-300

35Mpa

1 Minutes

O-ring

Clamp QOC

DN100-1000

35Mpa

1 Minutes

O-ring

Internal Band Lock QOC

DN200-400

35Mpa

1 Minutes

Lip Seal

External Band Lock QOC

DN400-1600

35Mpa

50S

Lip Seal






Pig Launchers & Receivers

Design Code

ASME VIII-1, B31.3, B31.8

Size Range

DN100-DN1600

Pressure Range

Up to 35Mpa

Material Code

ASME, ASTM, API

QOC Type

Inserted, Clamp, Band lock



.jpg

Company Information



Shenyang Yongye Industry Co., Ltd , founded in 1993, is a company specialized in research and development

of pipes and tubes cleaning, interior coating, detection and positioning, pipe cleaning work and pipeline rescue

for variety of long-distance conveying pipelines in oil field, petrochemical and natural gas industries.



The company has dedicated to “Quality First, Clicent Superior, Continuously Promotion of Satisfaction Engin-

eering Work and Offering Quality Products and Satisfactory Service to Customer” business principles, and

utilize the company’s self technical advantages and broad-ranging market space for future development of new

products and provides the clients with completely new technologies, good quality products, reliable commitment

and outstanding services.



Certificate:                                                                                                                     2.jpg



Manufacturing Equipment :

.jpg




Factory:

.jpg



Packaging & Shipping



.jpg



Cooperation:


Market:

Market






FAQ



1. Price term: FOB, Dalian, China.

2. Payment: T/T, D/A, D/P, Western Union.

3. Delivery time: 35-45 working days after payment is received.

4. Standard Steering:Left-hand drive, if you need Right-hand drives, please inform us, will make special order for you.



Our Services

1. Factory Supply:

a. has its own lab, excellent design team, advanced professional equipment and better production environments;

b. all products designed with ASME code and manufactured strictly carry out ISO 9001 system and HSE management           system.

2. OEM Ability:

    can produce according to your demand, the material, the size, the color and the logo is optional for you.

3. Good Quality:

a. has solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality               control system,

b. passed the ISO9001-2008;

c. our brand is china famous brand with good reputation in the market.

4. Good Service: 24-hour hotline and email.

Our Trade Process:
