16 Channels Intelligent Unviersal Laptop Battery Tester Charger Discharger with Software

Product Overview

Description

16-Channels Universal Intelligent Laptop Battery Testing Equipment

work for 16pcs batteries at once

with test ,charge ,discharge ,correct capacity ,50% capaicty function



Feature:

1.Support 16-channel batteries at once

2.Supply for charge, discharge, test, capacity correction, charge/discharge 50% capacity function

3.Real-time updates batteries data,LED indicates working status.

4.Obtain detailed information each channel battery accurately, and intuitive display by software interface

5.Real-time draw record battery working curve

Basic Parameters

Name	16-channels Intelligent laptop battery test machine
Item	RFNC8
Size	540×315×220mm
Weight	15KG
Input	100~240V
Output	24V/32A
Charge Current	2A/2.5A(Max)
Discharge Current	500m/3A(Max)
Standby Power Consumption	≤1W
Working Temperature	0-40℃,20%-90% RH(Non Condensing)
Storage Temperature	-20℃-65℃,10%-95% RH(Non Condensing)
Cooling	active cooling
Intelligent Protection	overvoltage, over-current protection, short circuit protection and exception alerts
Accessories	1*RFNC8,1*power cord ,8*2.0mm universal connector ,8*2.5mm universal connector
Warranty	one year



Function

1.Charge

Battery charge include following several stages,the initial battery charge mode depending on battery starting voltage , the charging process may not need to activate and pre-charge

2. Discharge

Internal constant current discharge,discharge current default is 500mA, up to 3A.You can set the discharge current through RFNC8 software ,may exist a little deviation between set value and actual value,specific value is unrelated with batteries.

3. Test

By charging and discharging the battery for short time,to test the charge/ discharge function is good or bad . Charge 20s, discharge 10s.

Test OK ,the LED green light flashing , and the software pop-up prompt.

Test Fail ,the LED red light flashing and the software pop-up prompt

4.Capacity Correction

The battery capacity value in the battery management chip will different from the actual capacity after a battery goes through many recycling cycles. It will affect the use of the battery when the difference reaches a certain degree. Capacity correction is to deep discharge a battery and then fully charge, which will correct the capacity value in the battery management chip.

5.CD50% & DC50%

CD50%: charge firstly, and then discharge to 50% capacity

DC50%: discharge firstly, and then charge to 50% capacity

6. LED Indication

Green light:Normal Charge

Green flash:Task completion

Red light:Normal discharge

Red flash: Abnormal alarm

7. Intelligent Protection

1) over-current protection, overvoltage protection:

Normally the current and voltage are in the limit range. Even though this part of the circuit failure, power outlets at the fuse can also ensure that the output current does not exceed 3A

2) Short circuit protection:

Hardware short-circuit protection, when the battery is reversed or shorted power isnot out

3) active cooling:

Discharge states (if the current existence) fan starts;

Other states, when the temperature is higher than about 48 ℃ fan starts, when the temperature is below about 40 ℃ fan stops

4) Exception alarm:

Termination function being executed when an exception occurs, and the LED flashes red

charging for a period of time (about 50s) there is no current

discharge for a period of time (about 25s) there is no current

charging more than 8.8H

discharge more than 9.9H



Work Interface

Function Menu Display

1. Key Function Interface

1) Right-click on the battery icon, pop-up the below menu for controlling the battery working , key button functions explanation as the right diagram .

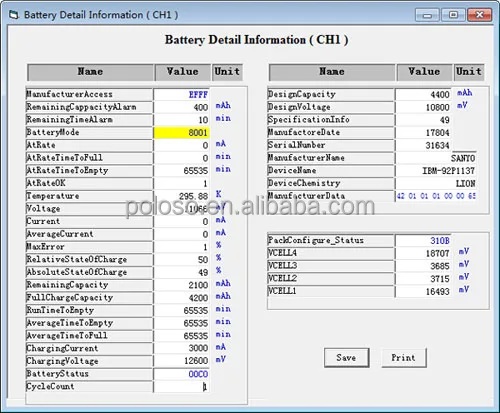

2) Click the "Smart Battery Data (B)" pop-up battery Details interface, and get detailed battery information;

 Click "Save" to save the current window picture;

Click "Print" to print the current window picture;

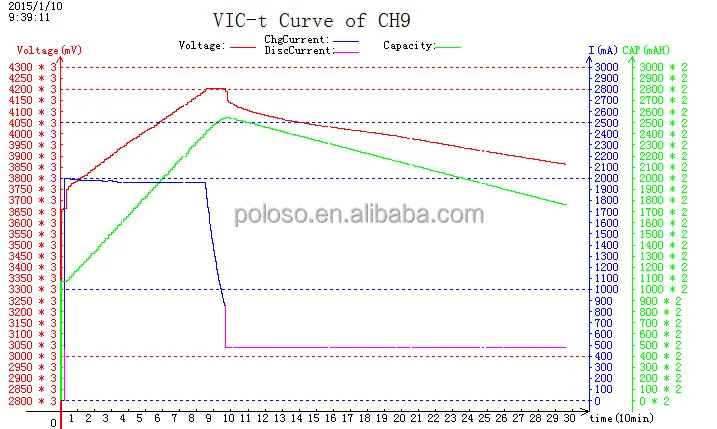

3)Click the "Graph (G)" pop-up graphic curve drawing interface, viewing the recorded battery working curve.

Click "Reset" to clear the current drawing curves, and start drawing again:

Click "Save" to save the current window picture;

Click "Print" to print the current window picture

.Operate Interface

1. Click "Operate" appears battery parameters setting interface as below:

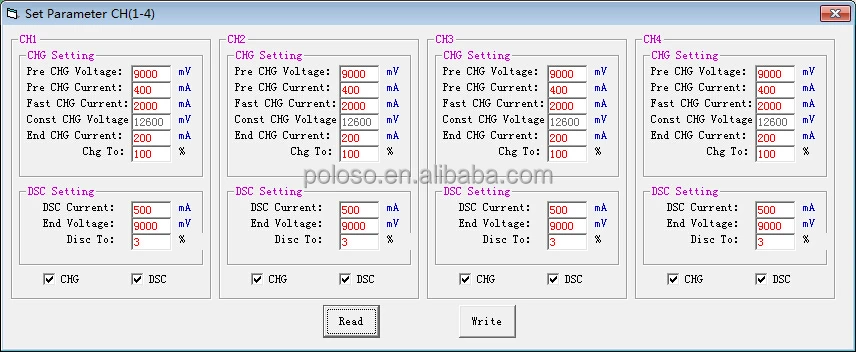

2.Click "SetParamsGroup_1" pop-up settings battery parameters form (the other channel parameters set operation same as )

3. parameter settings (set the channel parameters, advice that uncheck the channel which don’t need to set parameters)

 Check the "CHG" or "DSC" ,then can read and write the corresponding channel charge or discharge parameters and parameter values modified

Click "Read" to read the charge and discharge parameters of check channel

Click "Write" is used to write the modified discharge parameters of check channel

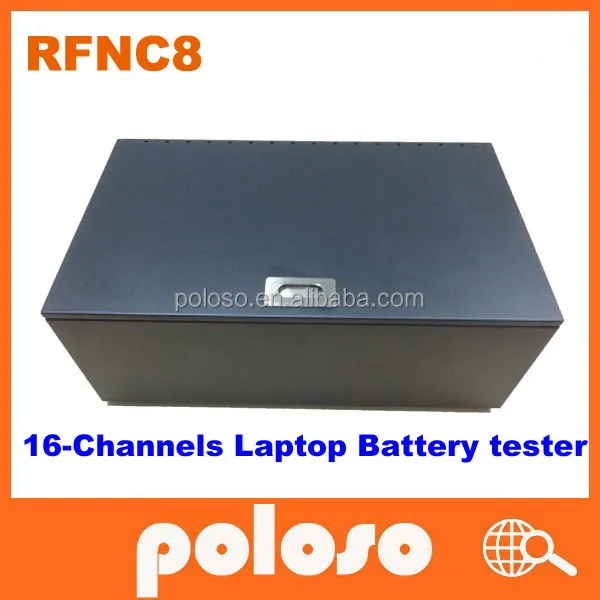

RFNC8 pictures:
