FRP pipe winding continuous machine

Product Overview

Description

FRP pipe winding machine:



It is used to produce both fiberglass pipe and tank or vessel,and membrane housing.



We have different models to fit different cutomer's need,pipr diameter from 20-4500mm,our machine all can produce.



You just need to tell me what products and what diameters do you need to produce,I will recommend to you the right model.



Performance Index:

Diameter range	DN50mm-4000mm
Length range	fixed 12m(or any length 2m to 12m)
Control Precise	1mm
Helical Winding	45° - 90°
Hoop Winding	Sand or without mortar
Drive Mode	servo drives/ rack transmission
Adding Sand Mode	Wet sand
Winding Speed	≤85m/min
Electrical power supply	380V, 3 phases 50hz (or customization)



Raw materials:

Resin Polyester resin, or vinyl ester resin

With reinforcement yarn E-Glass or ECR Roving

The whole set of equipment includes:



1. The resin transportation system



2..The making lining machine,this is the first step to produce pipe.





3.The winding machine,after making lining,it begin to winding the pipe with winding roving and resin.



4.The curing station,after finishing the winding process,the pipe will be put here to curing.



5.The trimming station,it need to make groove and cutting here





6.The demoulding machine,this is the last step to make the machine,make the pipe demoulded from the mould by this machine.





This production line is characterized by the high precision of winding line, high productivity, low energy-consuming, easy installation, adjustment and maintenance.

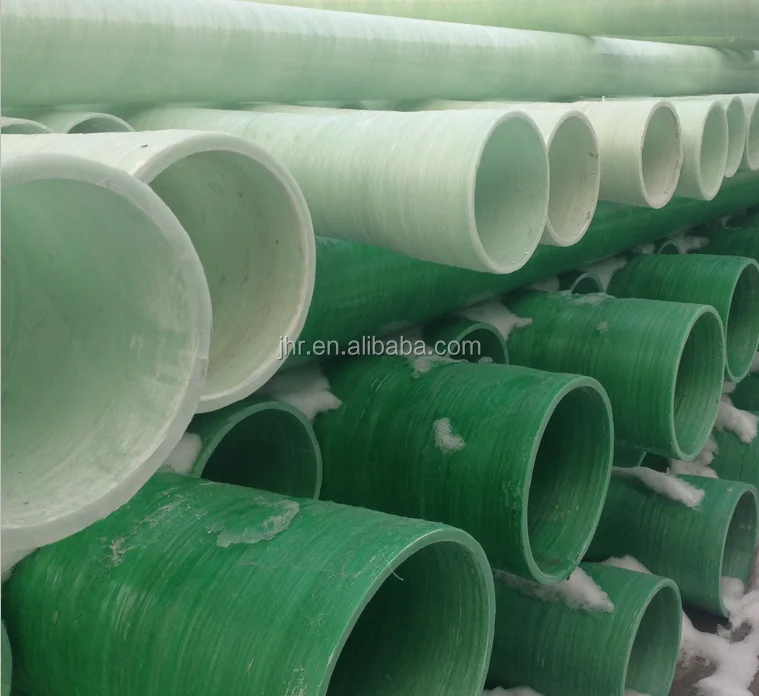

Finished Products







It adopts the industrial computer control, so the usage and operation are very convenient.



After you buy the machine,we can train you to operate the machine freely at our factory.



For more details,please feel free to contact us!Thanks

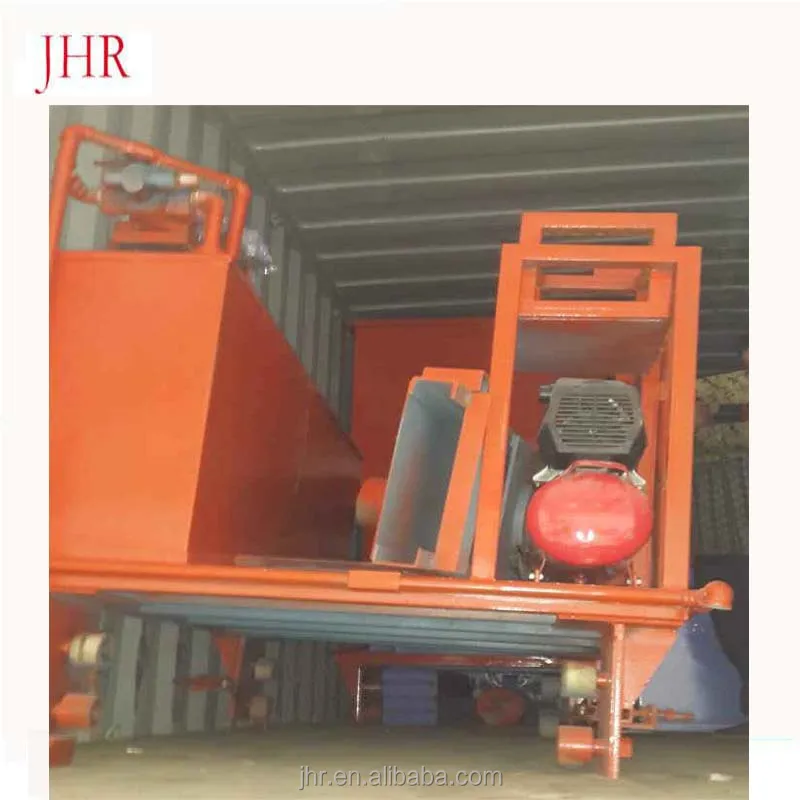

When shipping the machine,we will disassemble the machine to small parts,for easy to be loaded to the container.
