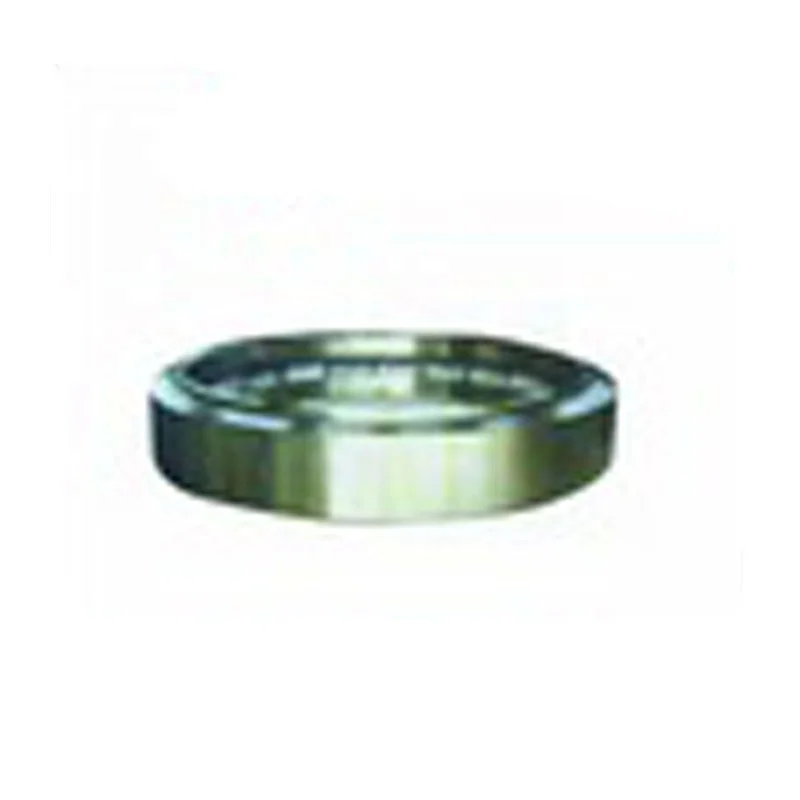

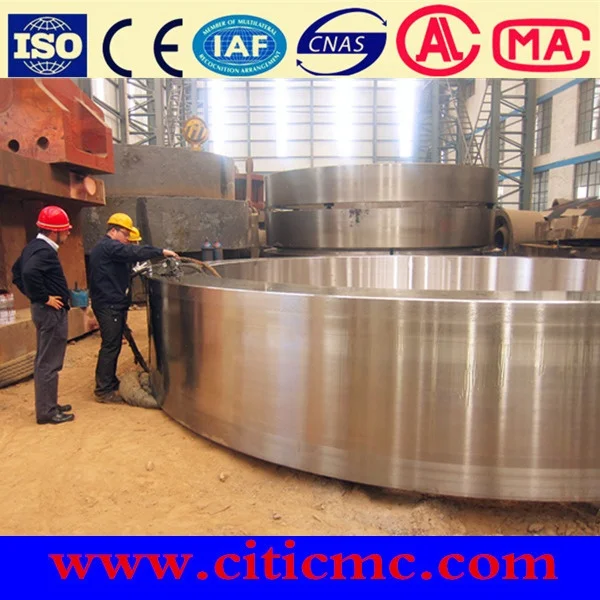

CITICIC Oxidized Pellet Rotary Kiln technical characteristics: ♦ Kiln body is made of high quality composed of carbon steel or alloy steel plate and automatic welding; ♦ Tyre,Support Roller,Open gear adopts alloy cast steel; ♦ Sliding bearing with large gap not scraping tile bearing; ♦ Transmission device adopts hard tooth surface reducer, flexible diaphragm coupling, dc motor; ♦ Adopts hydraulic gear wheel; ♦ Preheater scales were used respectively to veiw of kiln head, and cylinder pressure tight seal; ♦ A slow drive device.
Oxidizing Pellet Rotary Kiln 2003 - Oxidizing Pellet Kiln Ø5.0m x 33m 2005 - Oxidizing Pellet Kiln Ø6.58m x 47.2m, called “The World Kiln King”, for Wugang steel Works

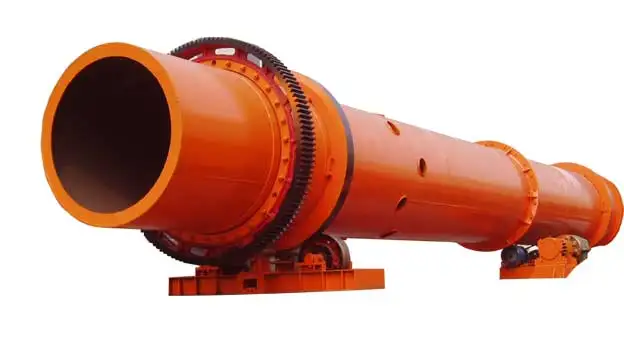

Oxidized Pellet Rotary Kiln Description: Our oxidized pellet rotary kiln is typically designed to provide high-quality pellets for blast-furnace ironmaking. And it's able to help to improve productivity, as well as to protect environment.

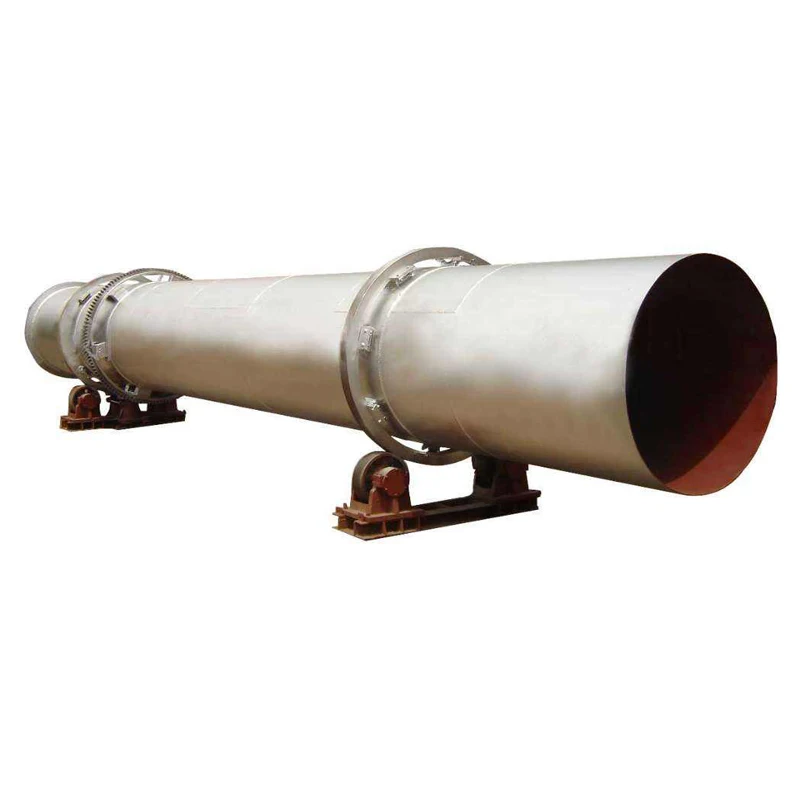

Our oxidized pellet rotary kiln mainly consists of rotating part, supporting part, kiln head cover, sealing parts of kiln head and end, and burning device.
The guard boards of kiln mouth employ individual cast, thus easy to install. And they have good heat-resistant quality as well as wear-resisting property.
Oxidized Pellet Technical Parameters:
Name
Specification
Capacity (t/h)
Power(KW)
Rotary dryer
Φ1.8×14m
30-40
22
Φ2×14m
40-60
22
Φ2.2×12m
50-55
55
Φ2.2×16m
40-45
75
Φ2.4×18m
45-60
95
Φ3×20m
160
220
Φ3.6×24m
150
250
Φ4.2×25m
250
315
Disc balling machine
Φ3.6m
18-20
22
Φ4.2m
28-33
55
Φ4.5m
35-45
75
Φ5.5m
40-60
110
Φ6m
65-70
110
Chain grate heater
1.6×24m
100,000-200,000tons/year
15
2.4×24m
300,000tons/year
11
2.8×36m
400,000-600,000tons/year
18.5
2.8×42m
400,000-600,000tons/year
18.5
Rotary kiln
Φ2.2×18m
10-12
45
Φ2.5×20m
18-25
30
Φ2.8×22m
30-34
90
Φ3×28m
40
90
Φ3.5×30m
50
220
Φ4×30m
90
190
Φ4.7×35m
140-180
315
Φ5×35m
165-202
315
Φ6.1×40m
226-335
315
Oxidized pellet rotary kiln
20m 2
40
7.5×2
30m 2
40-60
11×2
40m 2
90
15×2
50m 2
112
15×2
69m 2
130-160
11×2
121m 2
270-304
15×2
128m 2
280-315
18.5×2
Sintering pellet cooler
140m 2
302
11×2
Note: Specific parameters should refer to particular contract.
