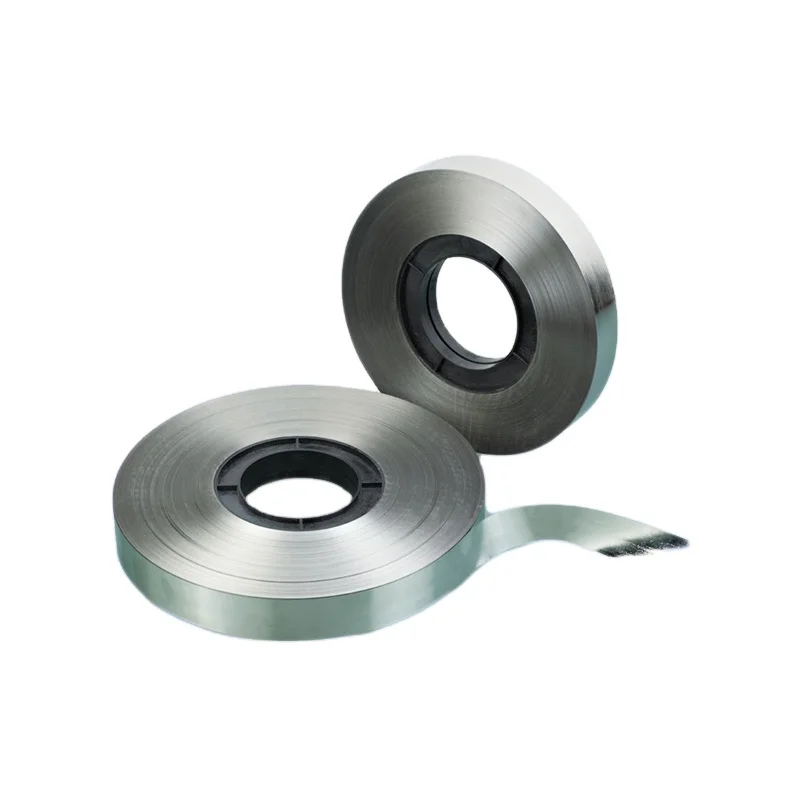

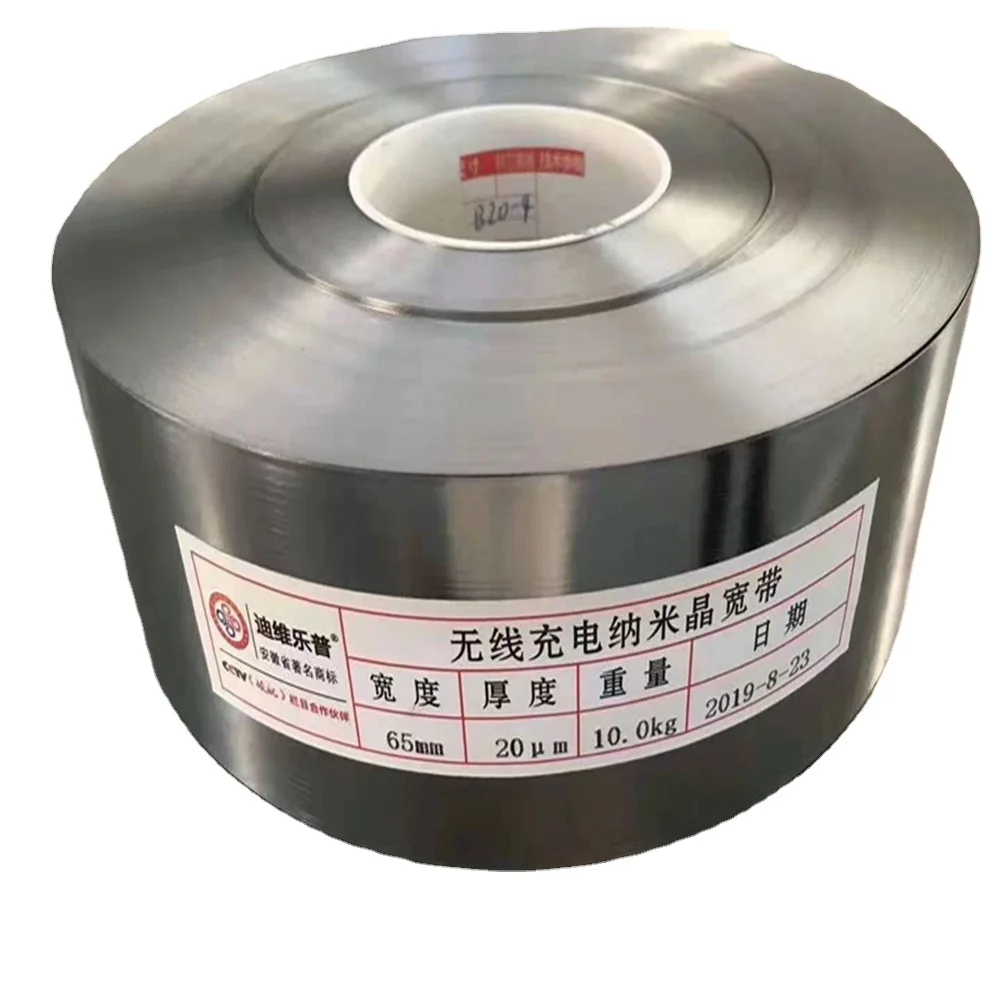

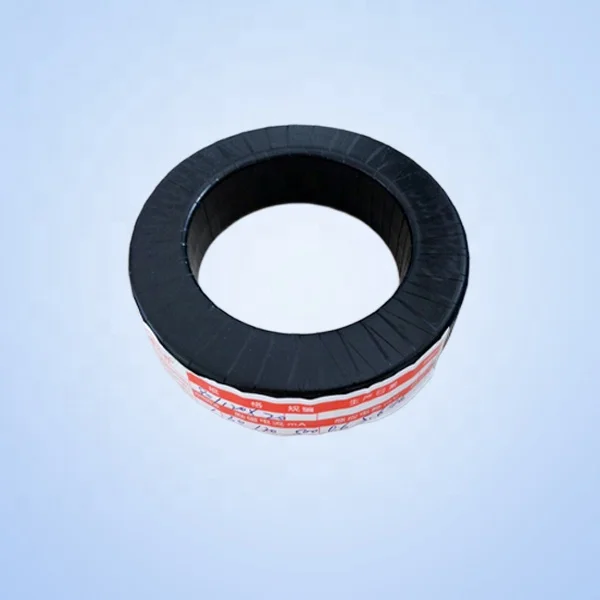

45mm Ribbon Soft Magnetic alloy strip tape amorphous Nanocrystalline ribbon(1K107&1K107B)
- Category: >>>
- Supplier: Anhui Lizhi Magnetic Material Co. Ltd.
Share on (60352000884):
Product Overview
Description
Product Description
- Characteristic
High saturate magnetic flux density ----- Minimize transformer volume
High permeability --------------------------- Promote efficiency of transformers
low coercivity --------------------------------- Reduce distributional capacitance
Low core loss -------------------------------- Minimize temperature rise of transformers
Excellent stability --------------------------- The highest serving temperature of 130 ℃ for long time
| Saturate Magnetic Flux Density (T) | 1.25 | Saturate Magnetostriction | 2*10-6 |
| Curie Temerature (℃) | 560 | Density (g/cm3) | 7.2 |
| Crystallization Temperature (℃) | 510 | Resistivity (cm) | 130 |
| hardness Hv (kg/mm2) | 880 |
- Specification
| Type | No. | Width (mm) | Thickness ( μm) |
| First Generation Cast Ribbon | 1K107 | 5-50 | 28-34 |
| Second Generation Cast Ribbon | 1K107 | 30 | 26±2 |
| 35 | |||
| 40 | |||
| 45 | |||
| Second Generation Slitting Ribbon | 1K107 | 5 | |
| 6.5 | |||
| 8 | |||
| 10 | |||
| 12 | |||
| 15 | |||
| 20 | |||
| 25 | |||
| 30 | |||
| 35 | |||
| Second Generation Slitting Ribbon | 1K107 | 40 | |
| 45 | |||
| 50 | |||
| Third Generation Cast Ribbon | 1K107B | 30 | 22±2 |
| 40 | |||
| 45 | |||
| 50 | |||
| Third Generation Slitting Ribbon | 1K107B | 10 | |
| 15 | |||
| 20 | |||
| 25 | |||
| 30 | |||
| 35 | |||
| 40 | |||
| 45 | |||
| 50 | |||
| 55 | |||
| Fouth Generation Cast Ribbon | 1K107B | 50 | 18±2 |
| 55 | |||
| 60 | |||
| 65 | |||
| Fouth Generation Slitting Ribbon | 1K107B | 6.5 | |
| 8 | |||
| 10 | |||
| 15 | |||
| 20 | |||
| 25 | |||
| 30 | |||
| 35 | |||
| 40 | |||
| 20 |

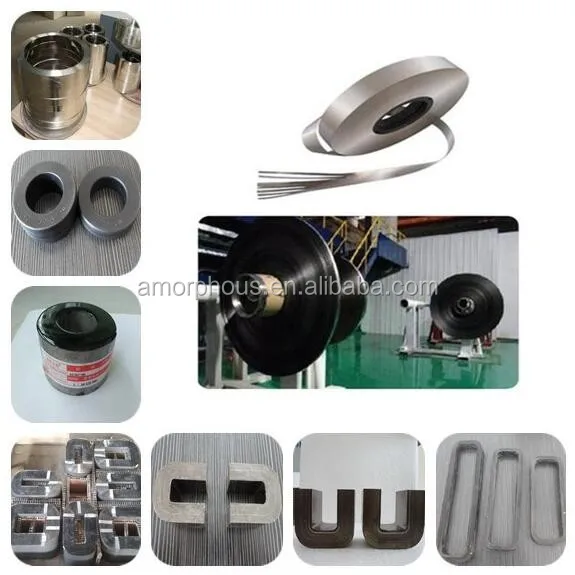

- Application
Transformer cores for high frequenc swithc mode power supplies
Current transformer cores for electric industry
Transformer cores for ground-fault-interrupters
EMC common mode chokes
Sensor Cores
Cores for saturable reactors, magnetic amplifiers, beads, pluse compressors etc.
Our Services
- Product customization
- Technical support service upon request.

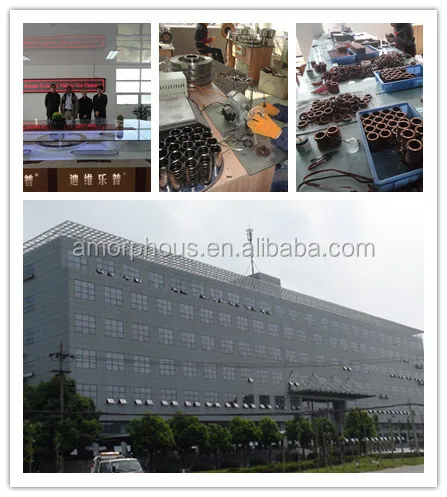

Company Information
Location: Lujiang Economic Development Zone, Hefei, China
Registered Capital: RMB 11 million
Establishment time: 1993
Facilities Volume: More than 5000 square meter
