Product Overview

Description

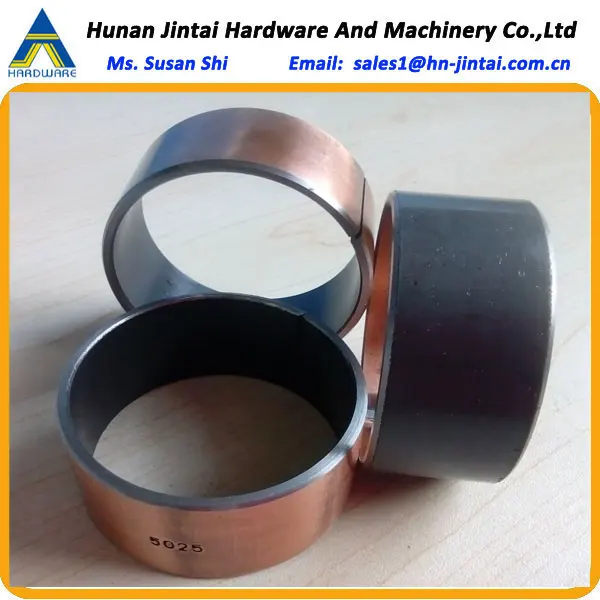

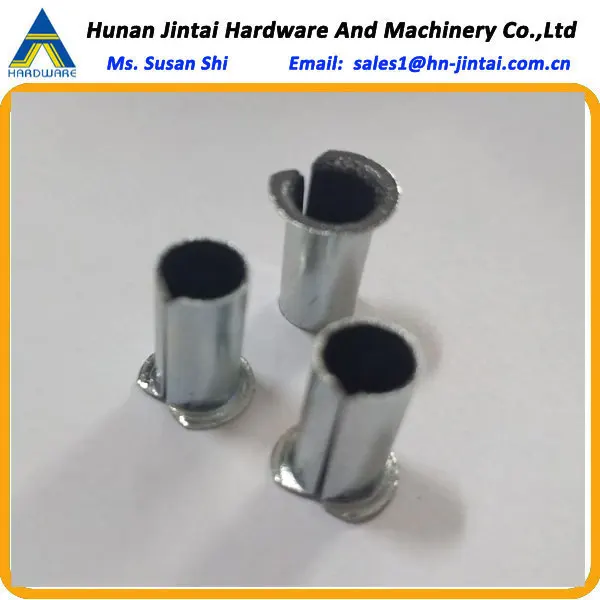

PAP 040610 P10 0608 0707 0812 1010 1020 1212 1310 1425 1620 2030 2220 2540 3020 4045 5050 6080 7550 80100 9580 10050 P20 Bushing



Material: 1. Steel + Bronze powder + PTFE + Pb + Polymer 2. Steel + Bronze powder + PTFE + Polymer - Normally Used 3. Bronze + Bronze powder + PTFE + Polymer 4. Stainless steel + Bronze powder + PTFE + Polymer 5. Stainless steel + PTFE + Polymer 6. Carbon steel + Sintered bronze powder + PTFE + MoS2

Structure	PTFE with lead/Cu/Fibre : 0.01-0.03mm
	Porous bronze : 0.2-0.3mm
	Steel backing : 0.7-2.3mm
	Tin-plating 0.005mm or copper plating 0.008mm



Type	Load capacity(N/mm2)			PV limit(N/mm2*m/s)		Speed limit (in oil)	Temp.limit	μ Frictio Coef.	Themal conductivity	Linear expansion
	Static	Dynamic	Oscillating	Oil	Dry	(m/s)	(℃)		(W/MK)
SF-1X	250	140	60	50	3.6	5.0	-195~270	0.04~0.20	13	11*10(-6)/k
SF-1T	250	140	60	60	4.3	10	-195~260	0.03~0.18	13	11*10(-6)/k
SF-1P	250	140	60	50	1.8	2.5	-195~270	0.04~0.20	13	11*10(-6)/k
SF-1W	250	140	60	50	3.6	5.0	-195~300	0.04~0.20	13	11*10(-6)/k
SF-1B	250	140	60	60	4.3	5.0	-195~270	0.04~0.18	18	21*10(-6)/k
SF-1D	250	140	60	50	3.8	3.0	-195~270	0.04~0.18	16	15*10(-6)/k
SF-1S	250	140	60	50	3.6	4.5	-195~270	0.04~0.20	16	15*10(-6)/k
SP-1SS	250	140	60	40	3.0	2.5	-195~270	0.04~0.25	13	15*10(-6)/k

Application:



Automotive:
McPherson struts and shock absorbers, doors, bonnets and tailgate hinges, steering columns, clutches, gearbox selector fork guides, wiper arms, power steering pumps, pedal bushes, ABS equipment, etc.

Industrial:
Aerospace, agricultural equipment, construction equipment, material handling equipment, forming machines-metal, plastic and rubber, office equipment, medical and scientific equipment, packaging equipment, pneumatic and hydraulic cylinders, pumps and motors, railroad and ramways, textile machinery, valves, etc.







Get CATALOGUEor PRICE, please contact susan by e-







DX SF-2 BUSHING (POM)

Material: 1. Steel + Bronze powder + POM + Pb 2. Steel + Bronze powder + POM - Normally Used

Structure	POM with/without lead : 0.3-0.5mm
	Porous bronze : 0.2-0.3mm
	Steel backing : 0.4-2.2mm
	Tin-plating 0.005mm or copper plating 0.008mm

Application:



Automotive:
Steering gear, power steering, pedal bushes, seat slides, king-pin bushes, tailgate pivots, brake caliper bushes, etc.

Industrial:
Mechanical handling and lifting equipment, machine slides, hydraulic cylinders, hydraulic motors, ski-lifts, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, scientific equipment, etc.





BIMETAL BUSHING

Material: 1. Steel + Bronze alloy (CuPb10Sn10) + PTFE 2. Steel + Bronze alloy (CuPb10Sn10) 3. Steel + Bronze alloy (CuSn4Pb24) 4. Steel + Bronze alloy (CuPb24Sn) 5. Steel + Alloy stage (AlSn20Cu) 6. Steel + Bronze alloy (CuPb30)



Application: Mechanical handling and lifting equipment, hydraulic cylinders, agricultural equipment, off highway equipment.  Construction machines,chassis,apron wheels etc.





BRONZE GRAPHITE BUSHING

Material:

1. CuZn25Al6Fe3Mn3 + Graphite

2. ZCuAl9Fe4Ni4Mn2 + Graphite

3. ZCuSn5AlPb5Zn5 + Graphite

4. ZCuSn10Zn2 + Graphite

5. HT250# Cast Iron + Graphite

6. CuZn25Al6Fe3Mn3 (High-stress Brass)



Application: solid brass bearing is widely used in successive casting machine, mineral mountain machinery, shipping, steam turbine etc





WRAPPED BRONZE BUSHING

Material:

1. CuSn8P / CuSn8

2. CuSn6.5P / CuSn6.5

3. CuZn31Si

4. Bronze(graphite inside)

5. All kinds of brass,copper,bronze material

Industrial: Widely used in construction machinery, agricultural machinery and so on.







SINTERED BRONZE BUSHING MOTOR FAN BUSHING CAST IRON BEARING



Performance index	Data
Maximum load capacity	150 N/mm2
Temperature range	-60~+200 ℃
Maximum sliding speed	2.5 m/s
Alloy material	CuSn6-6-3
Maximum PV value	2.45 N/mm2*m/s

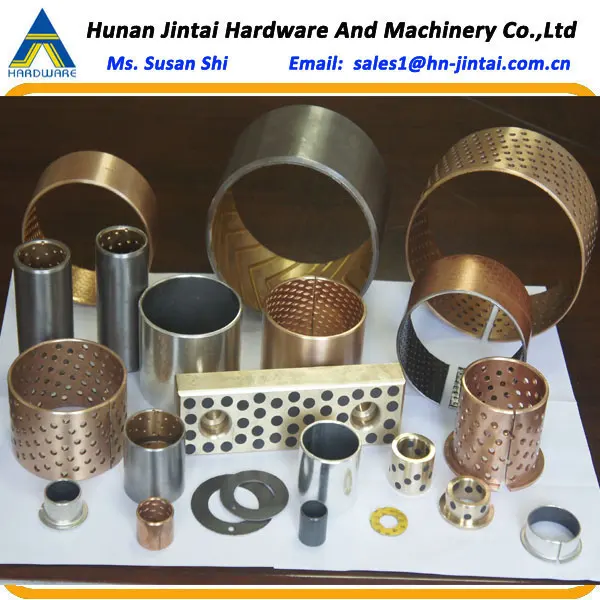

OTHER SLIDE BEARING
