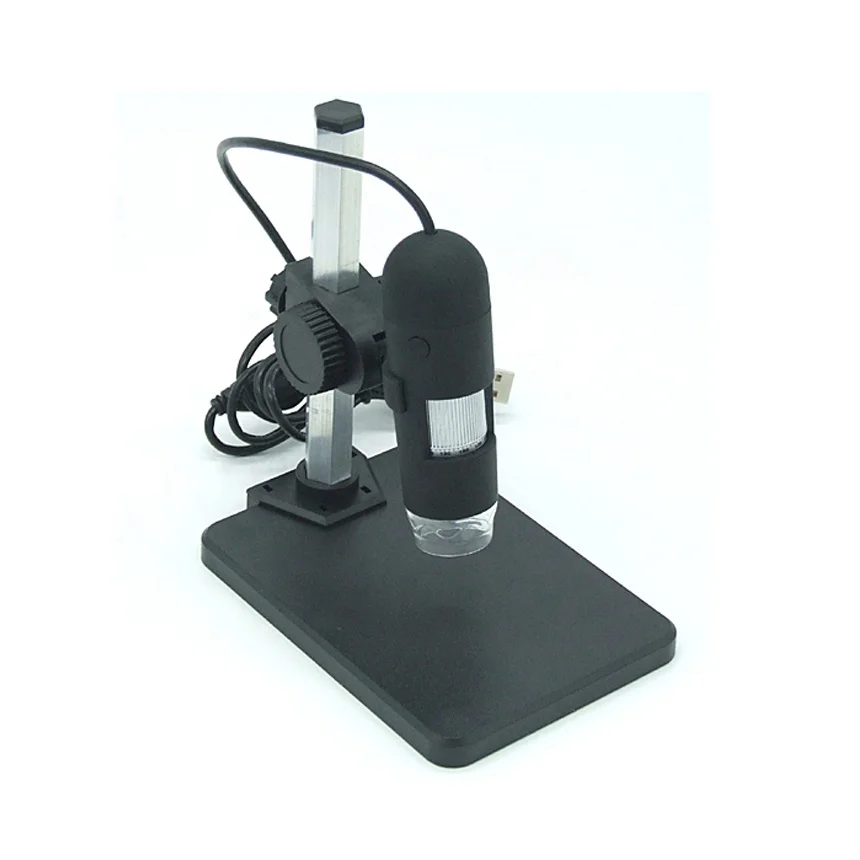

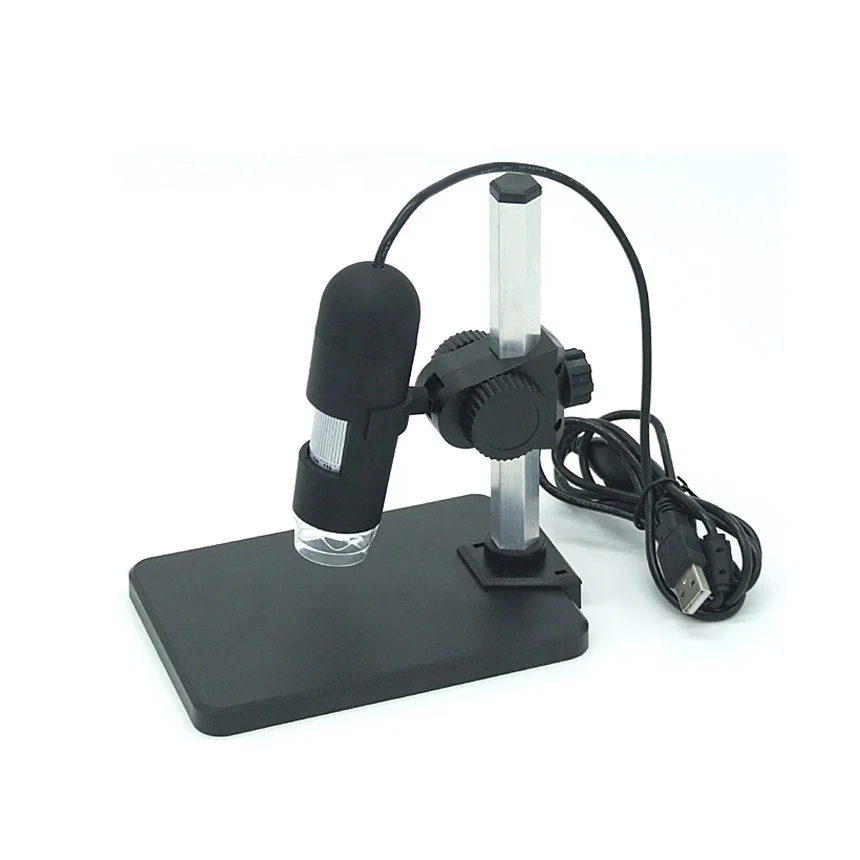

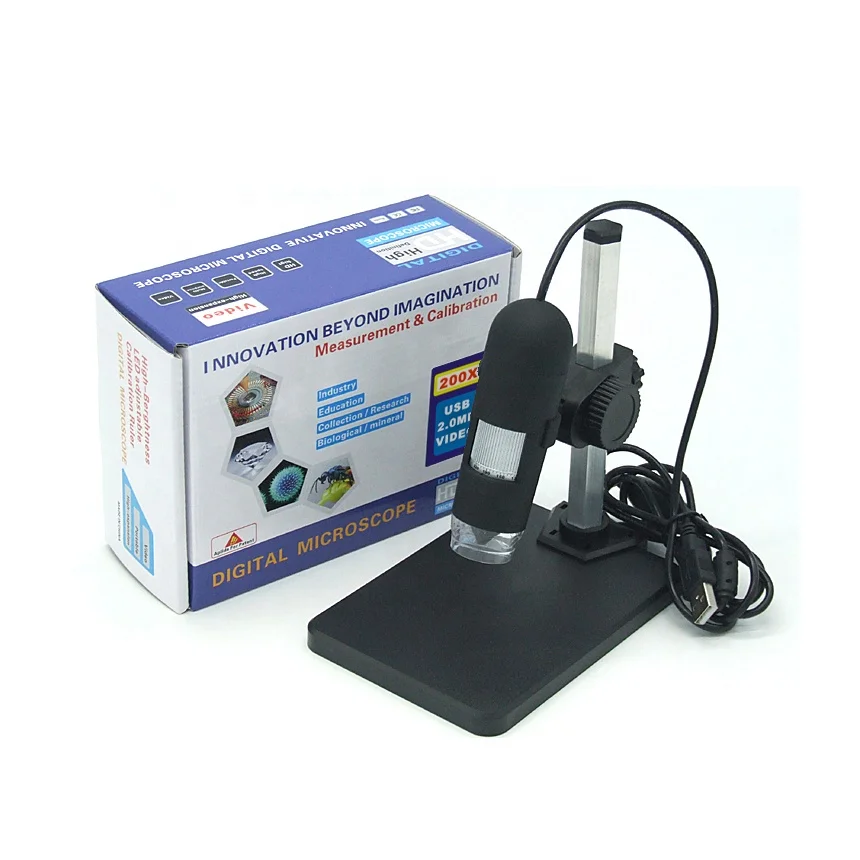

FM54200 2020 New products mini 5mp usb digital stereo microscope with camera 1080p digital microscope
- Category: >>>
- Supplier: Guilin FT-Opto Co. Ltd.
Share on (60352561809):
Product Overview
Description
2020 New products FM54200 mini 5mp usb digital stereo microscope with camera
Features:
♦ it is a high-tech while easy to use Digital Microscope. With this unit you will see a unique and “bigger” world
♦ It’s easy to zoom in on stamps, coins, paper currency, plants, insects, rocks and minerals, and so much more
Computer System Requirements
♦ Windows 2000/XP/VISTA/WIN7&Mac
♦ P4 1.8 or above
♦ RAM: 256M
♦ Video Memory: 32M
♦ USB port: 2.0
♦ CD-ROM Drive
FM54200 mini 5mp usb digital microscope with 8 led light
Technical Specificat
| Image sensor | 2.0 Mega Pixels |
| Still capture resolution | 1600x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480, 352x288, 320x240, 160x120 |
| Video capture resolution | 1600x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480, 352x288, 320x240, 160x120 |
| Focus Range | Manual focus from 10mm to 500mm |
| Frame Rate | Max 30f/s under 600 Lus Brightness |
| Magnification Ratio | 1-20X,200x ,400x,600x,800x,1000x |
| Video format | AVI |
| Photo format | JPEG or BMP |
| Light source | 8 LED (adjustable by control wheel) |
| PC interface | USB2.0 |
| Power source | 5V DC from USB port |
| Operation system | Windows2000/XP/Vista/Win7/ Mac |
| OSD language | English, German, Spanish, Korean, French, Russian |
| Bundle software | MicroCapture with measurement & calibration function |
| Size | 125mm (L) x 33mm (R) |

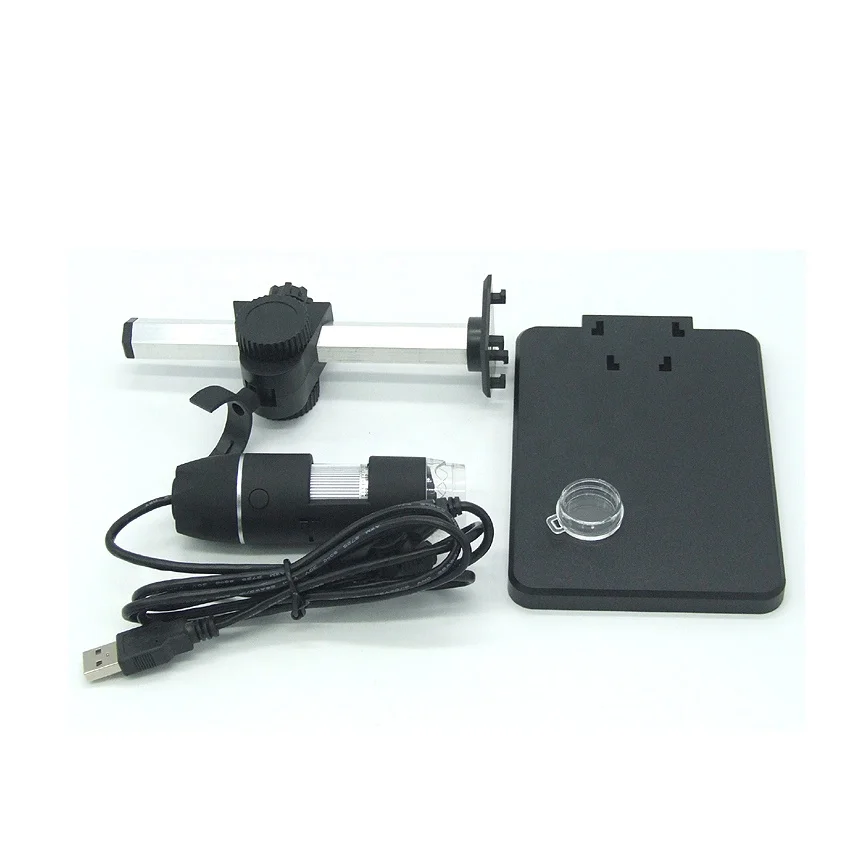

Configuration:
1/ Remove protective lens cap from microscope before use
2/ Use the FOCUS WHEEL to adjust focus on the subject
3/ The SNAPSHOT BUTTON enables user to capture snapshots by hardware; photo capture by software is discussed later on in this manual
4/ Light control wheel enables you to adjust the LED light brightness
FM54200 mini 5mp usb digital microscope with 8 led light
Install the software
1) Connecting the Microscope to Computer!! It is must to connect the Microscope to Computer before software installation.
2) Insert the driver CD into CD-ROM Drive and this will automatically display the following interface
3) Install the driver as following:
FM54200 mini 5mp usb digital microscope with 8 led light
Details Display:
