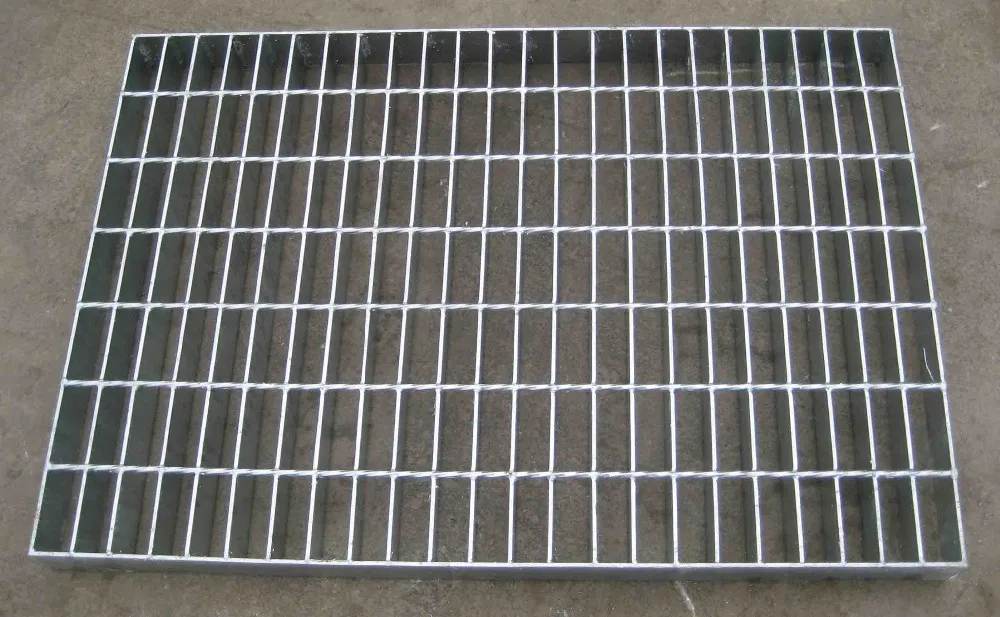

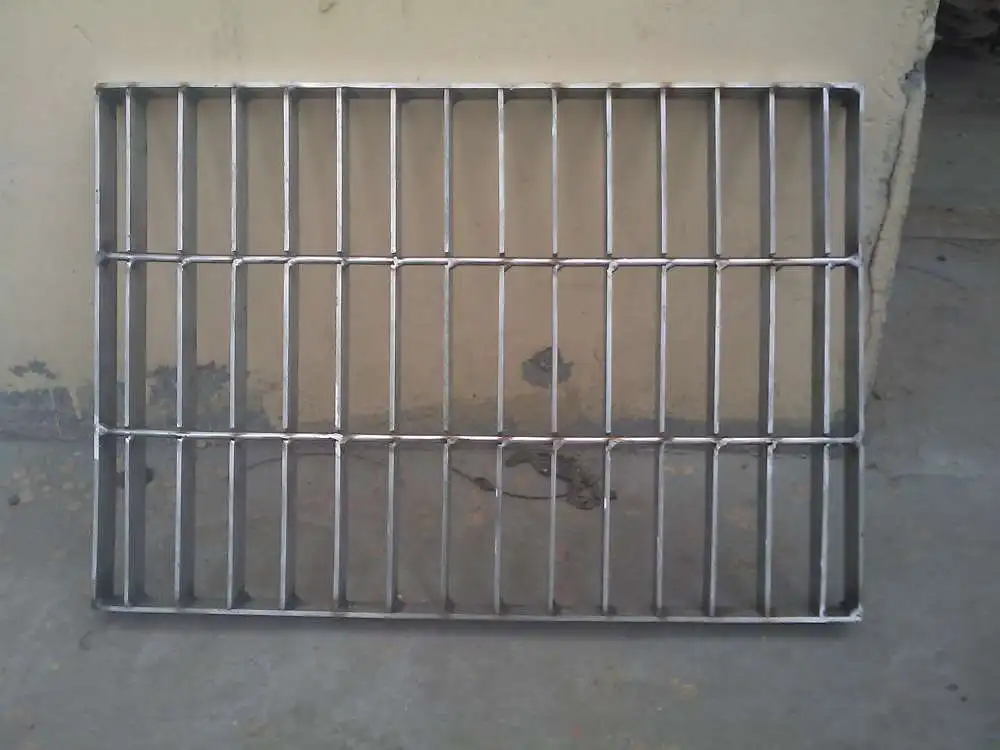

High quality hot dip galvanized steel grating, trench grating, steel bar grating

Product Overview

Description



High quality hot dip galvanized steel grating, trench grating,steel bar grating

1.Introduction of hot dip galvanized steel grating



1>material:carbon steel or stainless steel

2>cross bar pitches:maybe 24-200mm,of which 50mm,76mm and 100mm are recommended.

3>Steel grating is made by the world first-class equipment,which can arrange the bearing bar and cross bar in longitude and latitude order to certain distance.cross bar is pressed into the bearing bar by high tension resistance weldingring which is controlled by computer.so we can produce high quality gratings with firm welding,smooth surface and high strength.

4>Surface process of steel grating:Types:hot-dipped galvanized,electro-galvanized ,spraying brushing.  95% people choose hot-galvanized because its anti-acid and alkali corrosion capacity range is from PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good anti-corrosive property.

5>Attractive appearance:Simple outline.silver colour and modern.

6>Optimum water draining:Water leakage area reaches 83.3%,which is more than two times larger  than that of cast iron.

7>Hot-dip galvanizing:Good antirust performance,maintenance free and replacement free.

8>Design of preventing theft:The cover is connected with the frame by gemel,which ensures protection against theft,safety and convenient opening.



Steel grating
Place of Origin	Hebei China (Mainland)
Brand Name	FD
Model Number	FDPT140609
Bearing bar	30mm(height)x3mm(thickness)
Bearing bar pitch	30
Cross bar	6x6
Cross bar pitch	50mm,100mm
Surface treatment	Hot dip galvanized
Flat bar type	Plain
Material standard	Low carbon steel
Galvanizing standard	US: ASTM (A123)
Steel grating standards	USA: ANSI/NAAMM (MBG 531-88)
Certification	CE,SGS,ISO90001.
Usage & Performance	Industrial platform, flooring and walkway, traffic, steel structure
Main market	USA,Australia, Japan, etc.
Packing	1.Pallet in containers. 2.According to your packing requirements.
MOQ	2/Tons
Supply Ability	500 Tons/month
Payment Terms	T/T,L/C
Delivery Time	within 15 days after your deposit or L/C at sight
Port of delivery	FOB Tianjin
Sample time	7 days









2.Surface Treatment of hot dip galvanized steel grating

• hot dipped galvanized


• Untreated


• Painting


• 95% people choose hot dipped galvanized because its anti-acid and alkali corrosion capacity range is from PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good anti-corrosive property.

3.Process of hot dip galvanized steel grating

• We have our own factory and facility.


• Excellent hot-dip galvanizing process to achieve great anti-acid and alkali corrosion.


• We can manufacturer any kinds of specification as your demand.

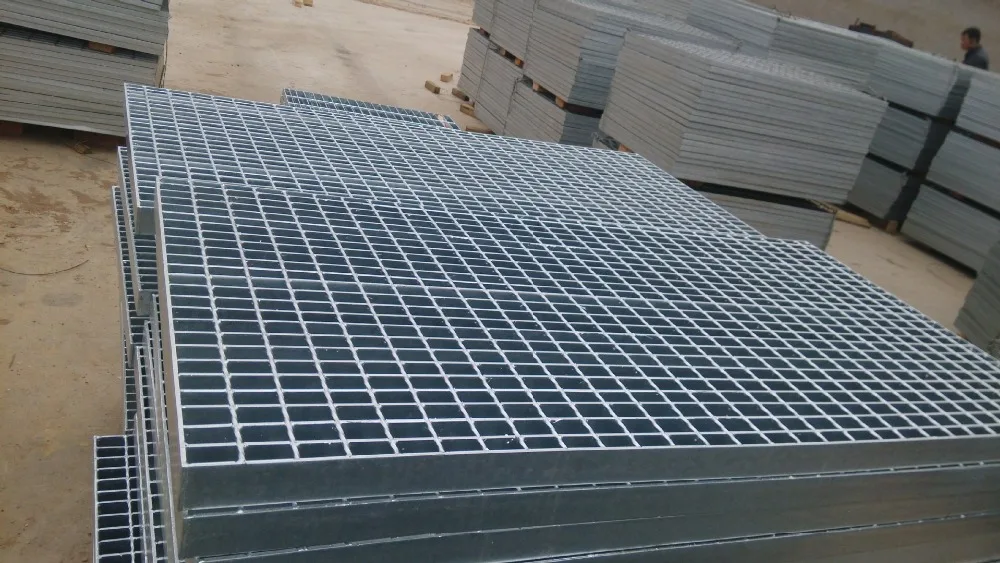

4.Packing and loading of hot dip galvanized steel grating

Normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides.

there are four or six pieces of M10 long bolt penetrading the gratings and screwing together.

it is suitable for loading and unloading by fork-lift and crane.



5.Installation of hot dip galvanized steel grating

1>The shape of bearing bar: Plain type (may be omitted in the symbol of steel grating), Serrated  type and I-Shape type.

2>Bearing bar pitches:12.5, 15, 20, 30, 30.16, 32.5, 34.3, 40, 60mm, of which 30mm & 40mmare recommended.
3>Cross bar pitches:38, 50, 60,100mm, of which 50mm & 100mm are recommended.



Established in 2010 with an area of more than 6 acres.







 More than 20 sets of international advanced CNC punch press equipments.







 Experienced technical engineers.







A comprehensive enterprise which integrates production, research and development, sales, trade together.







high quality is our obligation ,







great service is our mission,







professional is our foundation
