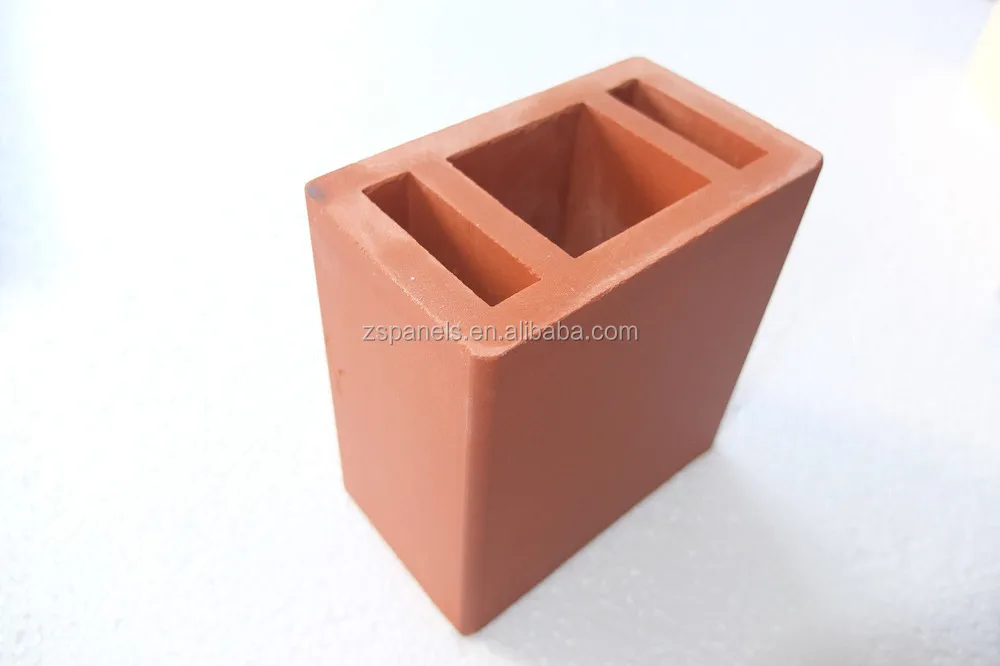

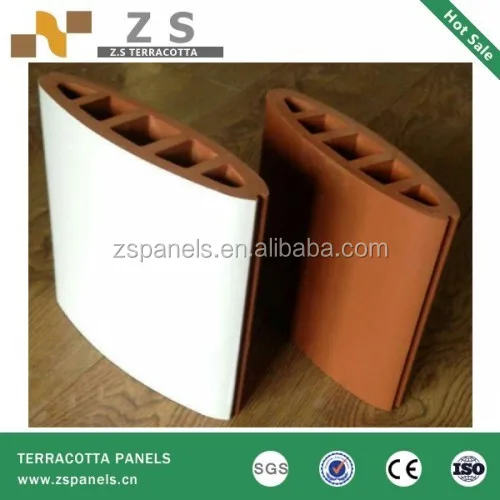

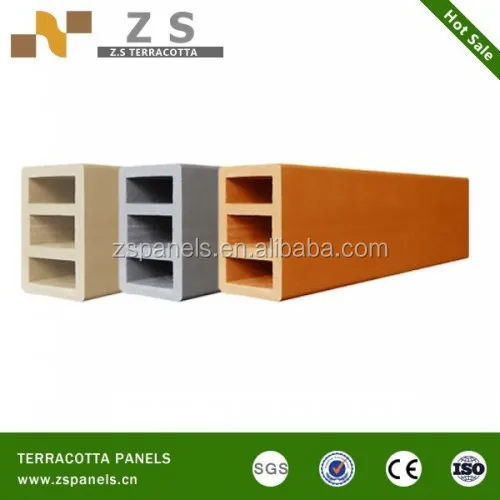

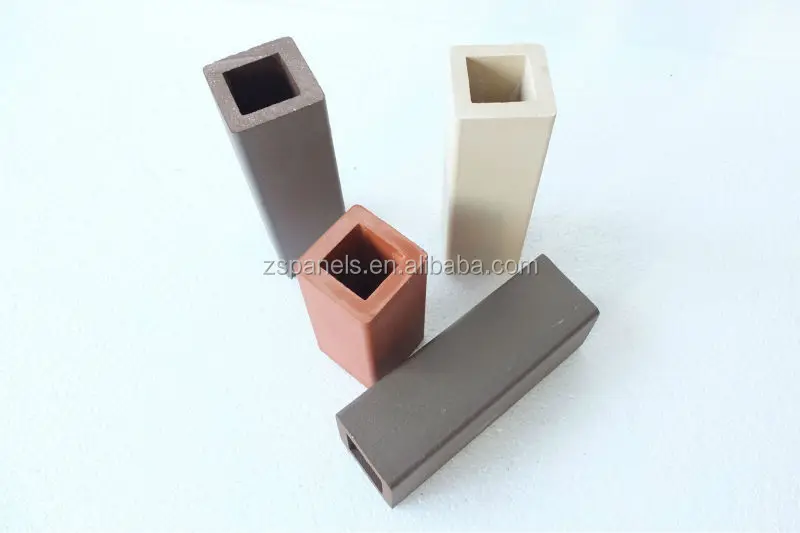

Terracotta Baguette is made by the natural clay material and fired with more than 1200 degree temperature, with the advanced hollow structure and dry hanging system which is widely used in curtain wall and interior wall.

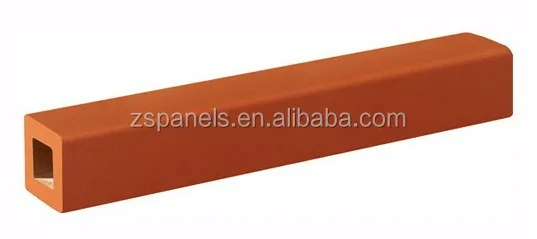

external wall cladding clay rod
1. Terracotta Advantages:
*Natural clay material-100% green material and hollow structure
*Heat preservation and sound insulation
*No-static and no–radiation product
*Rich color and surface available
*Easy dry hanging system
*Non of the light pollution
*Self-cleaning system
*Never color fading
*Light weight

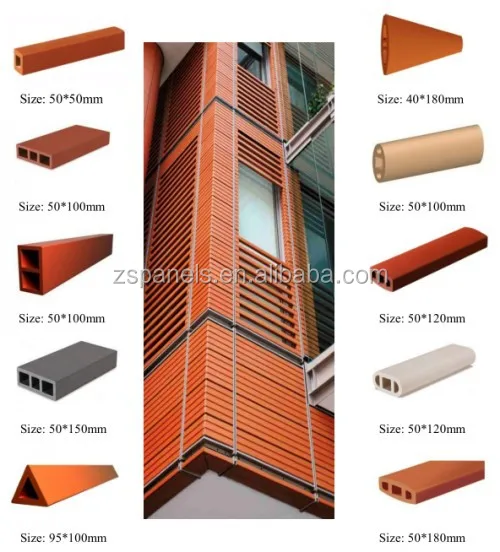

2. Normal Size
Available thickness: 18mm, 30mm.
Available width: 300mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm.
Available length: 300mm, 600mm, 900mm, 1200mm, 1500mm.
A) Net weight: 31kgs/sqm for X18, 44kgs/sqm for X30
B) Size error: with in ±1% , max is within ±2mm
C) Thickness error: within ±4.5%-8%
D) Center Curvature: within ±1%
E) Side straight and right angle: within ±1%
F) Anti-pollution: Grade 3
G) Anti-corrasion: Grade UA
H) Wind pressure test: 10kPa
I) Water absorption: 1%-7%
J) Frost resistence: No crack in -100 Centigrade
K) Breaking strength: Minium 3244N.(300X600X18MM)
L) Fire-proofing: Grade A1
M) Anti-impact: 0.51-0.78
N) Anti-pollution: Grade-3
O) Noise-isolated: 7-10Db
P) Rupture modulus:Ave.16.2Mpa
Certifications
6. ZS panels advantage
Advantages of ZS Terracotta Panel , comparing with Stone and Glass
NO.
Contents
Terracotta Panel
Nature Stone
Glass
1
Material
Natural Clay, 100% green material
granite,marble, sandstone
quartz alkaline colloid
2
Dry Weight
hollow structurer, 30-32kg/m2, 70% weight of the Nature Stone
2.4-2.7kg/m³
2.5kg/m³
3
Dry-hanging System
with its own groove for dry-hanging, standard, safe and easy handle.
on-site processing, fragile,security risk
on-site fixing
4
Color
Never fading, color inherent,stable color for each production.
natural color, but it is greatly affected by mine or location
heavy-metal oxide
5
Durability
not new in ten years, not old in one hundred years.
easy to be second weathering
easy to be errosion
6
Acid and alkaline resistance
high
middle
low
7
Radiactivity
none
with radiactive elements
With radiactive elements for bright color glass
8
Low-carbon ability
hollow structure ,good heat and sound insulation, light-weight, greatly saving steel,half of stone's heat-conducting, recycling.
low heat and noise insulation, heavy, needing to be reinforced.
high light-transimission, no heat-insulation
9
environmental protection of the processing
using shale and terracotta, or coal waste, easy for exploration, no need to process too much, little waste
much wasting water, stone material is limited, causing great damage to environment.
limited good silicon
10
Light pollution
no, matte surface
no
high,dazzling
Project Cases
Mass Production Line
Packing, Loading & Shipping
Stick Installation
Installation of Terracotta Stick
1. Marking the jamb installation position on the all as per requirements according to the construction design by using levelling instrument and laser level meter.
2. Installing the jamb on the wall according to the installation of the marking line, adjust the verticality of jamb, distance from the all, then fixed.
Pay more attention to : it should be only install the jamb to the joint of terracotta stick
3. Installing the terracotta stick by using screw between the jambs. Fixing it after adjusting the levelness and posttion of terracotta stick, repeating the installation from down to up .
4. Finishing the installation of terracotta stick, the surface of curtain wall shiould be completedly cleaned with water.
Company Information
Zhong Sheng Ceramics Co., Ltd. is integrated with Terracotta Panels and Split Bricks design, research, production and specialized in advanced technology to produce rustic tiles, full body tiles and interior and exterior clay wall tiles. Our clients are from more than 20 countries and regions such as Southeast Asia, the Middle East, America, the EU, and Africa.
The company has pased ISO9001 quality assurance system certification, ISO14001 environment system cetification.
The product line are imported from Germany and Italy and the production capacity is over 6000SQM per day.
