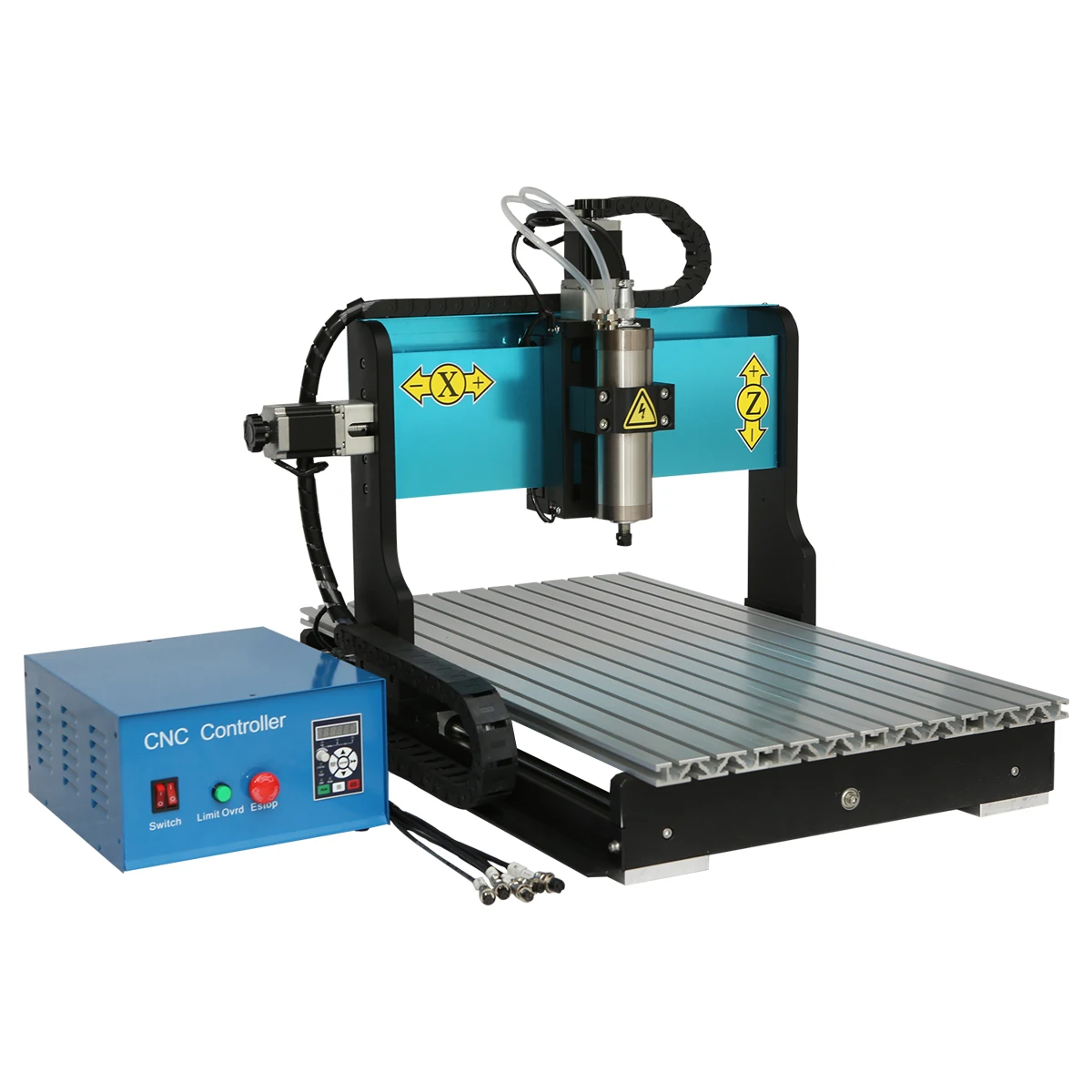

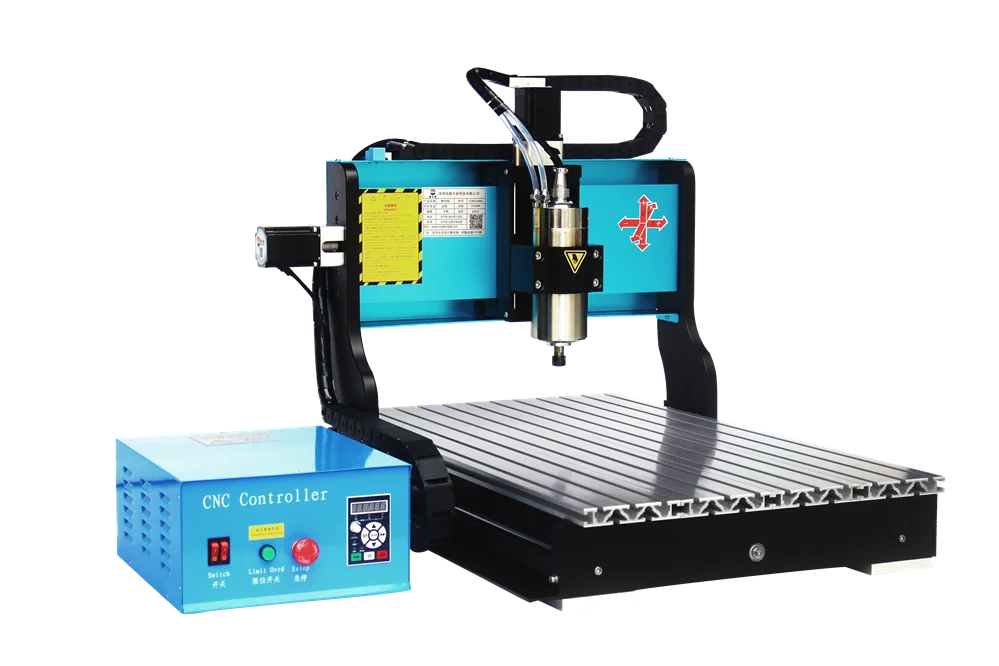

Good Price Desktop Mini Cnc Router 6040 3 Axis Milling Machine Cnc Mill
Good Price Desktop Mini Cnc Router 6040 3 Axis Milling Machine Cnc Mill
Good Price Desktop Mini Cnc Router 6040 3 Axis Milling Machine Cnc Mill
Good Price Desktop Mini Cnc Router 6040 3 Axis Milling Machine Cnc Mill
Good Price Desktop Mini Cnc Router 6040 3 Axis Milling Machine Cnc Mill
Good Price Desktop Mini Cnc Router 6040 3 Axis Milling Machine Cnc Mill
Good Price Desktop Mini Cnc Router 6040 3 Axis Milling Machine Cnc Mill

Good Price Desktop Mini Cnc Router 6040 3 Axis Milling Machine Cnc Mill

Share on (60352709070):


Price:RUB 106,731.73 - RUB 126,241.83

Quantity:


Product Overview

Description

Good Price Desktop Mini Cnc Router 6040 3 Axis Milling Machine Cnc Mill

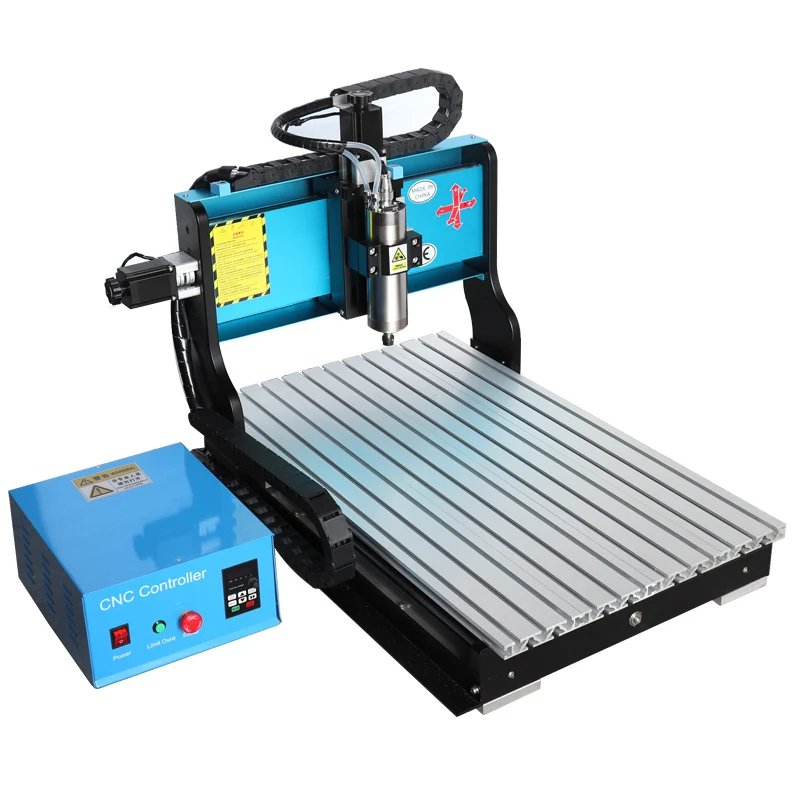

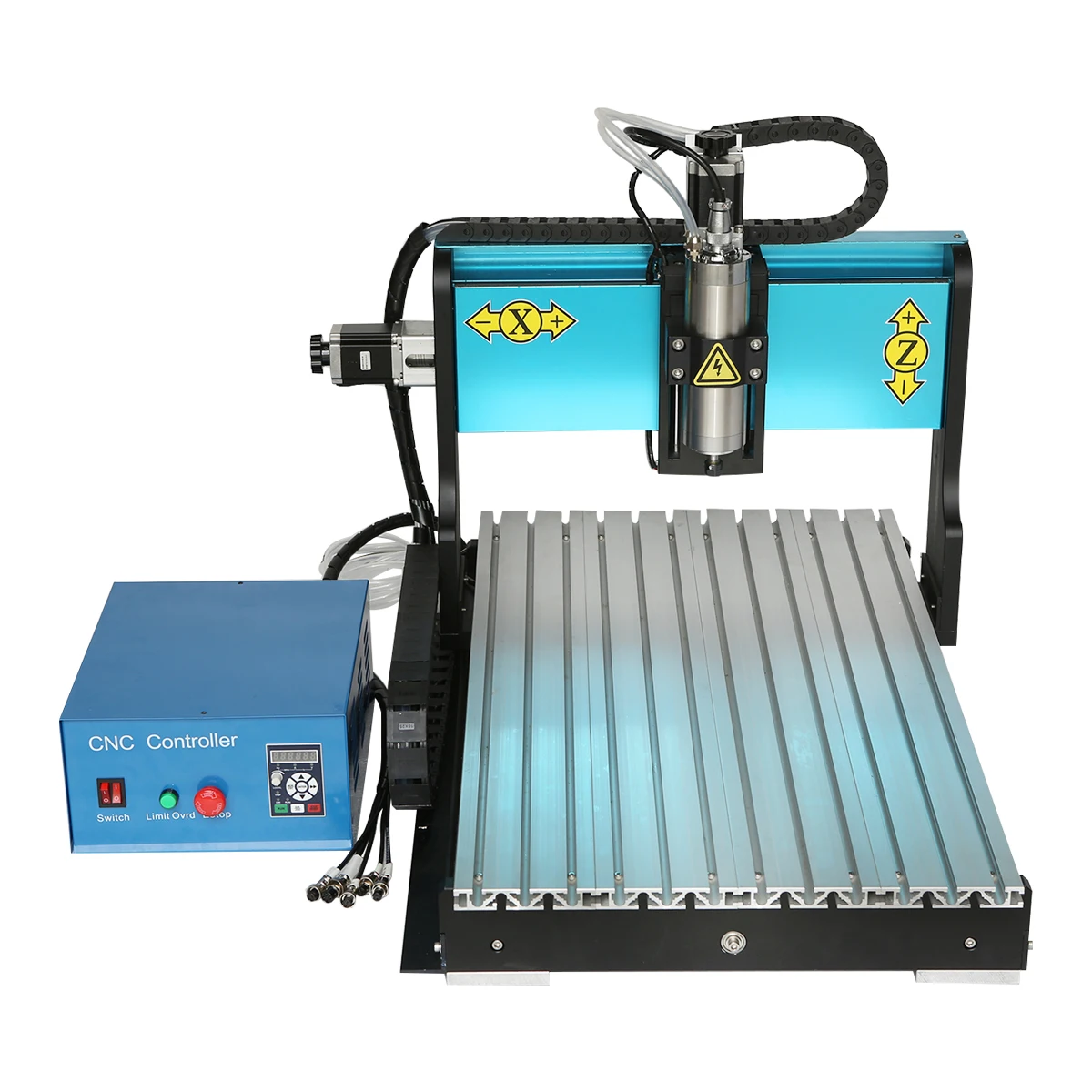

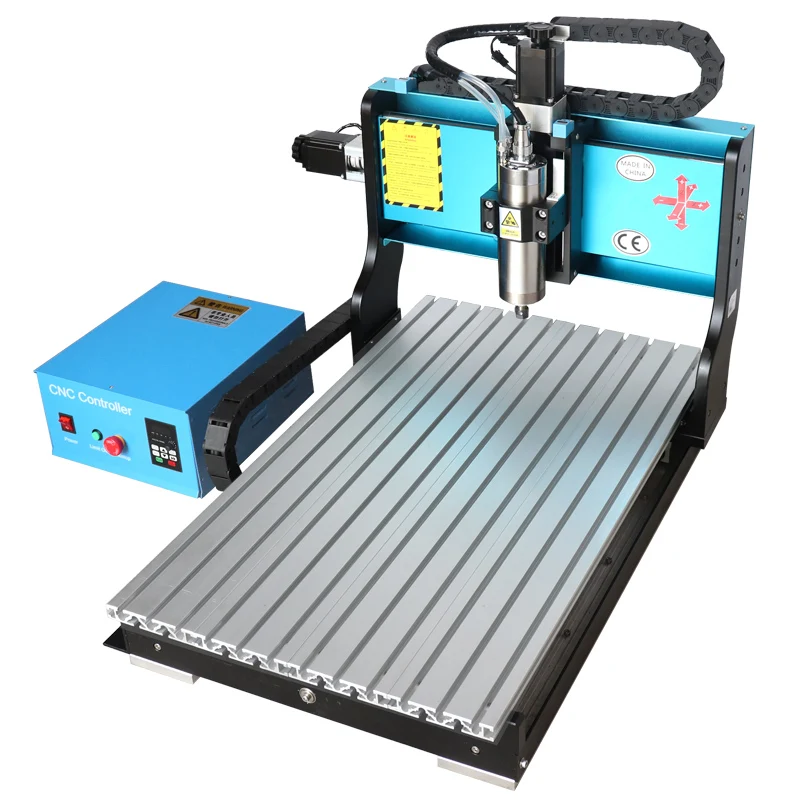

CNC6040 3 Axis

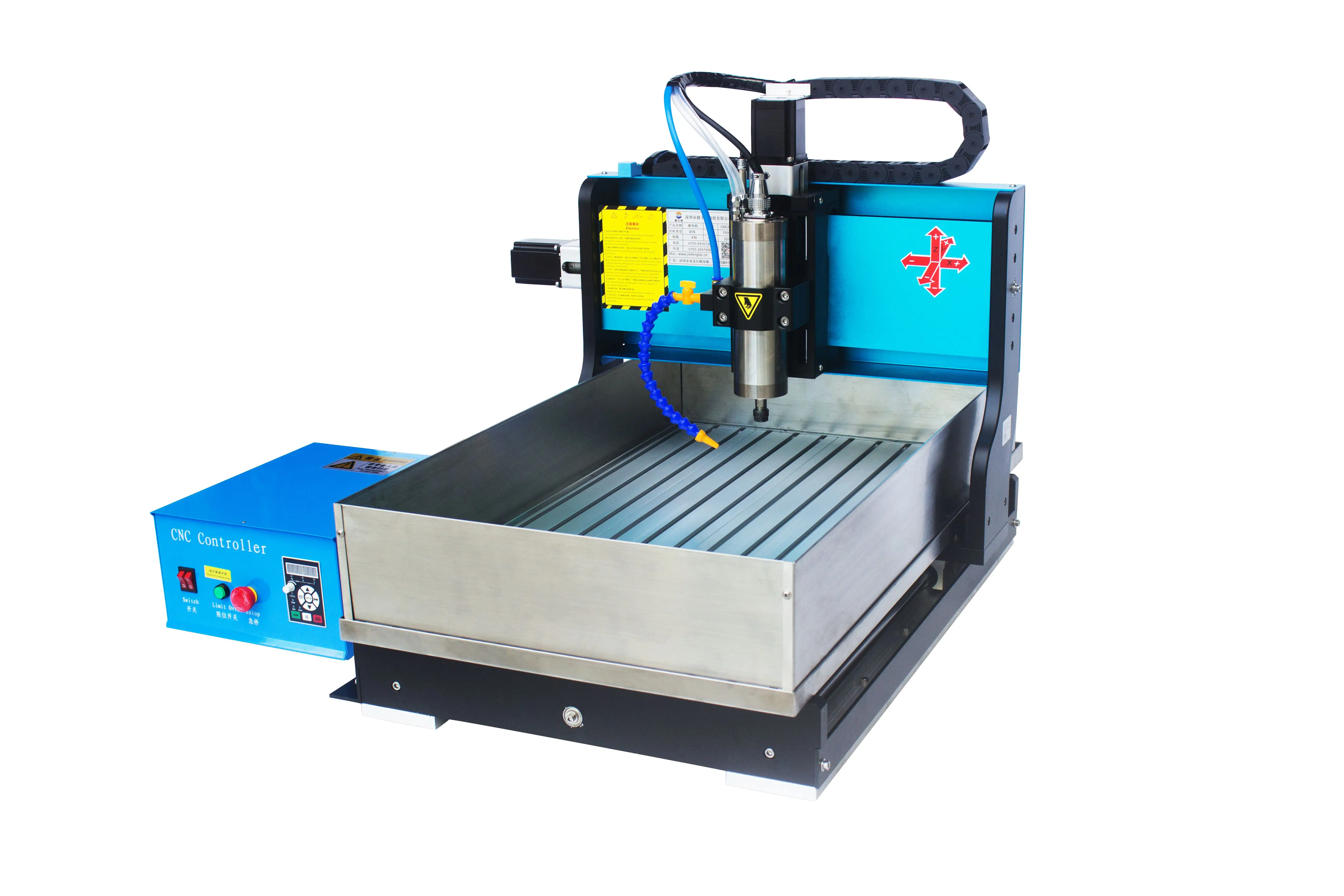

Machine with water sink

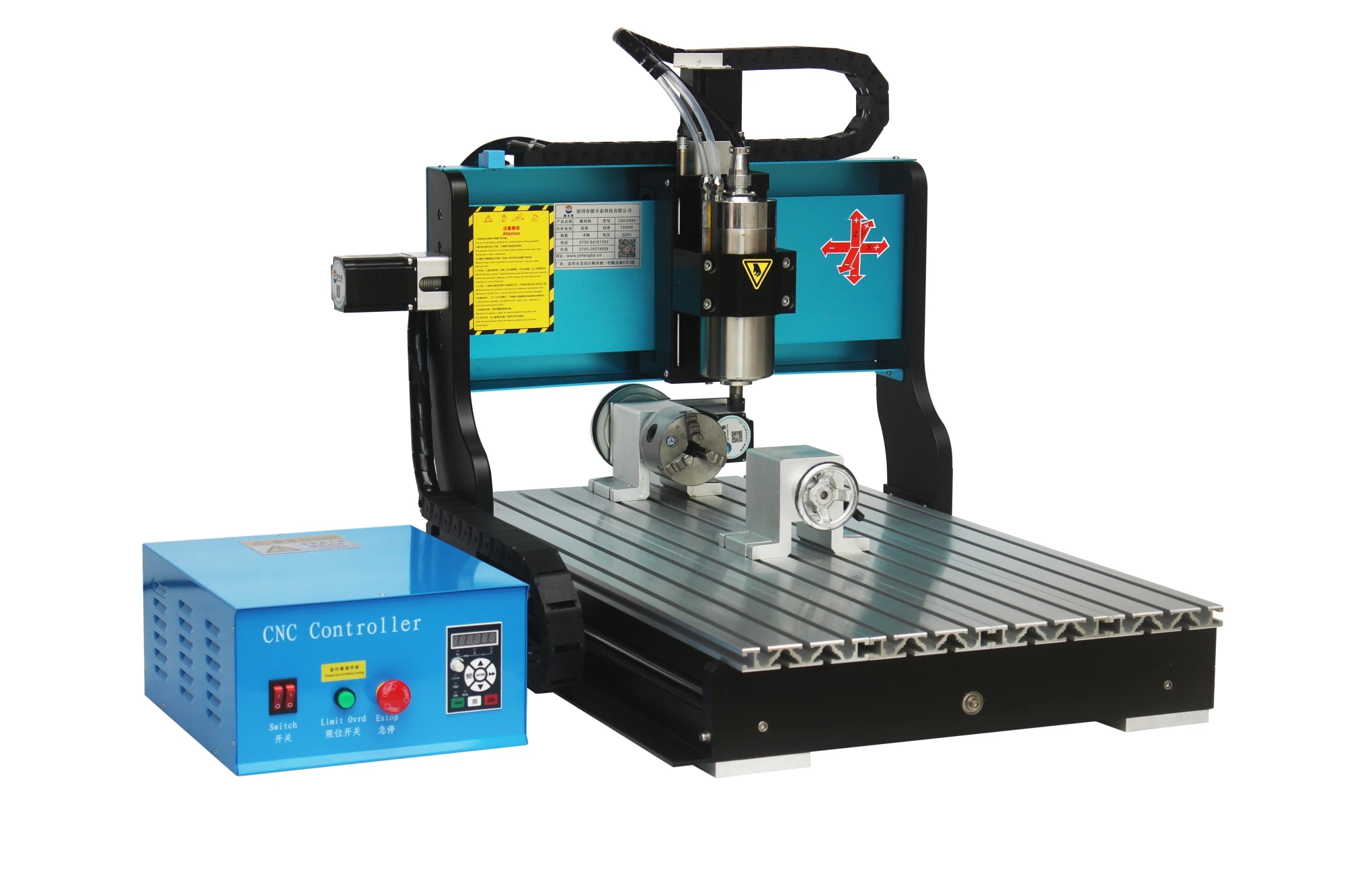

Machine with rotary axis
Machine with water sink and rotary axis
Main Features--multifunction cnc router

♠ Brand water cooled spindle, suitable to process metal materials and non-metal materials ♠ 57 type high current lengthen motor, high torque; with independent motor base, the operation is more stable ♠ Independent drives
♠ Imported TBI 1605 ball screw
♠ Double stainless steel polished rod
♠ Mach3 usb control system, can be controlled by desktop computer, laptop; or dsp control system, offline version, no computer for controlling
♠ Machine frames are 6061 aluminum alloy, precision processed by imported CNC machining center, the panel is 6063 aluminum profile, and the surface is anodized

Parameters
Machine name
Milling Machine CNC
Model
CNC6040
Working area
400*600*120mm
Feed height
≤150mm
Workbench size
480*840*20mm
Dimensions
650*900*590mm
Spindle power
800/1500/2200W
Drive
Independent drives
Rotate speed
24000rpm/min
Ball screw
TBI SFU 1605 ball screw
Cooling type
Water cooling
Guide rail
optical axis+support round rail
Collet type
ER11/ER20
Frame materials
6061-T6 aluminum and 6063 aluminum
Max working speed
4000mm/min
Motor
Stepper motors
Working accuracy
±0.025mm
Voltage
110V/220V
Repeating precision
±0.01mm
Control system
Mach3 usb/DSP
Packing size
880*590*400mm
Packing weight
96kgs
Rotary axis parameters

Rotation Axis A Axis
Reduction ratio
6:1
Center height
65mm

    Tail-stock
Center height
65mm
Scalable amount
50mm
Samples Show
Detailed Images
High quality machine body
The machine body is 6061 aluminum alloy， precision processed by imported CNC machining center, the panel is 6063 aluminum profile, and the surface is anodized. Ordinary aluminum sheets or aluminum profiles and castings are not comparable.
Independent drives
Equipped with independent drive to ensure the high stability and fast working speed of the machine and effectively improve the accuracy
Stepper motor
Each axis motor uses the brand 57 type high current lengthen motor, high torque; with independent motor base, the operation is more stable
Strengthen guide rail
XYZ axis adopt round guide rail, formed by double stainless steel polished rod + ball screw, which effectively improving precision and stability, and is not deformed for a long time
Imported ball screw
All three axes are imported original TBI SFU 1605 genuine ball screw, high quality imported nuts with metal inverter; high efficiency, low frictional resistance
Mini control box
Exquisite and small control box, easy to carry, Mach3(usb port) control system, DSP control system is optional
Brand water cooling spindle
Changsheng brand spindle motor, full power, low noise, high precision, long-term use does not affect performance
Limit switch
The three-axis direction is respectively equipped with a limit switch to avoid over-travel in the machine running, and has the function of returning the bed point of the machine in one-button manner, effectively protecting the machine
Brand frequency converter
Brand frequency converter, frequency control, more stable performance
Brand power supply
The power supply in control box is the designated power supplier for the Olympic Games. It has stable operation, long service life, built-in EMI filter, and strong anti-interference
Support base
Equipped with double bearings and bearing seat, which is precisely fitted to ensure the engraving precision. The Y-axis adopts the supporting base to effectively prevent the deformation of the guide rail
High flexibility cables
All cables are made of high-flex cables,with high-quality insulation and smooth Teflon wrapped shield. Anti-oxidation makes the cable prolonged in the presence of both torsional and bending stresses
Optional parts
Stainless water sink
For processing metal, high hardness materials,need to be equipped with water sink circulating water to cool the work piece and tool. One set of water tank include table bottom tray, surrounding baffle, nozzle, blue water pipe, water pump
Rotary axis
When engraving cylindric materials, rotary axis is required, 360° rotary engraving.The A-axis motor is extended 57 type, the max rotation diameter is 130mm, and the deceleration is 1:6. There is adjustable wrench on the side of the tail stock for extra strength, tightening and durability
Our Service
Pre-sale service
1. 24 hours online inquiry and consulting supporting. 2. Providing the most professional advice for choosing the most suitable and economic machines
3.Free proofing
After-sales service
1. Providing instructional videos and English user manual for guiding to install and operate the machines 2. Engineers guide to operate the mahcines by remote service 3. 1 years free warranty for machine quality and technical service
FAQ

1. Instructions for choosing suitable specification cnc machine

Applicable materials:

800W can process PVC, acrylic, plastic, PCB circuit board, IC polishing, double color board, EVA foam, carbon fiber, glass fiber board, graphite, bakelite, chemical Wood, solid wood, hardwood and soft metal etc; Variable frequency,water-cooled machine, suitable for long time processing

1500W/2200W can process PVC, acrylic, plastic, PCB circuit board, IC grinding, double color board, EVA foam, carbon fiber, glass fiber board, graphite,bakelite, chemical Wood, solid wood, hardwood and silver, gold, copper, steel,iron, aluminum alloy, jade and jade agate etc; Variable frequency water-cooled machine, suitable for long time processing

Water sink:
When engraving hard materials, like metal, gold, silver, aluminum, Jade, stone and so on, need add a water sink on the machine, the water sink can help to protect the cutting bits, also help to smooth and cool the material surface. One set of water sink includes table bottom tray, surrounding baffle, nozzle, blue water pipe, water pump

2. What if you don't know how to use the machine?
We have a whole set of teaching videos, start with a zero basis, also can provide training
through remote system, WeChat video, telephone after the machine received. As long as you are willing to learn, Nothing is impossible to learn


3. How about the warranty?
The machine is directly produced from our factory, you can enjoy the quality of the original
factory, and lifelong maintenance, free warranty is 1 year (except consumables, such as
knives, chuck, nuts and so on ), each machine is equipped with an unique code, enjoying the after sale service by this machine unique code


4. How to repair?
Please contact the salesman or after-sales engineer first if there is any problem when using
the machine. The after-sales engineer will do some simple tests for your machine and find out which part have the problem. Then engineer will teach you how to solve the problem, if the part can not be repaired, we will arrange to ship a new one

Related Products
Packing&Shipping


Parts List
1. 1 CNC Engraving machine (including control box)
2. 1 U-disk (Different software in U
-disk)
3. 1 Power cable
4. 2 Open Wrench
5. 1 Plastic tool box(5 pcs cutter are included)
6. 1 Tool setting gauge
7. 1 Water pumps
8. 1 Data cable
9. 8 Sets Allen wrench
Packing by wooden case
Machines will be packing by high quality non-log wooden case, with foam inside for protectiving. Long distance transportation will not be damaged.

Shipping channel
Shipping via sea or air, depend on clients' requirements
Company Introduction
Shenzhen Jiefengtai Corporation is specialized in research and development, production, sales of various types of CNC engraving machine, laser engraving machine, laser Marking machine, laser welding machine and other CNC series equipment. And also accept various manipulator, non-standard automation equipment customization. We continue to research and develop, to provide quality, cost-effective CNC machine and laser machine, to create value for the majority of customers.
All machines are approved by CE certificate. We have exported our machines to more than 50 countries, Major foreign customers groups are from Korea, Russia, United States, Mexico, India, Pakistan, Japan, Canada, Thailand, Malaysia, Indonesia, Turkey, Poland, Hungary etc Anyone is interested in our product, welcome to be the partner of us. Agent and distributor wanted all over the world!
