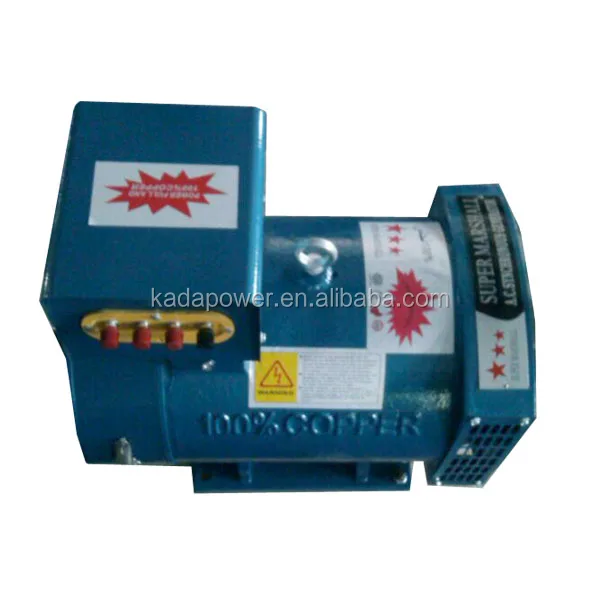

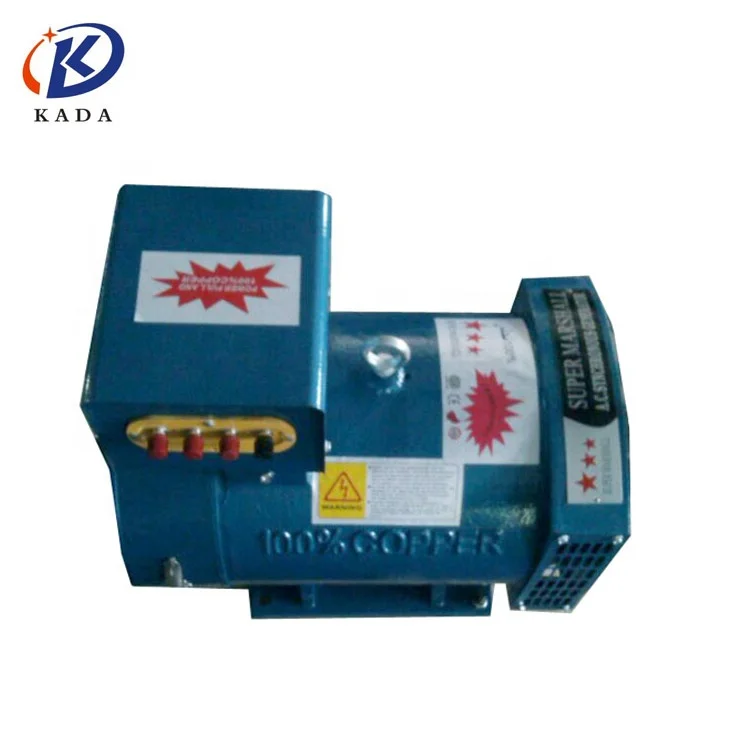

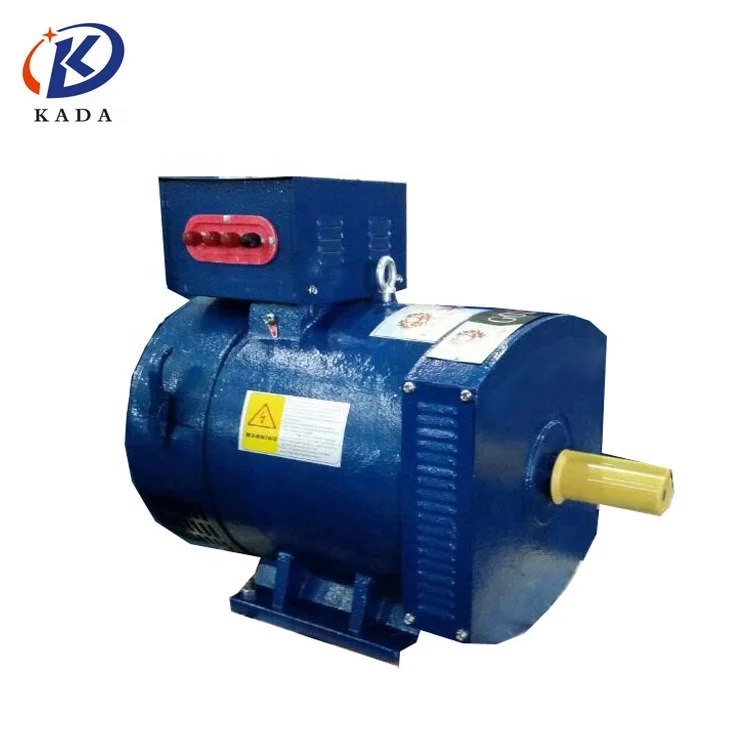

KADA three phase stc 20kw 400v generator diesel engine alternator
- Category: >>>
- Supplier: Ningde Kada Co. Ltd.
Share on (60352781981):
Product Overview
Description
Three Phase STC 20KW 400V Generator Diesel Engine Alternator
Alternator Specification
3-PH, 50HZ@1500RPM, 400V
(Also can be made according to customers’ special requirements)
Technical Data
Alternator Model | STC-20 |
Power | 25kva/20kw |
Exciter type | Brush, Harmonic excitation system |
Power factor | 0.8 |
Voltage adjust range | ≥3% |
Voltage regulation NL-FL | ≤±0.3% |
Insulation Grade | B or C |
Protection Grade | IP21 |
The STC series generators are mainly designed to serve as power generating unit of small capacity which supply electricity for lighting purpose in ships as well as for household electric devices used in towns or villages.
The construction of the generators is of drip proof, salient pole rotating field self-excitation and constant voltage type The alternator inside is used with high quality electric magnetic and electrical materials. Stator insulation is of Class E(or B).rotor insulation is of Class B.
Feature : Brush Generator
1. Altitude: not exceed 1000m.
2. Cooling air temperature: 258~313K (-15oC~40oC).
3. Relative air humidity: not exceed 90%.
Paremeters of STC Alternator Generator
Model | Output | Voltage (V) | Current (A) | Power Factor | Speed (rpm) | Freq. (Hz) | Pole No. | |
KVA | KW | |||||||
STC-3 | 3.8 | 3 | 400/230 | 5.4 | 0.8 | 1500 | 50 | 4 |
STC-5 | 6.3 | 5 | 9 | |||||
STC-8 | 10 | 8 | 14.4 | |||||
STC-10 | 12.5 | 10 | 18.1 | |||||
STC-12 | 15 | 12 | 21.7 | |||||
STC-15 | 18.8 | 15 | 27.1 | |||||
STC-20 | 25 | 20 | 36.1 | |||||
STC-24 | 30 | 24 | 43.3 | |||||
STC-30 | 37.5 | 30 | 54.1 | |||||
STC-40 | 50 | 40 | 72.2 | |||||
STC-50 | 62.5 | 50 | 90.2 | |||||

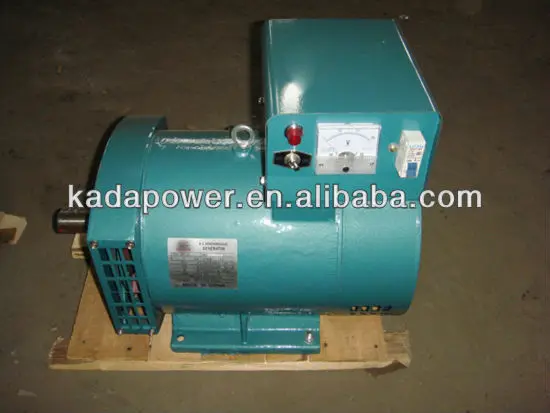

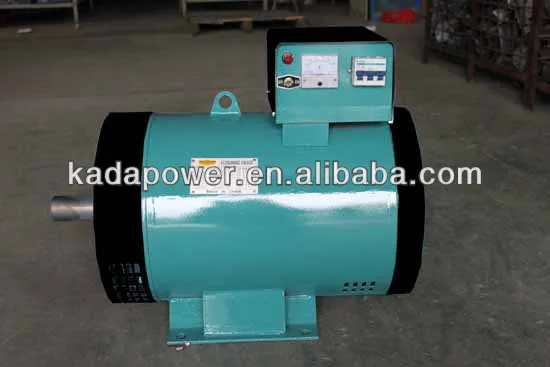

ST/STC Generator Small Power Generator Dynamo

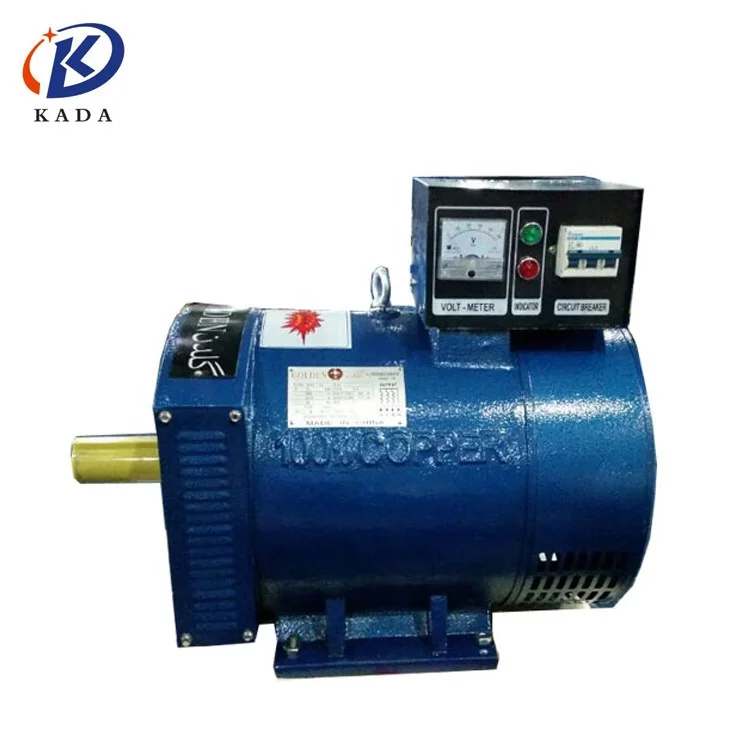

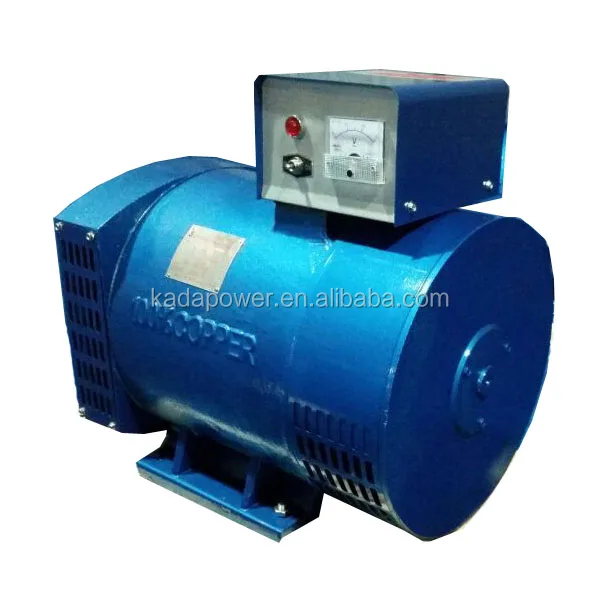

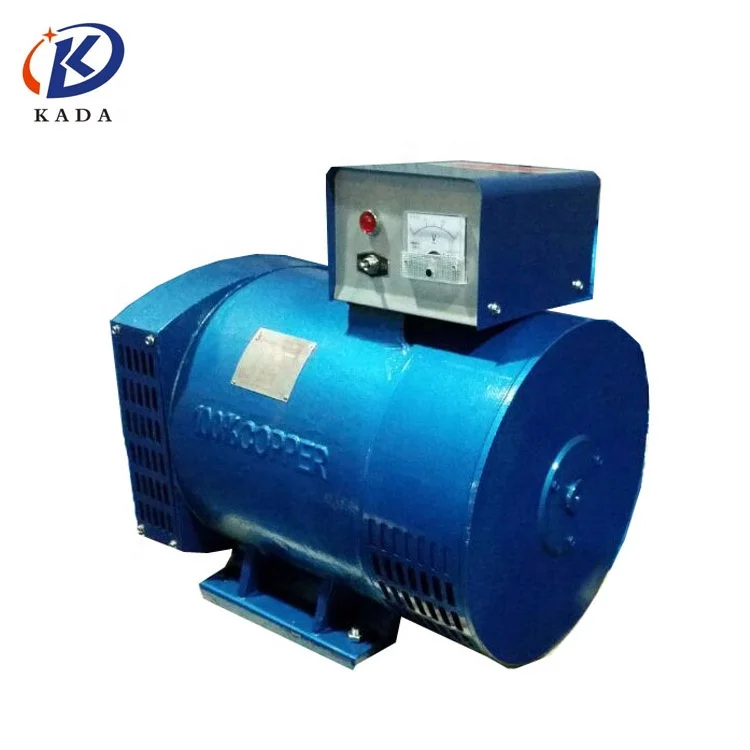

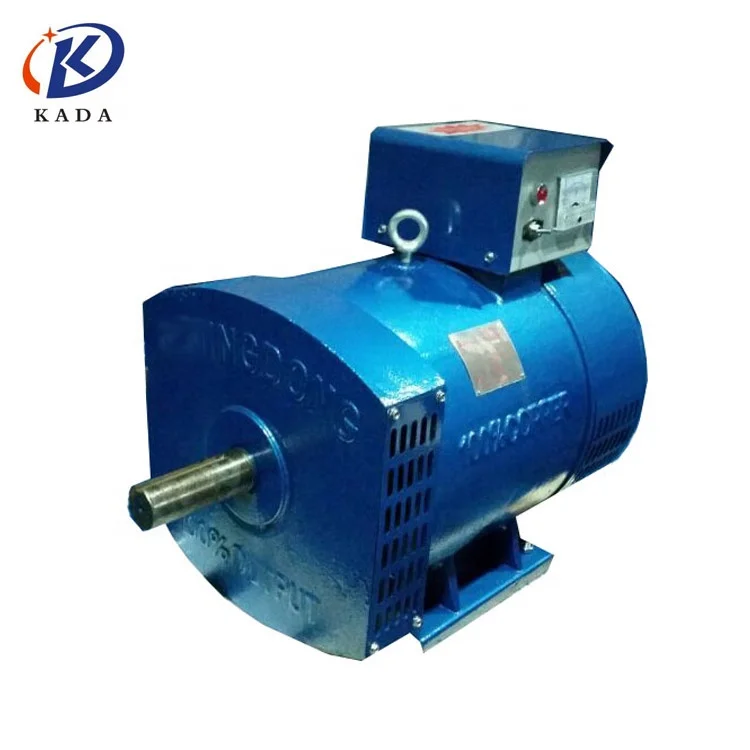

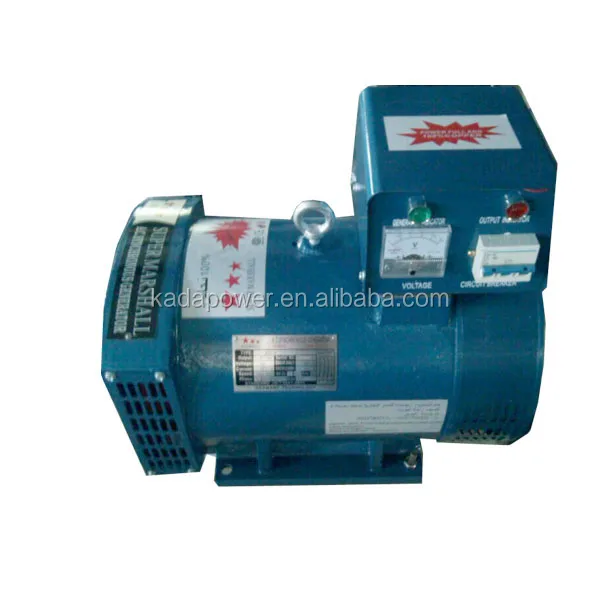

Front side, two switch optional, other style control box as per your demands
Double Bearing with pulley
2015 New Design
Inside and materials
