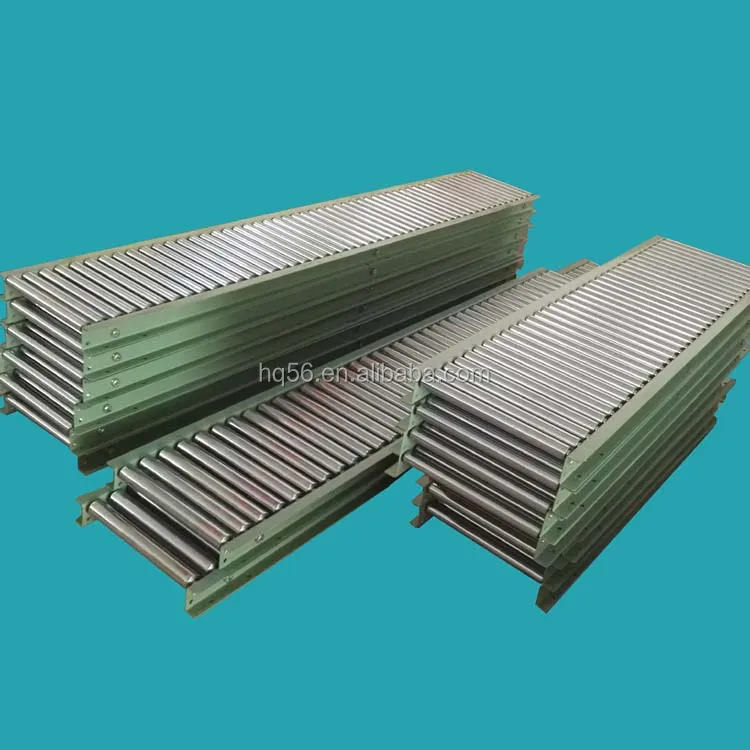

Portable steel roller conveyor table
- Category: >>>
- Supplier: Wuxi Huiqian Logistics Machinery Manufacturing Co. Ltd.
Share on (60352945915):
Product Overview
Description
Product Name: Portable roller conveyor table
Product Description
Portable roller conveyor ---
The portable roller conveyor also named gravity conveyor, gravity roller conveyor, usually adopts the steel conveyor rollers to installed within a certain frame to transfer workpiece on the surface. One of the
simple type is non power roller conveyor, also called manual roller conveyor, because there's no drive
part and need manual pushing to make the workpiece transferring on rollers.
The manual roller conveyor has the feature of heavier laoading than the driving one, and there're more sizes for buyers' optional. Wuxi Huiqian has the roller conveyor sizes more than others, the obvious charactor is roller diameter. Roller diameter of Huiqian is from 8mm to 76mm
Technology Detail
Table 1-- Portable Roller Conveyor:

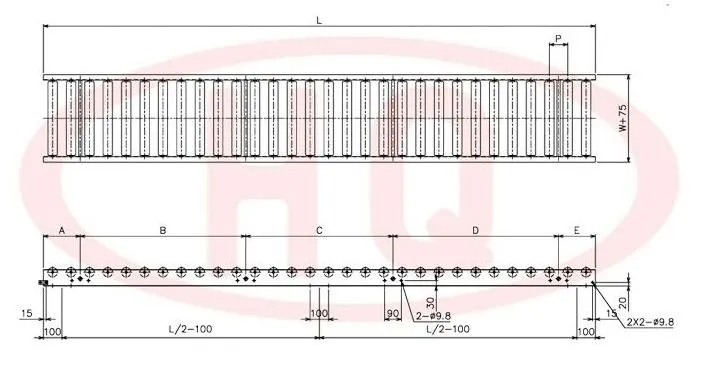

Portable roller conveyor Drawing 1

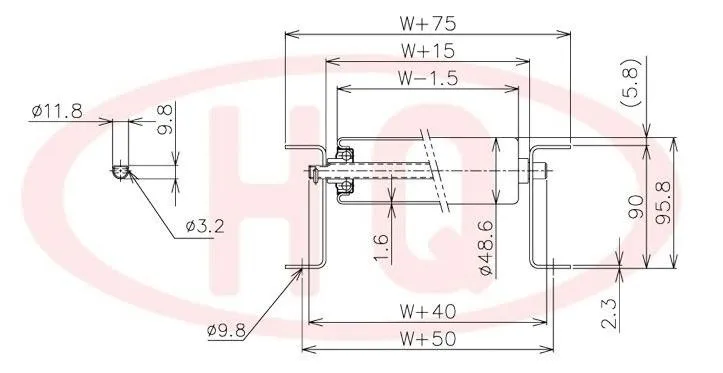

Portable roller conveyor Drawing 2

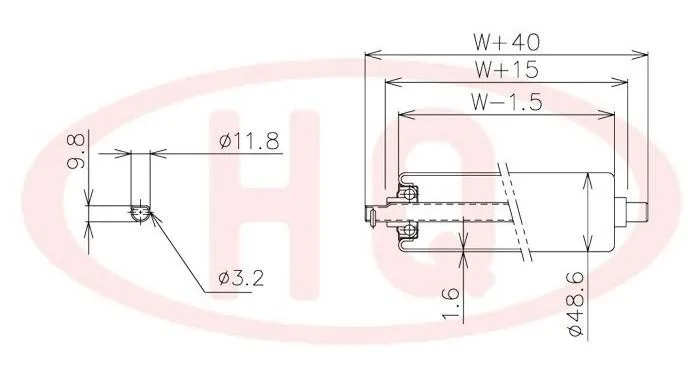

Portable roller conveyor Drawing 3
Table 2-- Portable roller conveyor Specifications:
| roller width (mm) | W | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| conveyor width(mm) | W+75 | 175 | 275 | 375 | 475 | 575 | 675 | 775 | 875 | 975 | 1075 |
| roller loading(kg) | 175 | 168 | 147 | 109 | 87 | 72 | 62 | 54 | 48 | 43 | |
| conveyor weight(kg) | 75P | 30.1 | 39 | 47.8 | 56.7 | 65.5 | 73.3 | 82.3 | 91.4 | 100.4 | 109.5 |
| 3000mm length | 100P | 26.8 | 33.5 | 40.2 | 47 | 53.3 | 59.4 | 66.3 | 73.1 | 80.1 | 87.1 |
| roller weight (g) | 347 | 558 | 767 | 978 | 1188 | 1399 | 1607 | 1820 | 2029 | 2242 |
Advantages of Roller
1. Roller is a new type structure diffirent from others:
Our roller is Japanese new type, more strong structure with very good looking.
The bearing can be repalced from roller end if damaged; saving maintanance cost.
2. Japanese standard quality: high quality standard with competetive cost.
3. 1 year quality garranty( non-artificial damage).
4. Full experienced engineers & technicals to ensure the design & conveyors' good quality.
5. Good business clients & parteners' long business cooperation.
6. Credit enterprise, good after-sale service, specialised sales and manufacturing.
Packaging & Shipping
1. Packaging for Portable roller conveyor :
Carton Package Wooden Case Package Steel Pallet Package
Steel Box Package Steel Pallet Package Full Container Package
2. Shipment for Portable roller conveyor
Express Delivery Air Transport Truck Transport Sea Transport
Company Information
Wuxi Huiqian Logistics Machinery Manufacturing Co.,Ltd is headed in Wuxi Hudai High-Tech Economic Development Zone with convenient transportation and full competed set of surrounding facilities. The company is founded with Japanese advanced technology and developing their logistics machinery manufacturing experience, specializing in designing, manufacturing and trading of roller conveyors, belt conveyors, conveyor rollers, roller tracks, storage cages, logistics trolleys, warehouse racks, etc.
Wuxi Huiqian Logistics Machinery Manufacturing Co.,Ltd have a complete and scientific QMS, excellent and experienced work group, high advanced processing equipment to show our customer better quality, better service, better appearance, better price...
Our main products:
1. manual roller conveyor
2. Motorized roller conveyor
3. Belt conveyor
4. Roller tracks / Roller skate wheel conveyor
5. Drum motors
6. Conveyor Projects
---Roller conveyor line
---Blet conveyor line
We ( Wuxi Huiqian) are highly recognized by all our clients for our Quality, Integrity, Faith &
Innovation. Warmly welcome all friends at home and abroad to visit us and any attentions or advice
will be highly appreciated.
