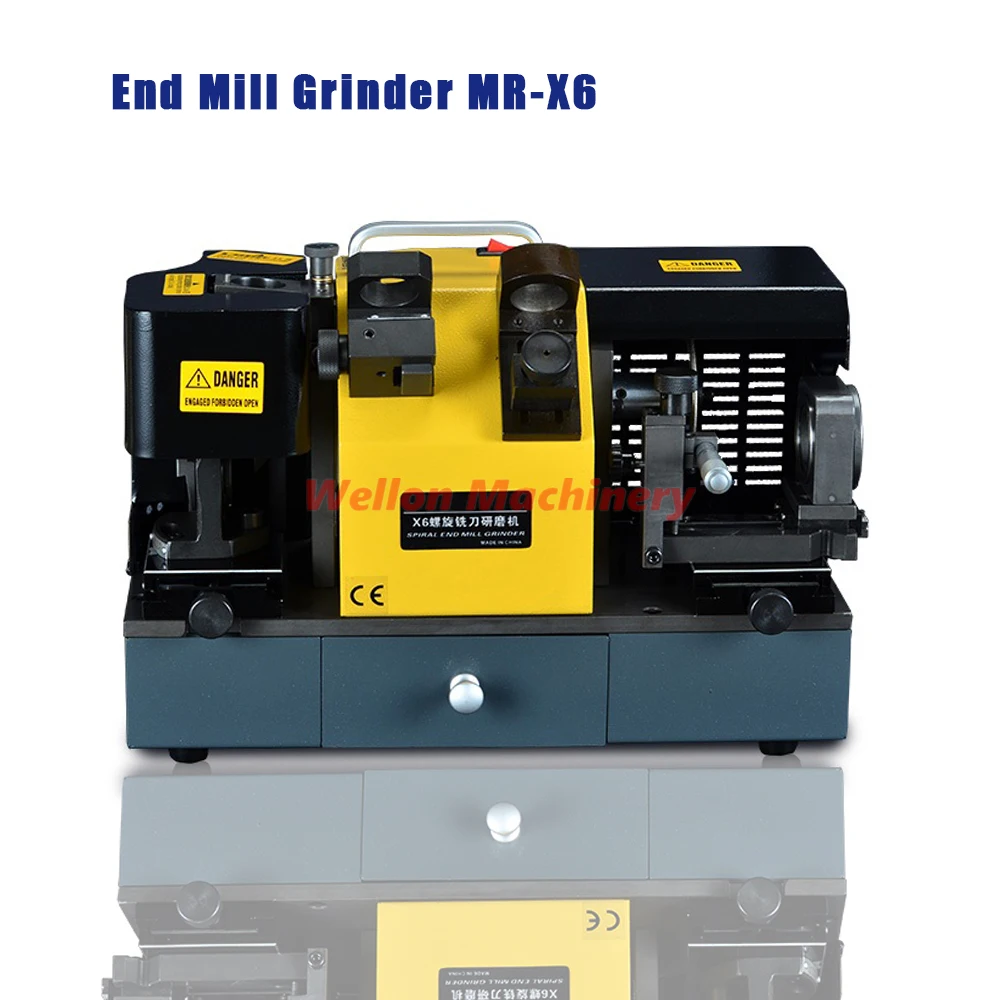

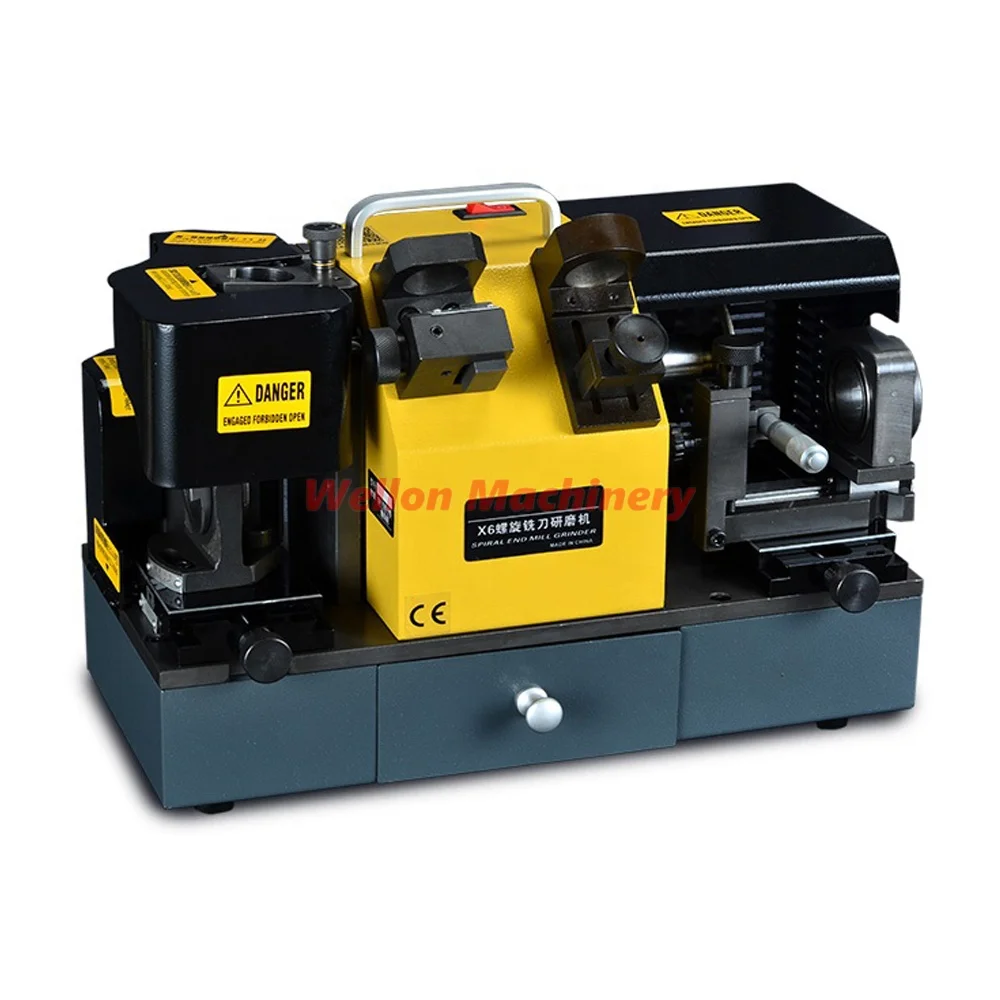

End Mill Grinder MR X6A/Cutter Sharpening Machine

Product Overview

Description

Features:

1. Portable end mill grinder can grind two flute, three flute, four flute and six flute ( size should be bigger than 12mm).

Choosing can grind five flute

2. Grinding is accurate and rapid, easy operation, with no skill requirement to grind easily.

3. With Taiwan diamond grinding wheel, only one piece can complete all procedures.  It can be equipped directly with

an accurate angle and long service life.

4.  MR-X6 is patent and newest product, can grind both face and side of end mill.

Technical Parameter :

Model	MR-X6
Mill diameter:	4-14
Point angle	0°-5°
Motor	220V/180W
Speed	5300rpm
Dimension	41×25×30cm
Weight	22kg
Standard Equipment	Face grinding wheel :CBN (for HSS)
	Side grinding wheel: CBN (for HSS)
	Six collets:  4,6,8,10,12,14
	Three collet chucks: 2,4 flutes ×1 piece;  3,6 flutes×1 piece; grinding the side of end mill×1 piece
Optional Equipment	Face grinding wheel :SD (for carbide)
	Side grinding wheel: SD (for carbide)
