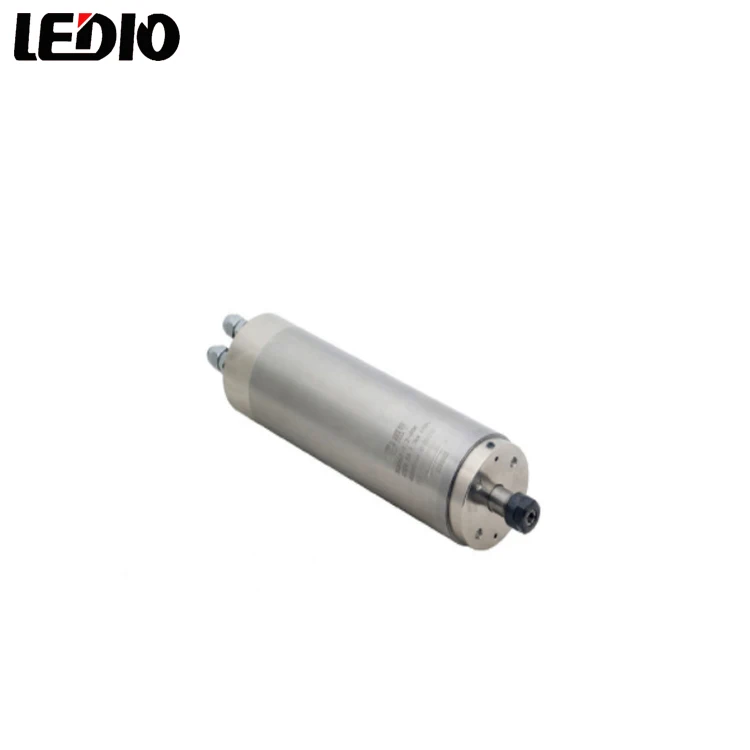

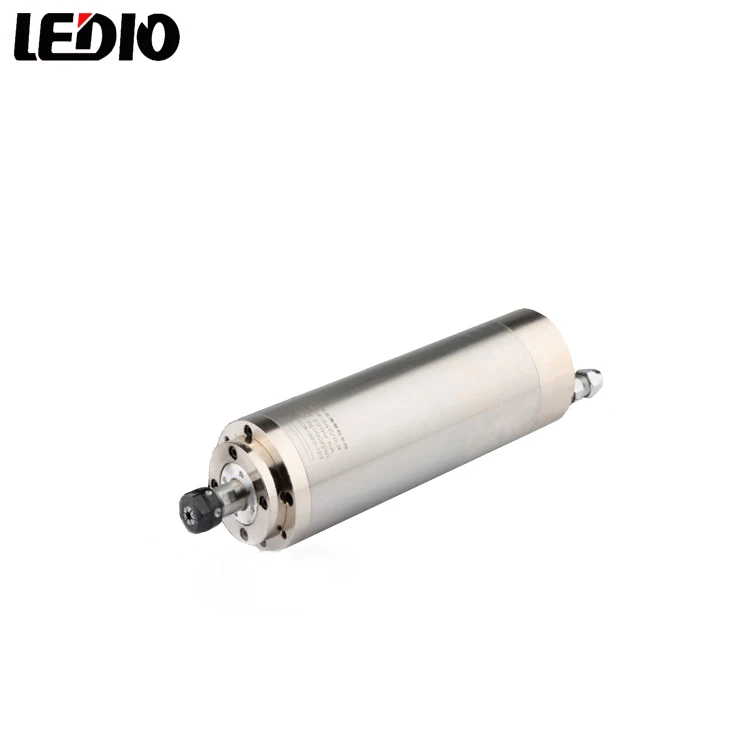

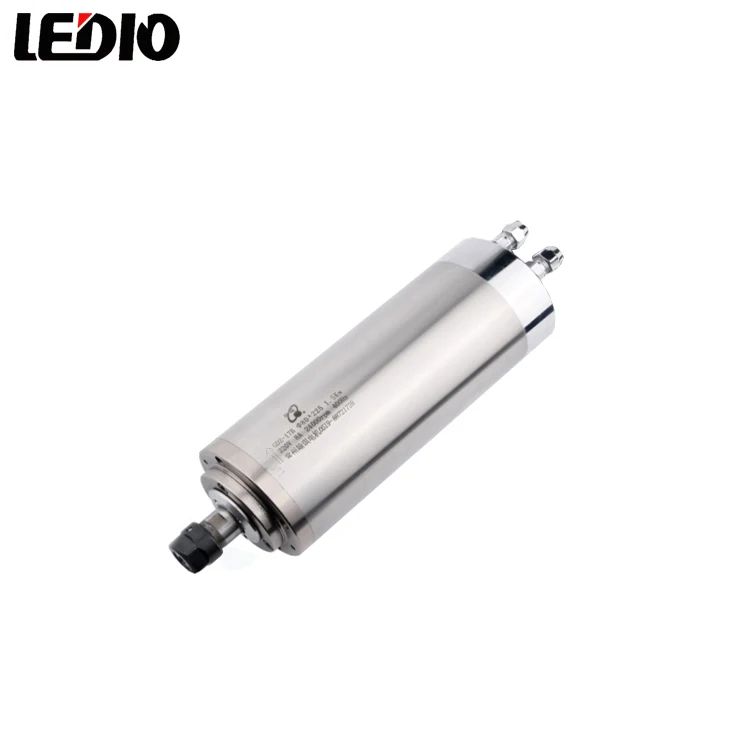

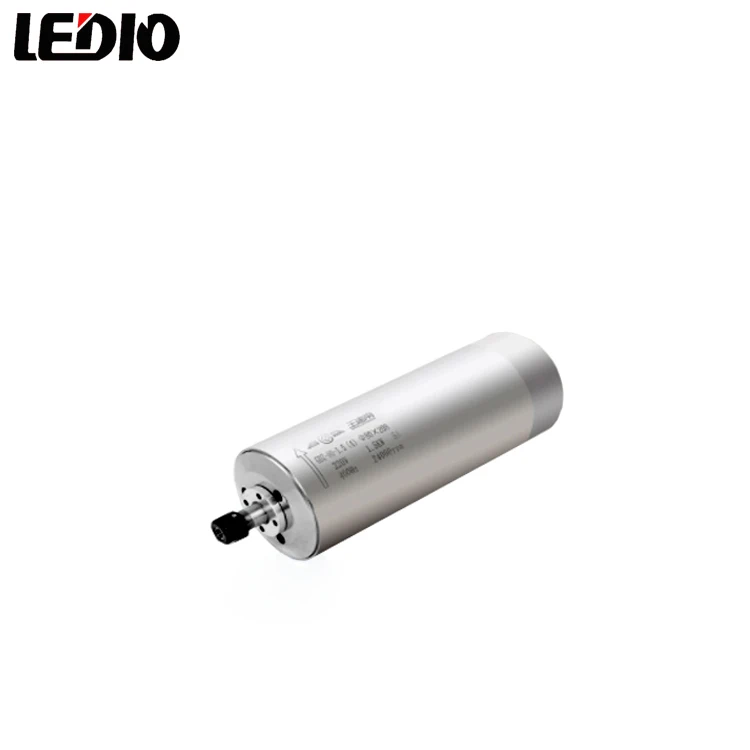

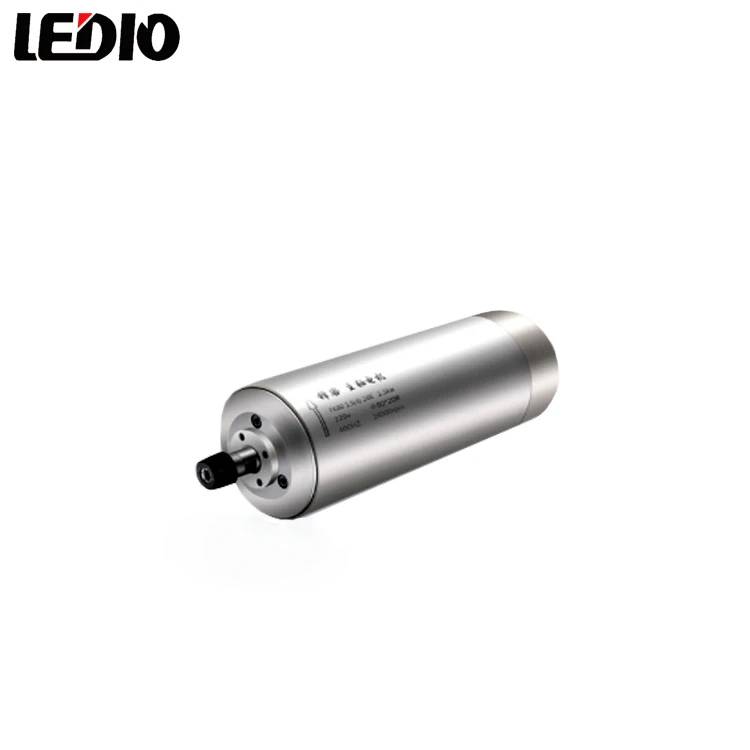

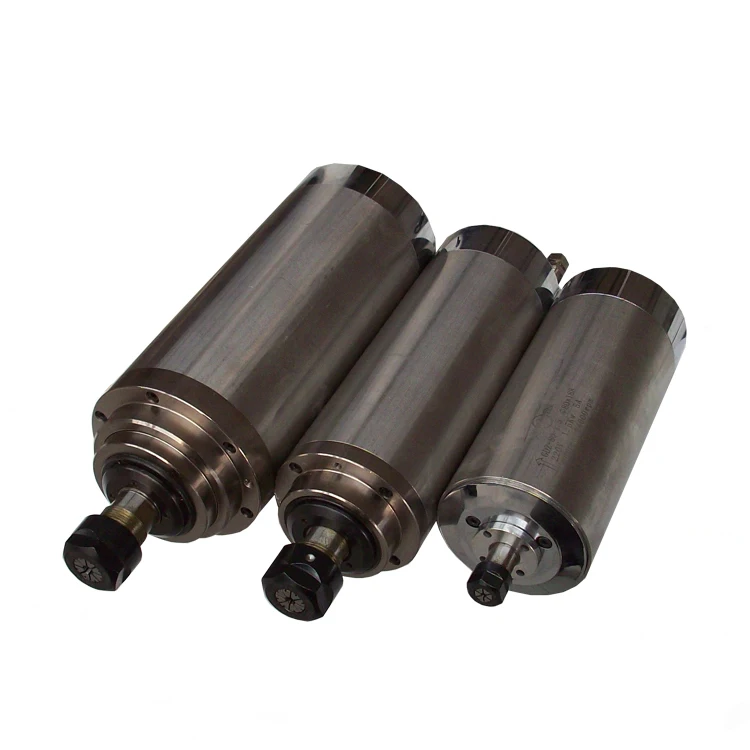

ledio spindle motor for cnc router/water cooled spindle motors/air cooled spindle motorsr

Product Overview

Description

ledio spindle motor for cnc router/water cooled spindle motors/air cooled spindle motorsr



Feature
1. Imported bearing;bearings with dust cover,more secure
2. water-coolled motor,sculpture forceful,high precision,long life
3. With polishing process,can improve motor concentricity to extend the

service life of motor



Advantage
1.high speed,strong power,electric
2.different size
3.CE certification
4.stable, endurable, long life
5.hot sale



Application
1.widely used for woodwork, metal, stone, glass , acrylic.
2.mainly used for carving,engraving,cutting,grinding,drilling,milling.



Parameters of water cooled spindle motor

power	voltage	current	joint of nose	speed		diameter	weight	cooled type
300w	75v	4.5A	ER 8	6000-24000r/min		50mm	1.5kg	water cooled
800w	75/150/220v	5/6A	ER 11	6000-24000r/min		65mm	2kg	water cooled
1.5kw	220v	5A	ER 16	6000-24000r/min		80mm	2.5kg	water cooled
2.2kw	220v	8A	ER 20	6000-24000r/min		80mm/ 100mm	5kg	water cooled
3kw	220/380v	7/12A	ER 20	6000-24000r/min		105mm	11kg	water cooled
4.5kw	380v		ER 25	6000-24000r/min			16kg	water cooled
6kw	380v		ER 32	6000-24000r/min			20kg	water cooled
7.5kw								water cooled



parameters of air cooled spindle motor

power	current	joint of nose	speed		cooled type
700w	4A	ER 11	18000r/min		air cooled
1.5kw	6.8/3.8A	ER 20	18000r/min		air cooled
2.2kw		ER 25	18000r/min		air cooled
3.5kw	8.8A	ER 25	18000r/min		air cooled
4.5kw	9.5A	ER 32	18000r/min		air cooled
6kw	12.6A	ER 32	18000r/min		air cooled
