PABX telephone switching system with 32 extensions
US $193.00-$215.00
Grandstream UCM6510 VoIP Call center IP PBX
- Category: PBX >>>
- Supplier: Shanghai Chucheng Information Technology Co. Ltd.
Share on (60353471799):
Product Overview
Description

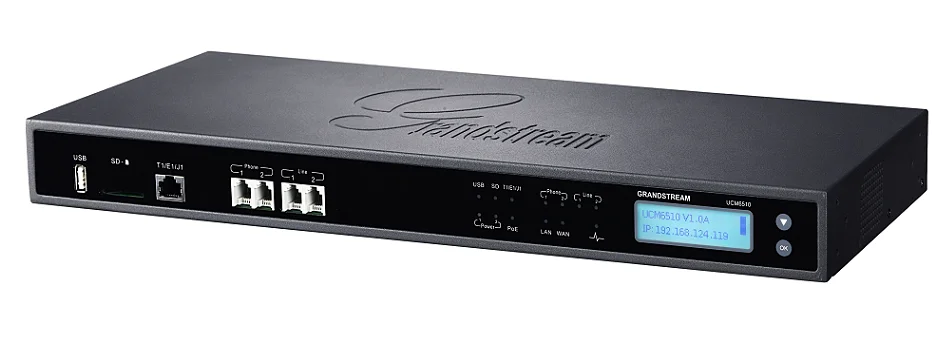

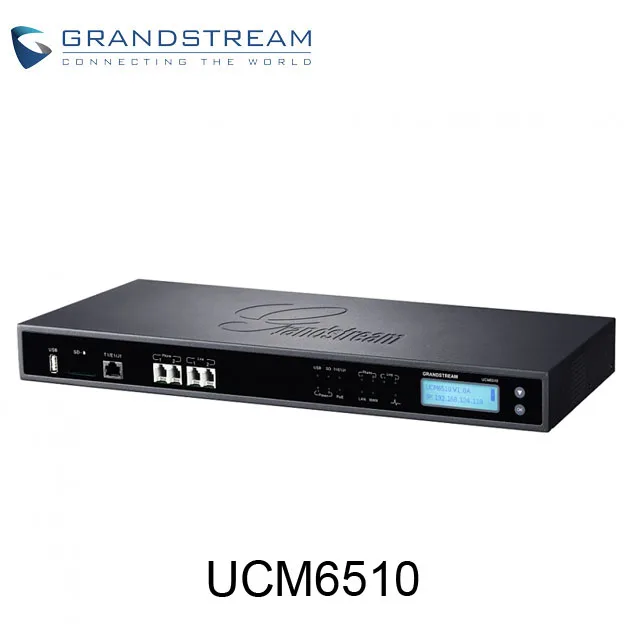

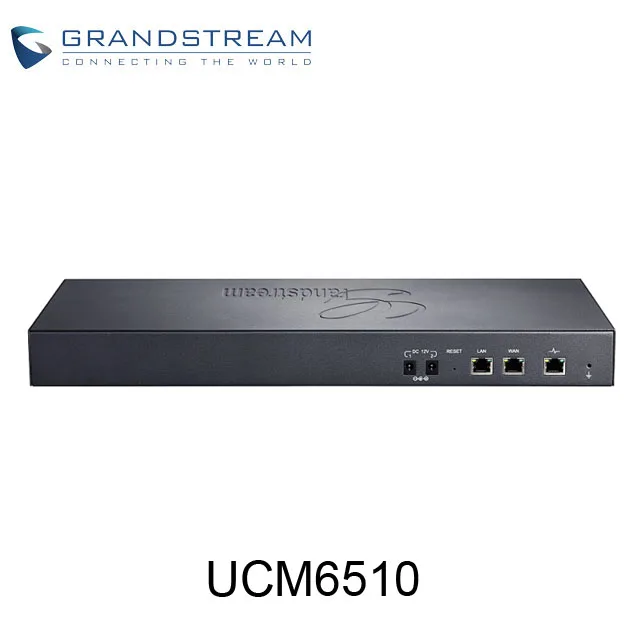

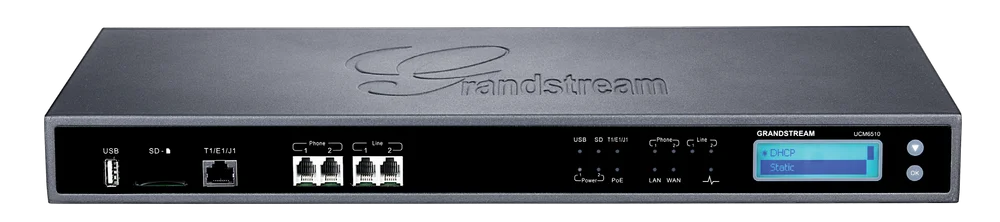

Grandstream UCM6510 VoIP Call center PBX
Product Overview
The UCM6510 IP PBX appliance is designed to bring leading edge voice, video, data, and mobility features to enterprises, small and medium businesses, retail and residential environments in an easy-to-manage fashion. This enterprise-grade on premise IP PBX supports E1, T1 and J1 networks and offers scalability by supporting up to 2000 users. The UCM6510 series offers quick and easy setup and deployment using the web-browser user interface – which features auto-discovery of Grandstream endpoints and Zero-Configuration provisioning. The UCM6510 series allows businesses to unify multiple communication technologies, such comprehensive voice, video calling, video conferencing, video surveillance, data tools, and facility access management onto one common network that that can be managed and/or accessed remotely. The UCM6510 offers a set of comprehensive features, including customizable call-routing, multi-level IVRs, call queues, auto-attendant, call detail records (CDR), multi-site peering, SIP video support, voicemail/fax forwarding to email and more. The secure and reliable UCM6510 delivers leading edge unified communication features at an unprecedented price point without any licensing fees, costs-per-feature, or recurring fees.

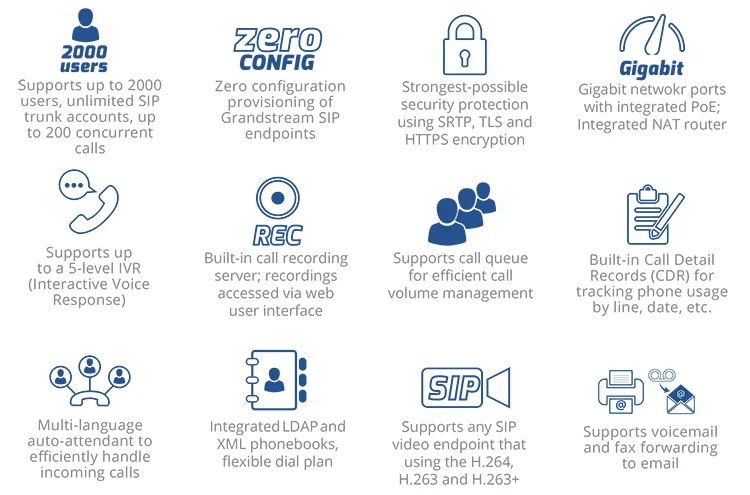

Product Highlights
- Supports up to 2000 SIP endpoint registrations, up to 200 concurrent calls and up to 64 conference attendees
- 1GHz quad-core Cortex A9 processor
- 1GB DDR3 Ram, 32GB Flash
- 1 Integrated T1/E1/J1 interface, 2PSTM trunk FXO ports, 2 analog telephone/Fax FXS ports with lifeline capability, Unlimited SIP trunk accounts
- Gigabit network ports with Integrates PoE, USB, SD card, integrated NAT router
- Comprehensive security protection using SRTP, TLS and HTTPS with hardware encryption accelerator
- Quickly setup and provision Grandstream ednpoints using the Auto-Discovery and Zero Config feature within the product’s web user interface
Detailed Images
Specification
Interfaces | ||
Analog Telephone FXS Ports | 2 RJ11 ports (both with lifeline capability in case of power outage) | |
PSTN Line FXO Ports | 2 RJ11 ports (both with lifeline capability in case of power outage) | |
T1/E1/J1 Interface | 1 RJ45 port | |
Network Interfaces | Dual Gigabit ports (switched or routed) with PoE; A 3rd Gigabit port for Hot-Standby Clustering | |
NAT Router | Yes (user configurable) | |
Peripheral Ports | USB, SD | |
LED Indicators | Power ½, PoE, USB, SD, T1/E1/J1, FXS ½, FXO ½, LAN, WAN, Cluster Heartbeat | |
LCD Display | 128x32 dot matrix graphic LCD with DOWN and OK buttons | |
Reset Switch | Yes, long press for factory reset and short press for reboot | |
Voice/Video Capabilities | ||
Voice-over-Packet Capabilities | LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection and auto-switch to G.711 | |
Voice and Fax Codecs | G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, Ilbc, GSM, AAL2-G.726-32, ADPCM; T.38 | |
Video Codecs | H.264, H.263, H.263+ | |
QoS | Layer 3 QoS, Layer 2 QoS | |
Signaling and Control | ||
DTMF Methods | In Audio, RFC2833, and SIP INFO | |
Digital Signaling | PRI, SS7, MFC/R2, E&M | |
Provisioning Protocol and Plug-and-Play | TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66/multicast SIP SUBSCRIBE/Mdns), eventlist between local and remote trunks | |
Network Protocols | TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay | |
Disconnect Methods | Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone | |
Security | ||
Media | SRTP, TLS, HTTPS, SSH | |
Advanced Defense | Fail2ban, alert events, Whitelist, Blacklist, strong password based access control | |
Physical | ||
Universal Power Supply | Input: 100-240VAC, 50-60Hz; Output: DC+12VDC, 1.5A | |
Physical | Unit Weight: 2.165 KG;Package weight: 3.012 KG | |
Dimensions | 440mm (L) x 185mm (W) x 44mm (H) | |
Environmental | Operating: 32 – 113oF / 0 – 45oC, Humidity 10-90% (non-condensing) Storage: 14 – 140oF / -10 – 60oC, Humidity 10-90% (non-condensing) | |
Mounting | Rack mount and Desktop | |
Additional Features | ||
Multi-language Support | English, Simplified Chinese, Traditional Chinese, Spanish, French, Portuguese, German, Russian, Italian, Polish, Czech for web GUI; Customizable IVR/voice prompts for English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Hebrew and Arabic | |
Caller ID | Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT Japan (pending) | |
Polarity Reversal/ Wink | Yes, with enable/disable option upon call establishment and termination | |
Call Center | Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/busy level, in-queue announcement | |
Customizable Auto Attendant | Up to 5 layers of IVR (Interactive Voice Response) | |
Maximum Call Capacity | Up to 2000 registered SIP endpoints, up to 200 concurrent calls | |
Conference Bridges | Up to 8 bridges, up to 64 simultaneous conference attendees | |
Call Features | Call park, call forward, call transfer, DND, DISA, ring group, pickup group, blacklist, paging/intercom and etc | |
Compliance | FCC: Part 15 (CFR 47) Class B, Part 68 CE:EN55022 Class B, EN55024, EN61000-3-2,EN61000-3-3, EN60950-1, TBR21, RoHS A-TICK: AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, AS/ACIF S002 ITU-T K.21 (Basic Level);UL 60950 (power adapter) T1: TIA-968-B Section 5.2.4 E1: TBR12/TBR13, E1: AS/ACIF | |
