flex banner solvent inkjet printer phaeton UD3208Q plotter
- Category: >>>
- Supplier: Guangzhou Caixu Digital Technology Co. Ltd.
Share on (60353474905):
Product Overview
Description
Specifications:
Universal Digital Pheaton Outdoor Large Format Digital Printer
8 Seiko SPT510-35PL Printheads
Double 4 Color Printing
Alloy-aluminum Platform
Infiniti/Challenger stable printer UD-3208Q
1,Low ink sensor, auto or manual ink supply system.
2, Double four color printing, vivid color & high speed .
3, X, Y axis AC servo motor is used to run the carriage quicker and more stable.
4, Individual color cleaning minimizes the waste of the ink;
5, 3 way intelligent heater (pre/print/post) helps bring more vivid output;
6, The entire printing platform and the girder are made of the alloy-aluminum which is more strong ,flat and quiet .
Model | UD-3208Q | |
Printhead SII Printek Inc | SPT 510-35PL | |
Number of Printhead | 8 Heads | |
Printing Speed | Printing mode | Standard Output (m²/hr) |
Draft Model | 2PASS 76 m²/hr | |
Standard Model | 3PASS 51 m²/hr | |
Quality Model | 4PASS 34 m²/hr | |
High quality | 6PASS 26 m²/hr | |
Maximum Printing Width | 3.200mm(125.984inch) | |
Ink | Type : | Solvent Ink & ECO-Solvent Ink |
Color : | Double 4 Colors(C,M,Y,K) | |
Capacity : | 1L or 5L Per Main Tank of Each Color | |
Ink Supply System : | Low Ink Detector, Auto or Manual Ink Supply System | |
Media | Width : | Maximum3,300mm(129.92’’) |
Type : | Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc Roll Media or Sheet Media | |
Thickness: | 4 mm(Max.) | |
Heating System | 3 way intelligent heater | |
Auto Media Feeding System | Equipped(Max. Media Weight 80kg) | |
Take-up System | Equipped | |
Auto Cleaning System | Individual Positive Pressure Cleaning, Anti-Clogging Flash Function & Capping System | |
Pre-heat & Dry System | Equipped | |
Clamp | Equipped | |
Printing Interface | USB2.0 Cable | |
Printhead Height | 2 to 6 mm from Media | |
RIP Software | Maintop(equip) , UltraPrint , PhotoPrint, Topaz, Wasatch,(optional) | |
Input Power | AC 220V, 50Hz / 60Hz | |
Machine Dimension/N.W | L4, 500 x W905 x H1,260mm / 362KG | |
Package Dimension/G..W | L4, 650 x W970 x H1550mm / 582KG | |
Operation Environment | Temperature : 20°C~28°C Humidity : 40%~60% | |
Pictures to reference:

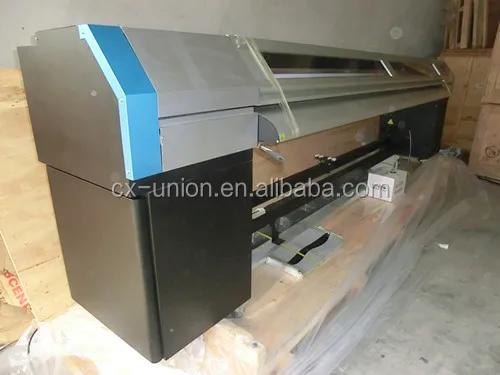

Front side of UD-3208Q , with strong heavy body .
Full Alumium complete platform contains railroad stable and durable material,to optimize the accuracy of the feed material.
User-friendly&Individual positive pressure capping and cleaning system,easy for maintenance
Three-way heaters,fast drying.
Special AC servo motors for mobility in X-Y for the shift in the printing area.
With PT 510 printhead,voltage adjustable!Avoiding printhead clogging under huge temperature change!
Shipping info:
Goods will be delivered by Fedex, UPS, DHL, EMS directly, and can check the express number form internet immediately.
You may interesting in this print heads . We provide 100% original and brand new products.
Technical Support :
1. Any question we ensure to try our best to help you .By email ,vedio ,TEL, long-distance computer control and so on . We company has the experts and professional skill team for machine who has more than 10 years experience about the printers. Free trainning is avaliable .
2. All kinds of original spare parts for the machine to ensure your machine running smoothly .
What is more , all the printers have one year warranty . During the warranty, if any problems of the parts , you can send us back to repair or exchange .
This month our company has discount for the machine . And the shipping cost will be 30% off. Please feel feel to contact us .
