Shenzhen 2 layer printed circuit boards supplier
- Category: >>>
- Supplier: Shenzhen Tailhoo Technology Co. Ltd.
Share on (60353642533):
Product Overview
Description
Welcome To Shenzhen Tailhoo Technology Co., Ltd---FR4 2 layer printed circuit boards PCB Manufacturer
Our Services
As a Professional PCB Manufacturer, With Our Professional Departments, We Can Offer:
- PCB Design, PCB Manufacture, PCBA Assembly
- ONE-STOP-SERVICE
- OEM service
- PCB file or Gerber file needed
- PCB clone with sample - Reverse Engineer(ic decode, pcb copy.)
- Quality guarantee and professional after-sell service
Product Description
Our PCB Manufacturing Capability:
| Item | Specification | |
| 1 | Numbr of Layer | 1,2,4,6,8 Layer pcb, multilayer pcb |
| 2 | Material | FR4, Aluminum, Flexible |
| 3 | Surface Finish | HASL(LF), Gold plating, Immersion gold/Tin |
| 4 | Finish Board Thickness | 0.2mm-6.00 mm(8mil-126mil) |
| 5 | Copper Thickness | 1/2 oz min;12 oz max |
| 6 | Solder Mask | Green/Black/White/Red/Blue/Yellow |
| 7 | Min.Trace Width & Line Spacing | 0.075mm/0.1mm(3mil/4mil) |
| 8 | Min.Hole Diameter for CNC Driling | 0.1mm(4mil) |
| 9 | Min.Hole Diameter for punching | 0.9mm(35mil) |
| 10 | Biggest panel size | 610mm*508mm |
| 11 | Hole Positon | +/-0.075mm(3mil) CNC Driling |
| 12 | Conductor Width(W) | 0.05mm(2mil)or;+/-20% of original artwork |
| 13 | Hole Diameter(H) | PTH L:+/-0.075mm(3mil);NonPTH L:+/-0.05mm(2mil) |
| 14 | Outline Tolerance | 0.125mm(5mil) CNC Routing;+/-0.15mm(6mil) |
| 15 | Warp & Twist | 0.70% |
| 16 | Insulation Resistance | 10Kohm-20Mohm |
| 17 | Conductivity | <50ohm |
| 18 | Test Voltage | 10-300V |
| 19 | Panel Size | 110×100mm(min);660×600mm(max) |
| 20 | Layer-layer misregistration | 4 layers:0.15mm(6mil);6 layers:0.25mm(10mil)max |
| 21 | Min.spacing between hole edge to circuity pattern of an inner layer | 0.25mm(10mil) |
| 22 | Min.spacing between board ouline to circuitry pattern of an inner layer | 0.25mm(10mil) |
| 23 | Board thickness tolerance | 4 layers:+/-0.13mm(5mil);6 layers:+/-0.15mm(6mil) |
| 24 | Impedance Control | +/-10% |
| 25 | Different Impendance | +-/10% |

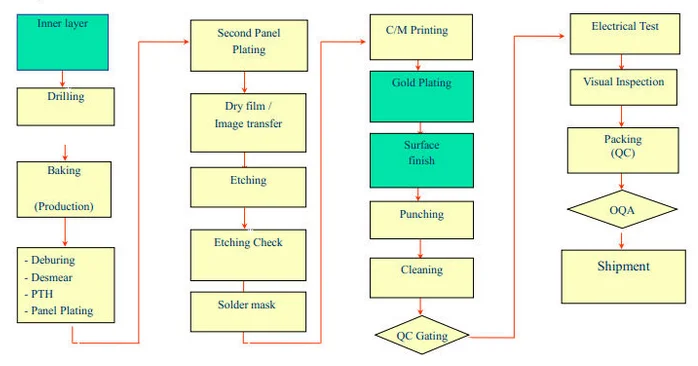

PCB Production Process:
FR4 2 layer printed circuit boards PCB Productions:
Company Information
Company Profile:
Shenzhen Tailhoo Technology Co.,Ltd is a professional pcb Manufacturer, based on Bao'an District Shenzhen.
We have complete production lines with full equipments, including pcb drilling hole machine, printing machine, solder mask machine, silkscreen machine, automatic pcb soldering machine, x-ray machine, laser engraving machine, pcb recycling machine, router machine, pcb cutting machine,v-cut machine, pcb SMT assembly machine, washing machine etc.
We are rich experiences in pcb manufacture, component source/purchase, pcb assembly pcba and electronic design services. and we can make single sided pcb, double sided pcb, multilayer pcb and provide high quality pcba assembly services.
Our mission is to reach your requirements with the high quality standards in fast lead time.
We will try our best to become your best one-stop electronic development solution provider.
Our Factory Machines And PCB Production Lines:
SMT Process:
Any PCB Design, PCB Manufacture and PCB Assembly PCBA , welcome to enquiry!
If you send us your Gerber Files, PCB specifications and Bom list, we will quote it for you asap.
We will try our best to provide competitive price and good quality productions for you.
Try us! Thanks.
