Die Cut Self adhesive EVA Foam Gasket
- Category: Gaskets >>>
- Supplier: Dongguan Leader Optronics Technology Co. Ltd.
Share on (60354008929):
Product Overview
Description
Die Cut Self Adhesive EVA Foam Gasket/Seals/Washer/Strip
-Manufacturer/Foam gasket/Seals/Washer/strip
Specifications:
| Product Description | -Custonmized shapes and size are available -Precision die cutting -Hardness:25°~80°. -Density:0.109~0.325g/cm3 |
| Function | -Sound absorption,insulation,shock resistant -Sealing and flame resistant,sticking, conductive -Shielding,back-lighting, heat resistant, buffering -Dust-proof, slip-resistant,waterproof |
| Other Optional Materials | Poron foam,EPDM foam,PU foam,PE foam,PVC foam,CR foam,etc |
| Thickness Range | 0.3mm~50mm |
| Max. use temperature | -30℃~105℃ |
| Application | 1,Automobile accessories 2,Household appliances 3,Consumer electronics |
| Process of | |
| Die-cutting Capabilities | Lamination Cutting Stamping Die-cutting Assembly |
| Tighest Tolerance | +/- 0.1mm +/- 0.15mm ISO Tolerance Standard |
| Tape Application | Available |
| Typical Tape | 3M 467MP, 3M 9448, 3M 9495LE, Nitto, Tesa, Sony |
| Volume | Over 5 million |
| Turn Around Time | Mold Building: 1-2 Days Sample Lead Time: 3-5 Days Mass Production Lead time: 8-12 Days |
| In-process Inspection | First Artical Inspection IPQC Last Artical Inspection |
Properties
| Typic EVA Foam Material Properties | ||||
| Cell structure | Closed cell | |||
| Color | white,black | |||
| Thickness | [0.3,50]mm | |||
| Service temperature | -30--+105℃ | |||
| Density | GB/T6343-1995 | 95±15Kg/m3 | ||
| Compression strength(25%) | GB/T8813-1988 | ≥ 60KPa | ||
| Tensile strengh | GB/T 6344-1996 | ≥ 500KPa | ||
| Elogation @ break | GB/T 6344-1996 | ≥ 150% | ||
| Tear strength | GB/T10808-89 | 16N/cm | ||
| Oxygen index | GB/T2406-93 | 8.00% | ||

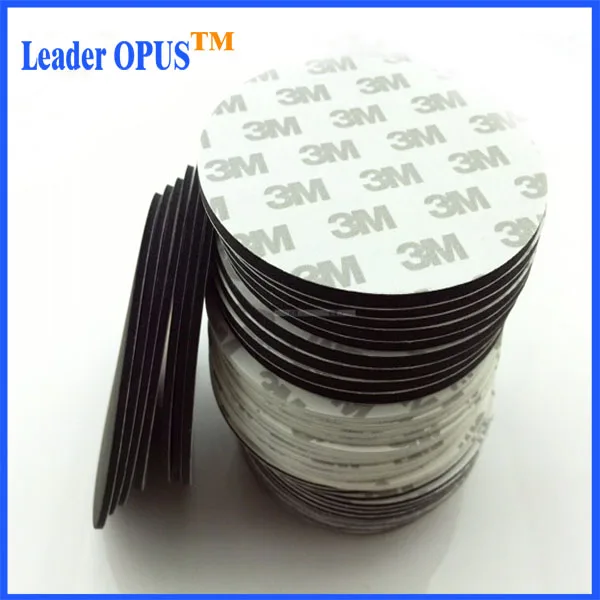

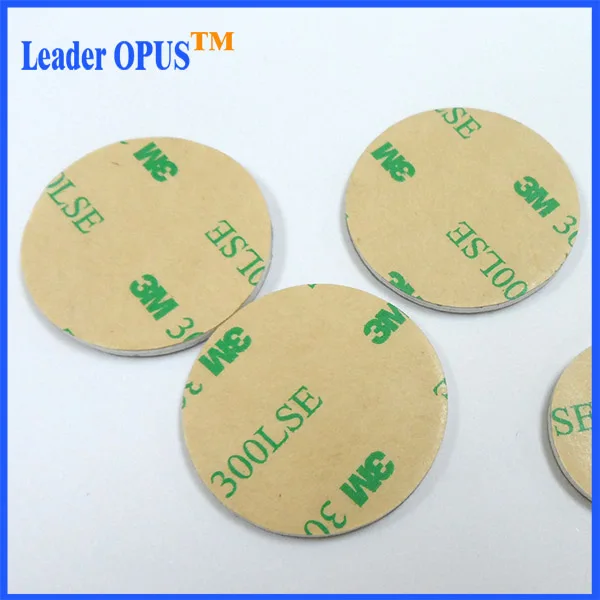

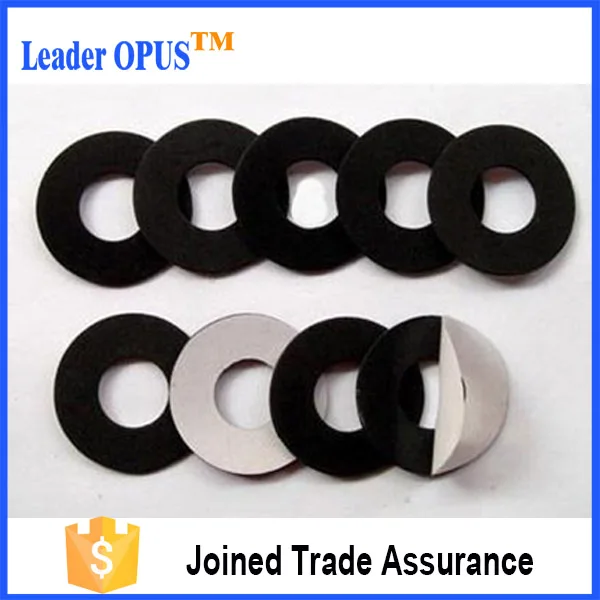

Product Show
Company Information
Dongguan Leader Optronics Technology Co.,Ltd is well known in China,Our die cutting gaskets are widely used in the Telecommunications, Electronics, Automotive appliance, LCD/TV, Battery Models, and Computer/ Notebook
industries. From die cutting gasket designs, prototype samples to large scale full production runs, Leader
OPUS has the equipment, experience, and dedicated technology to provide you with a satisfying product on
time.
Leader OPUS, your number one source of die cutting gaskets manufacturer, offer a wide range of high quality customized die cutting gaskets/washer/seal/strip to suit your any demand. Come and contact us!
