slip type safety chuck for air shaft

Product Overview

Description

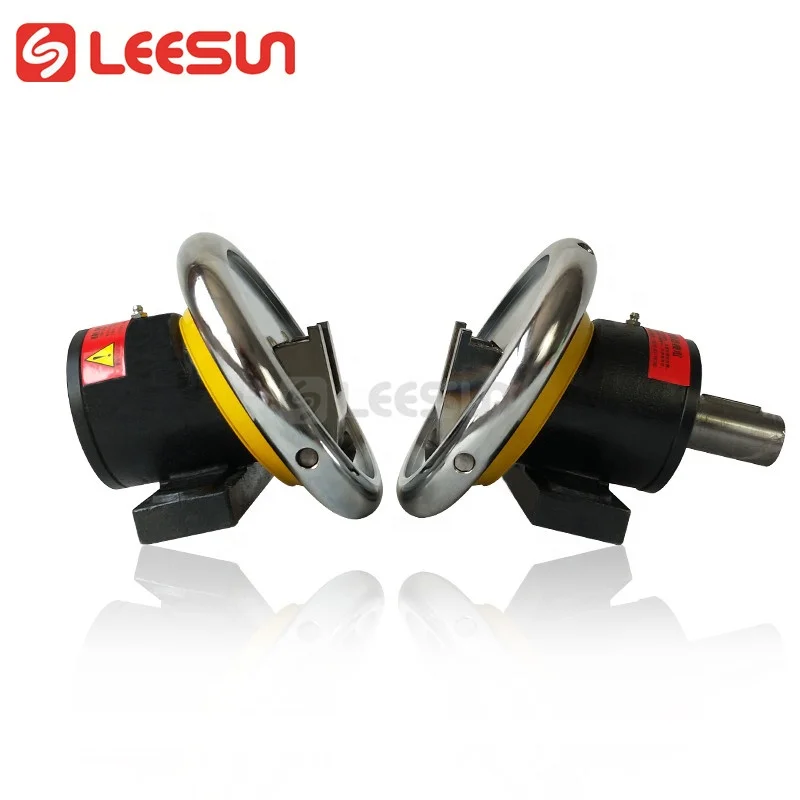

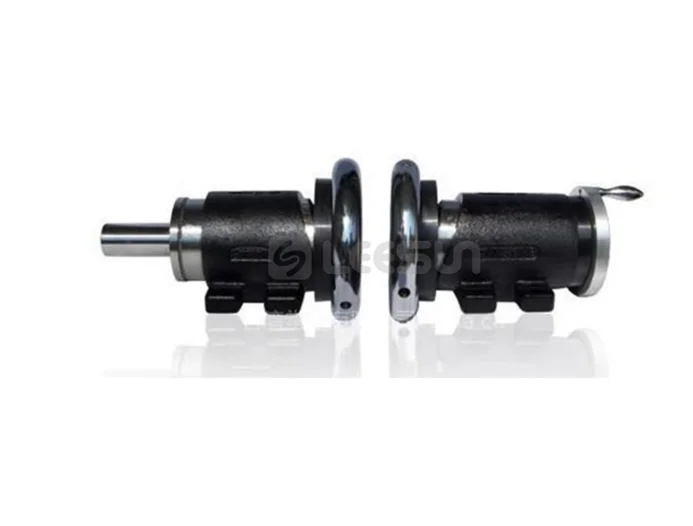

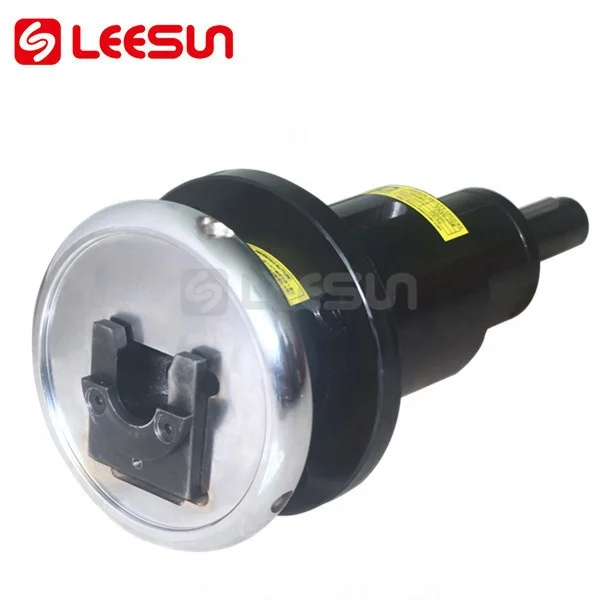

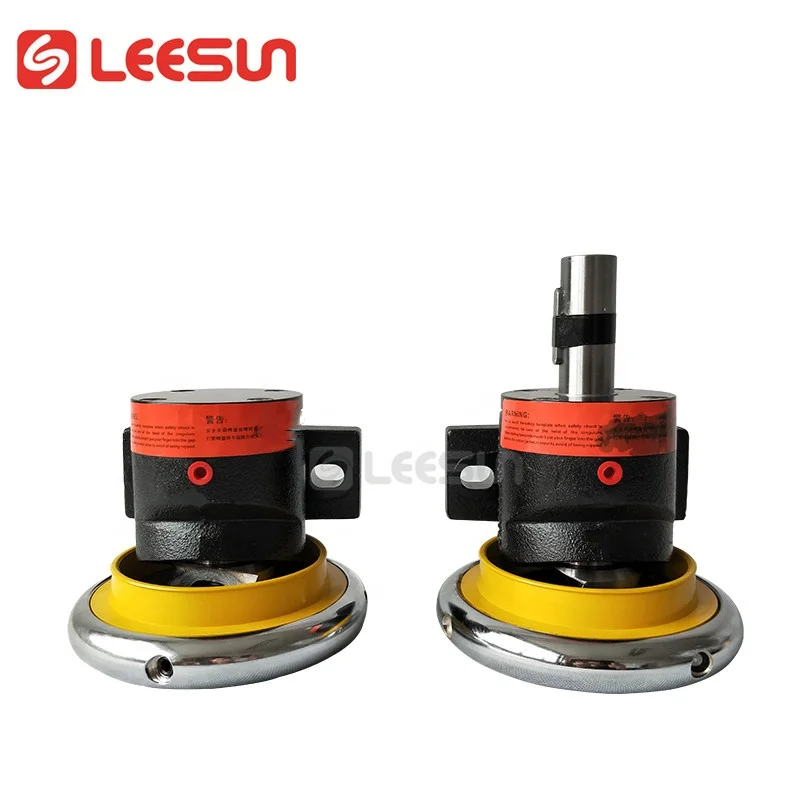

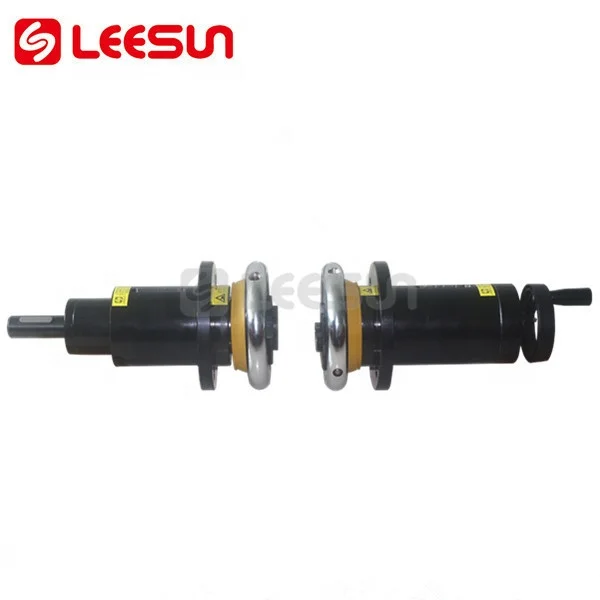

                                                   Slip type safety chuck for air shaft

 slip type safety chuck Product Overview:

 The new design LEESUN safety chucks provide speed, accuracy, simple, safety and effective connecting device for continuous motion shaft (air shaft), to avoid winding shaft from loosening or tightening during operation which to improve working efficiency and product quality. It has  slip type safety chuck and has several bayonet coupling options to match different air shafts, allowed to scroll in the process of the machine is running for axial adjustment, adjustment can be done automatically by the handwheel or institutions, the axial positioning device ensure the security of the scrolls, accurately convey the torque.









  Slip type safety chuck Product Features:

1,The safety chuck is a coupling which can make the operating mechanism requiring connection of drive and breaking away from action works more fast,more accurate,more simple and more safety.

2,The mouth of chuck utilize the special heat treatment to exted service life greatly.

3,All crtical dimension of the chuck is processed by the machining center and CNC machining to ensure pasitioning accuracy.



4. Nickeling and hardening treatment for mouth can bring high stiffness and robustness, which can assure favorable performance in high load and high speed.



5. Reasonable tolerance design on mouth parts can assure smoothness and continuousness in torque transmission, which can extend greatly safety performance for machinery.

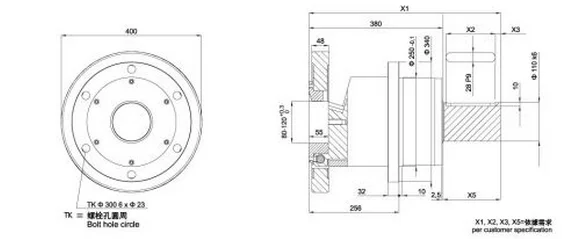

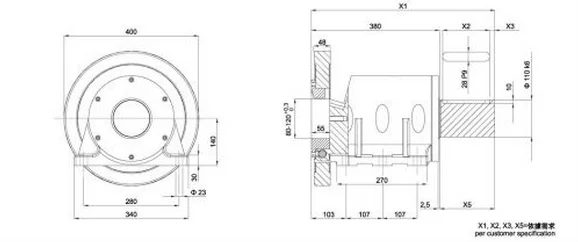

  Slip type safety chuck  Data:







specification:35#slip type safety chuck :



Model	SKW28#	SKW35#	SKW50#
Maximumloading(kg)	700	1400	2800
Maximum toque kg/m(N.m)	15(150)	30(300)	110(1100)
Size of square rod(mm)	22/25/28/30	30/32/35/38/40	40/42/45/48/50
Weight(kg)	20	22	25

















 Installation Notes:

Installation notes:"LEESUN" brand safety chuck has ensured the process accuracy at the extend allowed range when it is at the time of manufacture,but it's nonconcentricity should be less than 0.3^o,when it is installed with air shaft,then it can ensure less wear between air shaft and the mouth of the chuck to extend service life.If the error is too large to cause the vibration of rack and machine,please pay special attention!
