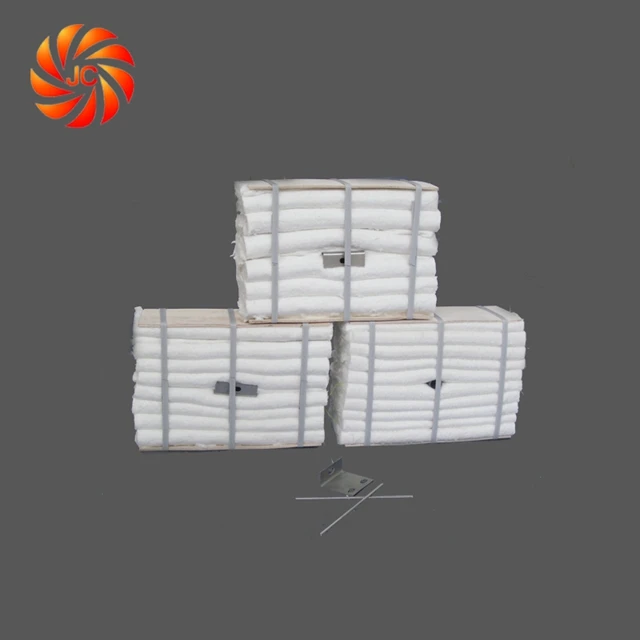

Fire Ceramic fiber module with SS 304 or SS310 anchor for oven

Product Overview

Description

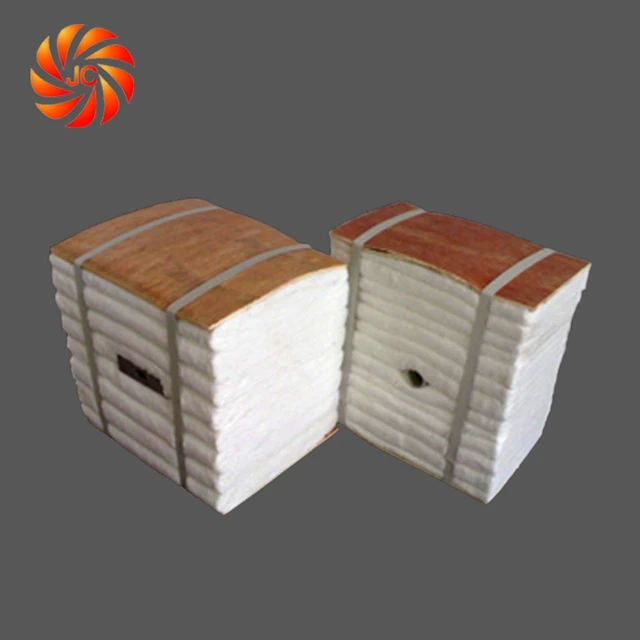

CERAMIC FIBER MODULE/FOLDED BLOCK



Product Description:



Refractory ceramic fiber module is a new refractory lining product in order for simplifying and speeding up the furnace construction and improving the lining integrity. The product, pure white, normal size, can be directly fixed on the anchor bolt of industrial furnace steel sheet, with a good fireproof and thermal insulation, which increase the furnace refractory insulation integrity and improve the furnace lining technology. Its classification temperature (From 1050°Cto 1600°C).





Charactistics and Specification :

  1.  Excellent chemical stability



  2.  Excellent thermal stability

  3.  Excellent flexibility, the module is in pre-compression state, after the lining masonry



  4.  The Expansion of modules enable seamless lining,fiber lining can be compensated to improve



  5. Insulation performance of Fiber lining, and the overall performance is good



  6.  Excellent thermal stability and thermal shock resistance



  7.  Ceramic fiber module can be installed quickly, and anchors set in the wall lining, which can lower the requiement of anchor material





Typical  Application:



 1.  Furnace lining and insulation of furnace in Petrochemical industry

 2.  Furnace lining and insulation of furnace in Metallurgical industry

 3.  Furnace lining and insulation of furnace in Ceramics, glass and other builfinh materials industry

 4.  Furnace lining and insulation of heat treatment furnace in heat treatment circle

 5.  other industrial furnace lining



Technical Data:



Type		Common	Standard	Zirconium
Classification temperature (°C)		1260	1260	1400
Shrinkage on heating (%)		950°C×24h≤-3	1000°C×24h≤-3	1350×24h≤-3
Density (kg/m3)		200
Size  (mm)		300 × 300 × 200,300×300×250,300 × 300 × 300
Package		carton
Certificate		ISO9001-2000





Shipping Arrangment



first loading port :Qingdao



According  the goods,we send by sea,by air ,or by express

Can we accept OEM ?

YES! We can according your demand to produce.

Can we accept the detective of the third-party verification company ?

YES! We can accept the detective from any third-party verification company including the SGS, BV and so on.

If you have any enquiry,please don't hesitate to contact us,SUNTHERM will provide our best products and services for you!!
