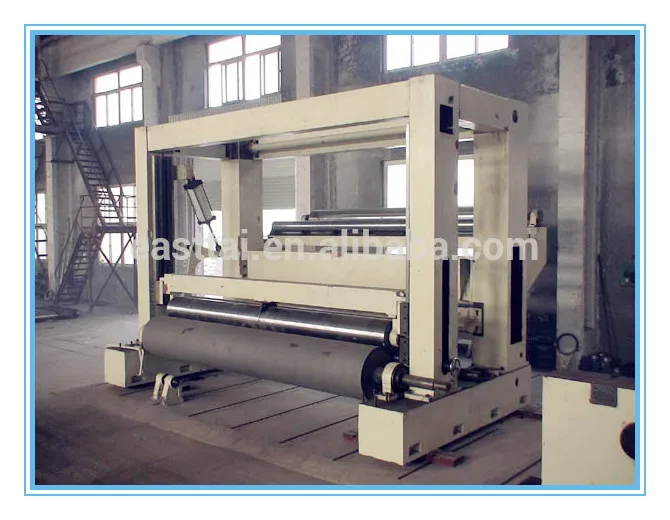

Thermal Paper Reel Slitter Rewinding Machine
Product Description
Specifications:
Working pressure:0.3~0.8MPa
Material:CI,HT250~350
Hardness: HB190~260
Face length:1450~8000mm
Working speed:200~800m/min
Back roll-----Wire section----One-line Vaccum press------Double positive press-----Diameter 1500mm dryer cylinders 18+1 pieces (8+ MG +10 form arrange)----calender----- Horizontal pope reeling machine
Back roll section, vat former section, press section, dryer section, size press,
calender, pope reel, mechanical drive section, electricy and gas, foundation
section etc.
Technical Specification for 2500mm Six Groups Dryer Section
A. Technical Description:
1)Paper grade:Test liner, Fluting paper
2)Basic weight: 100-200 g/m2
3)Trim width: 2550-4500mm
4)Working speed:80-300m/min
5)Bearing center: 3000-6000mm
6)Capacity: 40-300TPD
7)Kind of loading: Pneumatic
8)Kind of drive: AC frequency converter, sectional drive
B. Dryer Section:
1. Dryer Cylinder Device 6 sets
2. Guiding roll device
3. Spring paper carrying roll device 4 sets
4. Pneumatic Guider 2 sets
Size Press:
1. Paper grade: Test Liner, Cardboard paper
2. Original basic weight: 100-200 g/m2
3. Trim width: 2550-4500mm
4. Bearing center: 3400-6000mm
5. Working speed: 80-300 m/min
6. Design speed: 160 m/min
7. Amount of sizing: Single layer: 2-3g/m2
Double layer: 4-6 g/m2
Consistency: 8-12%
8. Kind of drive: AC frequency converter, sectional drive
9. Layout of paper machine: Left hand (or Right hand)
10. Working linear pressure: 120KN/M
11. Kind of drive: AC frequency converter, sectional drive
Basic Structure
Company Information
EASTTAI INDUSTRIAL LIMITED is mainly engaged in exporting paper machine and
providing high quality products and service for foreign customers. Our products mainly
exported to Southeast Asia, Africa, Latin America and other more than 10 countries and
areas.

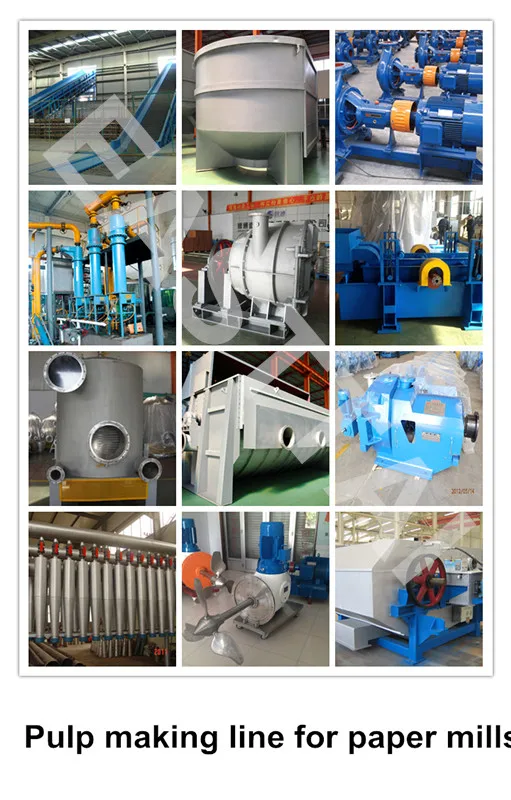

Our factory mainly makes Pulp making line for paper mill:
1.ChainConveyor 2.Bale Breaker 3.Drum Pulper 4.D Type Hydrapulper 5.Middle Consistency Hydrapulper 6.High Consistency Hydrapulper 7.Vertical Hydrapulper 8.Hydrapurger 9.Drum Screen 10.Ragger 11.Grapple 12.Rope Cutter 13.High Density Cleaner 14.Rotary Coarse Screen 15.Z Single Effect Fiber Separator 16.Single Fiber Separator | 17.Reject Separator 18. Auto-cleaning Vibrating Screen 19.Mid Density Cleaner 20.Low Density Cleaner 21.Mid Density Pressure Screen 22.UP-Flow Pressure Screen 23.Inflow Pressure Screen 24.Double-drum Pressure Screen 25.Disc Thickner 26.Double Disc Refiner 27.Double Disc Refiner 28.Claflin Refiner 29.Conical Refiner 30.Square Pulp Chest Agitator 31.Sludge Dewatering Machine 32.Two-phase Flow Pulp Pump |

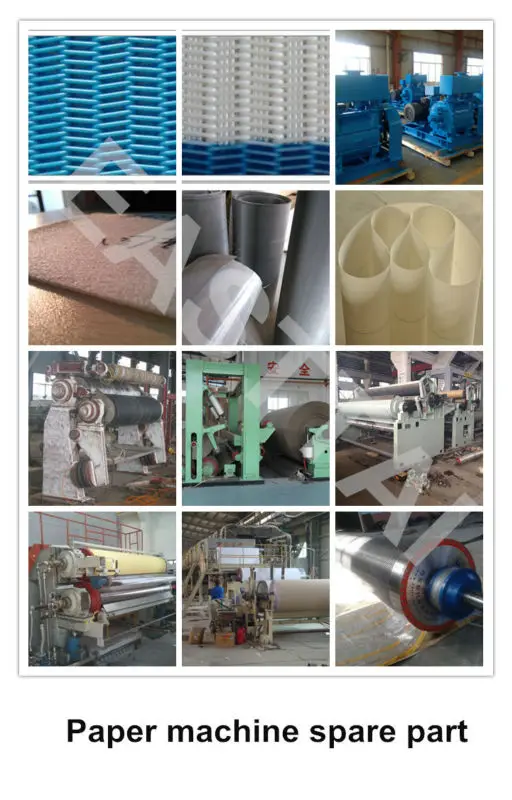

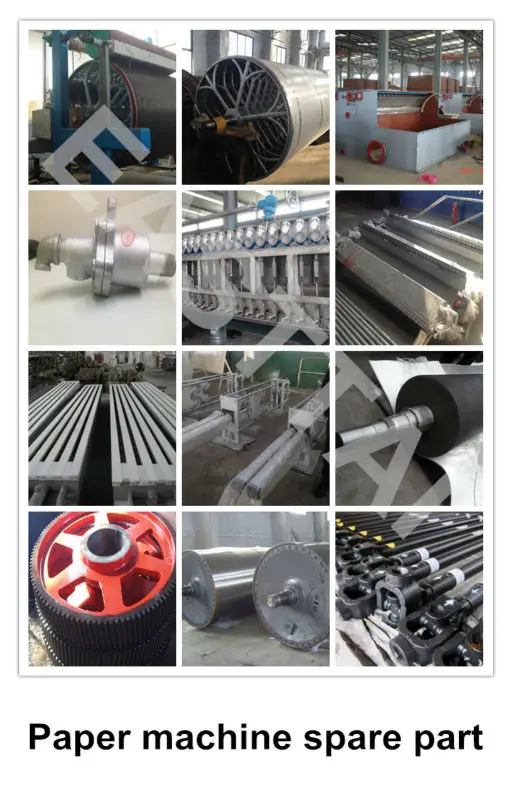

We also supply other paper machinery spare part:
Cylinder Mould, Roller, Headbox, Hood, Paper Calender, Doctor, Size press, Press felt,
Forming fabric, Dryer screen and etc.
Our Services
1. Quality guaranteed.
2. Competitive price.
3. Fast delivery time.
4. Good after sales service.
5. If anything you need help, we will reply you within 24hours.

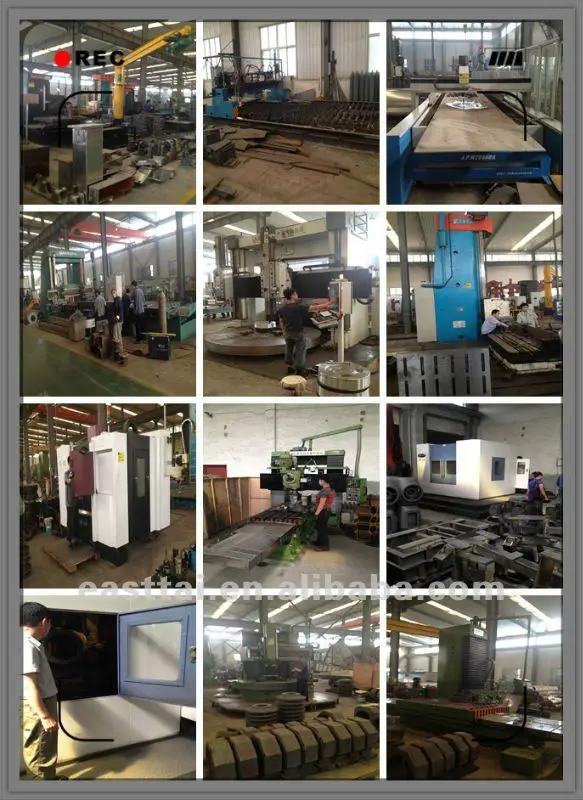

Our Factory
FAQ
1.Why we choose your company, what could you do for me?
-- We have the stable production experience and professional technology.
-- We use the best raw material to guarantee the product’s quality.
-- Warranty: we make our machines one year warranty.
-- We will always give you heart to heart service.
-- We always speak with facts and quality.
2. Could your engineer teach and train our worker and stay in our factory for long time?
--Yes, we have very large engineer installation team,they can train and teach your worker to
operate paper machine,but you should pay them salary.
3.How about price of this product?
-- We can give the most competitive price.
-- We do quotation as soon as possible for any customer.
-- Discount can be given according to quantity.
4.Whether your company can be custom-made?
-- We can make products according to customers’ requirements.
5.What about Warranty? what will we do if the machine is broken down ?
-- Ours Warranty is 1 year for whole machinery.
-- We will provide the technical advice and find the solution immediately for you when the
machine is in trouble-shoot.
-- For those wear parts, we guarantee the high quality parts for long-term supply.
