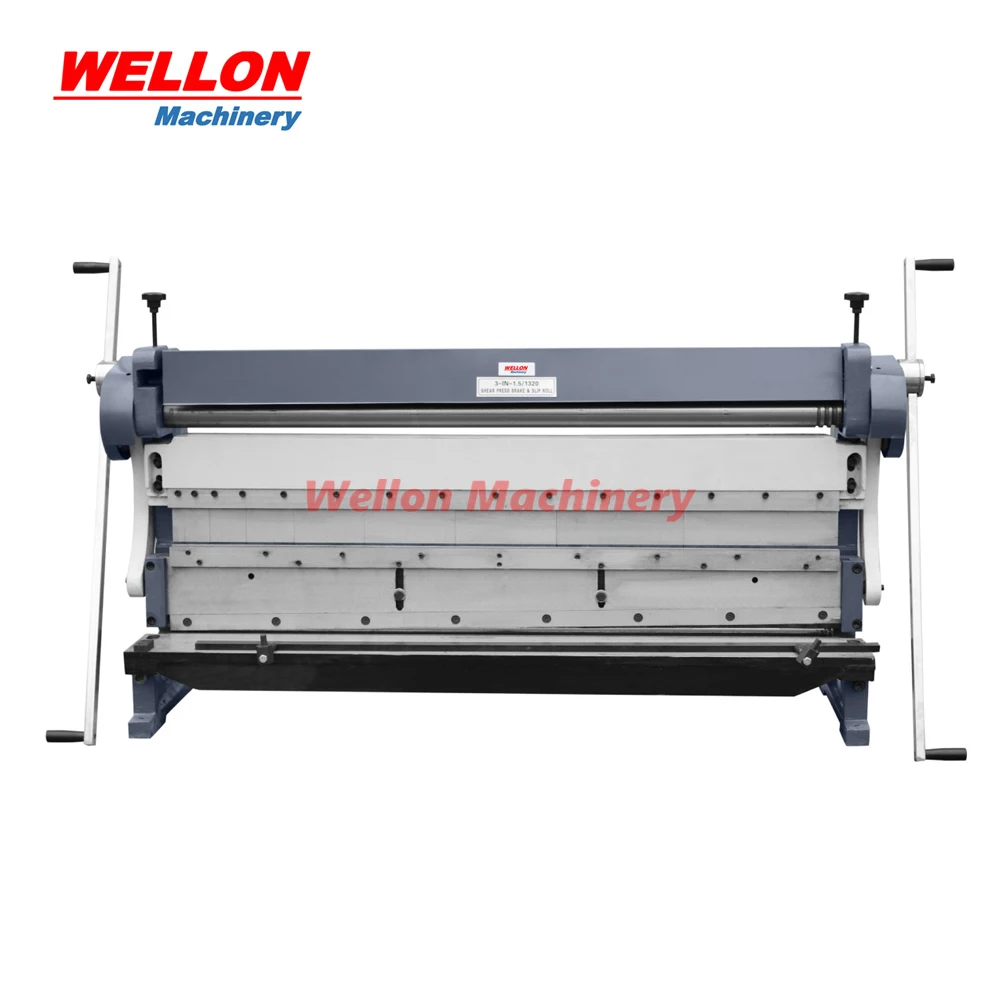

Multi Purpose Shearing Bending Rolling Machine 3 IN 1/1067x1.5 3 IN 1/1320X1.5

Product Overview

Description

Multi Purpose Shearing Bending Rolling Machine 3-IN-1/1067x1.5  3-IN-1/1320X1.5



Features:

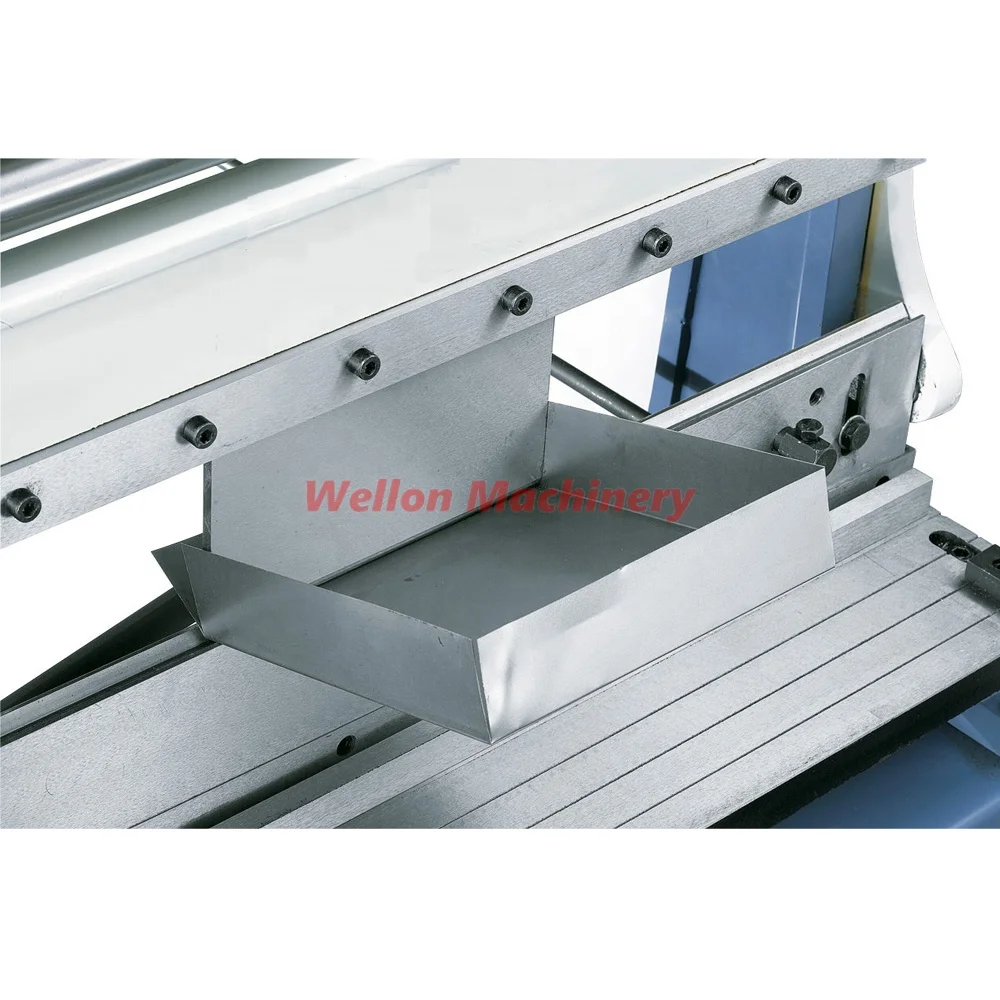

1. Press brake has hardened adjustable dies that allows the fabricator to make certain boxes and pans

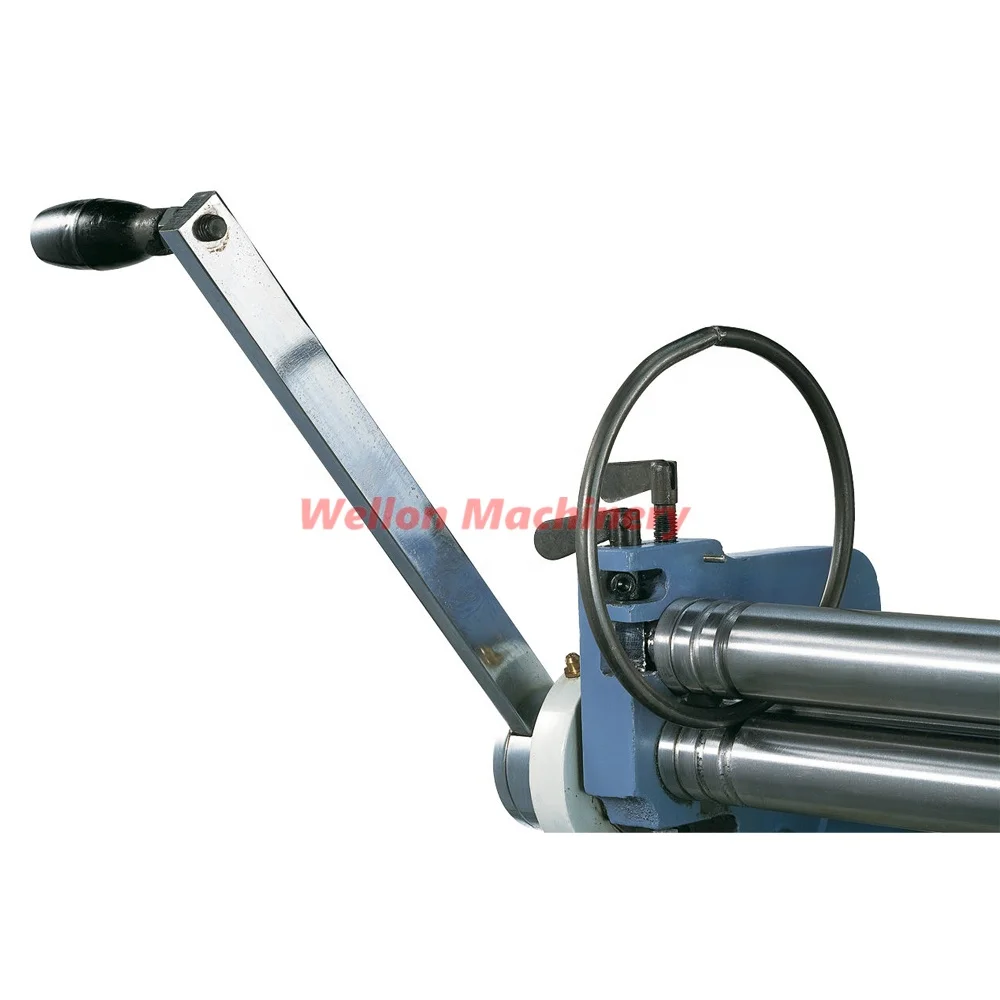

2. Slip rolls has hardened rolls with three wire grooves for small round rod

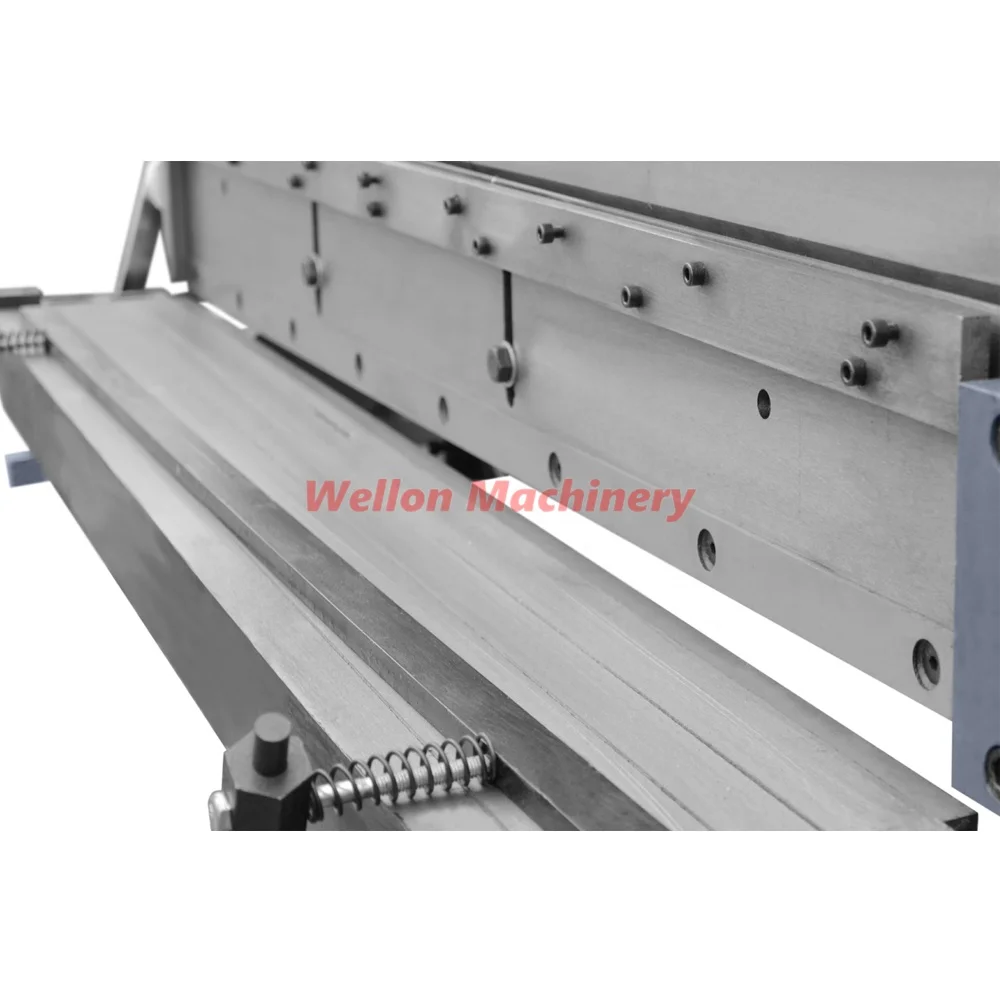

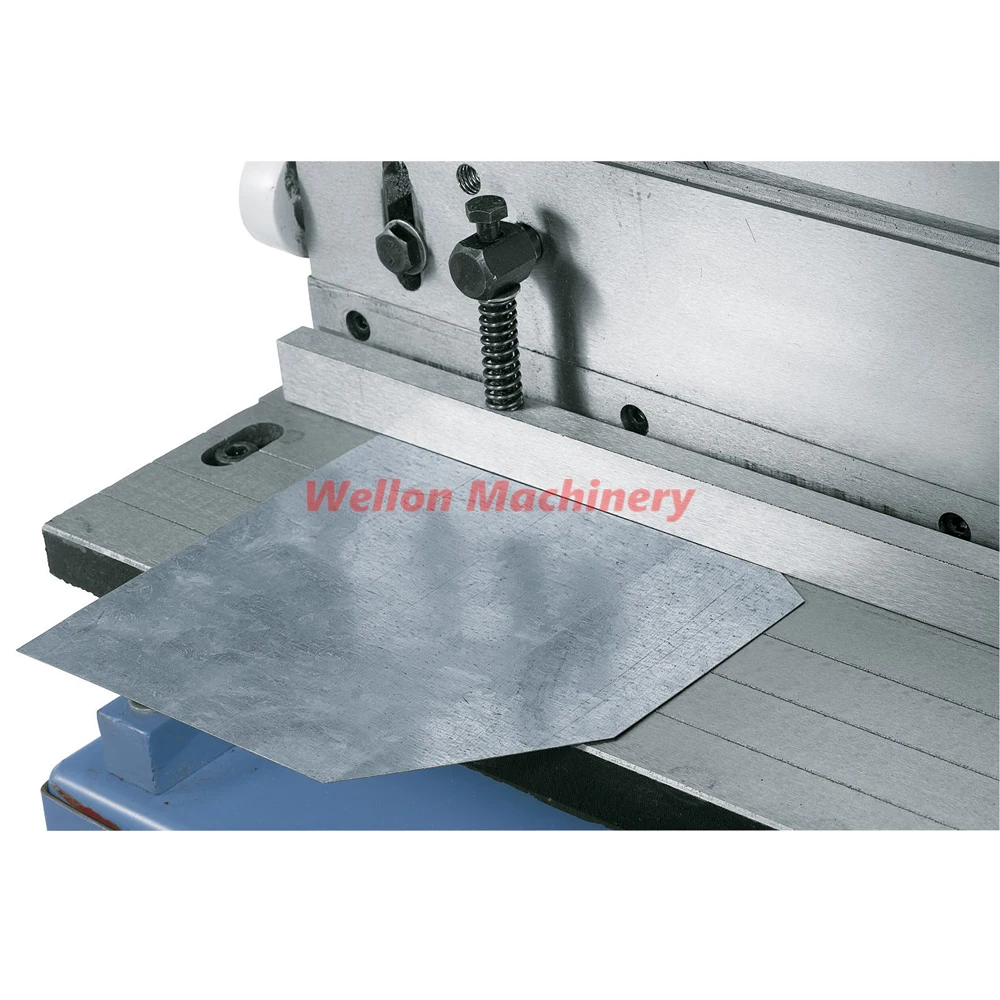

3. The metal shear can cut at full capacity across the entire width of the machine.
4. Folding with max. Angle of 90°
5. A back gauge is included to help with repeatability.
6. Heavy-duty type with capacity up to 1.5mm

 Technical Parameter :

Model	3-IN-1/1067x1.5	3-IN-1/1320x1.5
Bed width (mm)	1067	1320
Max. shearing thickness (mm)	1.5	1.5
Max. bending thickness (mm)	1.5	1.5
Max. Bending angle	90°	90°
Max. Rolling thickness (mm)	1.5	1.5
Min. Rolling dia. (mm)	62	60
Packing size (cm)	150x59x93	179x59x93
N.W. / G.W. (kg)	390/440	470/530

Standard accessories:
1.Back gauge
2.Two position handles
