The Descripetion of our Digital car inclinometer for leveling system
Sensor ZCT215L-SQS-A1B-1907 is one low cost tilt switch.
It is with core of 32 bits microprocessor to calibrate zero and sensitivity deviation, make high reliability and consistency. There are four default alarm and one programmable alarm point.
Product Feature
What's the Feature of our Digital car inclinometer for leveling system?
Robust plastic housing;
32bits microprocessor, quick operation speed;
Non-touch sensitive component, with long life.
Product Parameters
What's the technical parameters of our Digital car inclinometer for leveling system?
Electric parameter
Parameter
Test condition
Min.
Typ.
Max.
Unit
Power supply
DC
8
12
30
V
Quiescent current
Horizontal ,no load Vcc=12V
30
40
mA
Output interface
Relay output(Max 1A, Voltage less than 30V(DC))
Performance parameter
Parameter
Test condition
Min.
Typ.
Max.
Unit
Alarm angle
Horizontal mount
X:2,Y:3
°
X:1.5,Y:1.5
°
X:1.5,Y:3
°
X:2,Y:2
°
0.1
X,Y programmable
15
°
Resolution
Room 25°
0.03
0.04
0.05
°
Accuracy
Room 25°
±0.1
°
Absolute zero deviation
Room 25°
±0.2
±0.5
°
Zero temp deviation
In work range
±0.5
±0.87
°
Alarm delay
3
s
Environment suitability
Parameter
Test condition
Min.
Typ.
Max.
Unit
Store temp range
-30
+85
°C
Work temp range
-30
+85
°C
Other parameter
Parameter
Test condition
Min.
Typ.
Max.
Unit
Housing material
Plastic
Housing size
100*50*30
mm
Weight
Without cable
130
150
170
g
Cable length
0.8
1
1.2
M

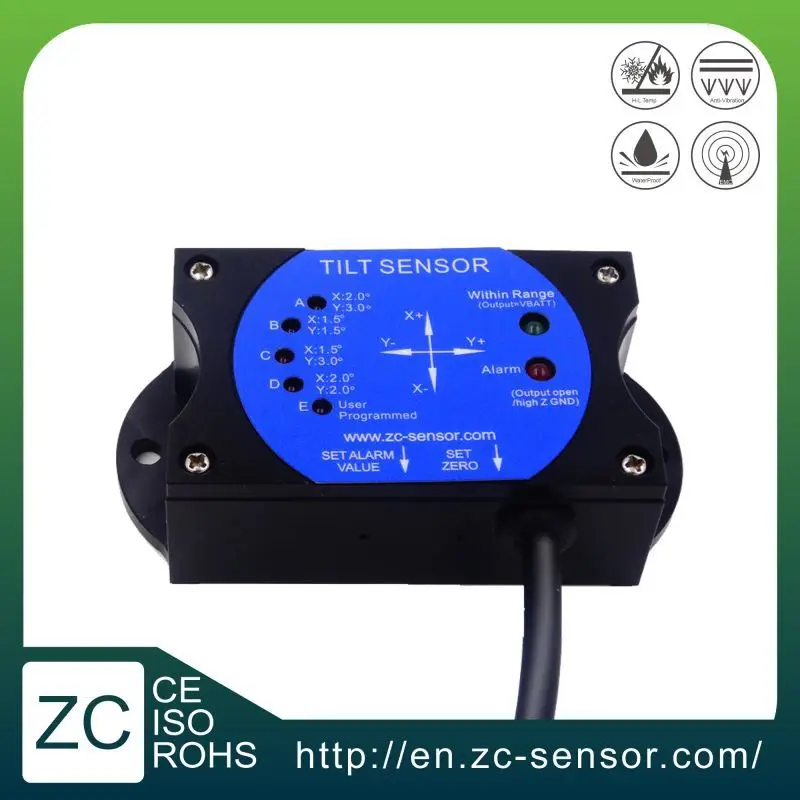

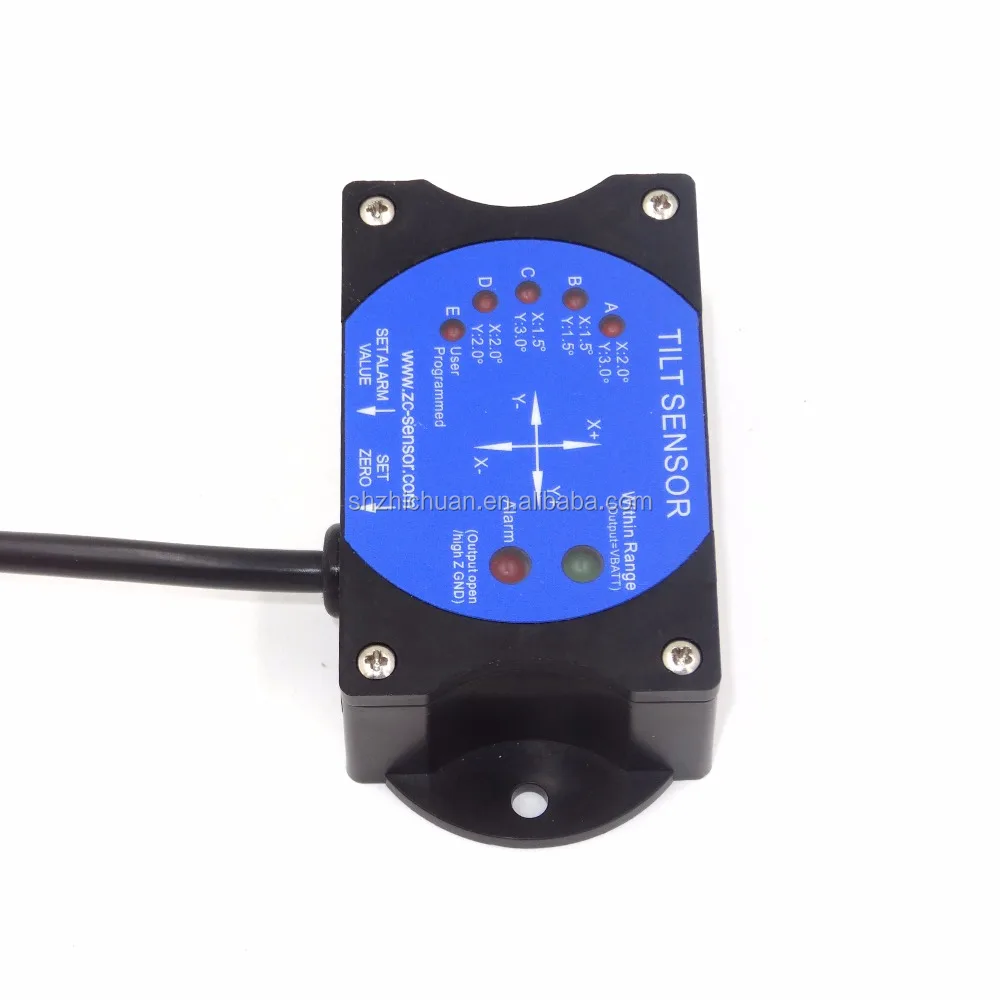

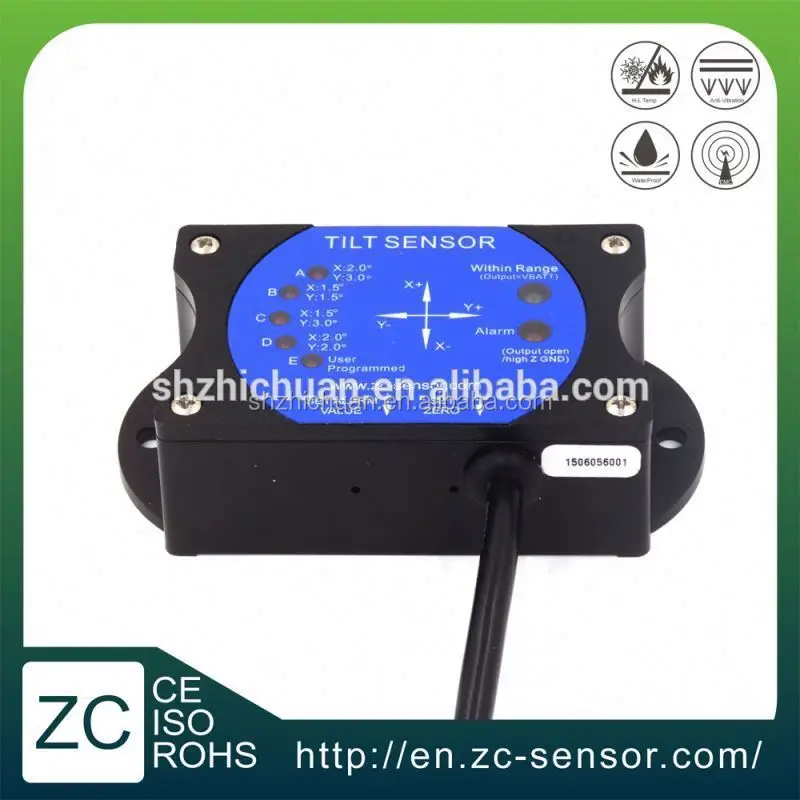

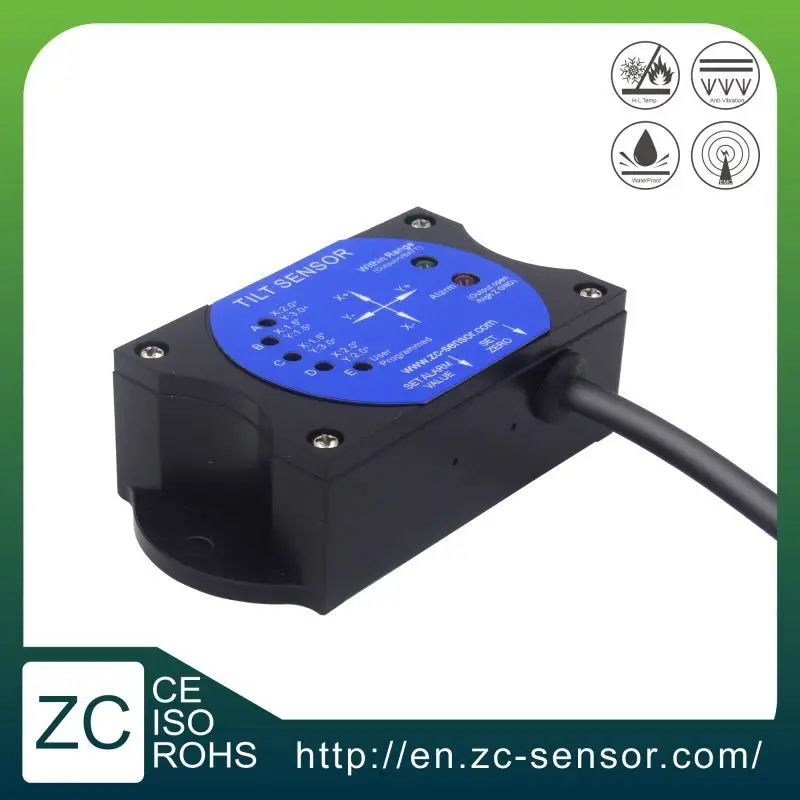

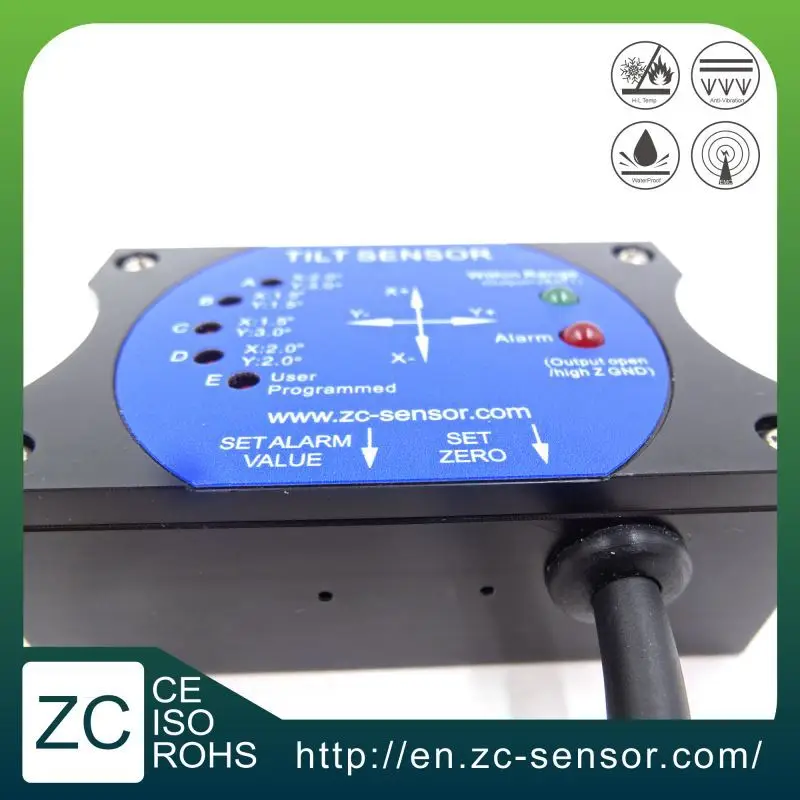

Detail Picture
The product photos of our Digital car inclinometer for leveling system

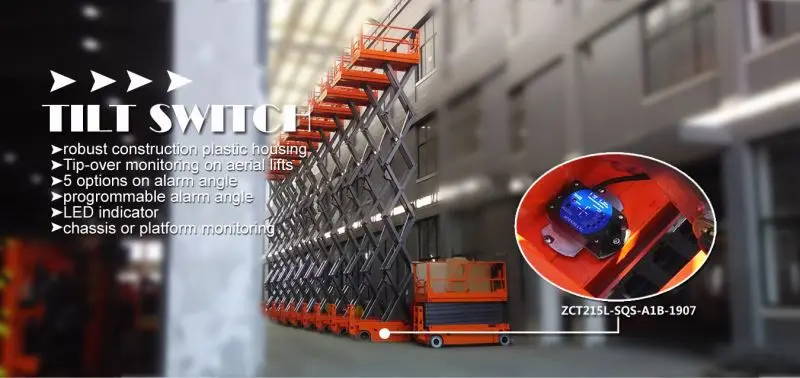

Applications
What's the application of our Digital car inclinometer for leveling system?
Tower crane tilt monitoring;
Electronic automatic leveling monitoring;
Aerial lifts tip-over monitoring;
Packaging & Shipping
The package of Digital car inclinometer for leveling system
