Машина для обмотки шин

Product Overview

Description

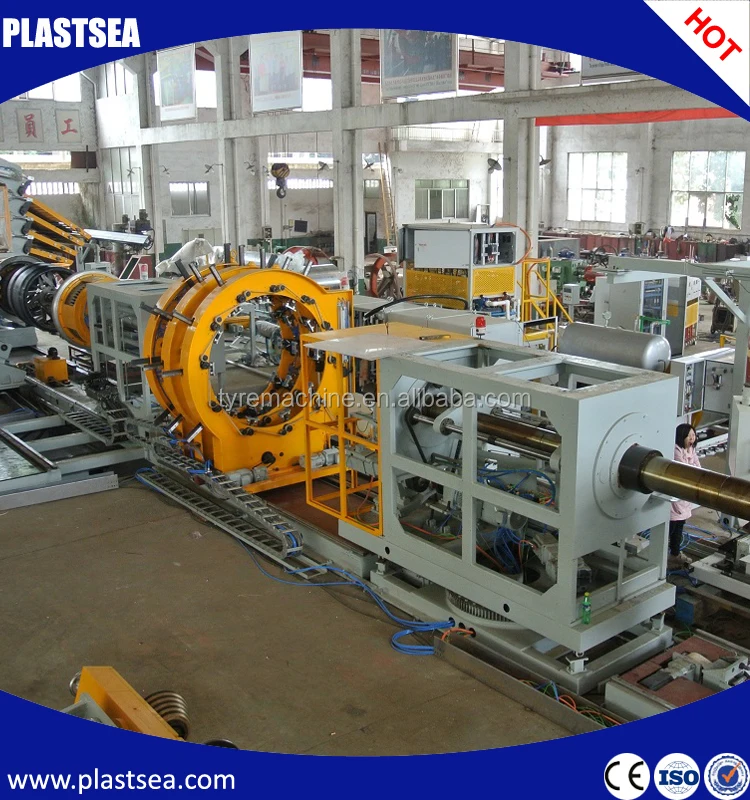

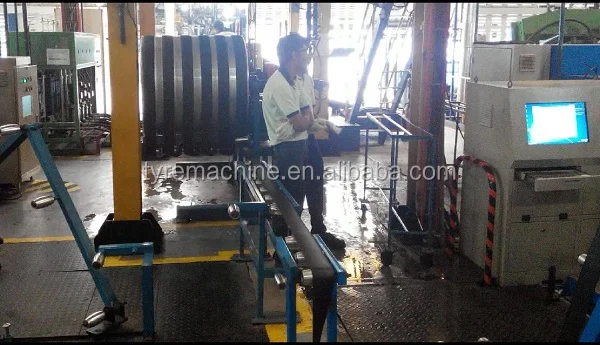

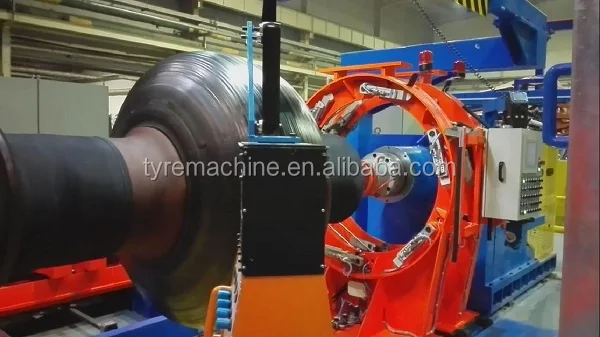

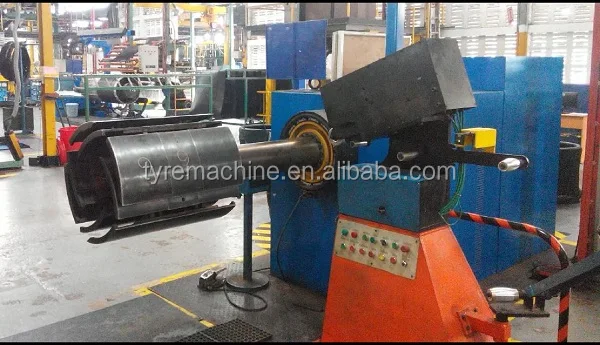

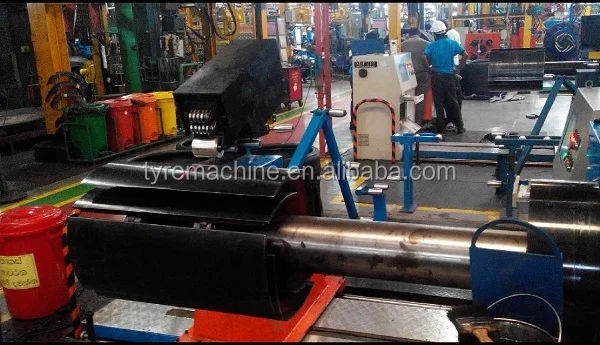

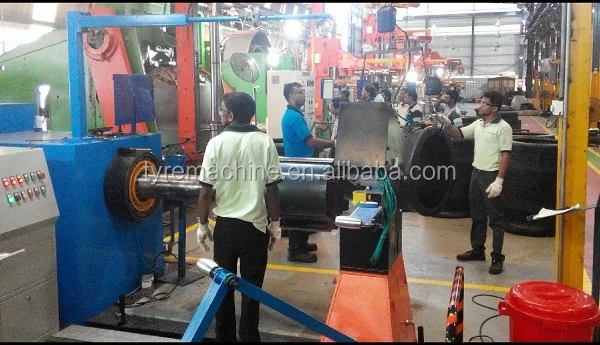

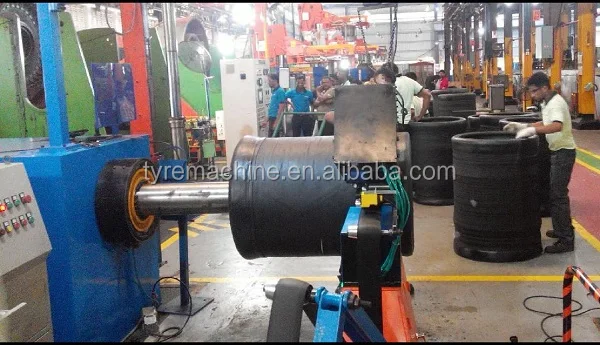

This tread winding machine is used for winding the tread on the tire building drum automatically, and the tread is directly extruded from the extruder.

This machine makes the tire building work easily with high work efficiency and greatly improve the quality of the tire. It presses the air between the tread by its pressing device to avoid the air bubble of the tread. It can save much manpower and guarantee the security of the operator.

This machine is much suitable for the OTR/AGR radial tire production.



Models Parameters	XYZ-1800	XYZ-1200
Winding thickness of tread mm	0-150	0-120
Winding speed m/min	0-50	0-50
Max. crosswise stroke of winding mm	1800	1200
Accuracy of tread winding weight	±2%	±2%
Accuracy of tread winding thickness mm	±1	±1
Max. lengthwise stroke of winding mm	1000	1000
Max. rotation angle of the winding head	160°	160°
Temperature of the rubber strip during winding ℃	≤60	≤60
Rubber strip size mm	Width 60-70 Thickness 3-5	Width 60-70 Thickness 3-5
