Термоформовочная Машина для пластиковых лотков с серводвигателем большого размера

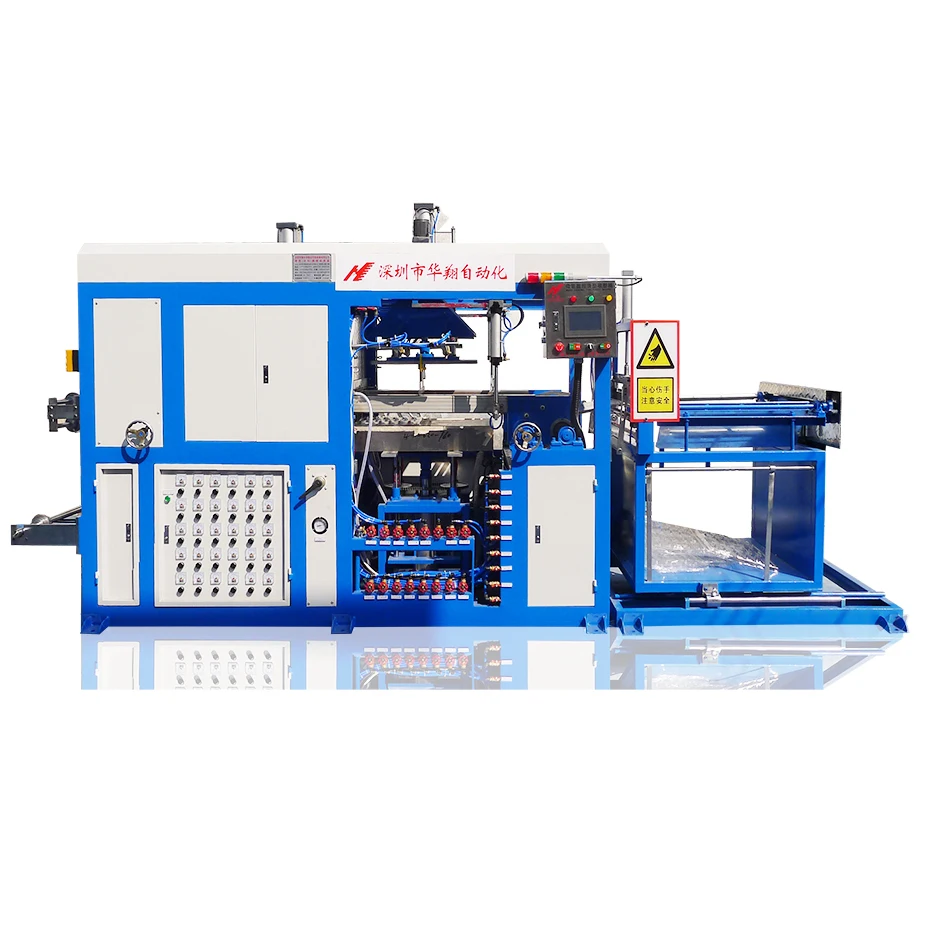

Model:HX-700 Vacuum Forming Machine compact type

Vacuum forming is a simplified version of thermoforming, whereby a sheet of plastic is heated to a forming temperature, stretched onto a single-surface mold, and forced against the mold by a vacuum is formed into permanent objects such as turnpike signs and protective covers.

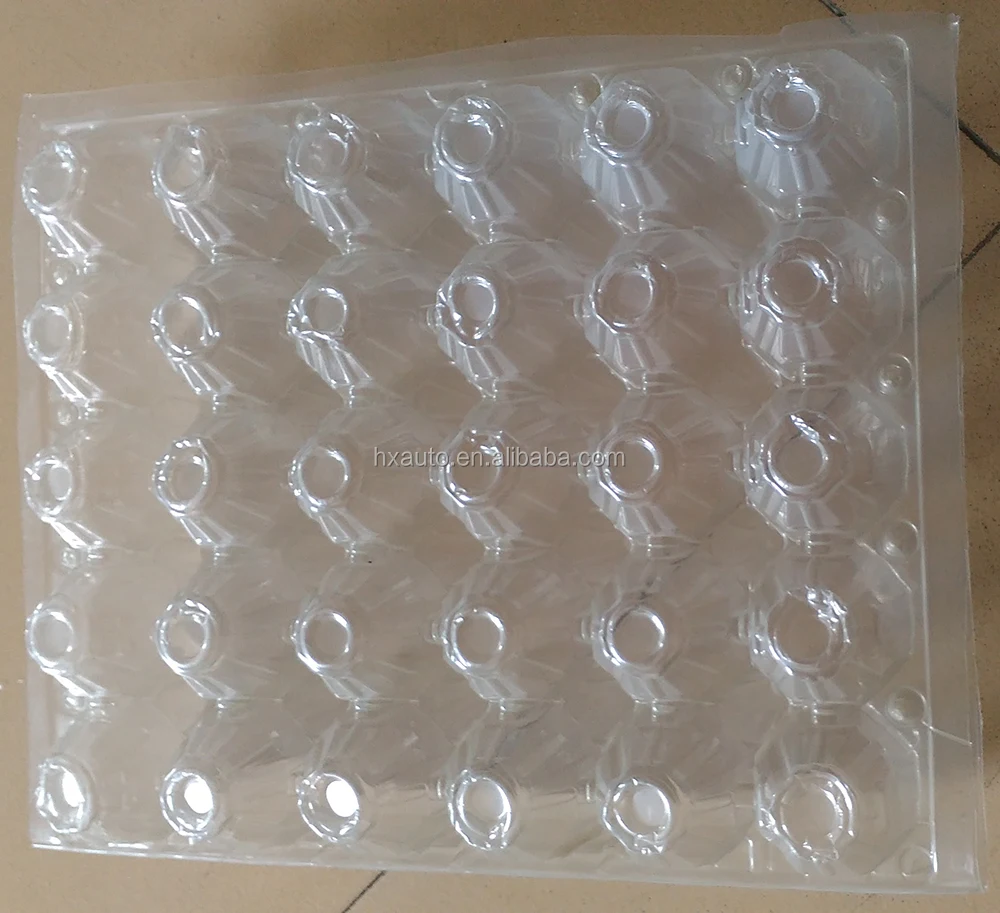

Typical application

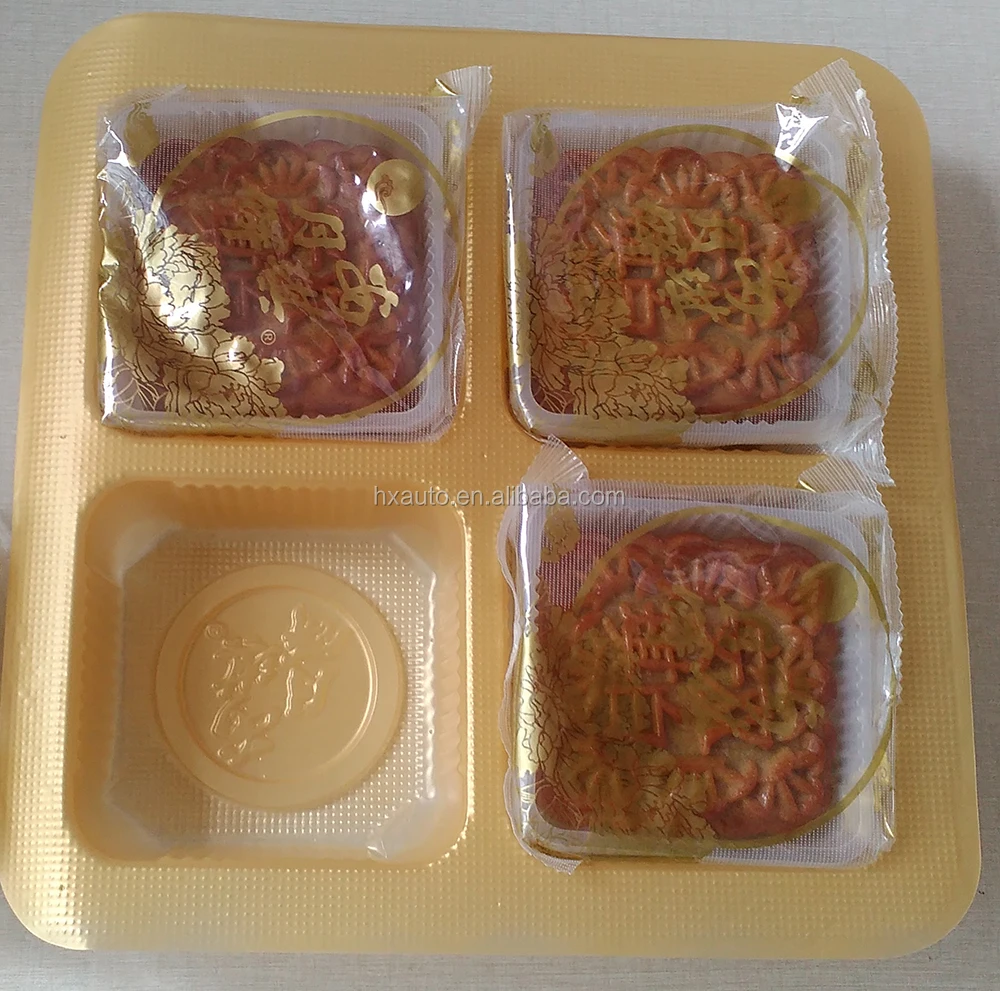

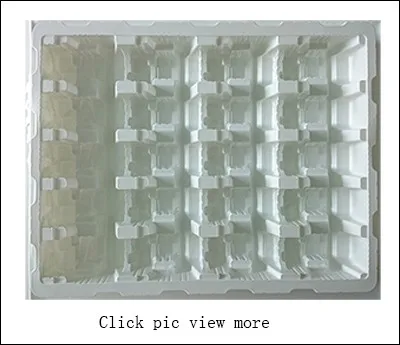

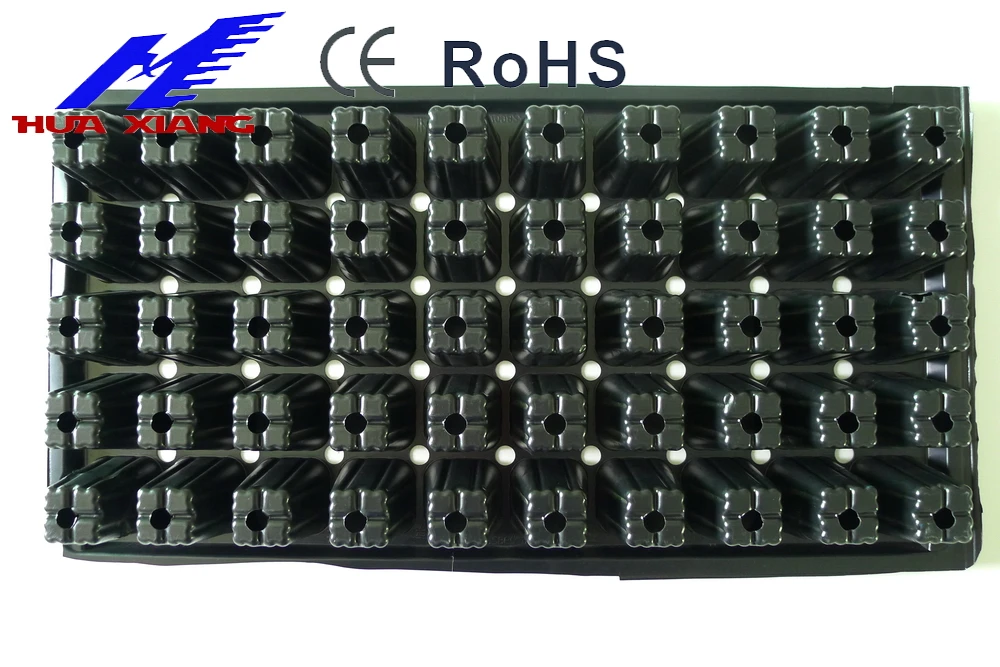

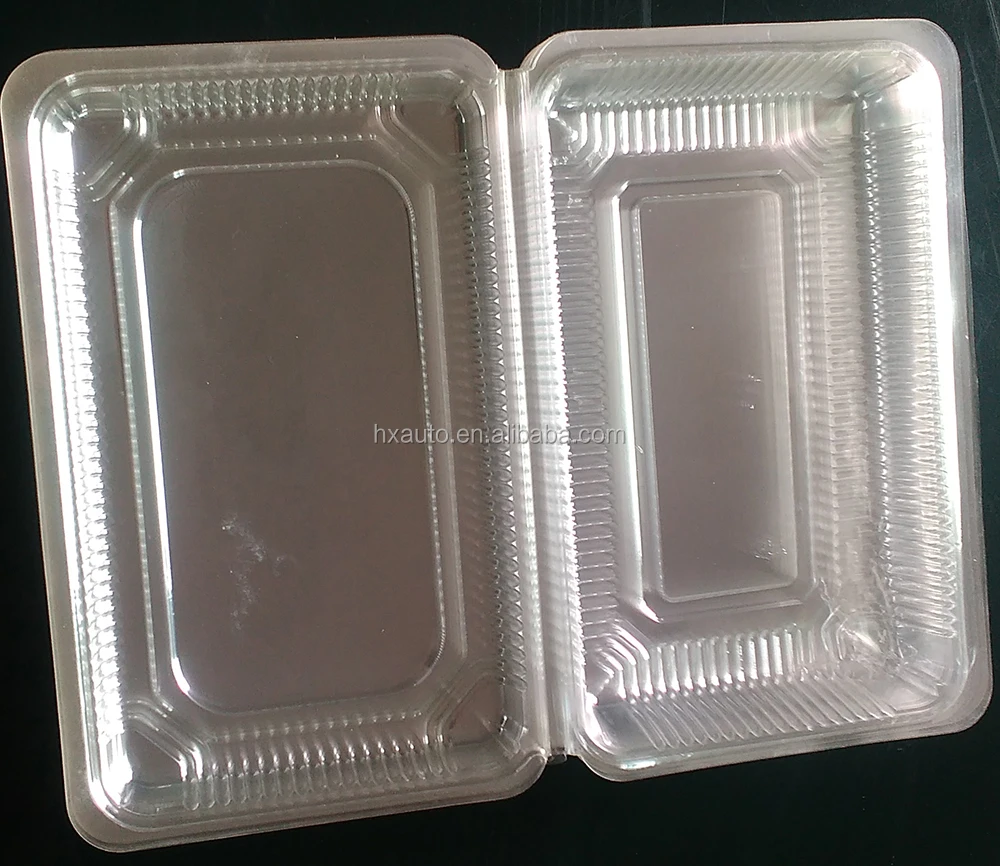

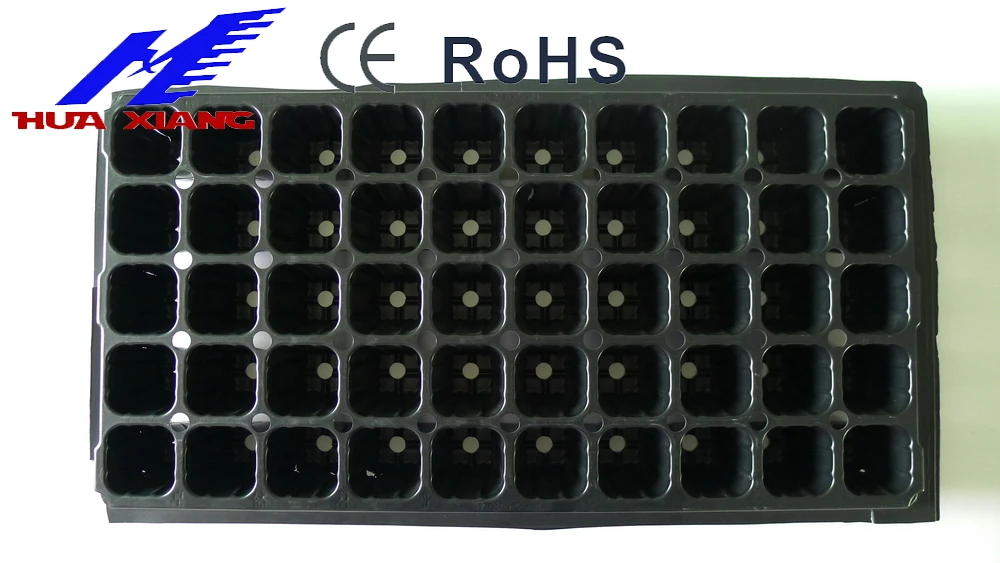

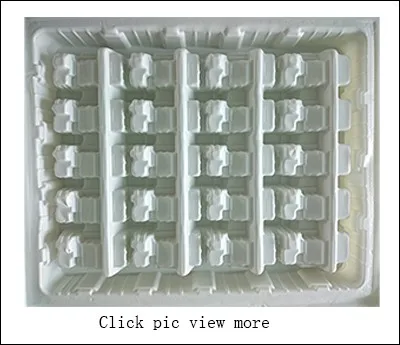

Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.

Types of thermoforming molds
Wood Patterns ;
Cast aluminum Molds;
Machined aluminum Molds;
Composite Molds;

1) In the digital temperature controller, temperature setting is convenient, high precision of temperature control;

2) Ceramic and radiant-panel oven heaters generally provide more precise and thorough sheet heating Allow for zoning      of ovens into areas of adjustable heat;

3) rather than air cylinders which have traditionally been the industry standard, giving more precise control over closing      and opening speeds and timing of the tooling;

4) The ability to place formed sheet into an inline trim station for more precise trim registration has been hugely                    improved due to the common use of electric servo motors for chain indexing versus air cylinders, gear racks, and            clutches on older machines;

5) Electric servo motors are used on forming machines for actuation of the machine platens where form and trim                  tooling are mounted;

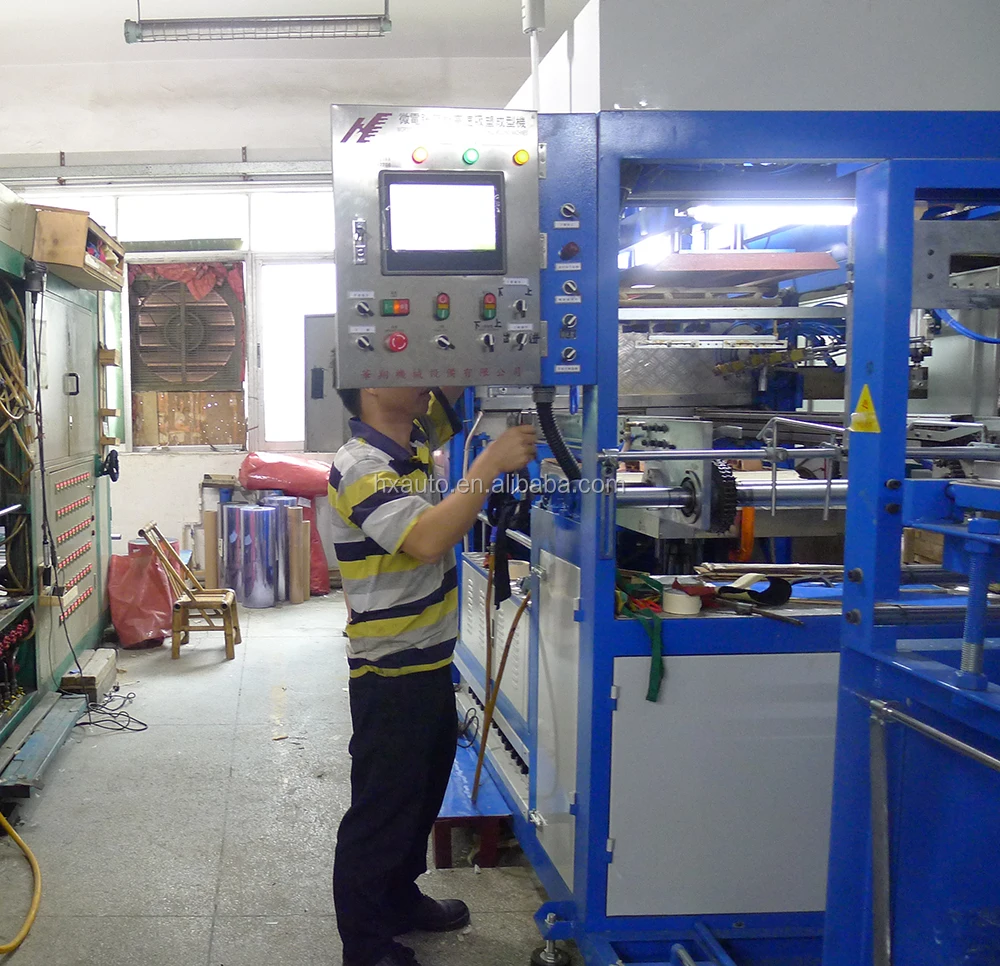

PLC Control with 7' Touch Screen
Ceramic Heaters with Full Temperature
30 Independently Controllable Heating Zones
Pneumatic Heater Drive
Pneumatically Powered Clamping Frame
Digital Timer
Twin Cooling Fans
Cooling Bolster
Dynamoelectric Table with Rack and Pinion
2 Stage Clamping
Reel Feed

400 Programme Memory
Ceramic Heaters with Variable Standby
Servo Powered Table with Height adjust
Servo Electric Plug Assist
Vacuum Receiver Tank
Vacuum Flow Regulator
Vacuum and Pressure Gauges
Rietschie Thomas Vacuum Pump
Safety Light Curtain
6 Spray Gun (Spray Mist)
Auto-level

We will introduce an update of its machine, as well as some new small machine. A new line of fuel-efficient engines will also be available. Further information you will find in sections "Brochure" and "Technical Data".

Forming size:
HX-700:610*710 mm
HX-18: 710-1220 mm

Machine Video
Please copy below youtube link to see our machine HX-700 Series.
YouTube link:
https://www.youtube.com/watch?v=uhZS54-wDpM&feature=youtu.be

Material: PS
Thickness: 0.7mm
Speed: 10s

1) The machine overs an area of 5.04m²;
2)Requires 20m² of space to place ;
3)In the open air environment;
4) Weight 1500kg

HX-18G PLC control

Automatic Forming Machine
Forming size:710*1220 mm

HX-18B Digital Timer control

Automatic Forming Machine
Forming size:710*1220 mm

HX-700 Compact type

Automatic Forming Machine
Forming size:610*750 mm

HX-600 Compact type 2

Automatic Forming Machine
Forming size:560*740 mm

HX-2224 Semi

Semi-Automatic
Forming size:560*610 mm

HX-2234 Semi Duoble station die

Semi-Automatic
Forming size:560*610 mm

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Shenzhen HuaXiang Factory Co. , Ltd is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the largest enterprise specializing in the production of Forming Machine. Our machine are used a lot in plastic forming,plastic packaging.

Contact
In order to help you choose the best suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material ?
Q2: The size of your sample; length Width and thickness?
